Controls - Front: Sensor-Infrared: Installation

WARNING: This page is about a different car, the 2005 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

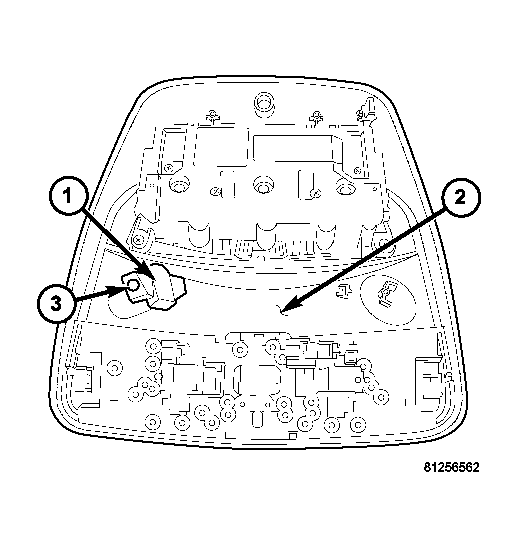

Fig 1: Removing/Installing Infrared Sensor
GC0011020Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the infrared sensor (1) onto the overhead console (2).
  2. Install the screw (3) that secures the infrared sensor to the overhead console. Tighten the screw to 2 N.m (17 in. lbs).
  3. Install the overhead console (Refer to ELECTRICAL/OVERHEAD CONSOLE - INSTALLATION) .
  4. Reconnect the negative battery cable.
