Sensor-Evaporator Temperature: Removal

WARNING: This page is about a different car, the 2005 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: On vehicles equipped with airbags, disable the airbag system before attempting any steering wheel, steering column, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to take the proper precautions could result in accidental airbag deployment and possible personal injury or death.

NOTE: Take the proper precautions to protect the front face of the instrument panel from cosmetic damage during this service procedure.

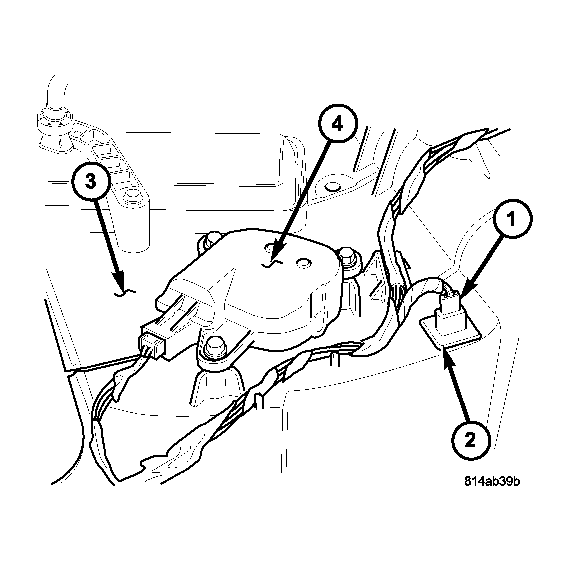

Fig 1: Removing/Installing Evaporator Temperature Sensor

Courtesy of DAIMLERCHRYSLER CORP.

Disconnect and isolate the negative battery cable.
Remove the instrument panel assembly (Refer to BODY/INSTRUMENT PANEL/INSTRUMENT PANEL ASSEMBLY - REMOVAL) .
Disconnect the HVAC wire harness connector (1) from the evaporator temperature sensor (2) located on the top of the HVAC housing (3) near the blend door actuator (4).
Remove the evaporator temperature sensor from the HVAC housing.
