Sensor-Ambient Air Temperature: Installation

WARNING: This page is about a different car, the 2005 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

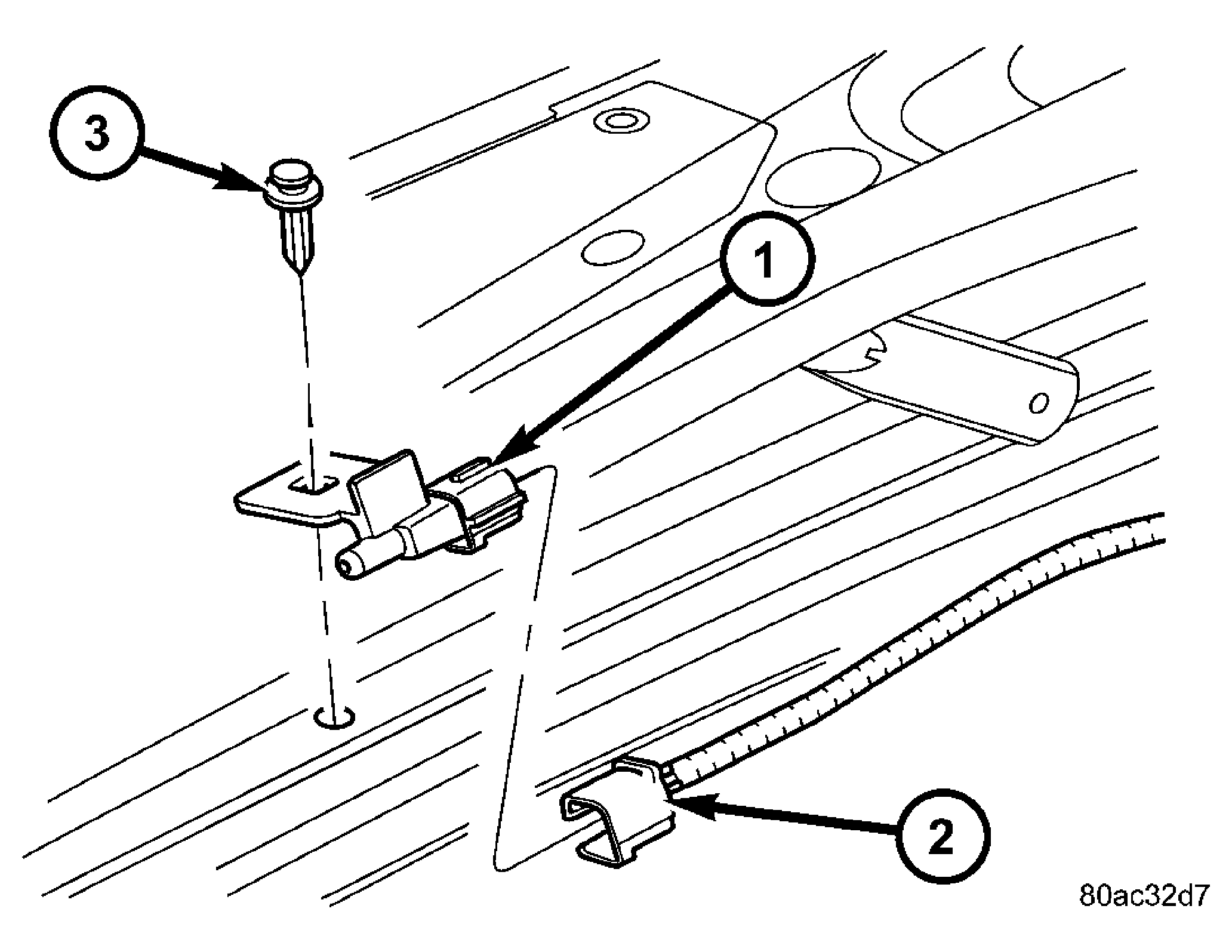

Fig 1: Removing/Installing Ambient Air Temperature Sensor
GC0011016Courtesy of DAIMLERCHRYSLER CORP.
  1. Connect the wire harness connector (2) to the ambient air temperature sensor (1).
  2. Position the ambient air temperature sensor to the inside of the front bumper beam.
  3. Install the push pin (3) that secures the ambient air temperature sensor to the front bumper beam.
  4. Reconnect the negative battery cable.
