Module-Power-Blower Motor: Installation

WARNING: This page is about a different car, the 2005 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

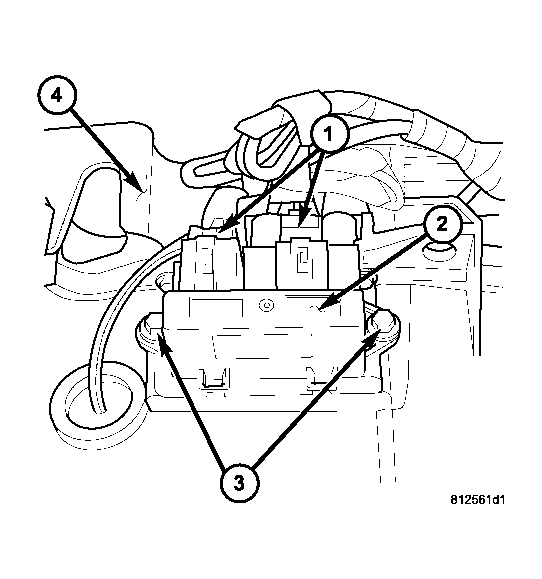

Fig 1: Removing/Installing Power Module
GC0011012Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the blower motor power module (2) into the front HVAC housing (4).
  2. Install the two screws (3) that secure the blower motor power module to the front HVAC housing. Tighten the screws to 2 N.m (17 in. lbs.).
  3. Connect the two wire harness connectors (1) to the blower motor power module.

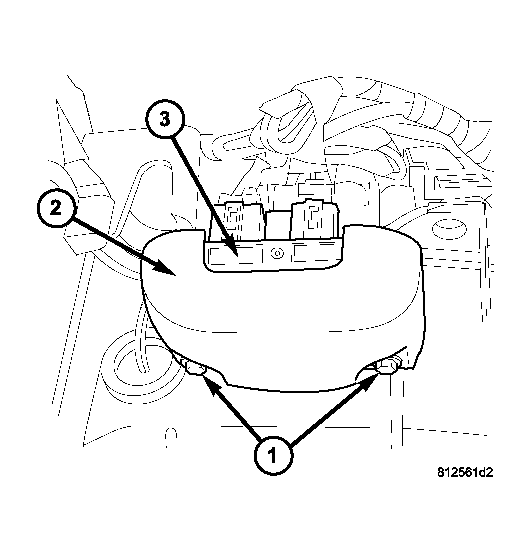

    Fig 2: Locating Screws Securing Trim Cover
    GC0011011Courtesy of DAIMLERCHRYSLER CORP.
  4. Install the trim cover (2) over the blower motor power module (3).
  5. Install the two screws (1) that secure the trim cover to the front HVAC housing. Tighten the screws to 2 N.m (17 in. lbs.).
  6. Reconnect the negative battery cable.
