Control-A/C Heater: Installation

WARNING: This page is about a different car, the 2005 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

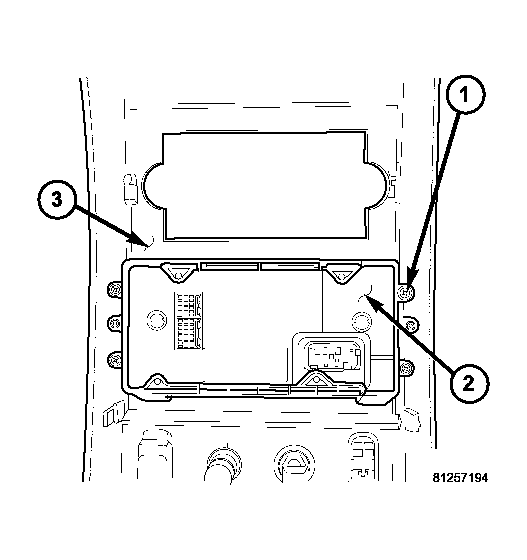

Fig 1: Removing/Installing A/C Heater Control To Center Bezel
GC0011010Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the A/C-heater control (2) into the instrument panel center bezel (3).
  2. Install the screws (1) that secure the A/C-heater control to the instrument panel center bezel. Tighten the screws to 2 N.m (17 in. lbs.).

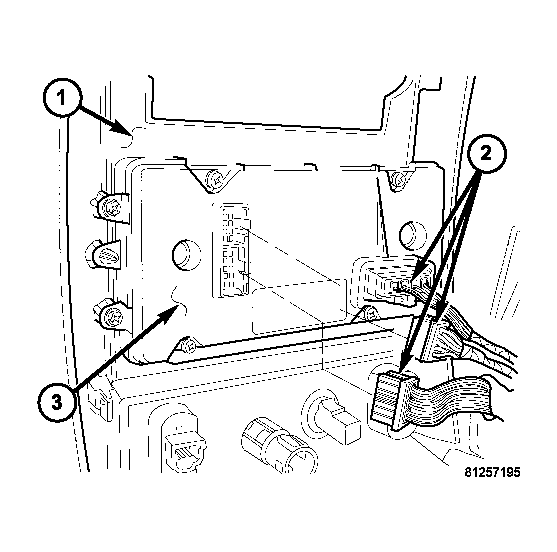

    Fig 2: Removing/Installing Center Bezel With A/C Heater Control
    GC0011009Courtesy of DAIMLERCHRYSLER CORP.
  3. Connect the wire harness connector(s) (2) to the A/C-heater control (3) and install the instrument panel center bezel (1) (Refer to BEZEL-CENTER .
  4. Reconnect the negative battery cable.
