Section 388 (Speed Control): Reservoir-Vacuum: Installation
WARNING: This page is about a different car, the 2005 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of DAIMLERCHRYSLER CORP.

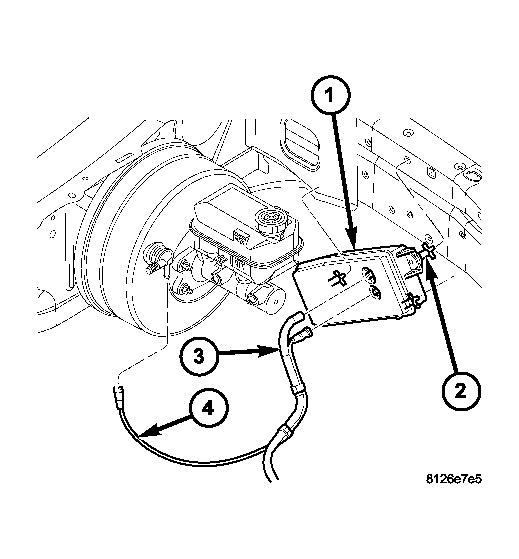

- Position reservoir (1) onto inner fender.
- Install three clips (2) to reservoir. Attach reservoir to inner fender by pushing clips into fender.
- Connect vacuum lines (3) and (4) to reservoir fittings.
