Switch-Remote Radio: Installation
WARNING: This page is about a different car, the 2005 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

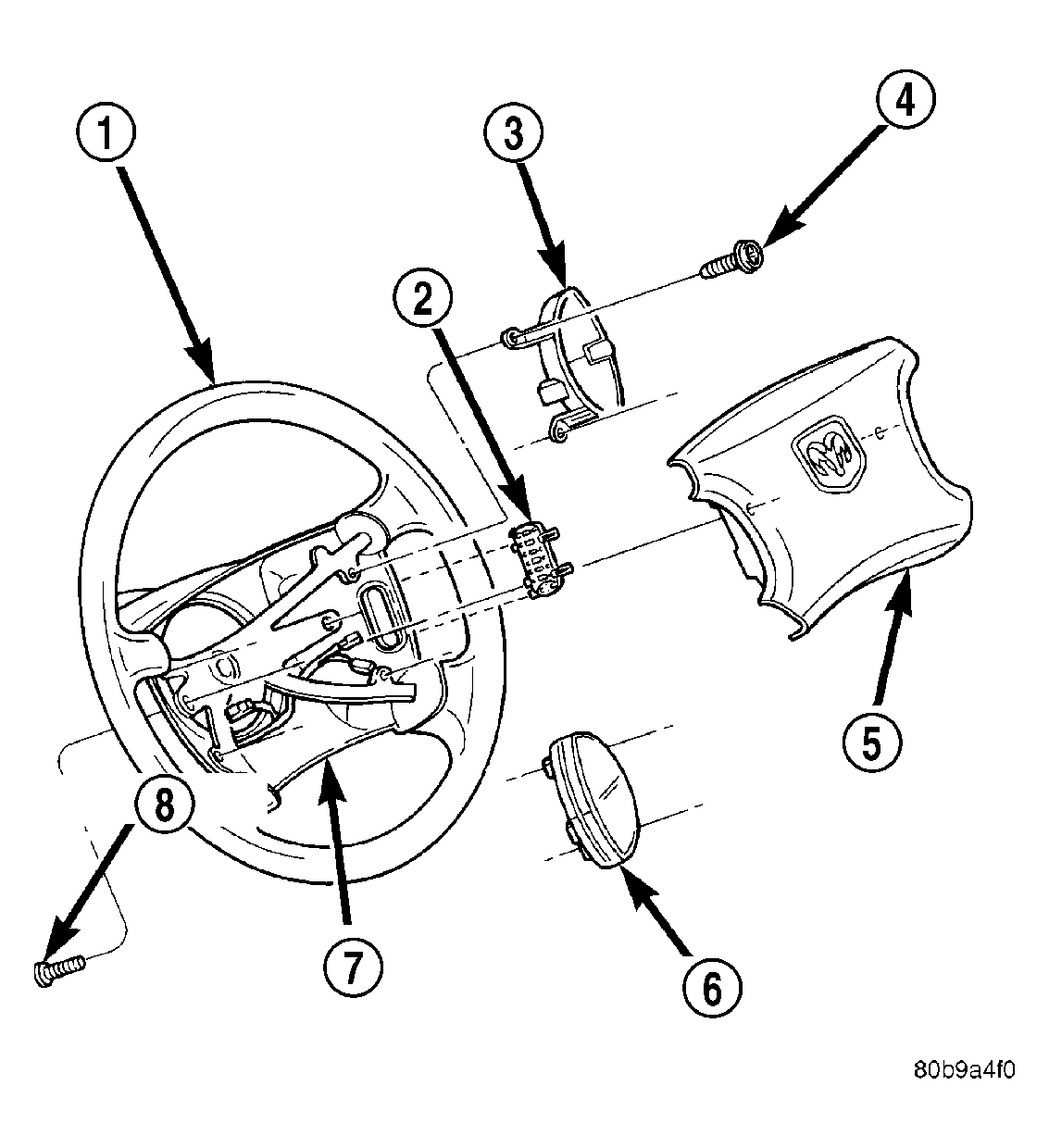

- Position the remote radio switch to the mounting hole on the outside of the steering wheel rear trim cover. Be certain that the connector receptacle is oriented toward the bottom of the switch and pointed toward the center of the steering wheel.
- Press firmly and evenly on the remote radio switch until each of the switch latches is fully engaged in the mounting hole of the steering wheel rear trim cover.
- Reconnect the steering wheel wire harness connector to the connector receptacle of the remote radio switch.
- Install the speed control switch onto the steering wheel. (Refer to ELECTRICAL/SPEED CONTROL/SWITCH - INSTALLATION) .
- Install the driver side airbag to the steering wheel. (Refer to ELECTRICAL/RESTRAINTS/DRIVER AIRBAG - INSTALLATION) .
- Reconnect the battery negative cable.
