Switch-Remote Radio: Description

WARNING: This page is about a different car, the 2005 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

Two rocker-type switches are mounted in the sides of the rear (instrument panel side) steering wheel trim cover. The switch on the left spoke is the seek switch and has seek up, seek down, and preset station advance functions. The switch on the right spoke is the volume control switch and has volume up, and volume down functions. The switch on the right spoke also includes a "mode" control that allows the driver to sequentially select AM radio, FM radio, cassette player or CD player.

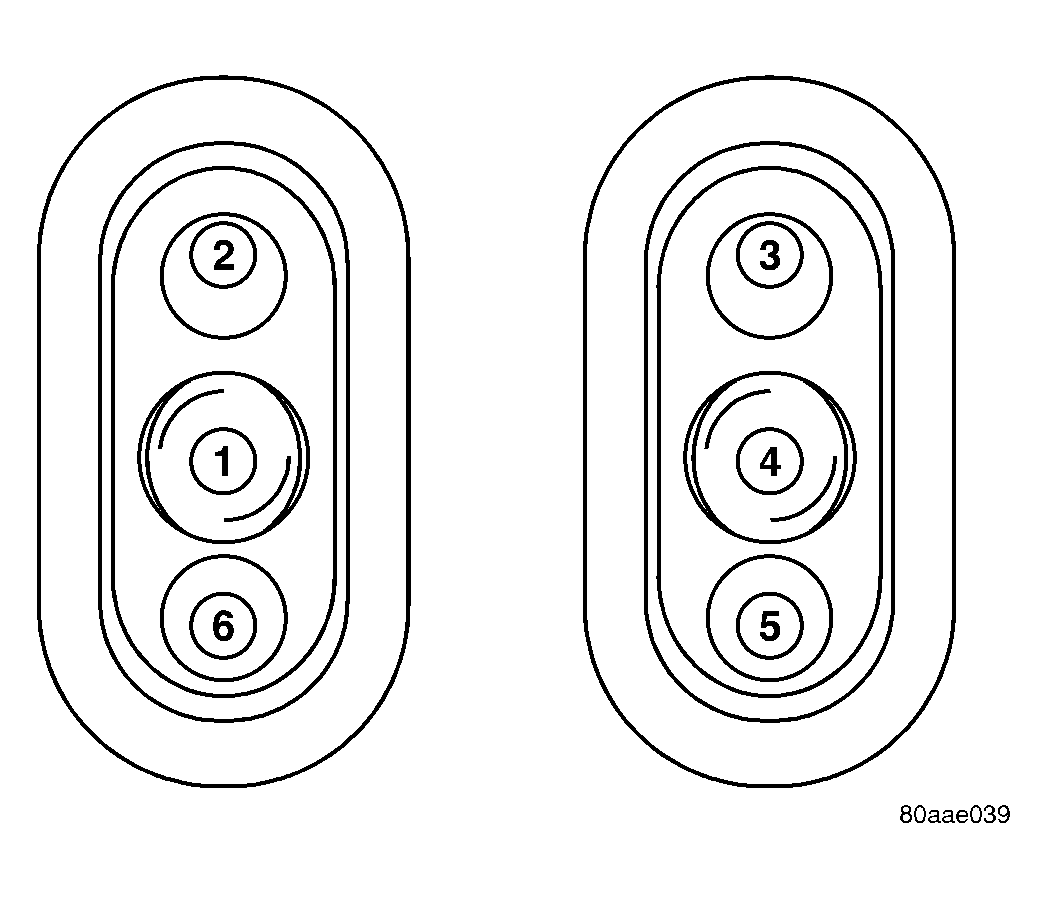

Fig 1: Remote Radio Switches (Front)
GC0012181Courtesy of DAIMLERCHRYSLER CORP.
