Section 375 (Audio/Video (Service Information)): Receiver-Satellite: Installation
WARNING: This page is about a different car, the 2005 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
To avoid personal injury or death, on vehicles equipped with airbags, disable the supplemental restraint system before attempting any steering wheel, steering column, airbag, occupant classification system, seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the supplemental restraint system. Failure to take the proper precautions could result in accidental airbag deployment. Refer to RESTRAINTS - SERVICE INFORMATION
.

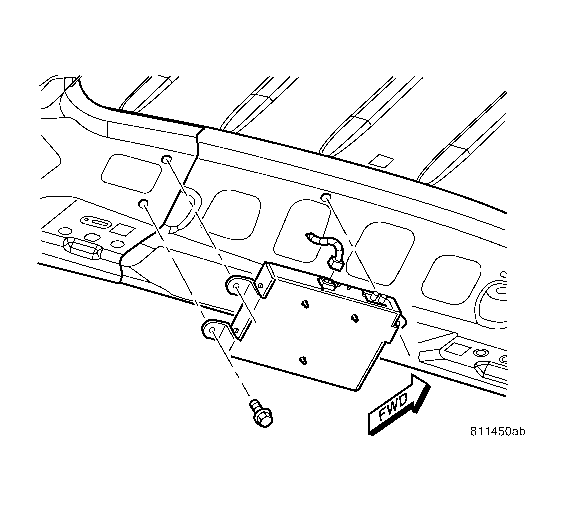

- Connect antenna and electrical harness connector to module.
- Install module to mounting bracket. Tighten mounting fasteners.
- Position module and bracket. Install new mounting fasteners.
- Install headliner.
- Connect battery negative cable.
