Media System-Monitor/DVD: Removal

WARNING: This page is about a different car, the 2005 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

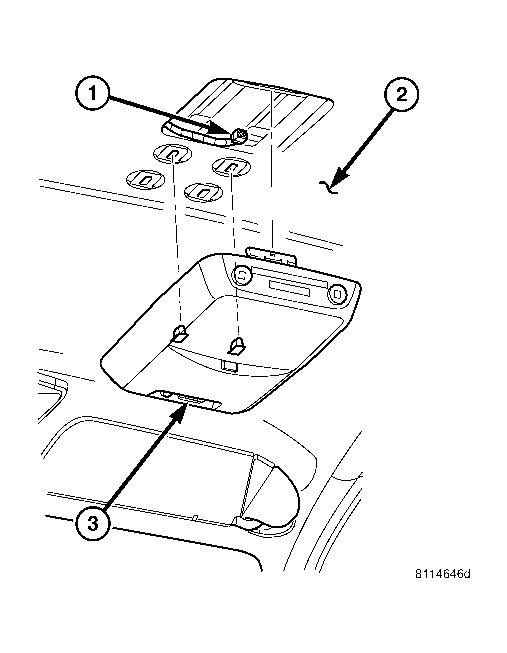

Fig 1: DVD Player
GC0012152Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the battery negative cable.
  2. Remove the two mounting fasteners.
  3. Using a trim stick, press the retaining clip at the rear of the DVD player. Move the DVD player from side to side to release from roof panel (2).
  4. Disconnect electrical harness connector (1) and remove DVD player.
