Media System-Monitor/DVD: Installation

WARNING: This page is about a different car, the 2005 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

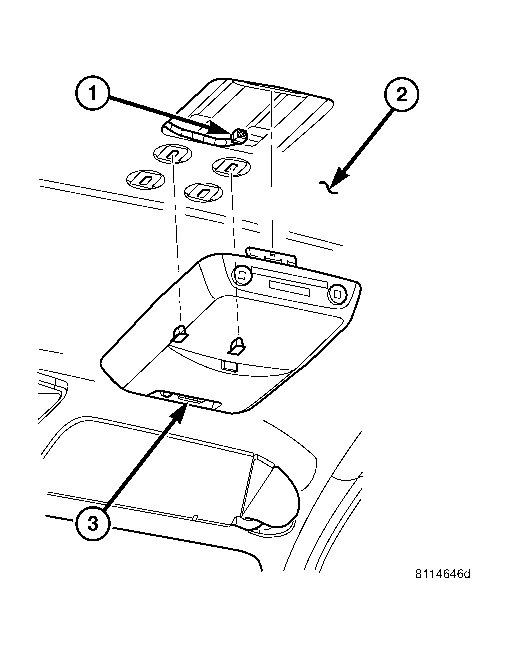

Fig 1: DVD Player
GC0012153Courtesy of DAIMLERCHRYSLER CORP.
  1. Connect electrical harness connector (1) to DVD player (3).
  2. Position DVD player and press into place.
  3. Install and tighten mounting fasteners.
  4. Connect battery negative cable.
