Antenna Cable-Instrument Panel: Installation
WARNING: This page is about a different car, the 2005 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.
- Insert cable through radio opening. Route behind glove box and attach to retainers.
- Install the radio.

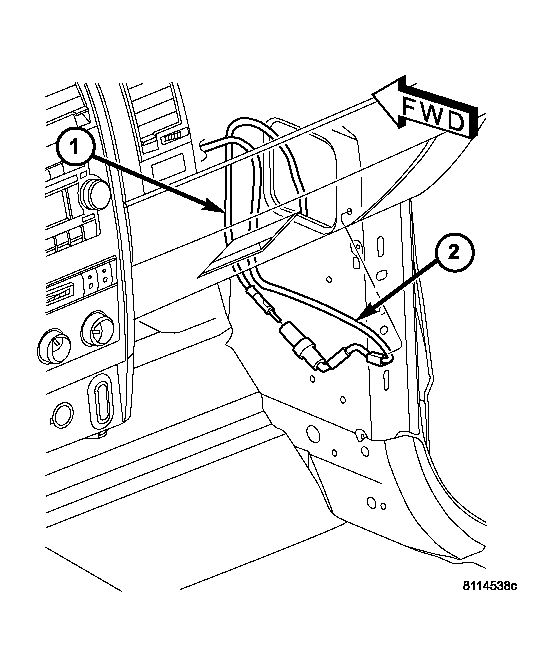

- Reach under the instrument panel outboard of the glove box to access and connect the antenna coaxial cable connector (1) and (2).
- Install cowl trim.
- Connect the battery negative cable.
