Section 375 (Audio/Video (Service Information)): Amplifier-Radio: Installation

WARNING: This page is about a different car, the 2005 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

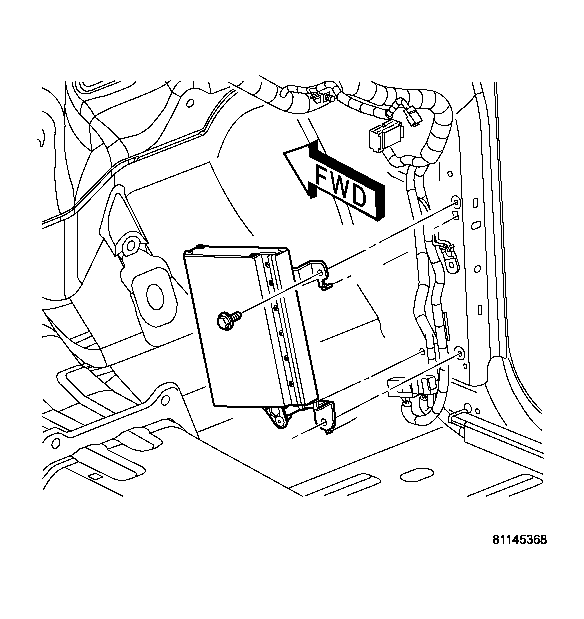

Fig 1: Amplifier
GC0012132Courtesy of DAIMLERCHRYSLER CORP.
  1. Connect wire harness connectors to amplifier. Position amplifier into place.
  2. Install and tighten mounting fasteners.
  3. Install right side cowl trim cover.
  4. Connect battery negative cable.
