Section 365 (Interior/Exterior): Interior: Console-Floor: Removal
WARNING: This page is about a different car, the 2005 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of DAIMLERCHRYSLER CORP.
- Remove the rubber cup holder liners.

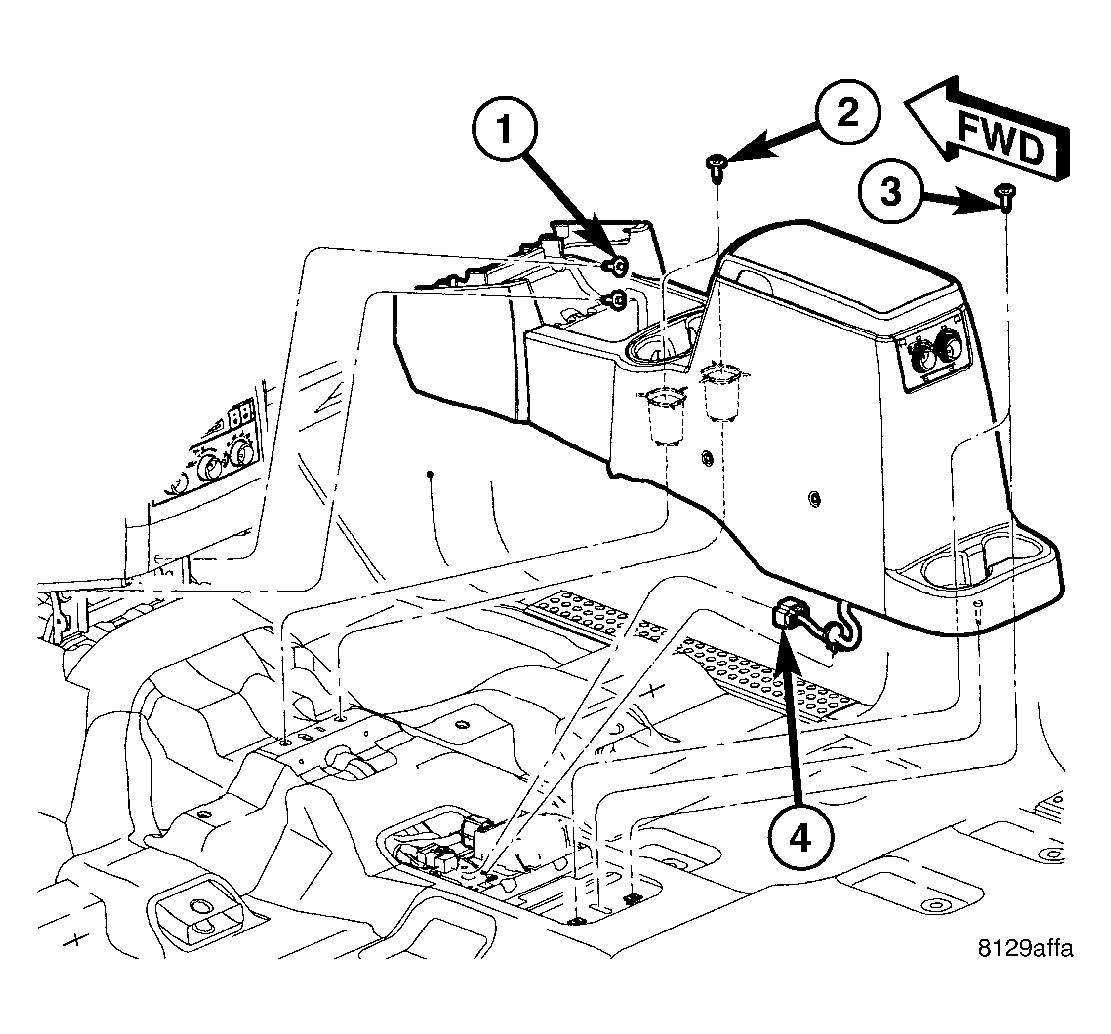

- Remove the front (1), center (2) and rear screws (3).
- Lift the floor console up and disconnect the electrical connector (4).
- Slide the floor console back and remove.
