Instrument Panel: Bezel-Cluster: Installation

WARNING: This page is about a different car, the 2005 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

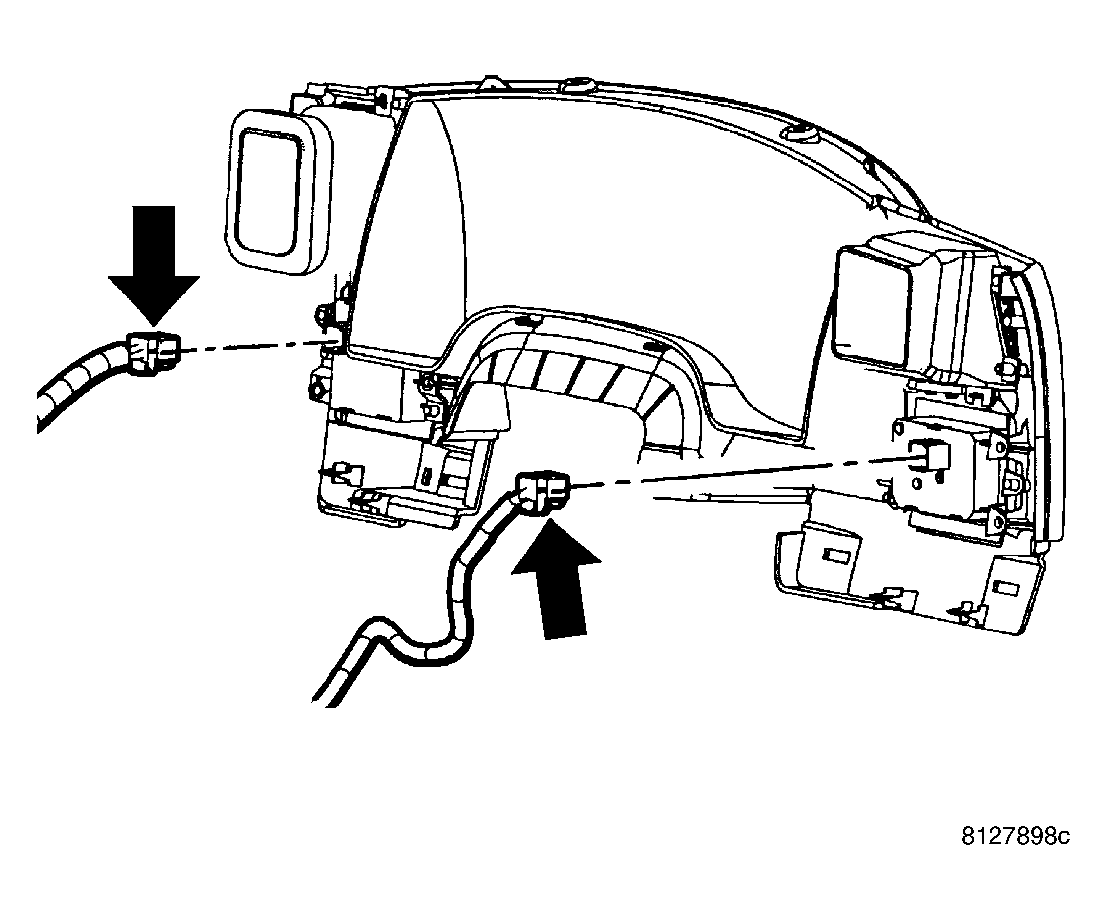

Fig 1: CLUSTER BEZEL ELECTRICAL CONNECTORS

Courtesy of DAIMLERCHRYSLER CORP.

Before proceeding with the following repair procedure, review all warnings and cautions. (Refer to BODY/INSTRUMENT PANEL - WARNING)
Connect the electrical connectors.

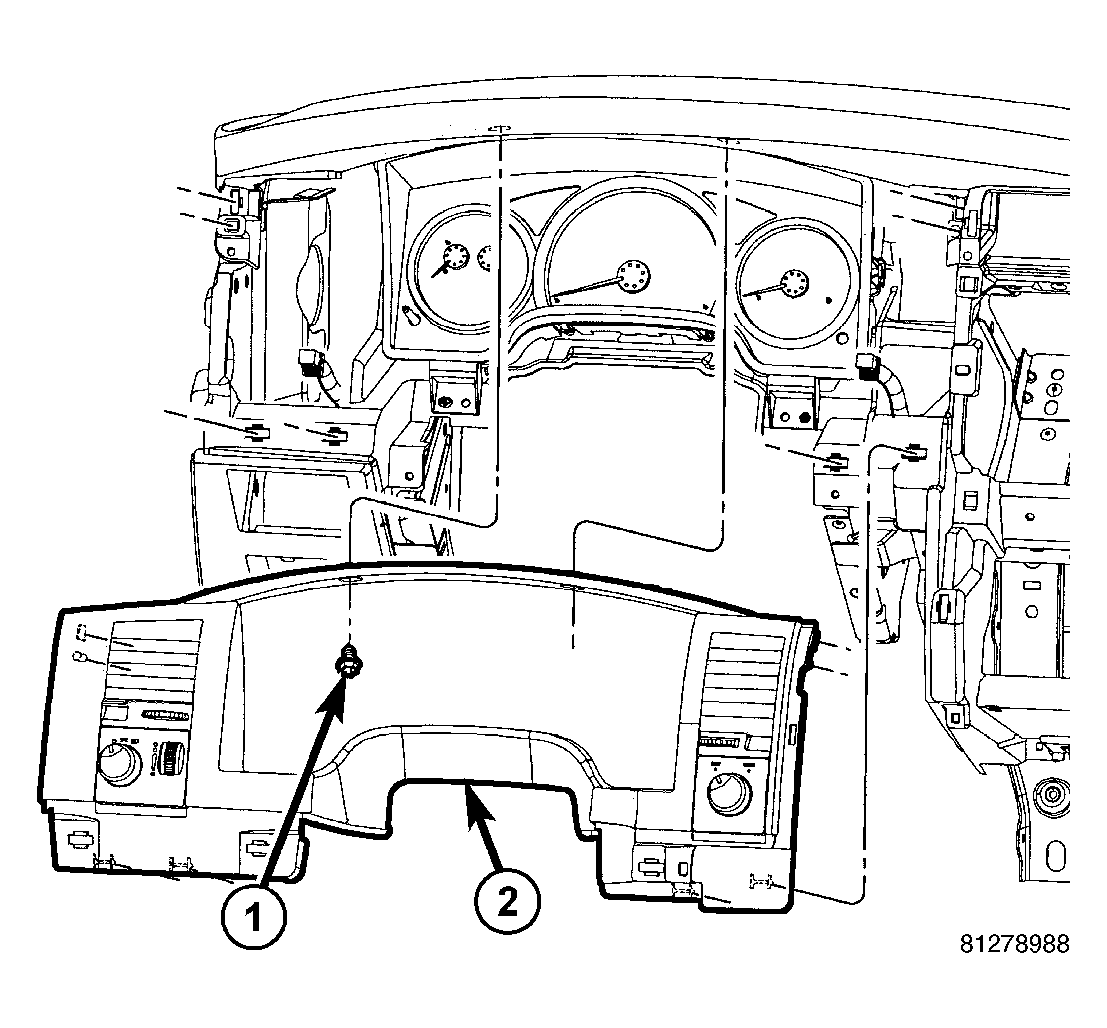

Fig 2: CLUSTER BEZEL
Courtesy of DAIMLERCHRYSLER CORP.
Position the bezel (2) onto the instrument panel and seat fully.
Install the screws (1).
Install the steering column opening cover. (Refer to BODY/INSTRUMENT PANEL/STEERING COLUMN OPENING COVER - INSTALLATION)
