Sensor-Ambient Air Temperature: Description

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

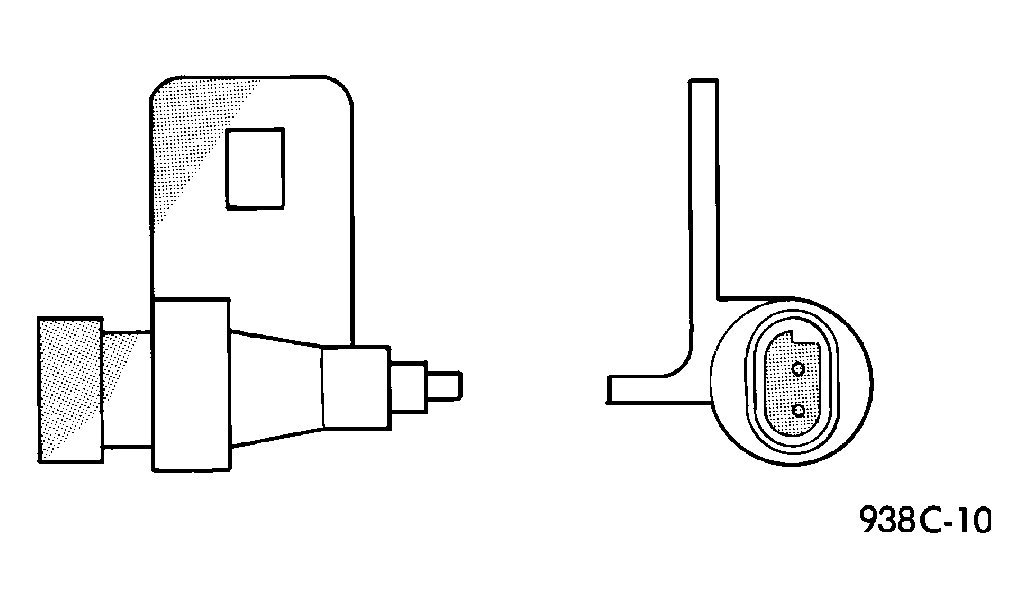

Fig 1: Identifying Ambient Air Temperature Sensor
GC0008955Courtesy of DAIMLERCHRYSLER CORP.

The ambient temperature sensor is a variable resistor mounted to a bracket that is secured with a screw to the left side of the radiator yoke, behind the radiator grille and in front of the engine compartment.

The ambient temperature sensor cannot be adjusted or repaired and, if inoperative or damaged, it must be replaced.
