Section 331 (Speed Control): Reservoir-Vacuum: Removal

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

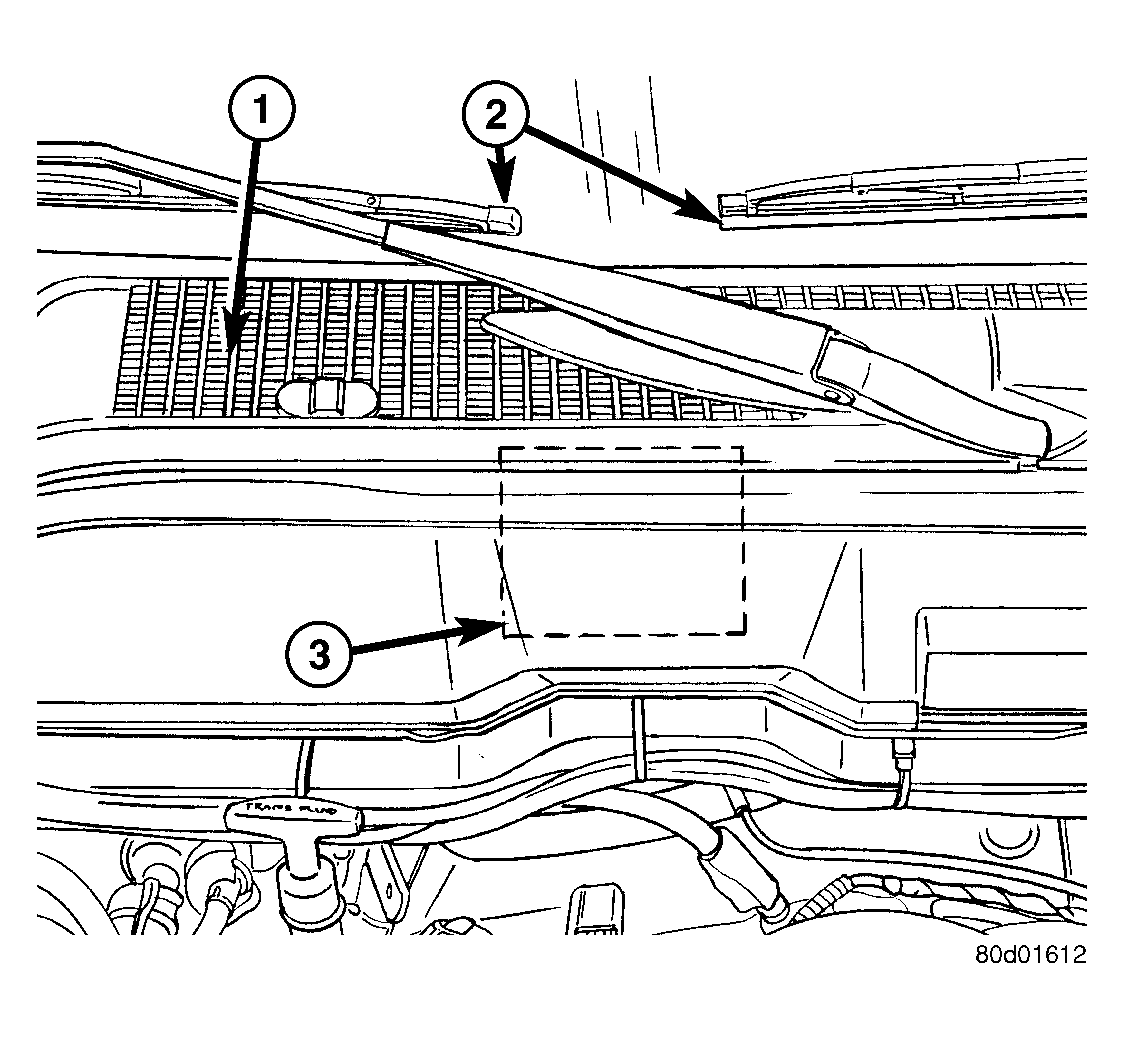

Fig 1: Locating Vacuum Reservoir

Courtesy of DAIMLERCHRYSLER CORP.

1 - COWL GRILL

2 - WIPER ARMS / BLADES

3 - VACUUM RESERVOIR

The vacuum reservoir (1) is located in the engine compartment under the fresh air cowl grill panel. See Fig 1.

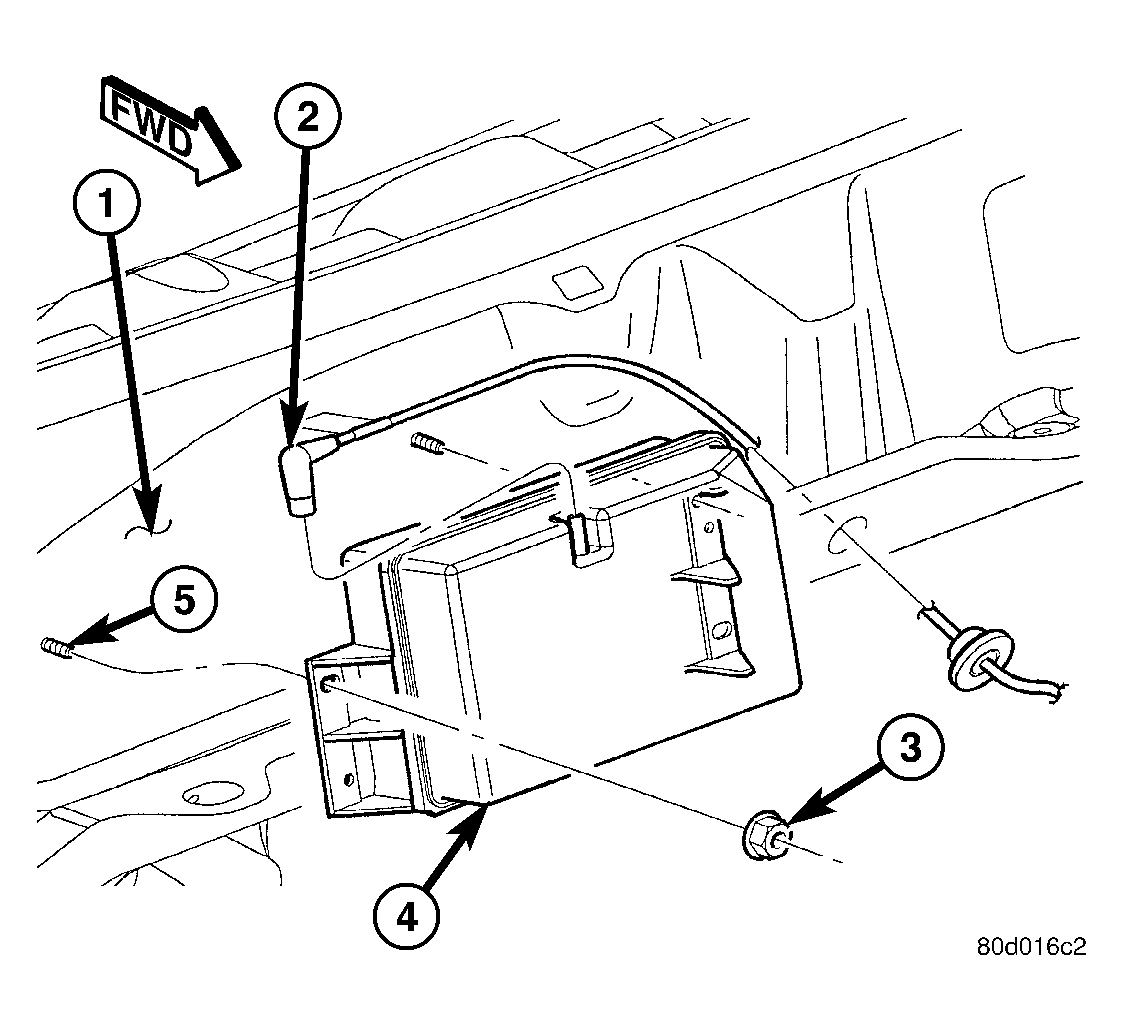

Fig 2: Removing/Installing Vacuum Reservoir

Courtesy of DAIMLERCHRYSLER CORP.

1 - COWL (BELOW WIPER ARMS)

2 - VACUUM LINE CONNECTION

3 - MOUNTING NUTS (2)

4 - VACUUM RESERVOIR

5 - WELDED STUDS

Remove wiper blades and arms. Refer to WIPER ARM .
Remove fresh air cowl grill. Refer to COWL GRILLE .
Disconnect vacuum line (2) at reservoir. See Fig 2.
Remove 2 reservoir mounting nuts (3). See Fig 2.
Remove reservoir from cowl.
