Section 330 (Audio (Service Information)): Receiver-Satellite: Description

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

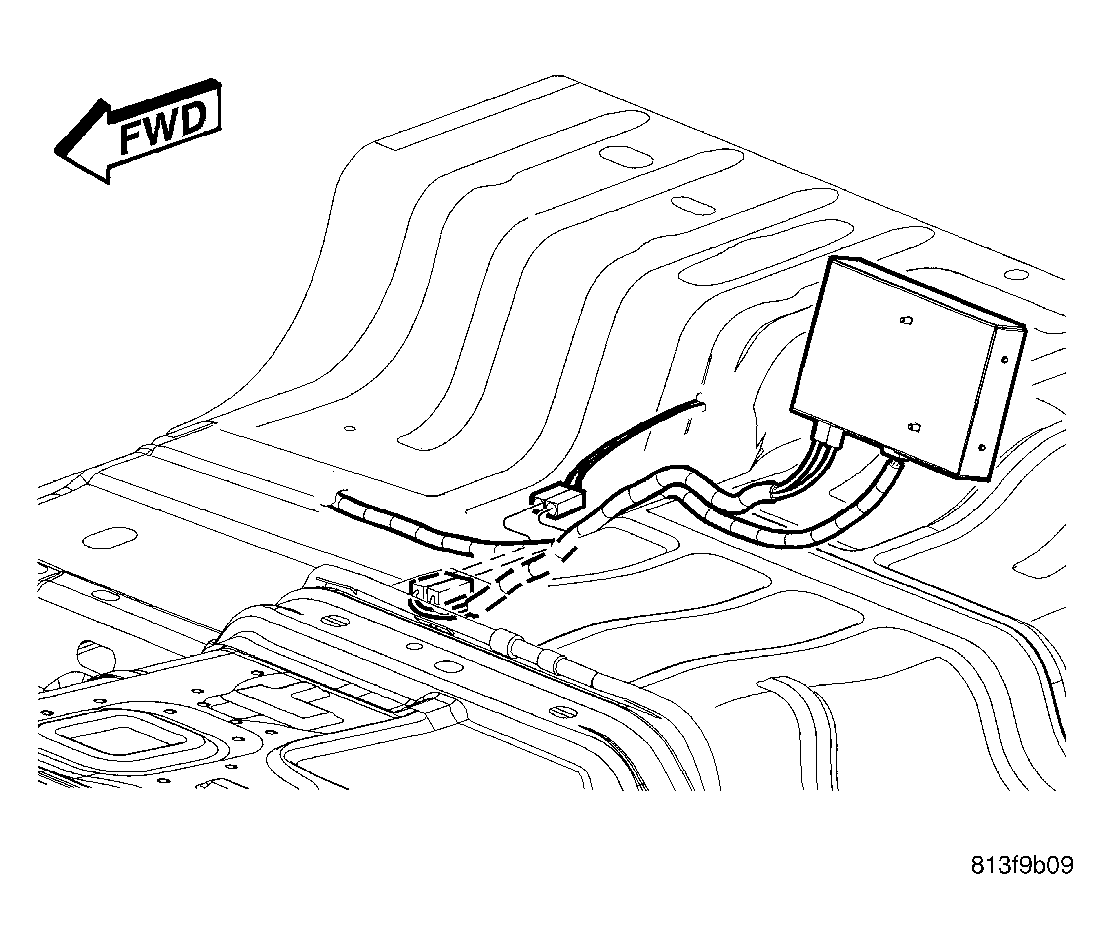

Fig 1: Removing/Installing Satellite Receiver (Regular Cab)

Courtesy of DAIMLERCHRYSLER CORP.

The satellite receiver for the regular cab is located behind the center seat on the floor.

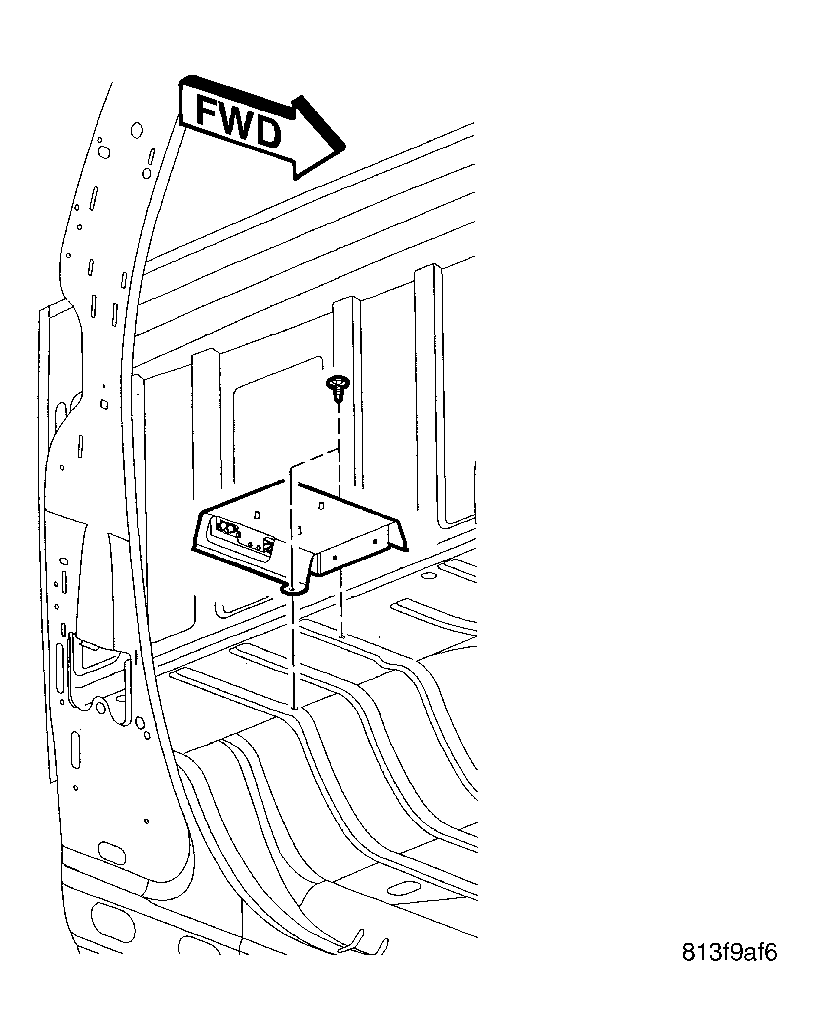

Fig 2: Removing/Installing Satellite Receiver (Quad Cab)

Courtesy of DAIMLERCHRYSLER CORP.

The satellite receiver for the quad cab is located in the right rear corner of the cab, on the floor.
