Section 330 (Audio (Service Information)): Radio: Installation

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

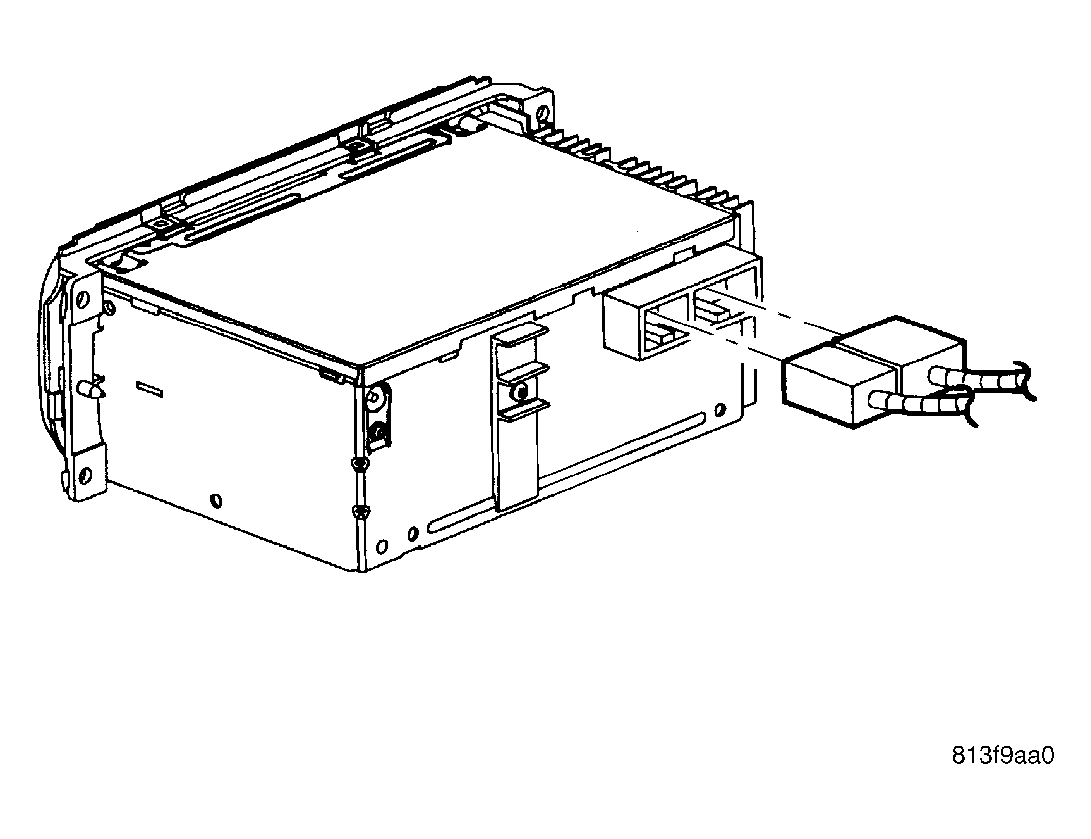

Fig 1: Removing/Installing Radio Harness Connector
GC0008477Courtesy of DAIMLERCHRYSLER CORP.
  1. Connect electrical harness connector to radio.

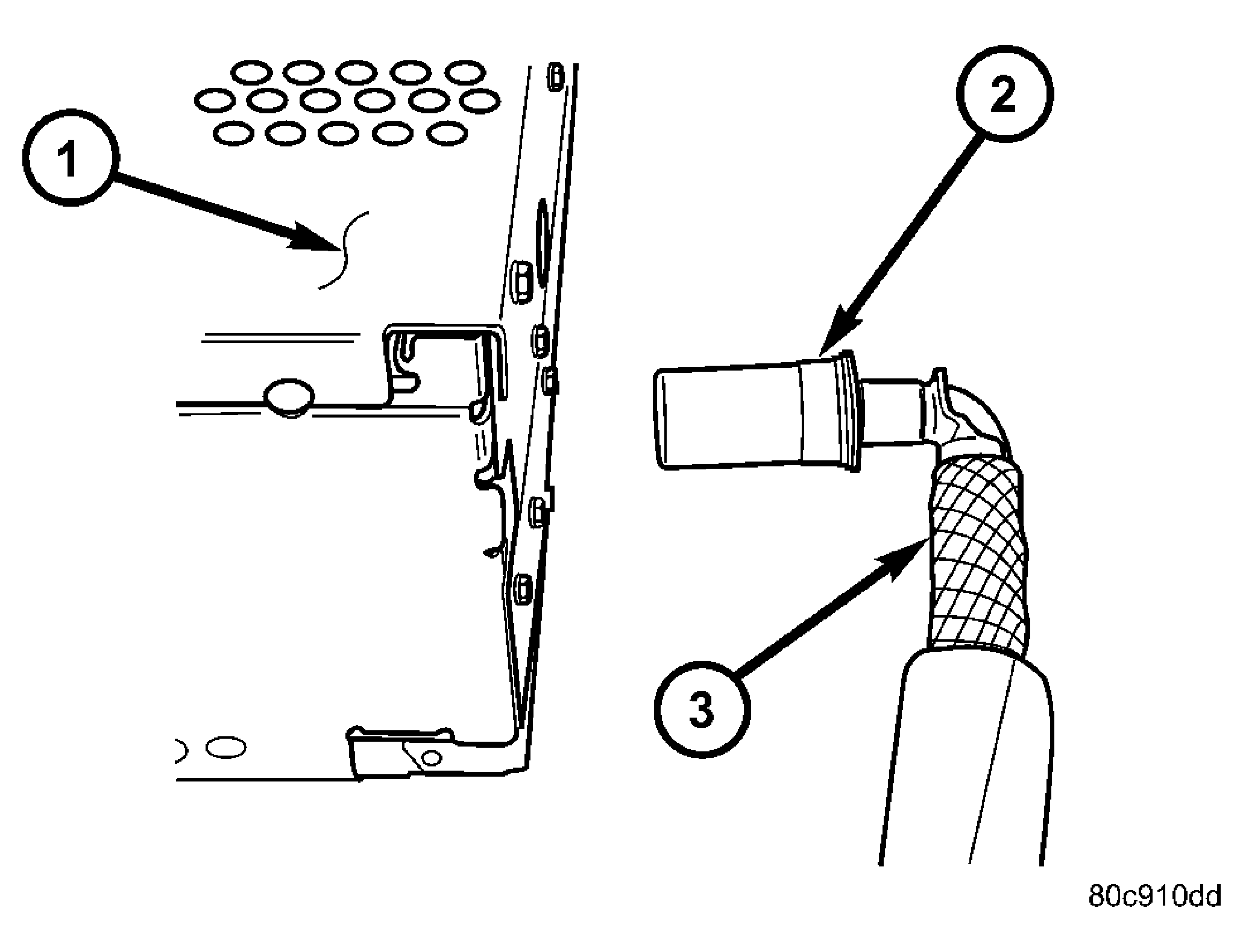

    Fig 2: Removing/Installing Radio Antenna Cable At Radio
    GC0008476Courtesy of DAIMLERCHRYSLER CORP.
  2. Install antenna cable (3) to radio (1).

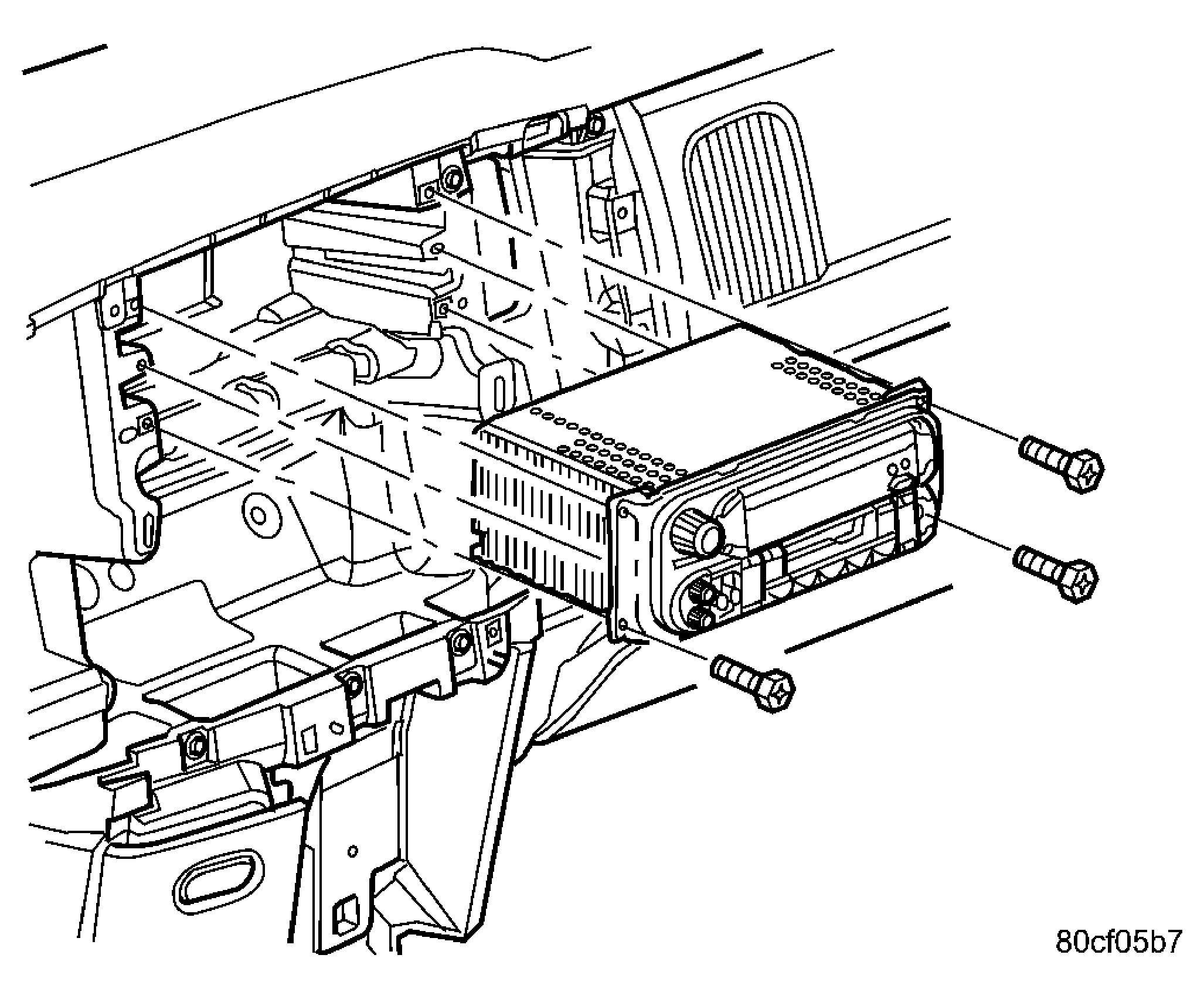

    Fig 3: Removing/Installing Radio
    GC0008475Courtesy of DAIMLERCHRYSLER CORP.
  3. Position radio to instrument panel.
  4. Install and tighten mounting fasteners.
  5. Install instrument panel center bezel (Refer to BODY/INSTRUMENT PANEL/INSTRUMENT PANEL CENTER BEZEL - INSTALLATION) .
  6. Connect battery negative cable.
