3.7L/4.7L/5.7L Engine
WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Assemble muffler and clamps loosely to permit proper alignment of all parts.
- Connect the muffler hangers.
- Tighten the clamp nuts to 54.2 N.m (40 ft. lbs.) torque.
- Check the exhaust system for contact with the body panels. A minimum of 25.4 mm (1.0 in.) is required between the exhaust system components and body/frame parts. Make the necessary adjustments, if needed.
- Lower the vehicle.
- Start the engine and inspect for exhaust leaks. Repair exhaust leaks as necessary.

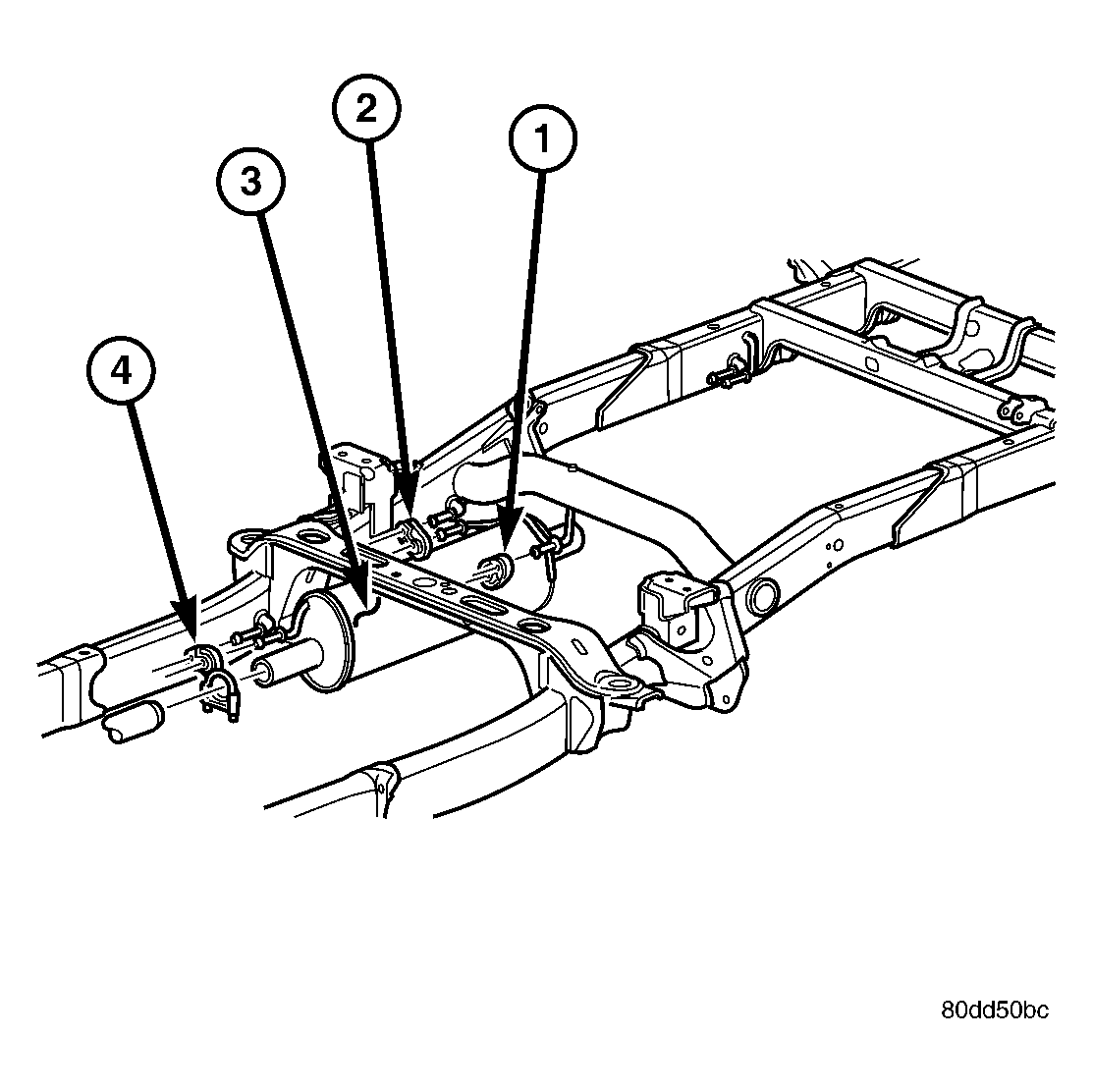

1 - INSULATOR 2 - INSULATOR 3 - MUFFLER 4 - INSULATOR
