5.7L Engine
WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Install catalytic converter to exhaust clamp (4) on catalytic converter (3) and position into exhaust pipe (5).
- Make sure the alignment tang on catalytic converter (3) is fully seated in the notch on the exhaust pipe (5).
- Install catalytic converter to exhaust manifold bolts (2) and nuts (1).
- Tighten catalytic converter to exhaust manifold bolts (2) to 31 N.m (23 ft. lbs.).
- Tighten catalytic converter to exhaust pipe clamp nuts (4) to 52.2 N.m (40 ft. lbs.) torque.
- Check the exhaust system for contact with the body panels. A minimum of 25.4 mm (1.0 in.) is required between the exhaust system components and body/frame parts. Make the necessary adjustments, if needed.
- Lower the vehicle.
- Start the engine and inspect for exhaust leaks. Repair exhaust leaks as necessary.

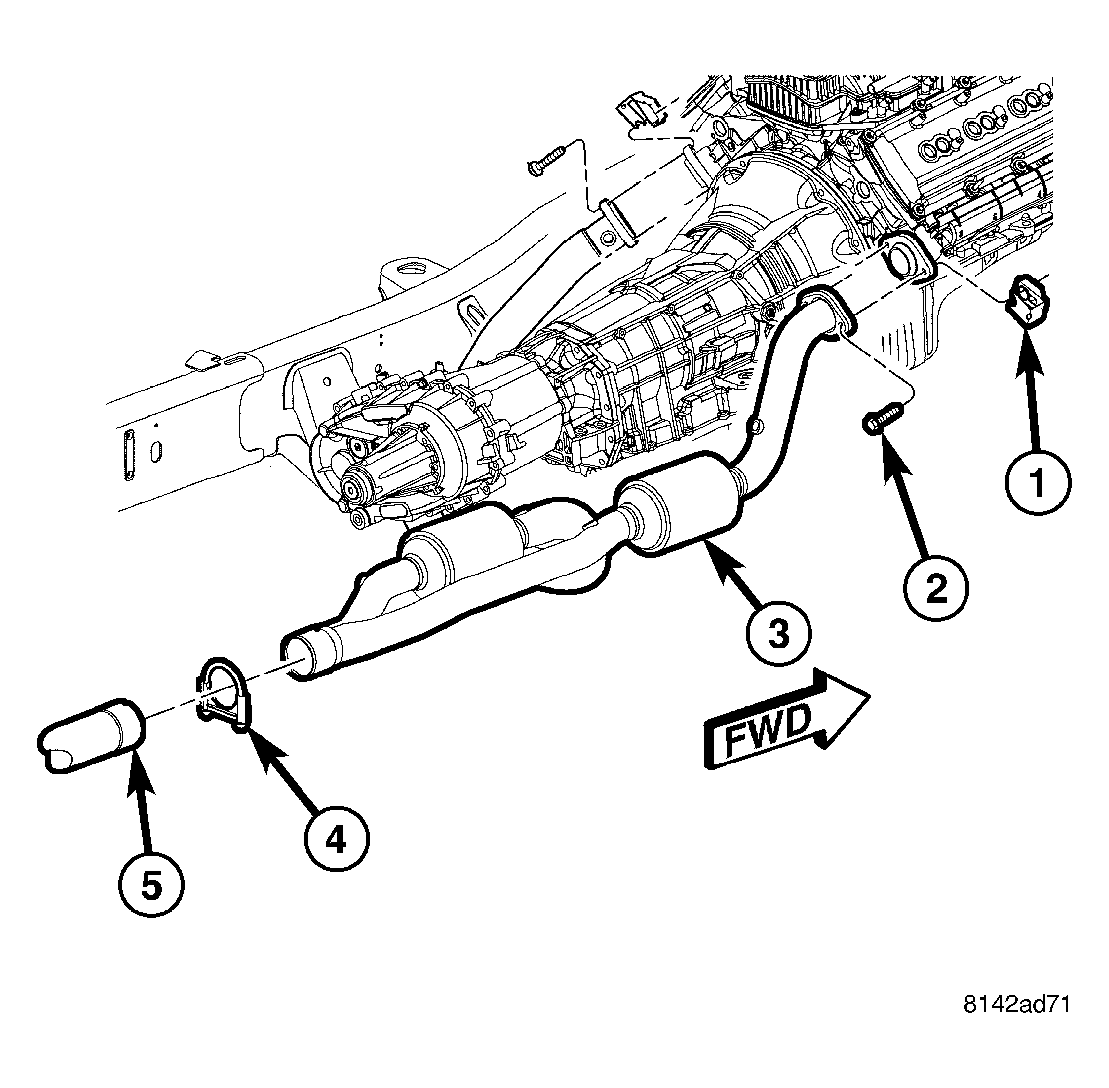

1 - EXHAUST MANIFOLD NUTS 2 - EXHAUST MANIFOLD BOLTS 3 - CATALYTIC CONVERTER 4 - CLAMP 5 - EXHAUST PIPE
