Bearing Pilot: Installation
WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Clean bearing bore with solvent and wipe dry with shop towel.

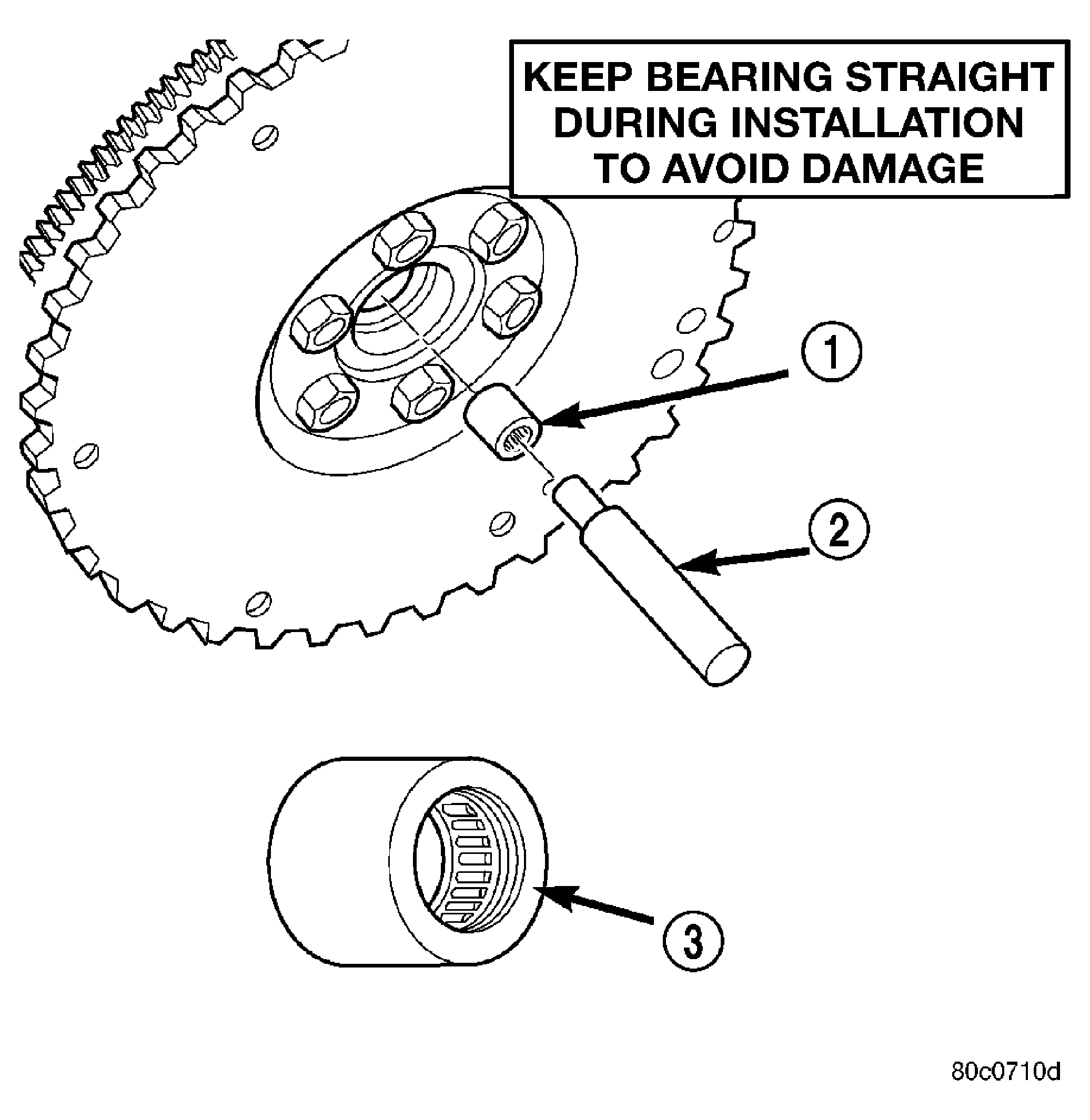

- Install new bearing (1) with clutch alignment tool (2) and letter side of the bearing (3) facing the transmission. Bearing should be flush with edge of bearing bore. See Fig 1.CAUTION: Do not allow bearing to become cocked and do not recess bearing.
- Install clutch disc, pressure plate and transmission.
