Cover - Structural: Removal
WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of DAIMLERCHRYSLER CORP.

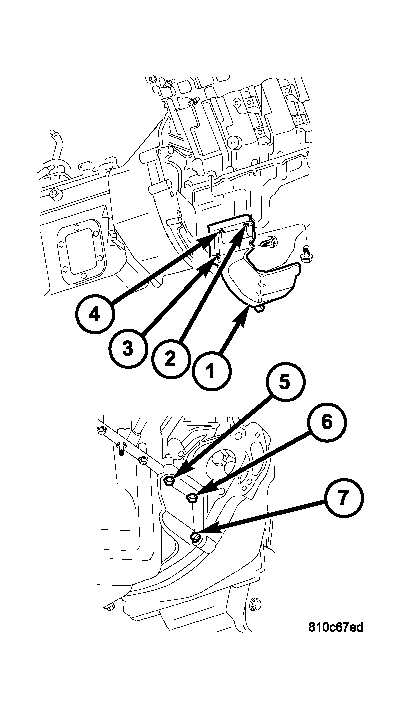

| 1 - STRUCTURAL COVER |
| 2 - BOLT |
| 3 - BOLT |
| 4 - BOLT |
| 5 - BOLT |
| 6 - BOLT |
| 7 - BOLT |
Courtesy of DAIMLERCHRYSLER CORP.
| 1 - BOLT |
| 2 - BOLT |
| 3 - BOLT |
- Raise vehicle on hoist.
CAUTION:
On manual transmission vehicles, the 7/16 inch engine block to clutch housing bolts must be loosened before removal of the structural dust cover (1). Clutch housing distortion will occur if this procedure is not followed.
- Remove the bolts retaining structural cover (1,2).
- Remove the structural cover.
