Upper Steering Coupling: Installation

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: UPPER STEERING COUPLER SHAFT

Courtesy of DAIMLERCHRYSLER CORP.

1 - LOWER STEERING COUPLER

2 - RELEASE TANGS (4)

3 - UPPER STEERING COUPLER SHAFT

Install the upper steering coupling shaft (3) to the vehicle. See Figure.

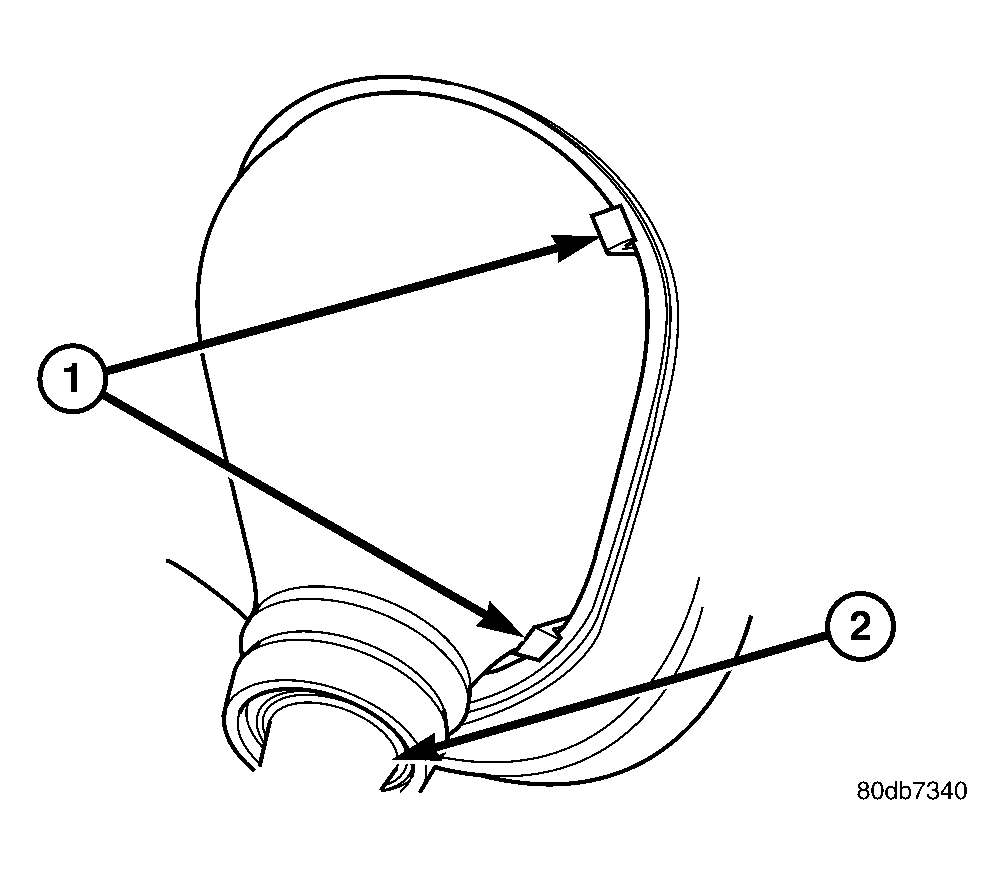

Fig 2: RELEASE TANGS
Courtesy of DAIMLERCHRYSLER CORP.

1 - RELEASE TANGS (4)

2 - UPPER STEERING COUPLER SHAFT

Install the upper steering coupling shaft seal (2) by pushing it in securing the four tangs (1) to the panel. See Figure.

Fig 3: UPPER STEERING COUPLER SHAFT

Courtesy of DAIMLERCHRYSLER CORP.

1 - LOWER STEERING COUPLER

2 - RELEASE TANGS (4)

3 - UPPER STEERING COUPLER SHAFT

NOTE: Note: A new steering coupling shaft pinch bolt for the upper and lower shafts must be used.

Install the steering coupler shaft (1) to the column. See Figure.
Install the upper pinch bolt (3) use new bolt and tighten to 57 N.m (42 ft.lbs).
Install the shaft to the lower coupler (1). See Figure.
Install the lower pinch bolt (1) use new bolt and tighten to 57 N.m (42 ft.lbs).
Unlock the steering wheel.
Reconnect the negative battery cable.
