Steering Wheel: Removal

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

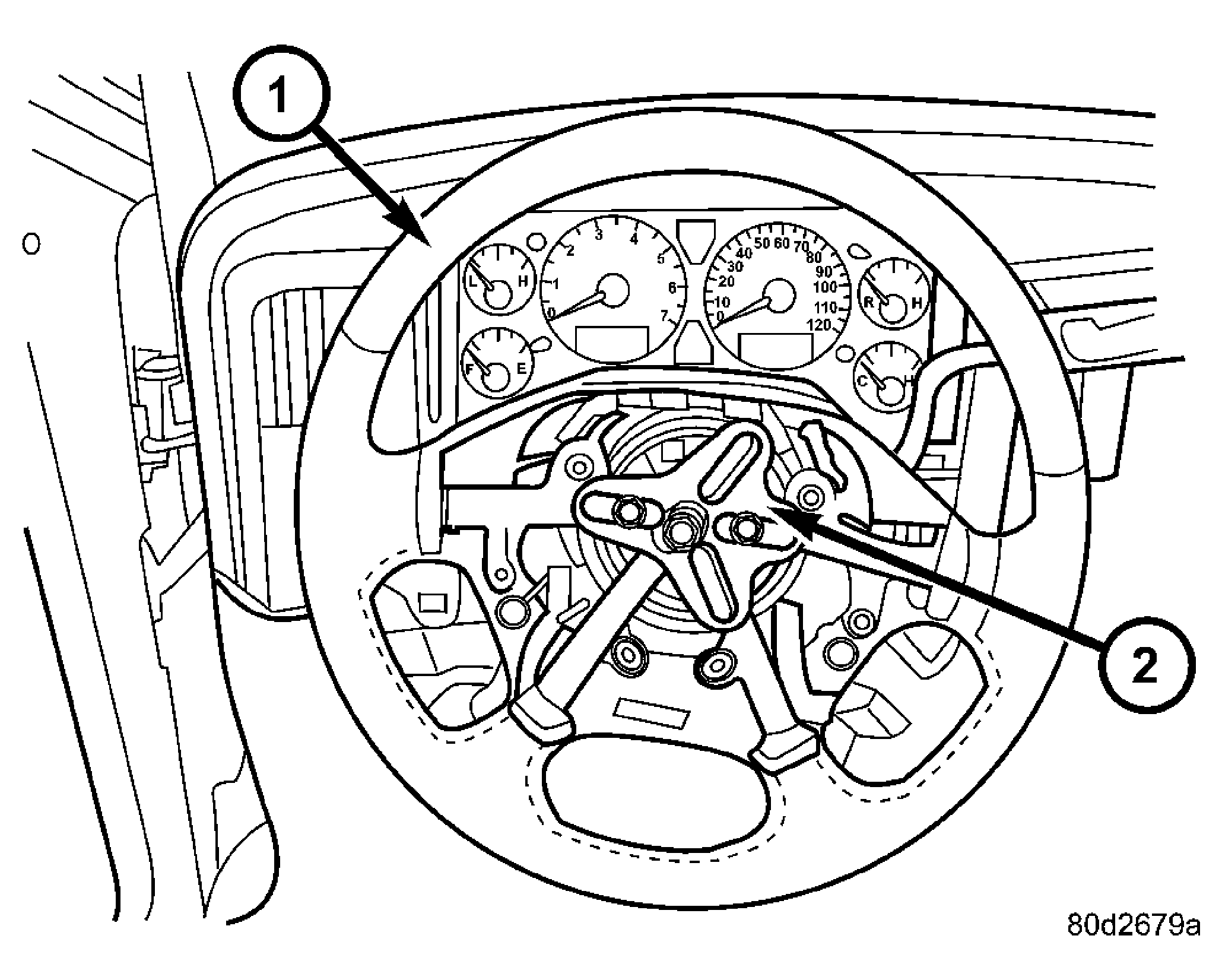

Fig 1: STEERING WHEEL PULLER
GC0006733Courtesy of DAIMLERCHRYSLER CORP.
1 - STEERING WHEEL
2 - SPECIAL TOOL CJ98-1
  1. Disable and remove the driver's side airbag. (Refer to ELECTRICAL/RESTRAINTS/DRIVER AIRBAG - REMOVAL) .
  2. Partially remove the steering wheel bolt (1) and leave the bolt in the column.
  3. Install puller CJ98-1 (2) or equivalent using the top of the bolt to push on. See Fig 1
  4. Remove and discard the steering wheel bolt.
  5. Remove the steering wheel (1).
