4X4 Hd

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

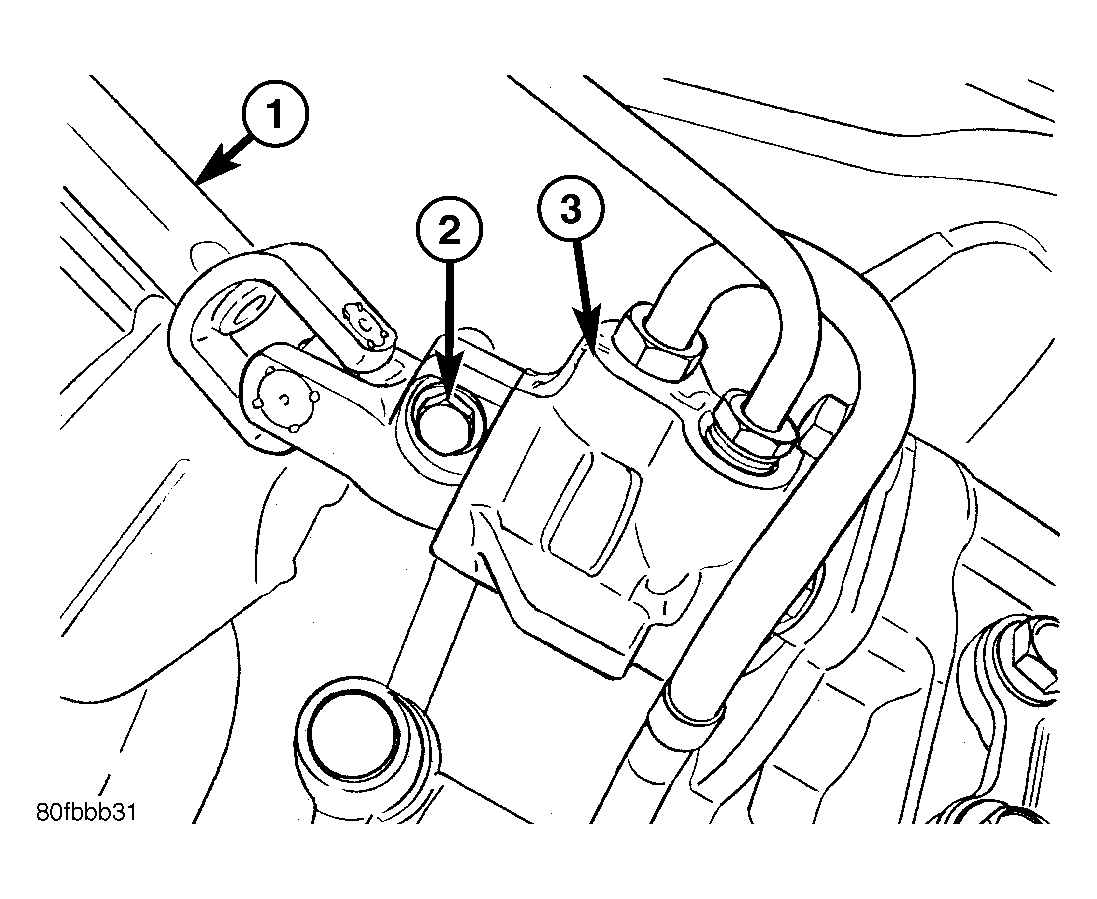

Fig 1: LOWER COUPLER PINCH BOLT
GC0006750Courtesy of DAIMLERCHRYSLER CORP.
1 - INTERMEDIATE STEERING SHAFT
2 - LOWER COUPLING BOLT
3 - STEERING GEAR
  1. Install the coupler (2) to the steering gear (3).

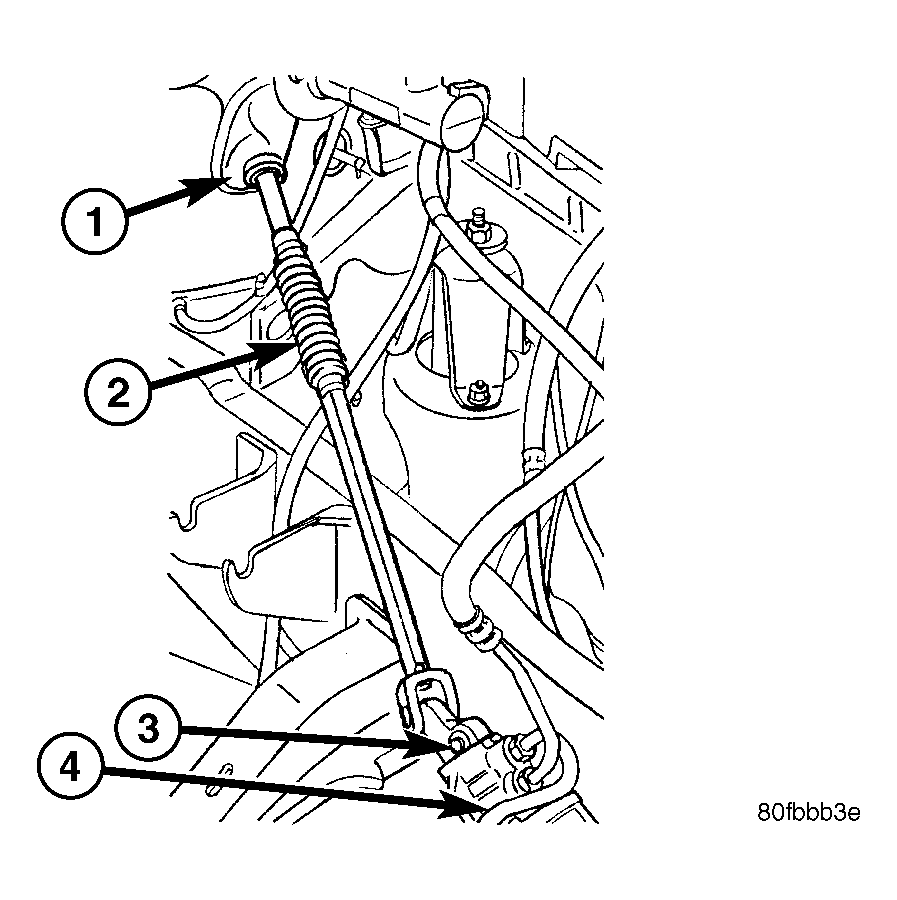

    Fig 2: INTERMEDIATE STEERING SHAFT
    GC0006751Courtesy of DAIMLERCHRYSLER CORP.
    1 - UPPER COUPLING BOOT AND BOLT
    2 - INTERMEDIATE STEERING SHAFT
    3 - LOWER COUPLING BOLT
    4 - STEERING GEAR
  2. Install the coupler (3) to the intermediate shaft (2).
    NOTE: New pinch bolts must be used for reinstallation.
  3. Install the lower pinch bolt (3) and tighten to 28 N.m (250 in. lbs.).
  4. Install the upper pinch bolt (1) and tighten to 57 N.m (42 ft. lbs.).
  5. Install the left front tire and wheel assembly (Refer to TIRES/WHEELS/WHEELS - STANDARD PROCEDURE) .
  6. Lower the vehicle.
  7. Reconnect the negative battery cable.
  8. Unlock the steering wheel.
