Key Cylinder: Removal

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

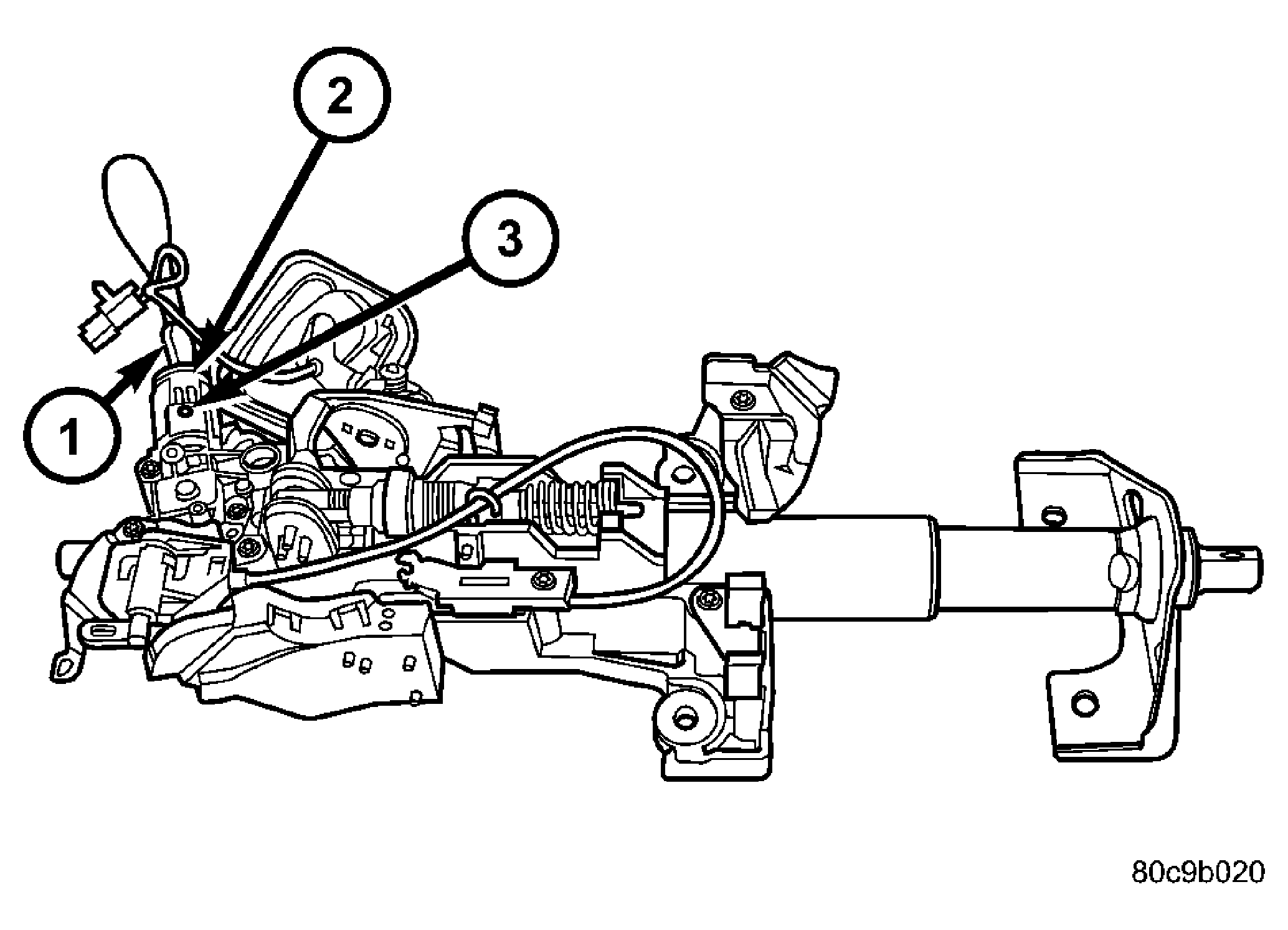

Fig 1: KEY CYLINDER

Courtesy of DAIMLERCHRYSLER CORP.

1 - KEY

2 - KEY CYLINDER

3 - RETAINING PIN HOLE

The ignition key (1) must be in the key cylinder (2) for cylinder removal.

Disconnect negative cable from battery.
Remove upper and lower covers (shrouds) from steering column.
Place shifter in PARK position.
A retaining pin is located at side of key cylinder assembly (2). See Fig 1.

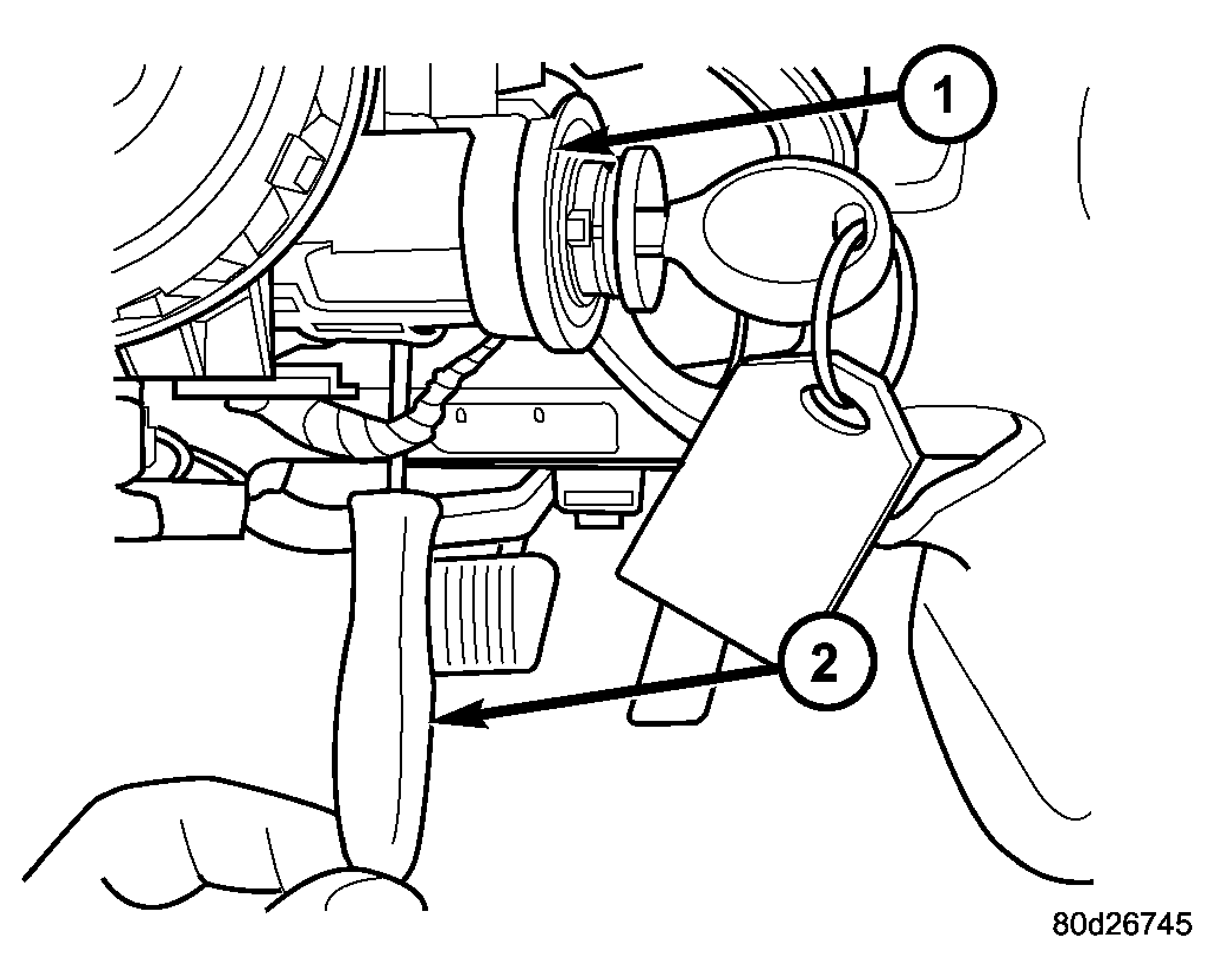

Fig 2: KEY CYLINDER
Courtesy of DAIMLERCHRYSLER CORP.

1 - KEY CYLINDER

2 - PUNCH
- Rotate key to RUN position.
- Press in on retaining pin while pulling key cylinder (1) from ignition switch. See Fig 2.
