5.9L Diesel

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: DISCONNECT BOTH NEGATIVE CABLES FROM BOTH BATTERIES BEFORE REMOVING BATTERY OUTPUT WIRE (B+ WIRE) FROM GENERATOR. FAILURE TO DO SO CAN RESULT IN INJURY OR DAMAGE TO ELECTRICAL SYSTEM.

Disconnect both negative battery cables at both batteries.
Remove generator drive belt. Refer to COOLING for procedure.
Unsnap plastic insulator cap from B+ output terminal.
Remove B+ terminal mounting nut at rear of generator. See Fig 1. Disconnect terminal from generator.
Disconnect field wire connector at rear of generator by pushing on connector tab. See Fig 2.
Remove upper mounting bracket bolt (2). See Fig 1.
Remove lower mounting bracket bolt and nut (2). See Fig 1.
Remove generator from vehicle.

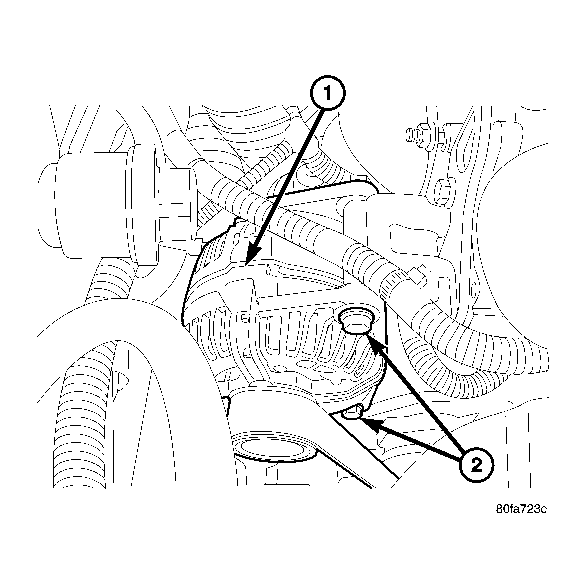

Fig 1: Locating Generator & Bolts - 5.9L Diesel

Courtesy of DAIMLERCHRYSLER CORP.

1 - GENERATOR

2 - MOUNTING BOLTS

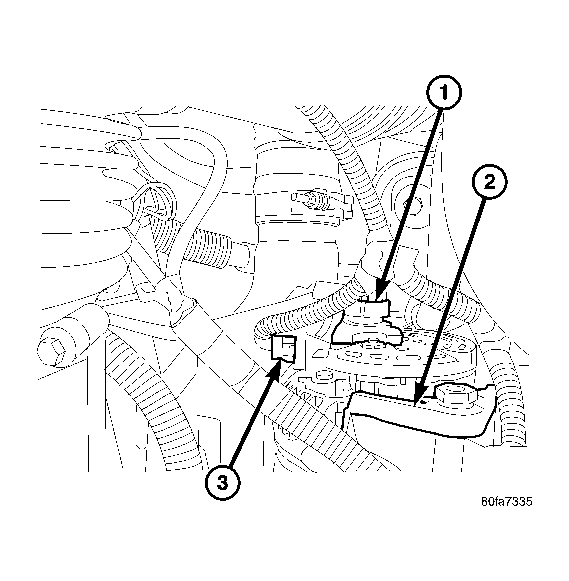

Fig 2: Locating Generator Connector - 5.9L Diesel

Courtesy of DAIMLERCHRYSLER CORP.

1 - B+ CONNECTOR

2 - GENERATOR

3 - FIELD WIRE CONNECTOR
