Section 272 (Battery System): Battery: Removal
WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Turn the ignition switch to the Off position. Be certain that all electrical accessories are turned off.
- Loosen the battery negative cable terminal clamp pinch-bolt hex nut.

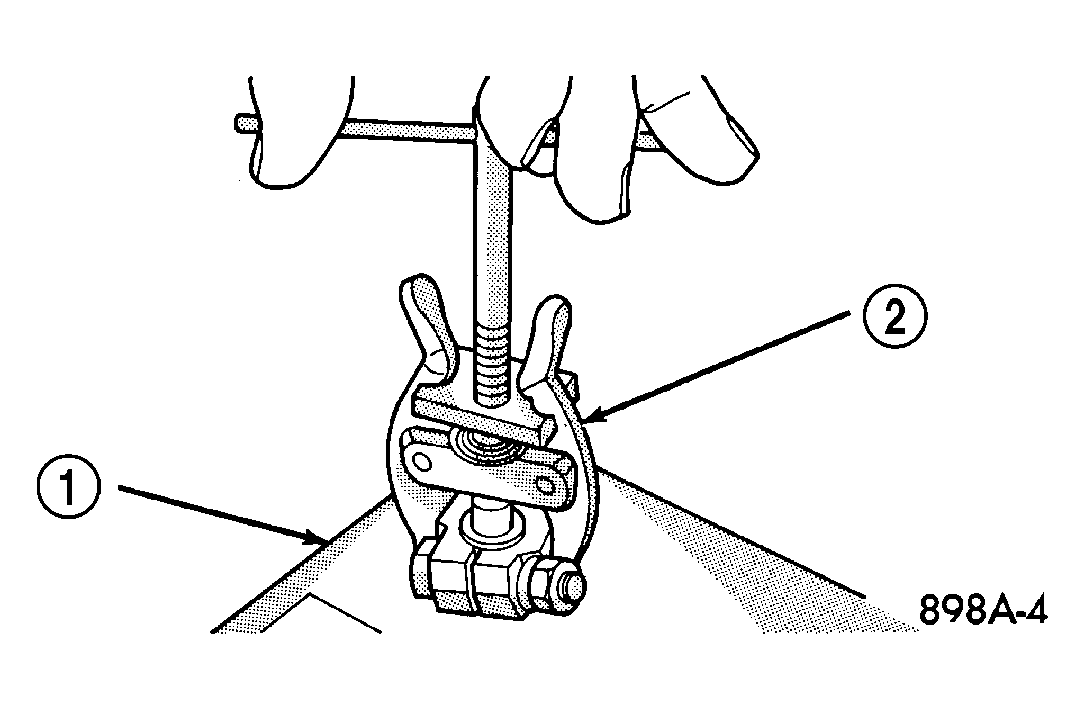

- Disconnect the battery negative cable terminal clamp from the battery negative terminal post. If necessary, use a battery terminal puller (2) to remove the terminal clamp from the battery post.
- Loosen the battery positive cable terminal clamp pinch-bolt hex nut.
- Disconnect the battery positive cable terminal clamp from the battery positive terminal post. If necessary, use a battery terminal puller (2) to remove the terminal clamp from the battery post.
- Remove the battery hold down retaining bolt (6) and battery hold down (5). WARNING: WEAR A SUITABLE PAIR OF RUBBER GLOVES (NOT THE HOUSEHOLD TYPE) WHEN REMOVING A BATTERY BY HAND. SAFETY GLASSES SHOULD ALSO BE WORN. IF THE BATTERY IS CRACKED OR LEAKING, THE ELECTROLYTE CAN BURN THE SKIN AND EYES.
- Remove the battery (2) from the battery tray.
