Right Side

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Position the battery tray assembly and install the retaining bolts.
Connect the right front fender ground wire.
Install the air box.
Install the grid heater relay bracket.
Install the right front wheelhouse splash shield (Refer to BODY/EXTERIOR/LF WHEELHOUSE SPLASH SHIELD - INSTALLATION) .
Install the battery (Refer to ELECTRICAL/BATTERY SYSTEM/BATTERY - INSTALLATION) .

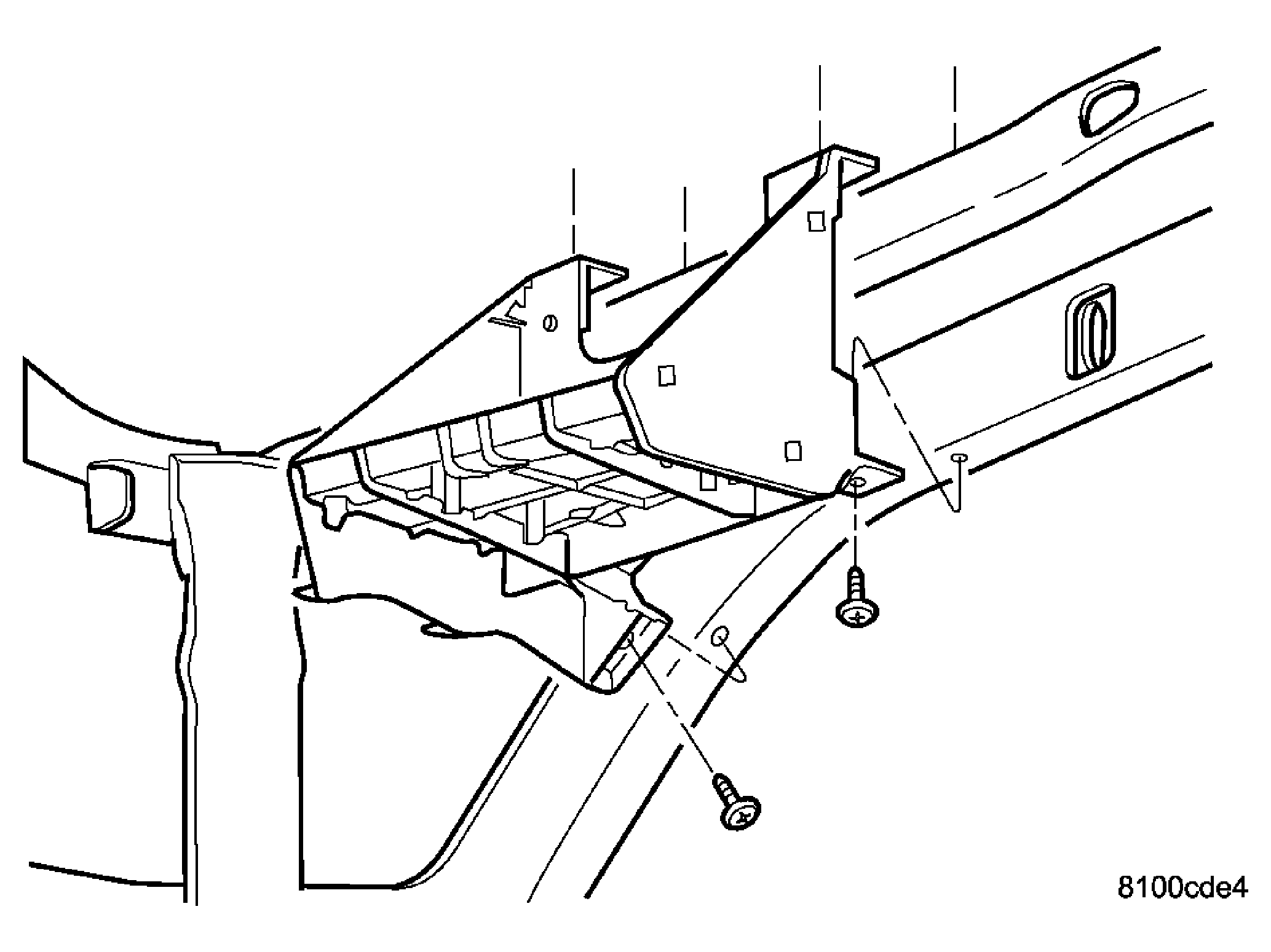

Fig 1: Installing Battery Tray (Right Side)
Courtesy of DAIMLERCHRYSLER CORP.
