Positive - Gasoline Engine

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the battery positive cable (1) in the vehicle.
    Fig 1: Installing Positive Battery Cable (Gasoline) 1 Of 4
    GC0008556Courtesy of DAIMLERCHRYSLER CORP.
  2. Install the nut (3) securing the cable (1) to the alternator (2).
  3. Secure the terminal cap (4) to the alternator stud.
  4. Install the cable (1) push pin into the bracket to the left of the alternator.
  5. Raise the vehicle on a hoist (Refer to LUBRICATION & MAINTENANCE/HOISTING - STANDARD PROCEDURE) .
  6. Install the nut (5) securing the cable to the starter solenoid (6).

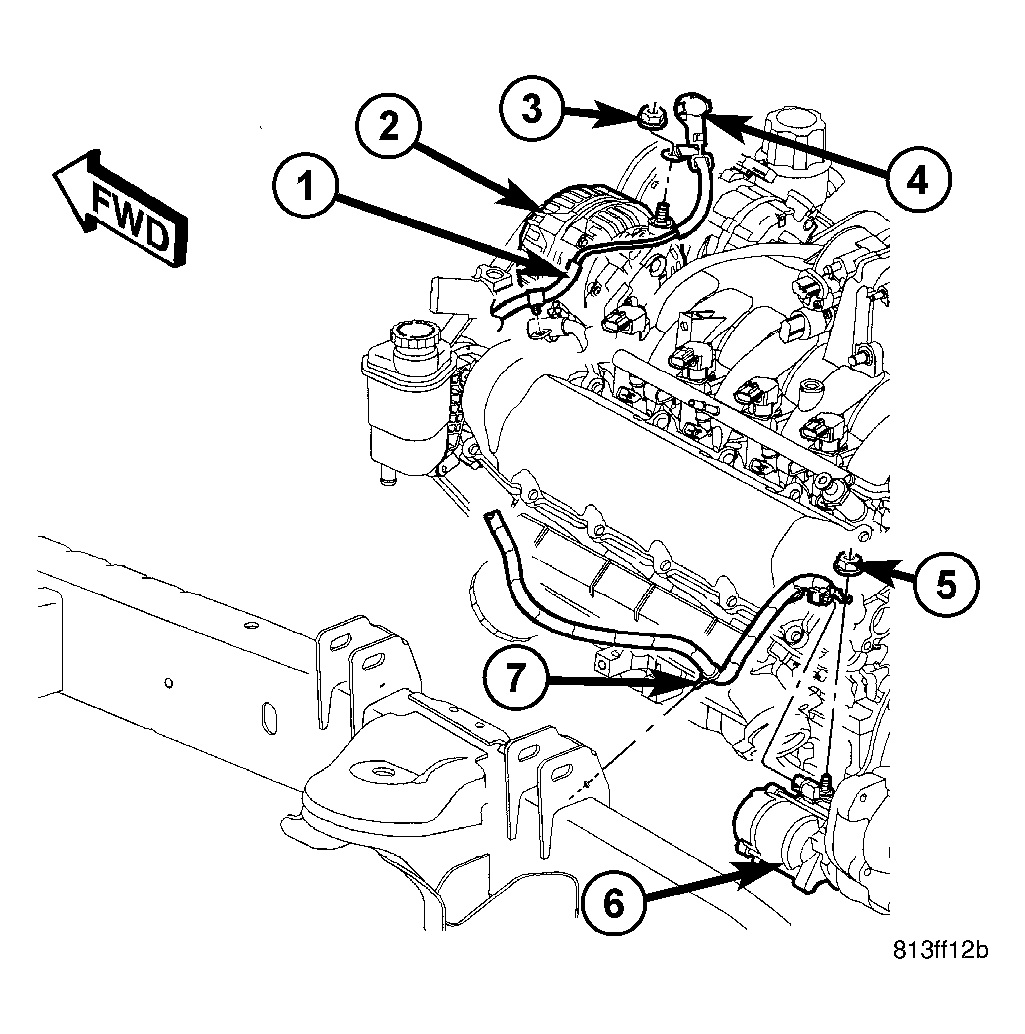

    Fig 2: Installing Positive Battery Cable (Gasoline) 2 Of 4
    GC0008559Courtesy of DAIMLERCHRYSLER CORP.
  7. Connect the battery cable retaining push pins (1) securing the cable to the left frame rail.
  8. Lower the vehicle.

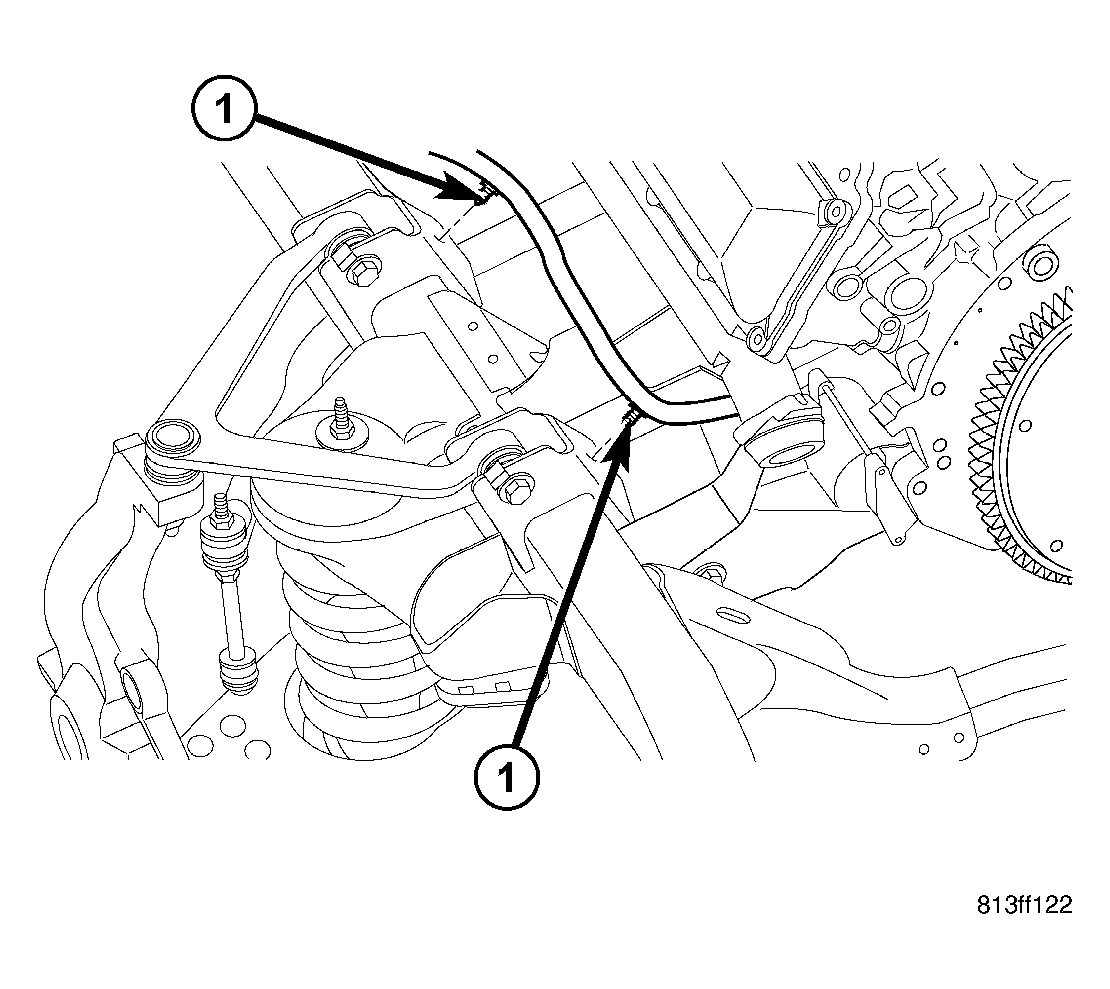

    Fig 3: Installing Positive Battery Cable (Gasoline) 3 Of 4
    GC0008558Courtesy of DAIMLERCHRYSLER CORP.
  9. Install the battery cable retaining push pin (8) securing the cable to the battery tray.
  10. Install the wire harness connector (7) push pin into the Integrated Power Module (IPM) (5) housing.
  11. Connect the wire harness connector (6) at the IPM.
  12. Install the nut (9) securing the cable to the IPM.
  13. Connect the battery positive cable terminal clamp (1).
  14. Connect the battery negative cable terminal clamp (3).
  15. Check the vehicle for normal operation.
    Fig 4: Installing Positive Battery Cable (Gasoline) 4 Of 4
    GC0008556Courtesy of DAIMLERCHRYSLER CORP.
