Negative - Gasoline Engine

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the battery negative cable (5) in the vehicle.
  2. One at a time, install the battery cable retaining push pins (3) , fasteners and routing clips until the cable is secure in the vehicle.
  3. Install the bolt (6) securing the negative cable (1) to the left frame rail.
  4. Install the bolt (4) securing the negative cable (5) to the engine.

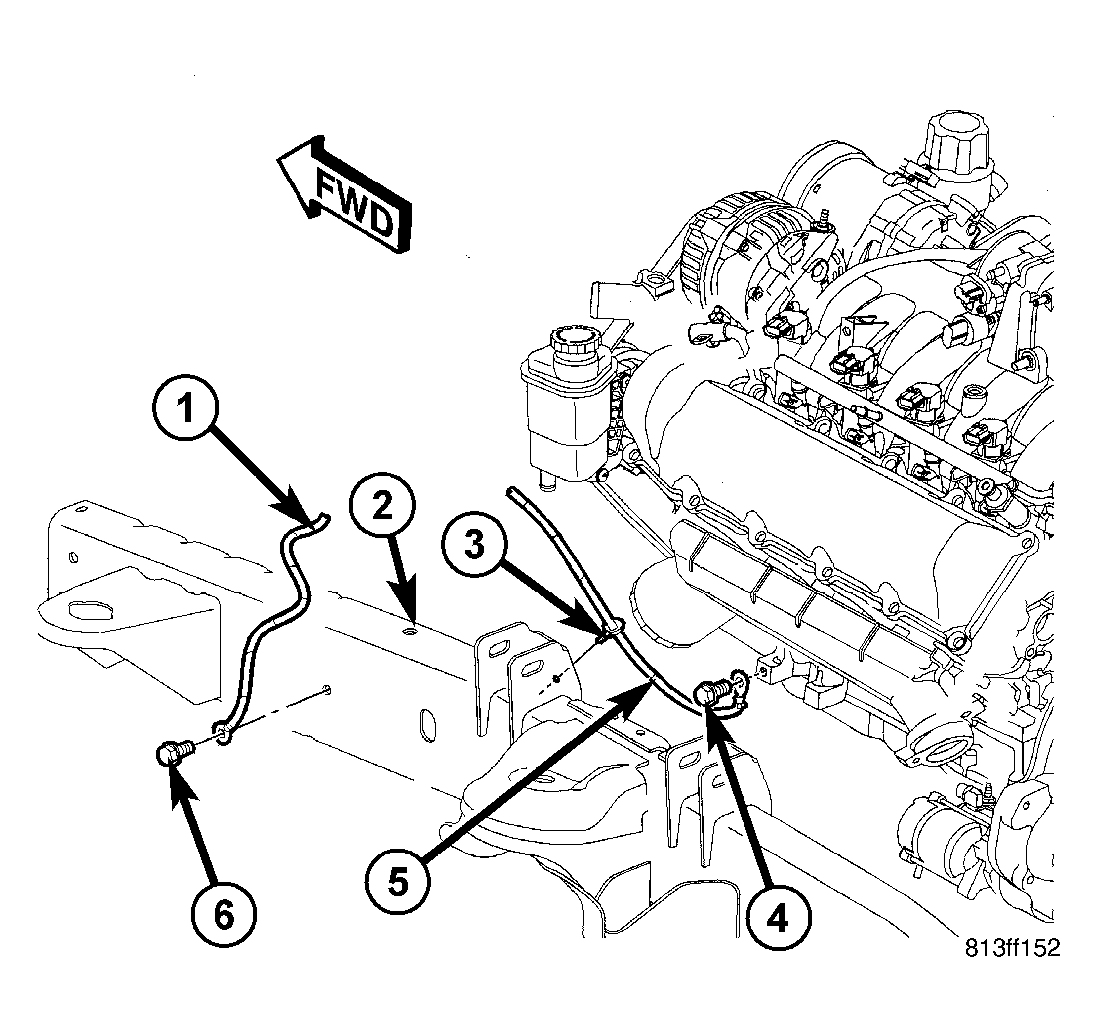

    Fig 1: Installing Negative Battery Cable (Gasoline) 1 Of 2
    GC0008557Courtesy of DAIMLERCHRYSLER CORP.
  5. Install the bolt (4) securing the negative cable (3) to the left front fender.
  6. Connect the battery negative cable terminal clamp (3).
  7. Check the vehicle for normal operation.
    Fig 2: Installing Negative Battery Cable (Gasoline) 2 Of 2
    GC0008556Courtesy of DAIMLERCHRYSLER CORP.
