Radiator Fan: Installation

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the radiator fan(s) into mounts and attaching clips on the radiator.

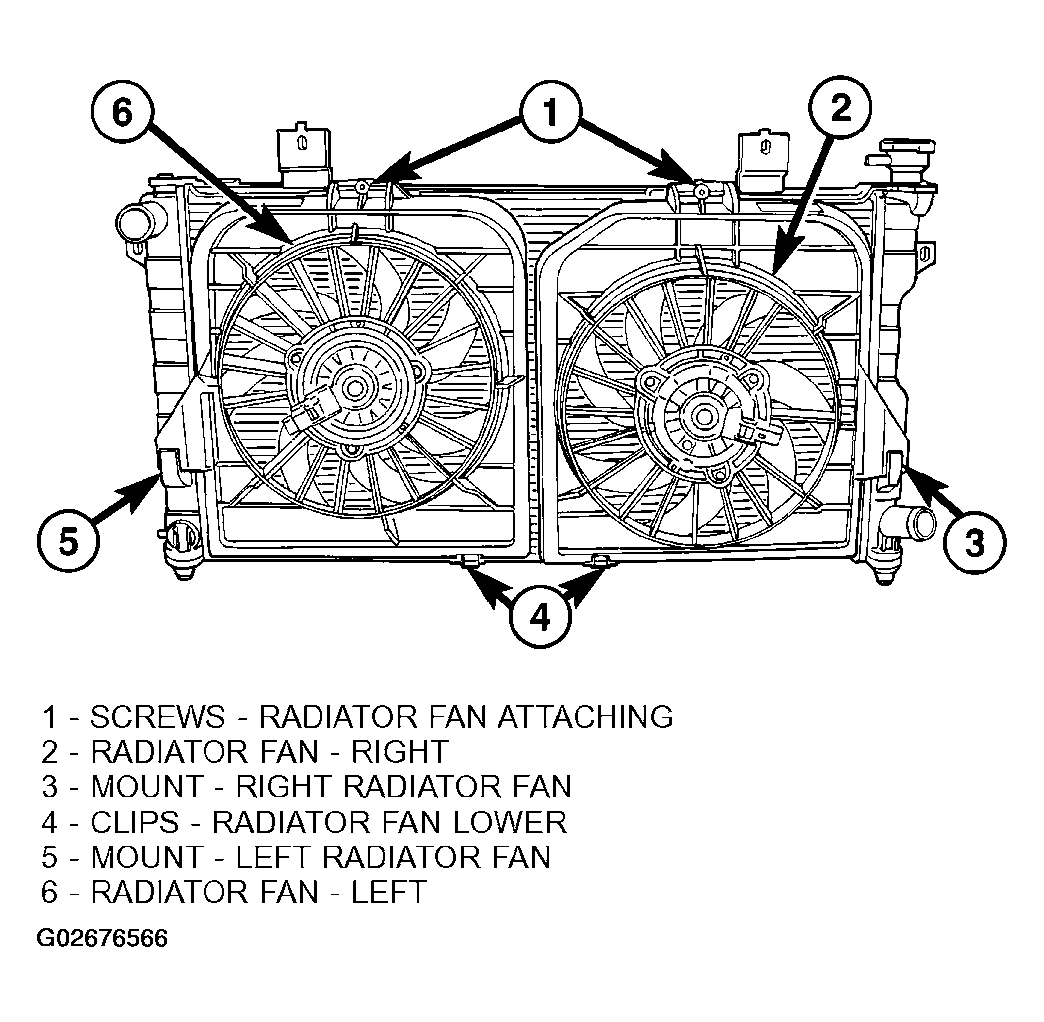

  2. Install radiator fan(s) attaching screws (Figure). Tighten to 5 N.m (45 in. lbs.).
  3. Connect the radiator fan(s) electrical connectors.
  4. Install the radiator upper support crossmember. (Refer to GRILLE OPENING REINFORCEMENT ).
  5. Install the upper radiator mounts to the crossmember bolts, if removed. Tighten to 8 N.m (70 in. lbs.).
  6. Install the radiator upper hose to the support clip (2.4L engine).
