Engine Coolant Temperature Sensor - 3.3/3.8L: Installation
WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

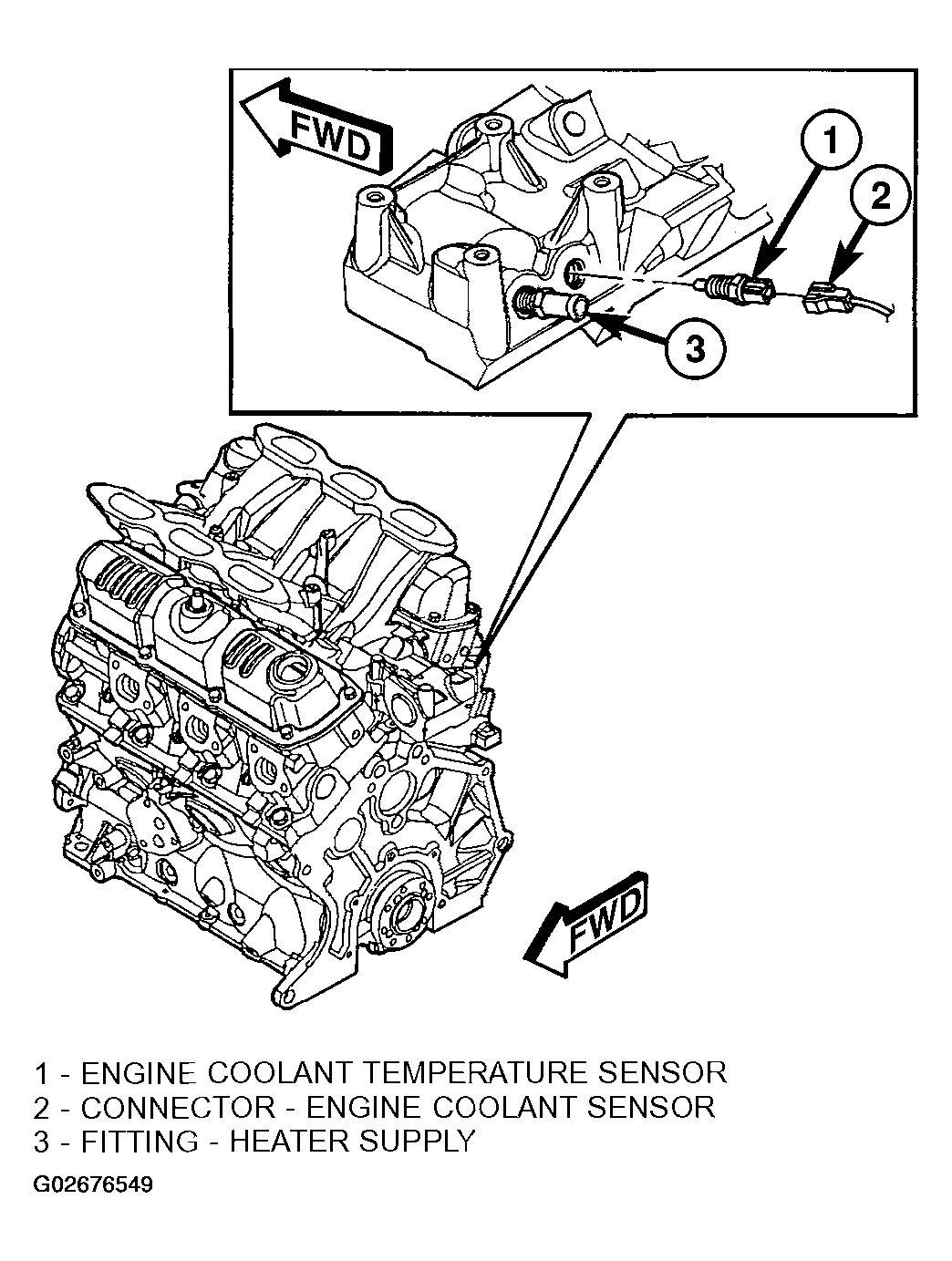

- Install engine coolant temperature sensor (Figure). Tighten sensor to 7 N-m (60 in. lbs.).
- Connect electrical connector to sensor (Figure).

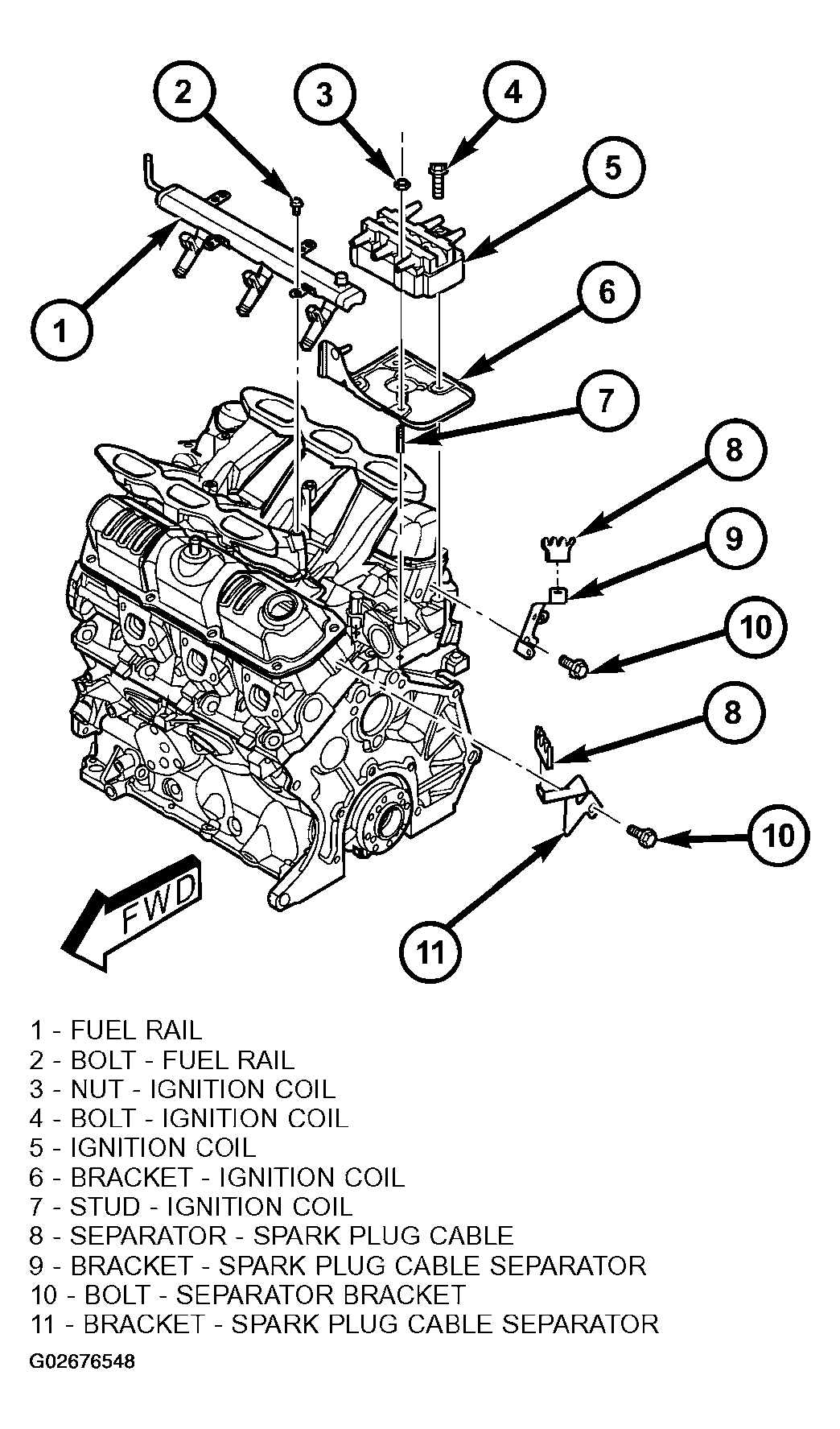

- Install ignition coil bracket (Figure).
- Install ignition coil (Figure).

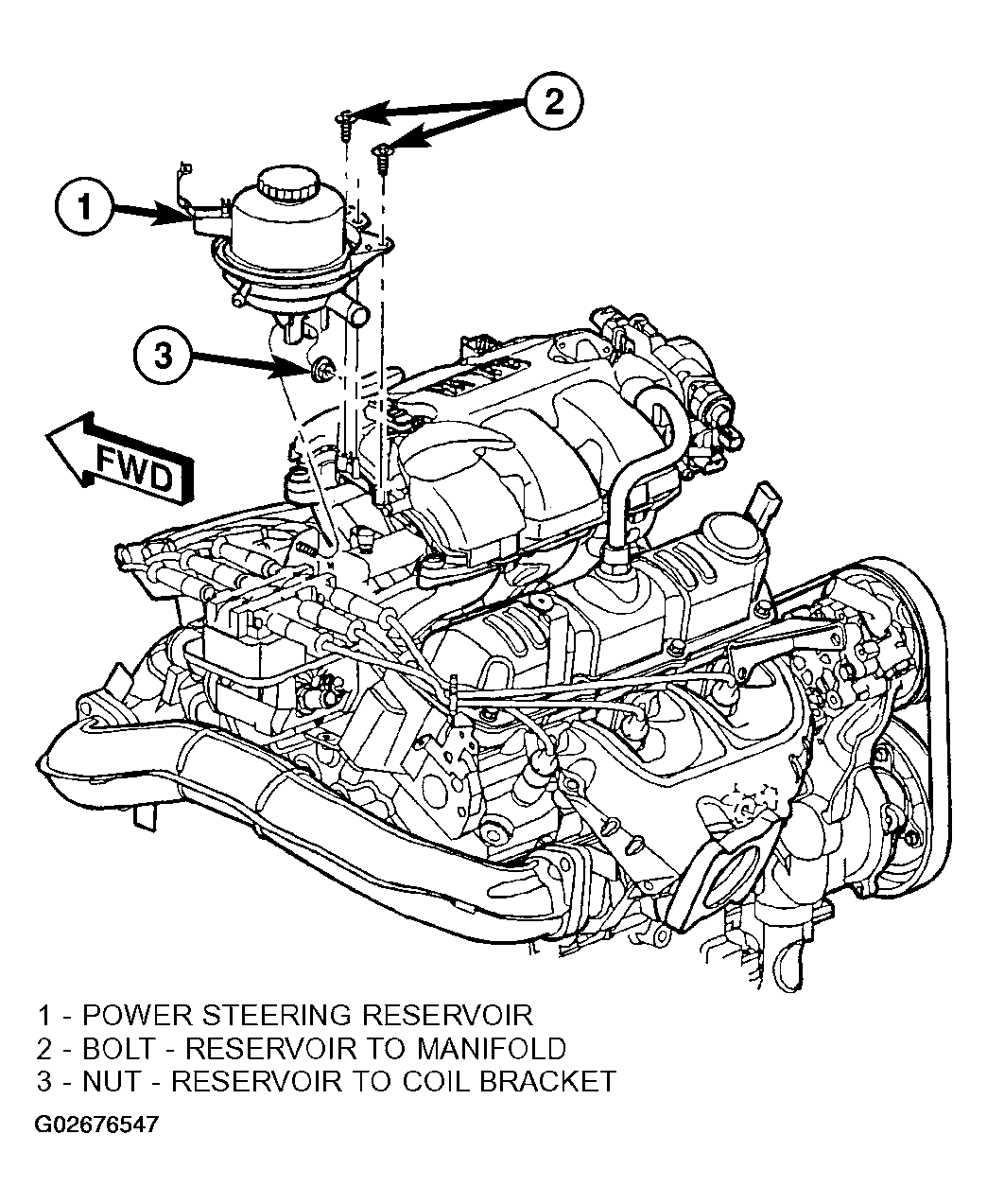

- Install power steering reservoir (Figure).
- Fill cooling system. (Refer to STANDARD PROCEDURE ).
