Lower Drive Unit: Installation

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the lower drive unit near the lower hinge.
  2. Connect the flex drive assembly on the lower drive unit. Push the flex drive collar straight on until the it snaps in place (Figure ).

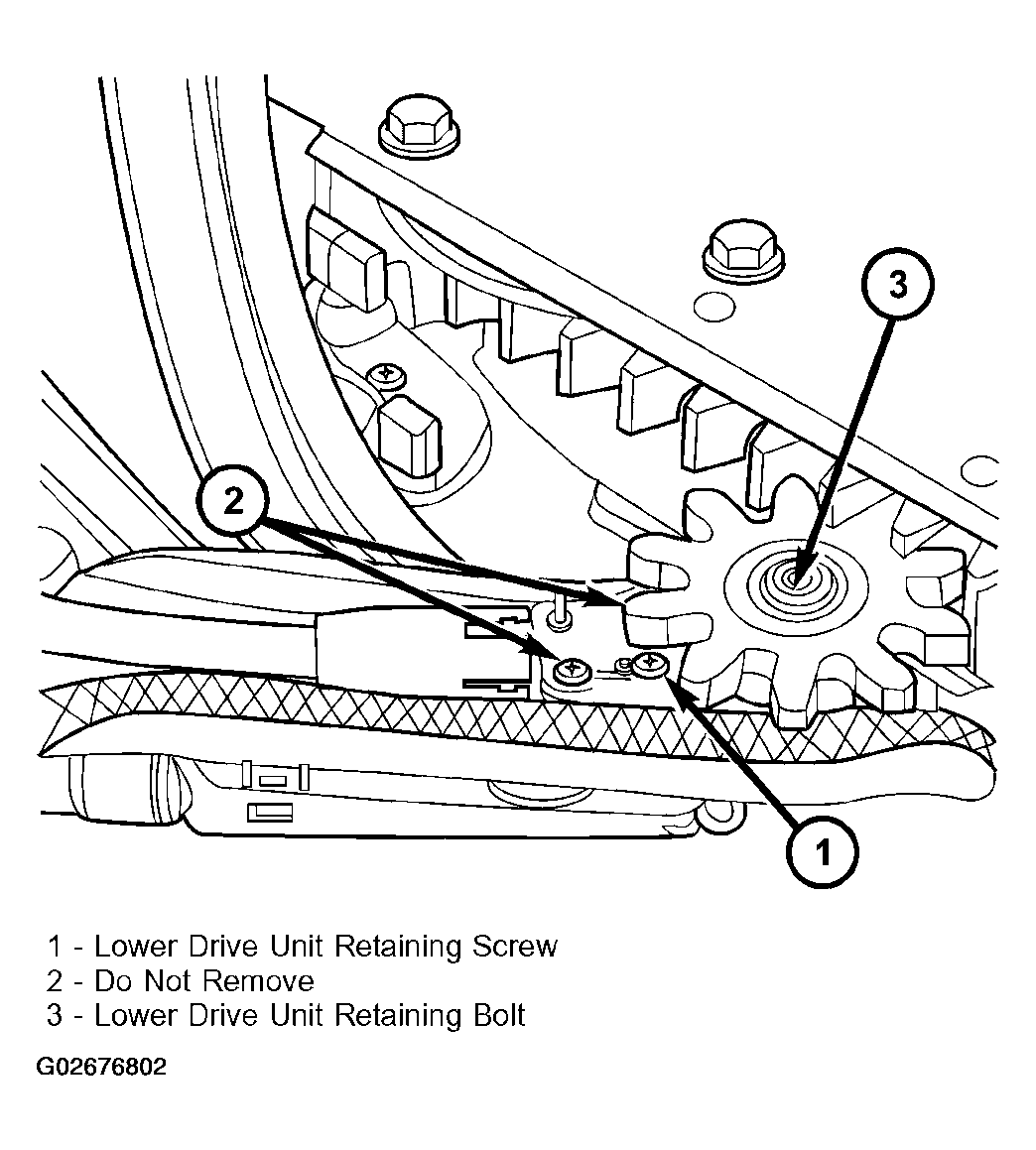

  3. Install the lower drive unit retaining fasteners (Figure ). Torque the larger allen headed center stud to 9 N.m (80 in. lbs.). Torque the smaller screw to 3 N.m (28 in. lbs.).

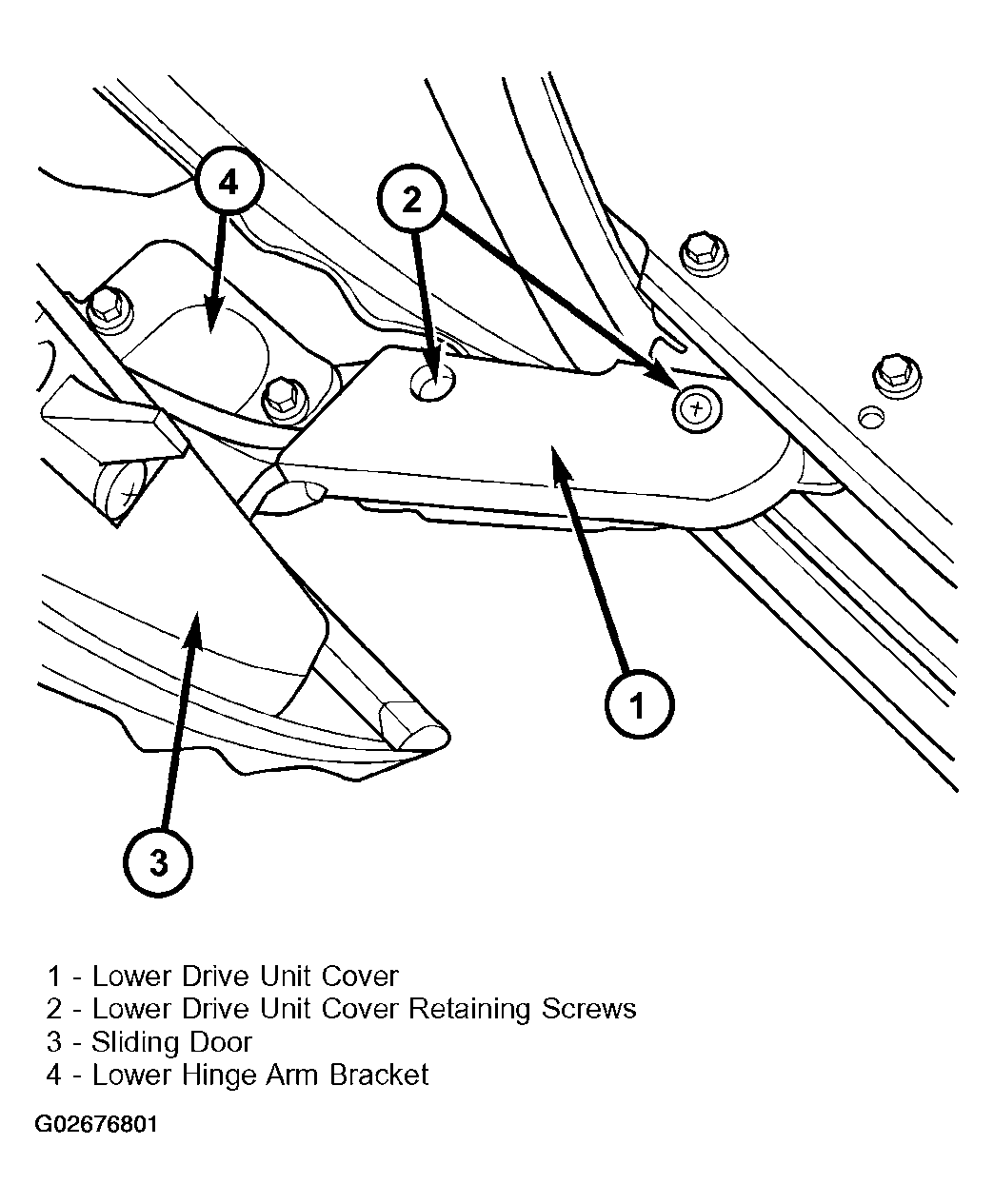

  4. Install the lower drive unit cover and retaining screws (Figure ).
  5. Connect the negative battery cable.
