Cd Changer: Removal

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the battery negative cable.
  2. Remove screws holding CD changer.

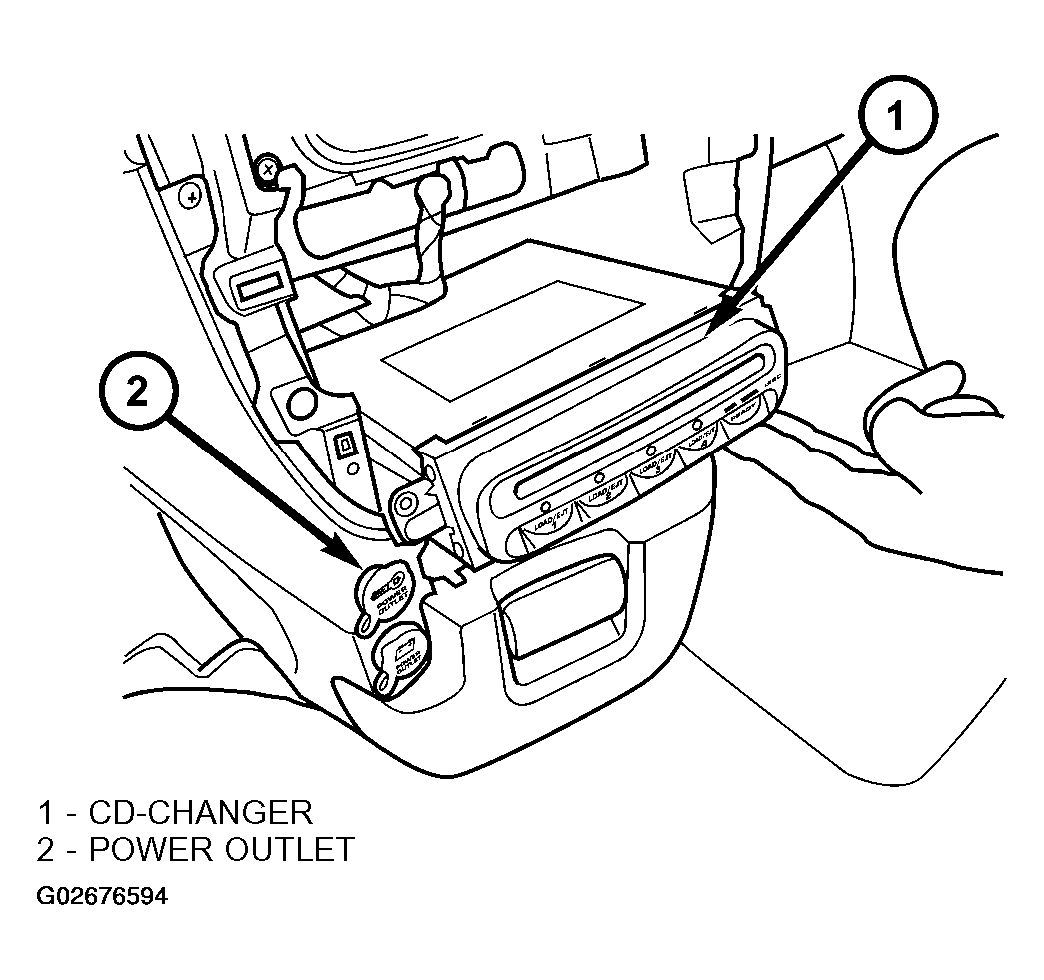

    Fig 1: Identifying CD Changer
    G02676594Courtesy of DAIMLERCHRYSLER CORP.
  3. Disconnect the wire connector from the back of the CD changer.
  4. Remove the CD changer from the vehicle (Fig 1 ).
