Connector PINOUTS

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

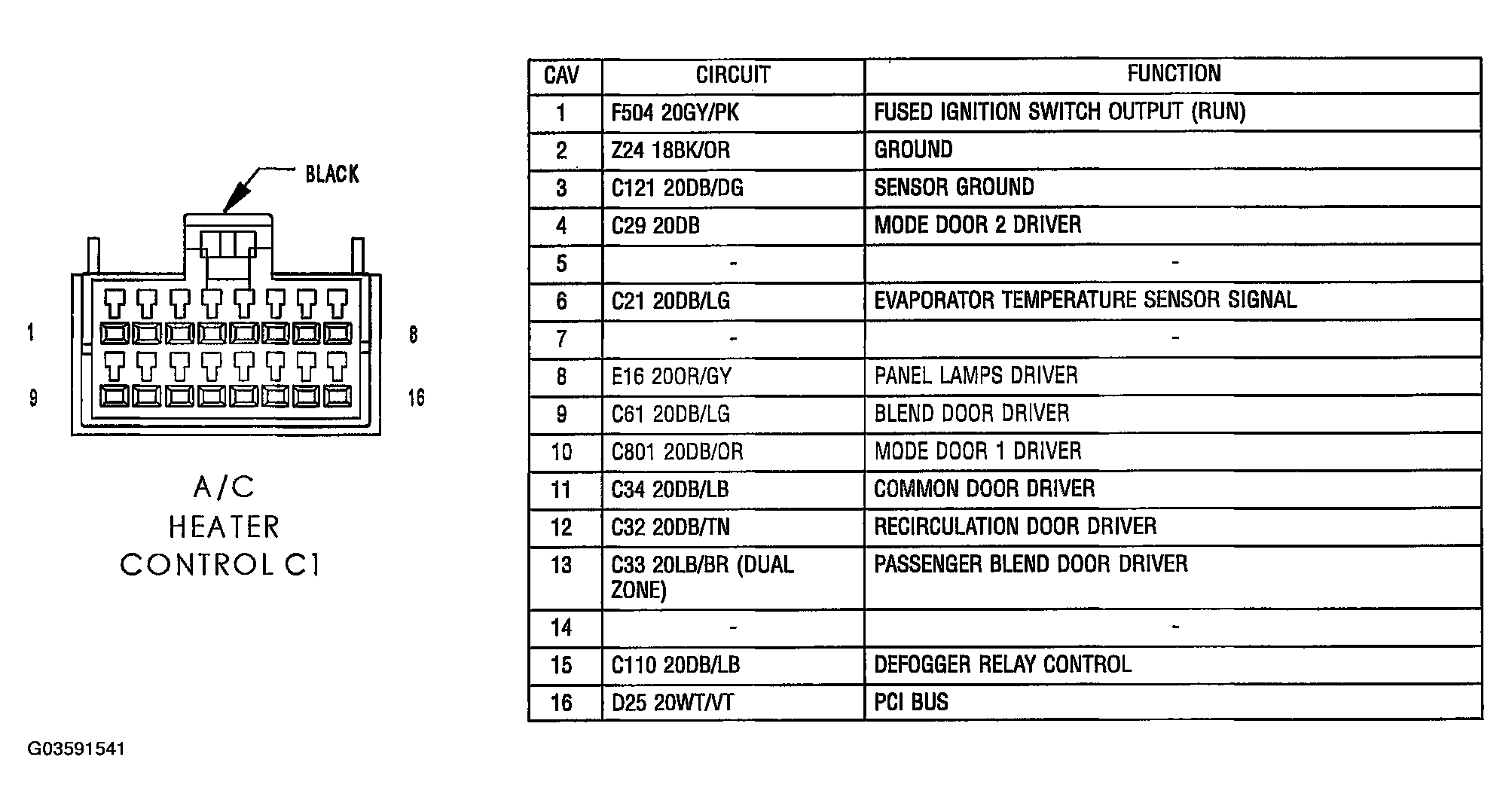

Fig 1: Identifying A/C Heater Control C1 - Black 16 Way Connector Pin Outs
G03591541Courtesy of DAIMLERCHRYSLER CORP.

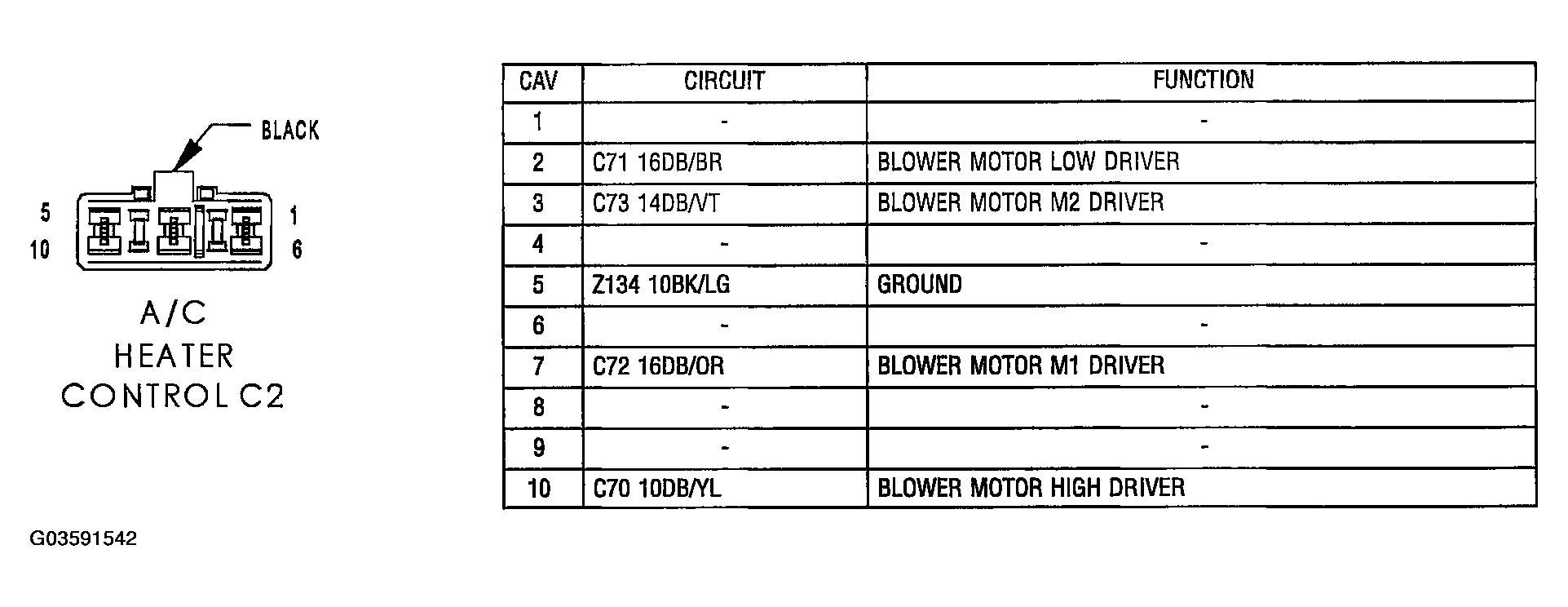

Fig 2: Identifying A/C Heater Control C2 - Black 10 Way Connector Pin Outs
G03591542Courtesy of DAIMLERCHRYSLER CORP.

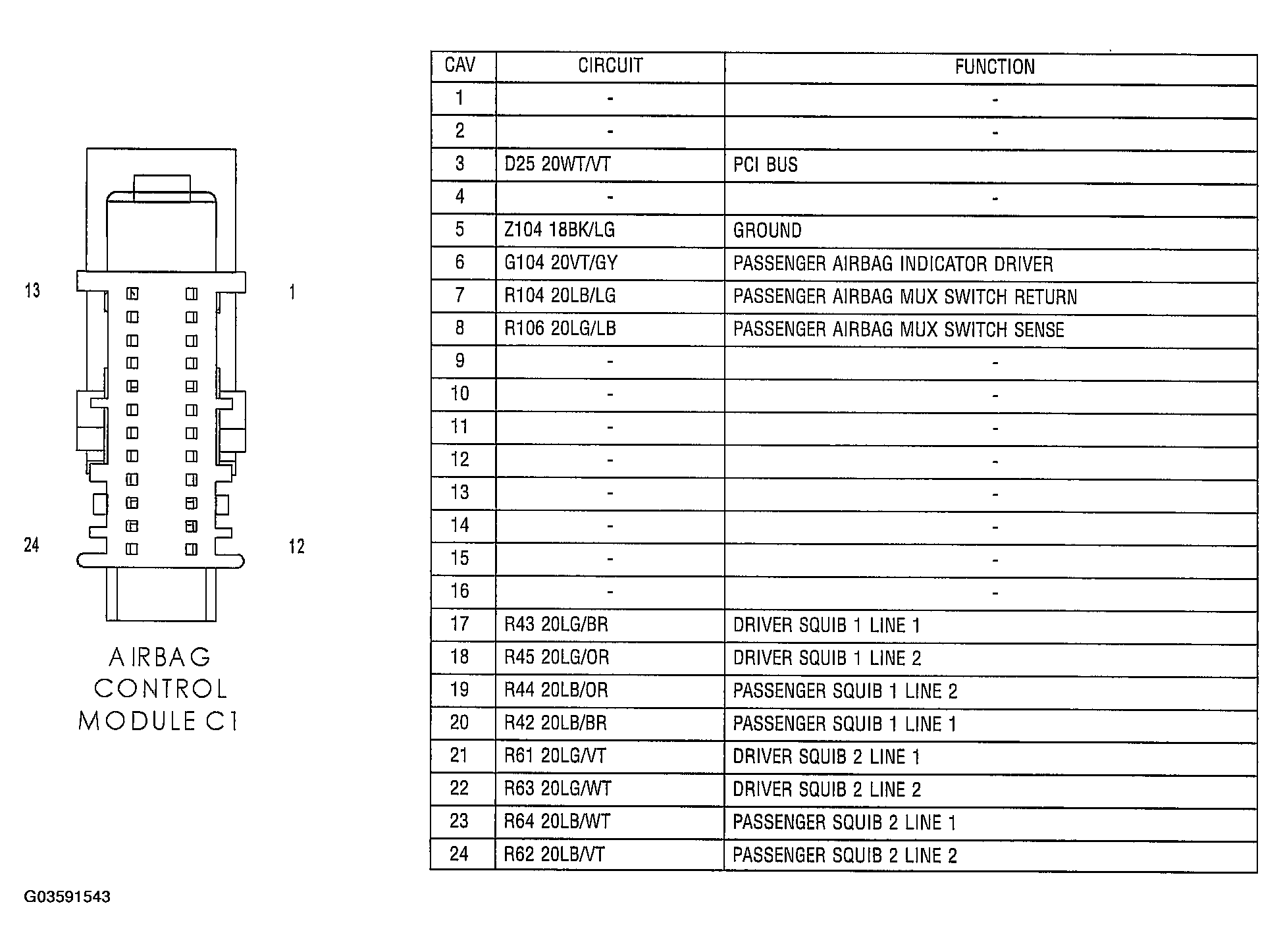

Fig 3: Identifying Airbag Control Module C1 - 24 Way Connector Pin Outs
G03591543Courtesy of DAIMLERCHRYSLER CORP.

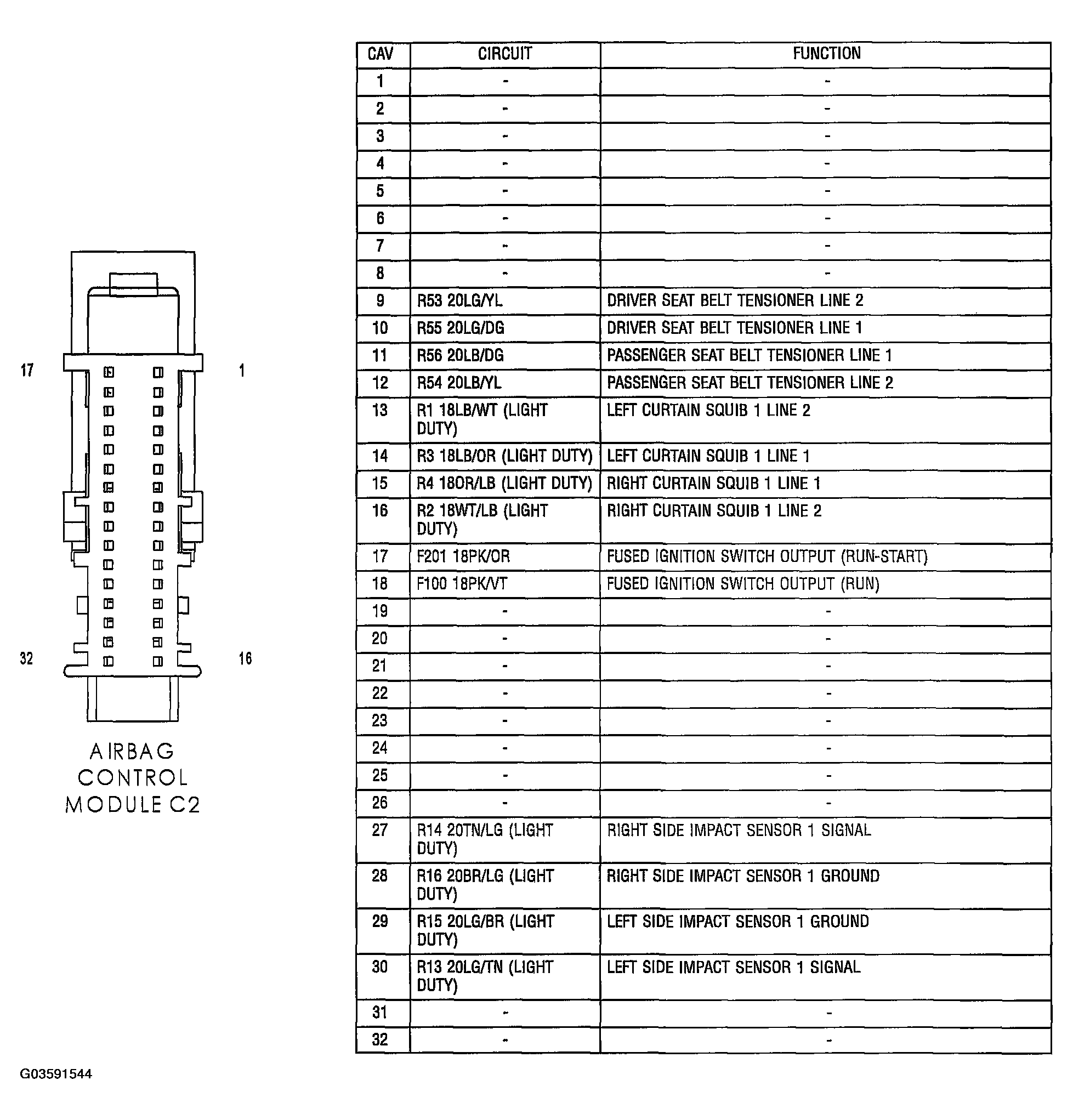

Fig 4: Identifying Airbag Control Module C2 - 32 Way Connector Pin Outs
G03591544Courtesy of DAIMLERCHRYSLER CORP.

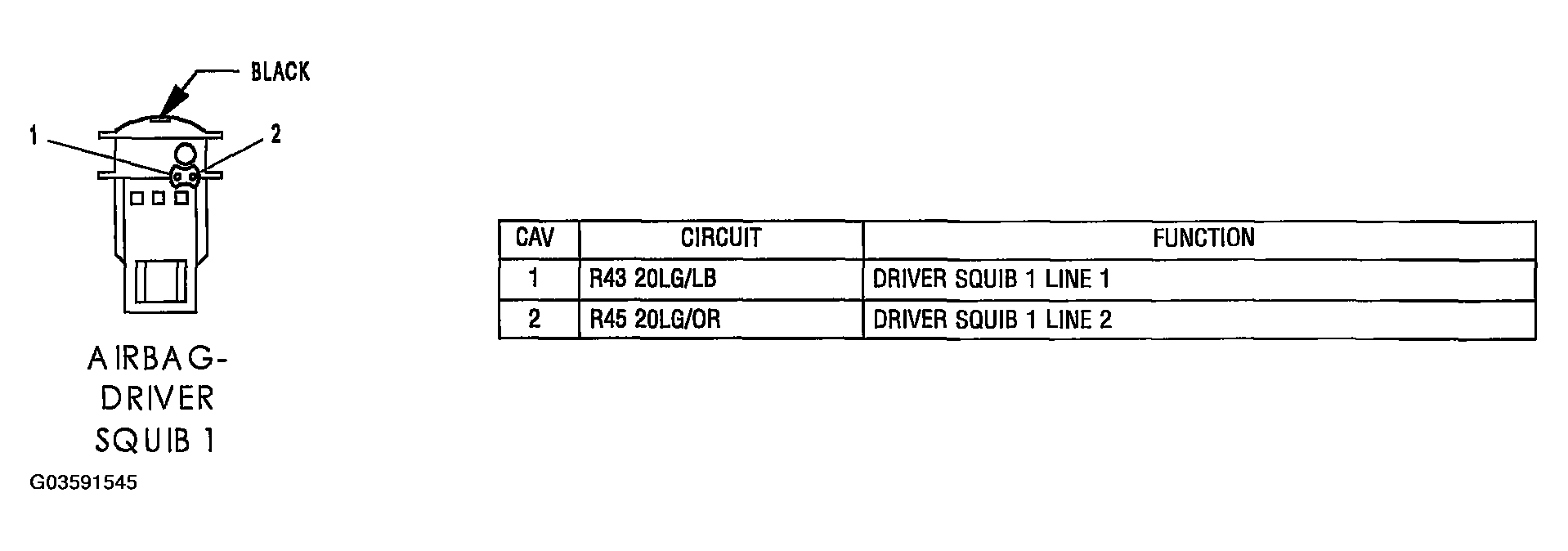

Fig 5: Identifying Airbag-Driver Squib 1 - (Sensor Side) Connector Pin Outs
G03591545Courtesy of DAIMLERCHRYSLER CORP.

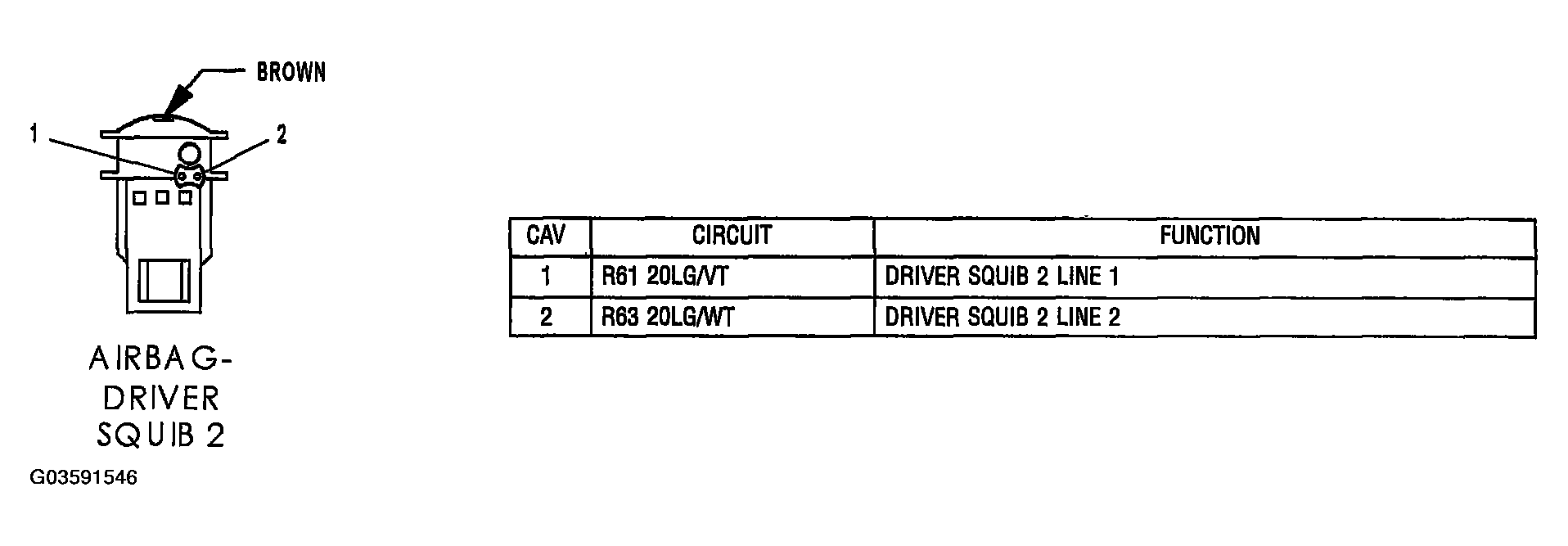

Fig 6: Identifying Airbag-Driver Squib 2 - (Sensor Side) Connector Pin Outs
G03591546Courtesy of DAIMLERCHRYSLER CORP.

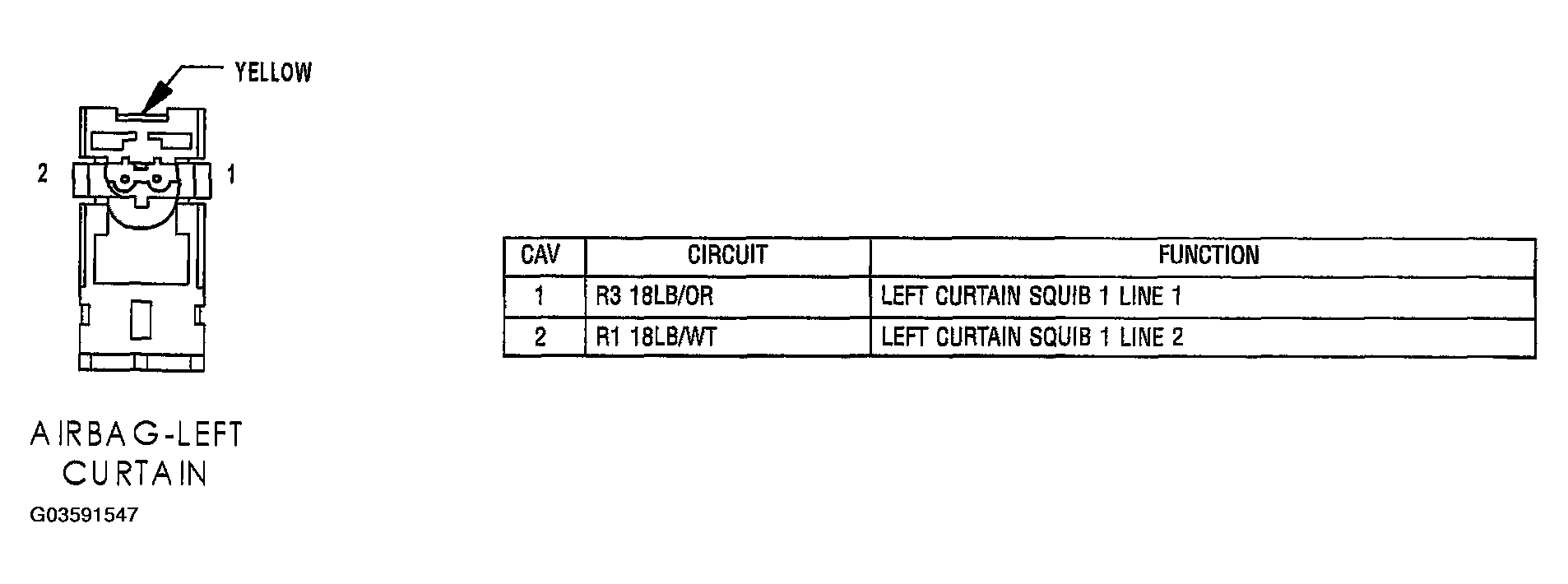

Fig 7: Identifying Airbag-Left Curtain - Yellow 2 Way Connector Pin Outs
G03591547Courtesy of DAIMLERCHRYSLER CORP.

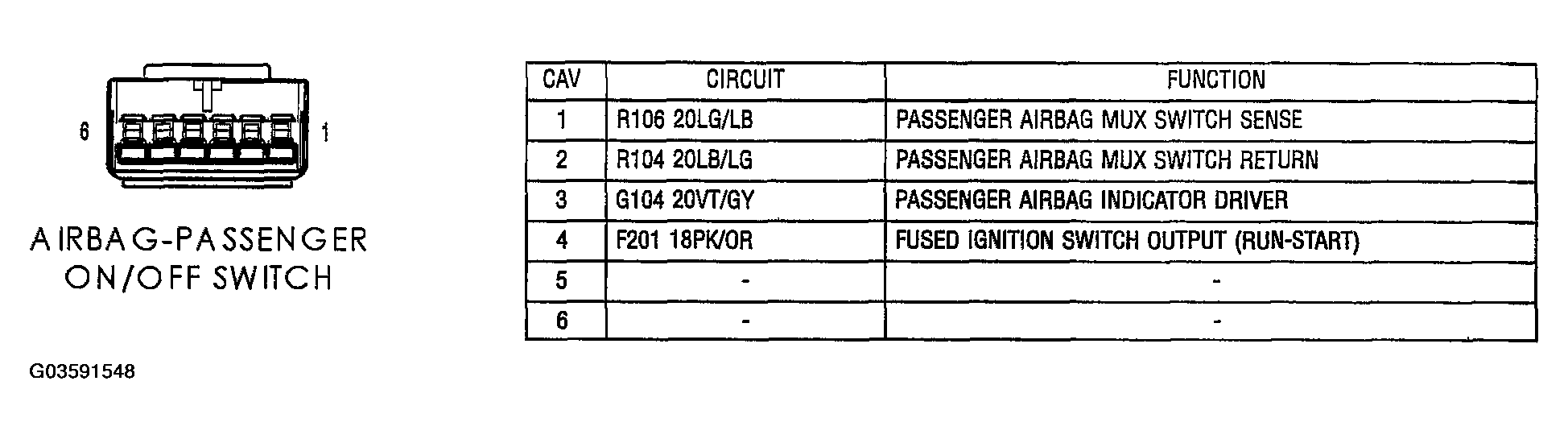

Fig 8: Identifying Airbag-Passenger On/Off Switch - 6 Way Connector Pin Outs
G03591548Courtesy of DAIMLERCHRYSLER CORP.

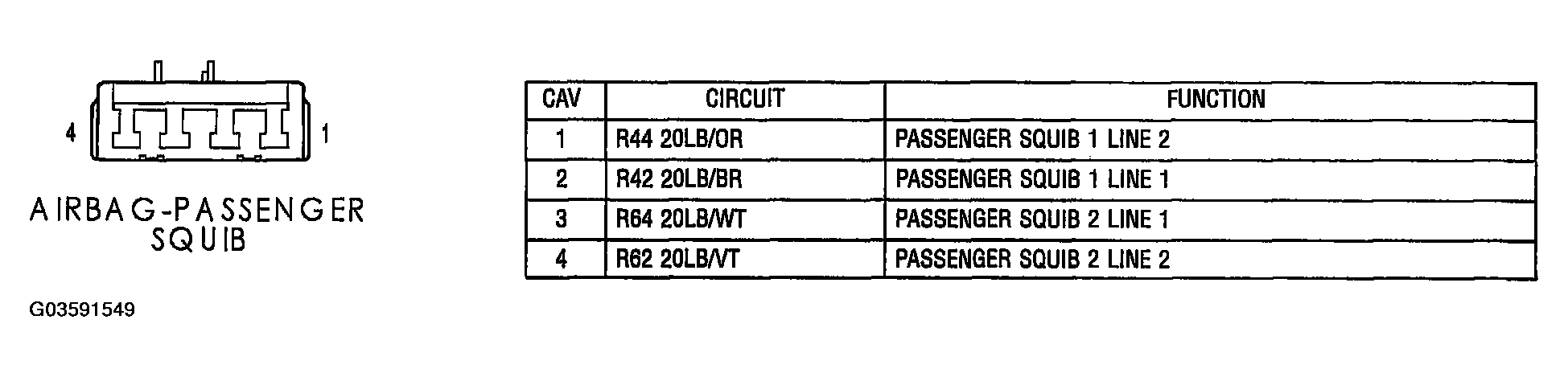

Fig 9: Identifying Airbag-Passenger Squib - 4 Way Connector Pin Outs
G03591549Courtesy of DAIMLERCHRYSLER CORP.

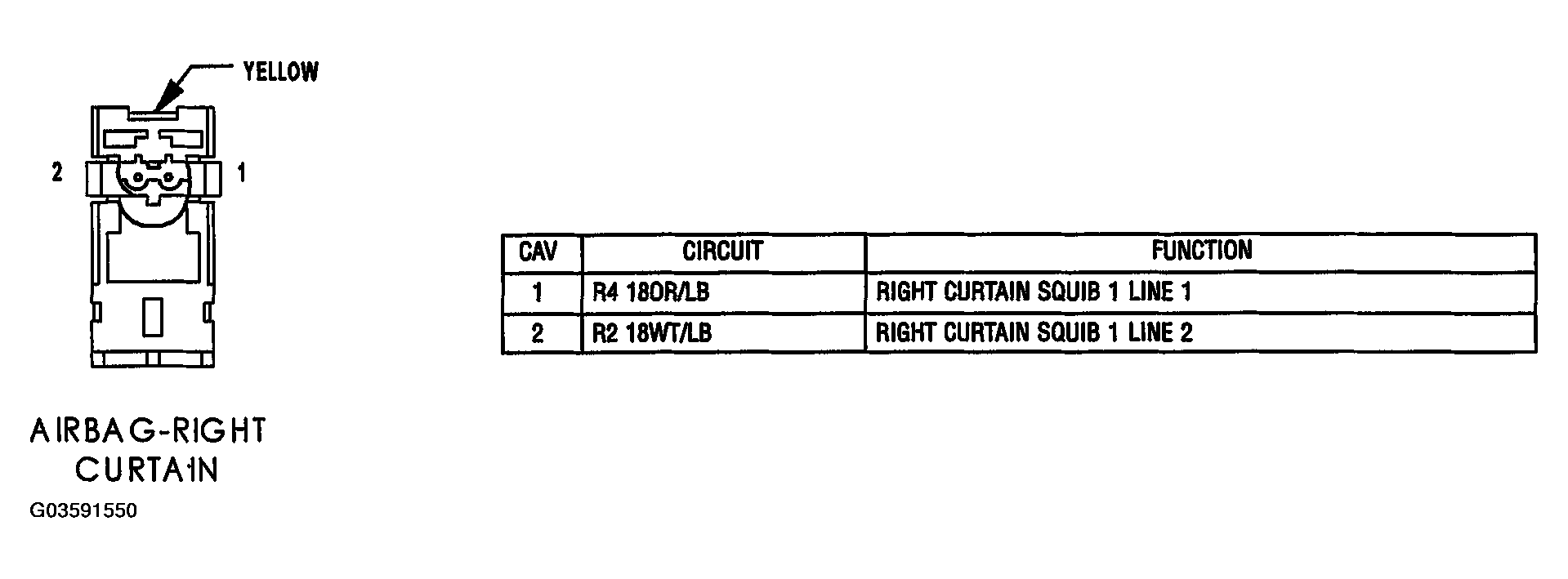

Fig 10: Identifying Airbag-Right Curtain - Yellow 2 Way Connector Pin Outs
G03591550Courtesy of DAIMLERCHRYSLER CORP.

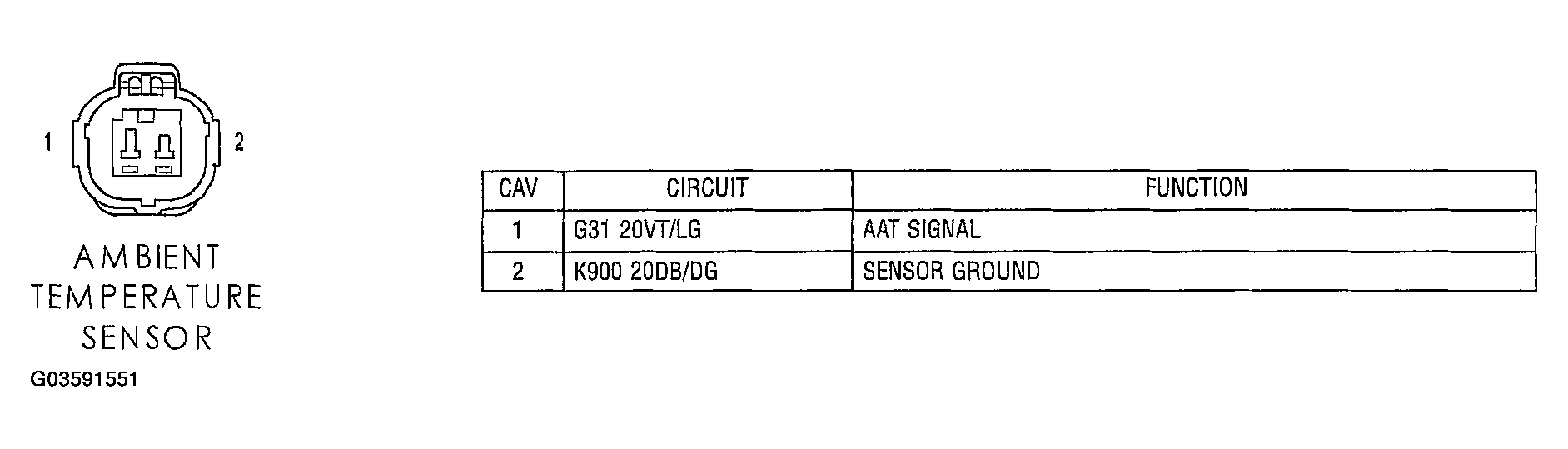

Fig 11: Identifying Ambient Temperature Sensor - 2 Way Connector Pin Outs
G03591551Courtesy of DAIMLERCHRYSLER CORP.

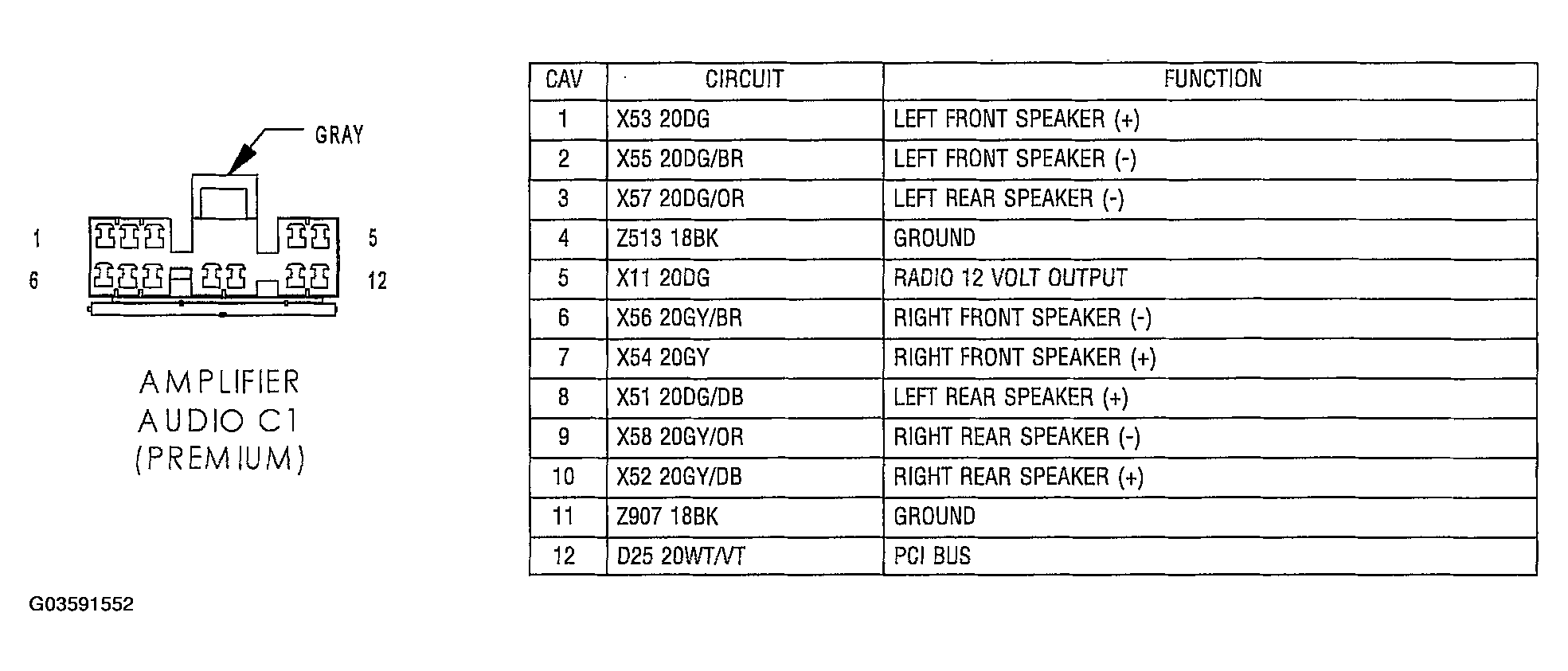

Fig 12: Identifying Amplifier Audio C1 (Premium) - Gray 12 Way Connector Pin Outs
G03591552Courtesy of DAIMLERCHRYSLER CORP.

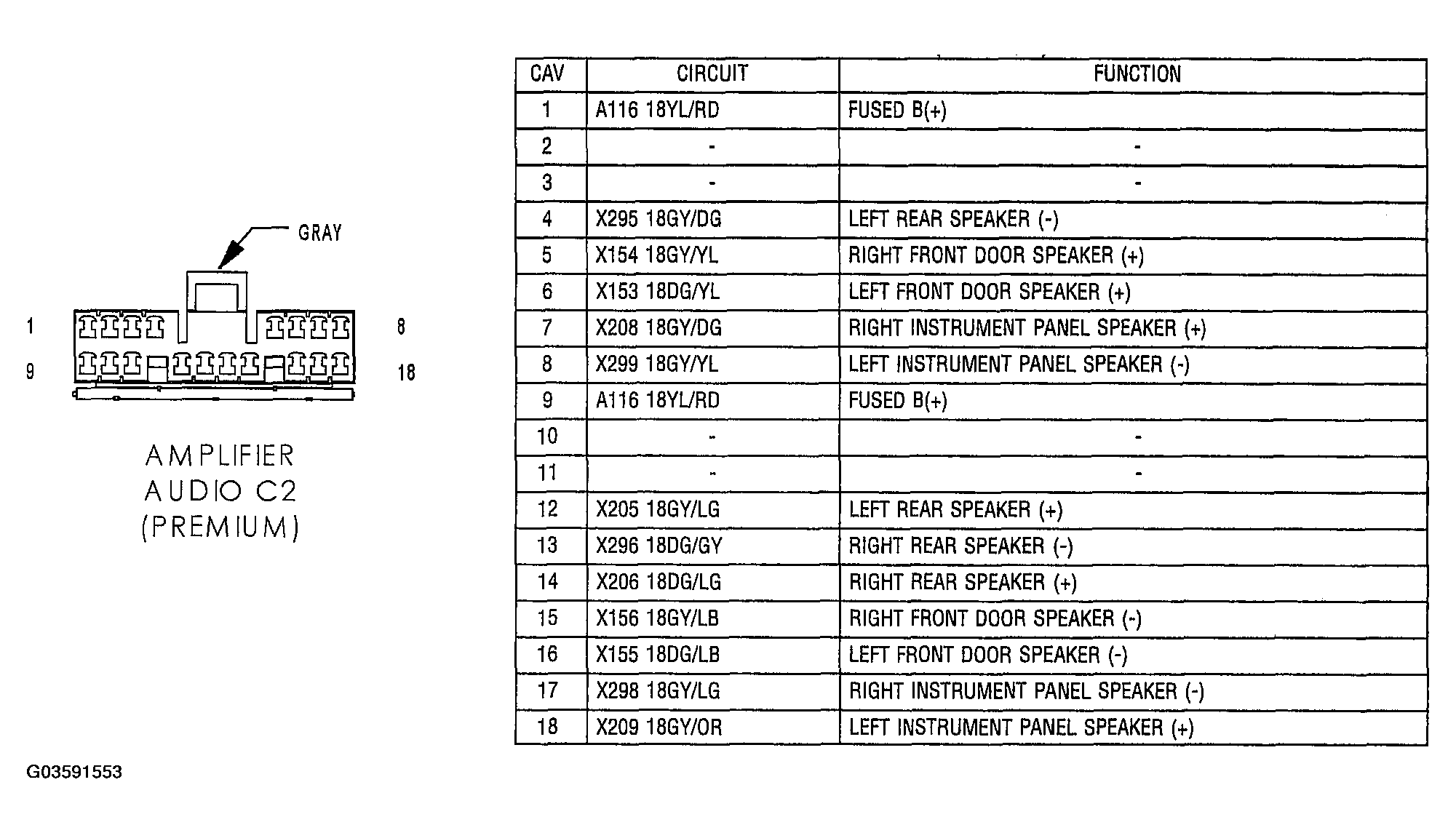

Fig 13: Identifying Amplifier Audio C2 (Premium) - Gray 18 Way Connector Pin Outs
G03591553Courtesy of DAIMLERCHRYSLER CORP.

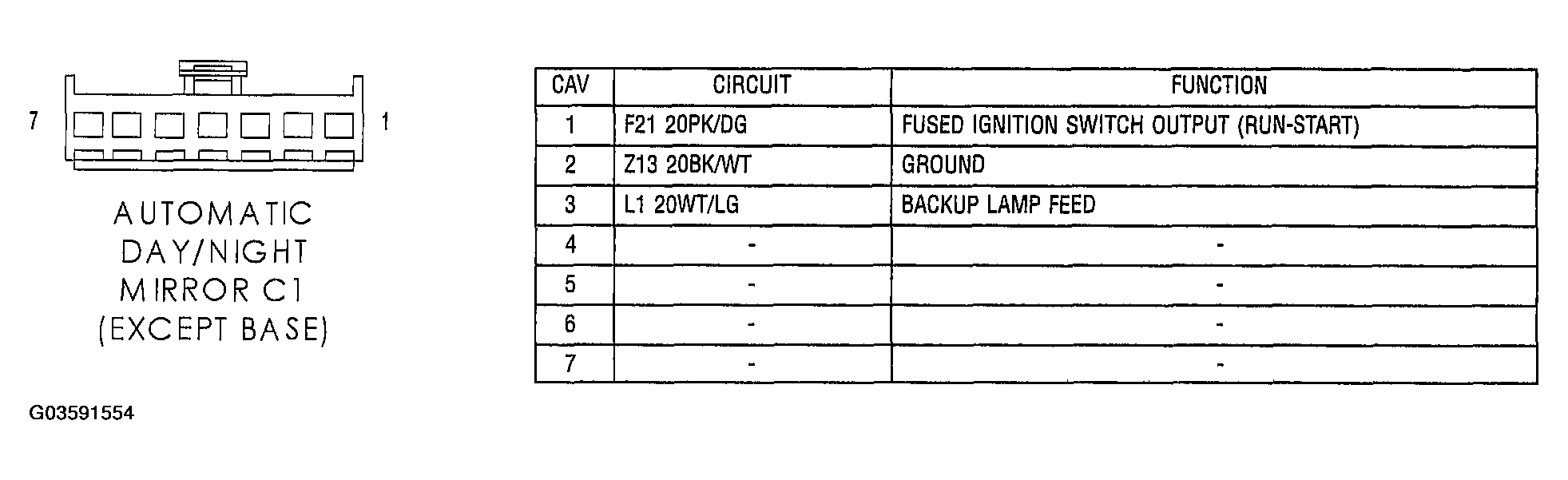

Fig 14: Identifying Automatic Day/Night Mirror C1 (Except Base) - 7 Way Connector Pin Outs
G03591554Courtesy of DAIMLERCHRYSLER CORP.

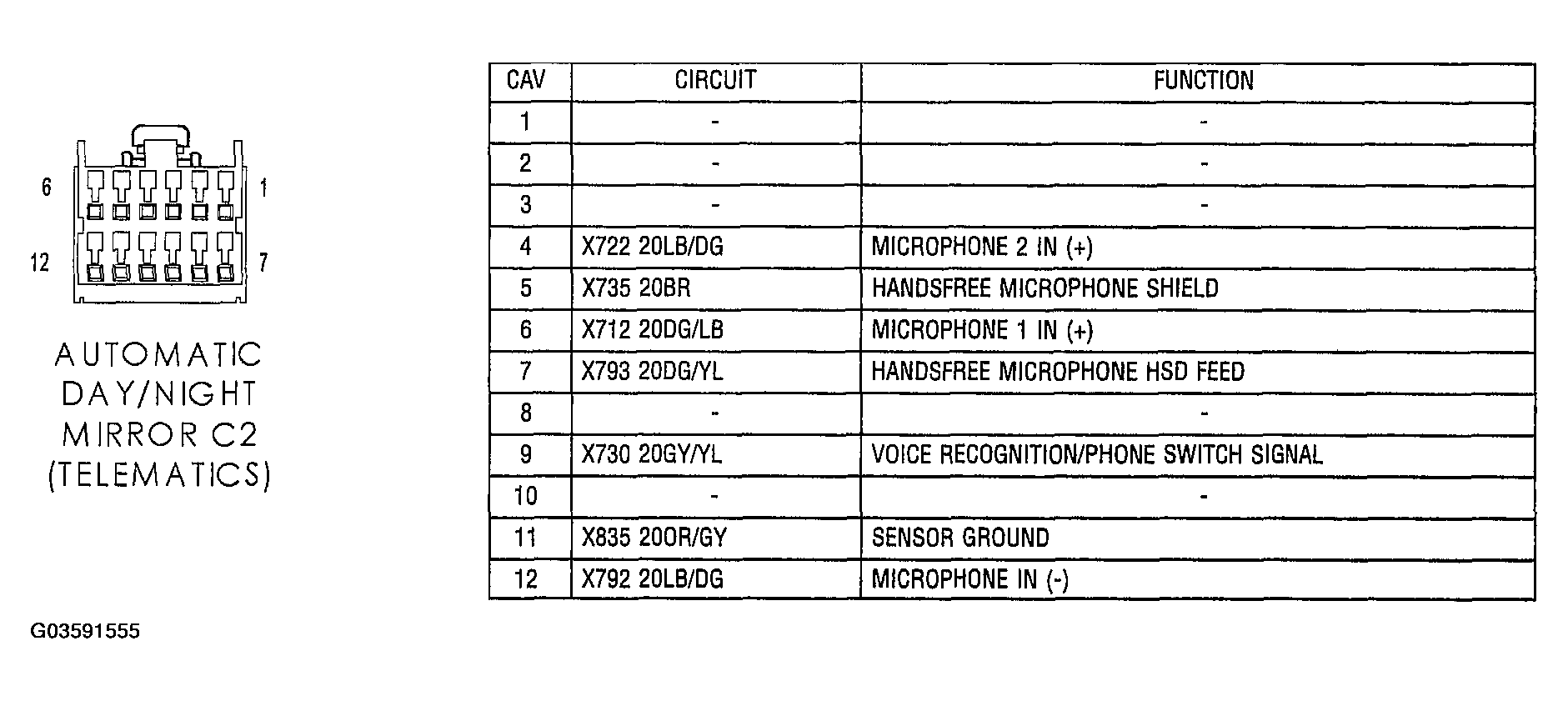

Fig 15: Identifying Automatic Day/Night Mirror C2 (Telematics) - 12 Way Connector Pin Outs
G03591555Courtesy of DAIMLERCHRYSLER CORP.

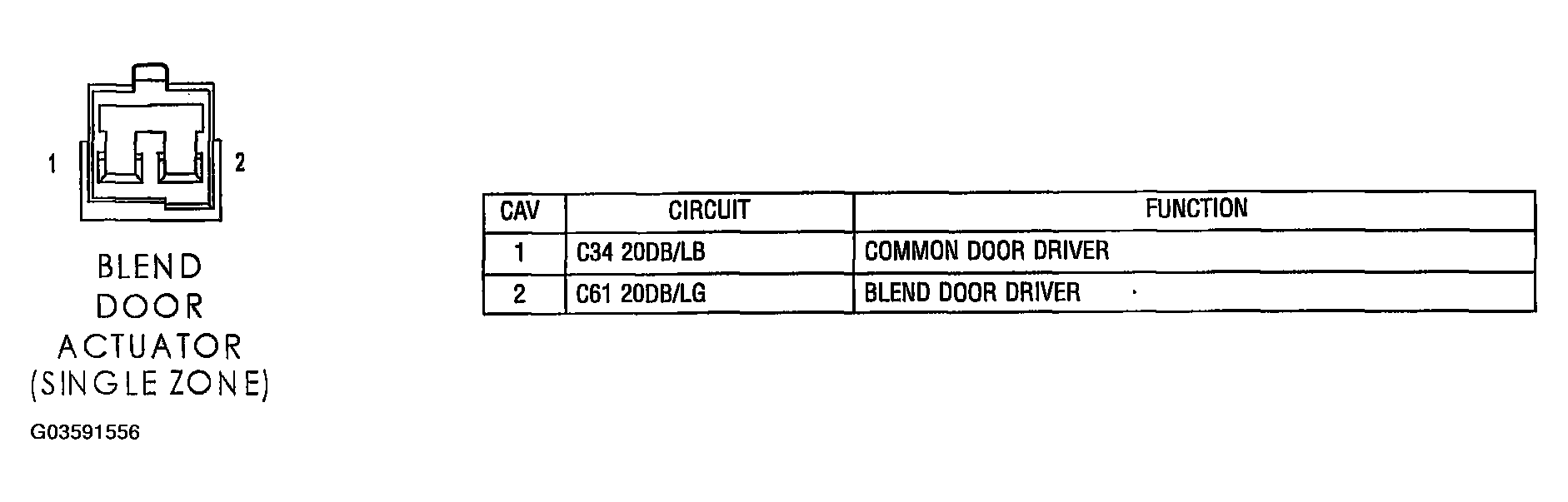

Fig 16: Identifying Blend Door Actuator (Single Zone) - 2 Way Connector Pin Outs
G03591556Courtesy of DAIMLERCHRYSLER CORP.

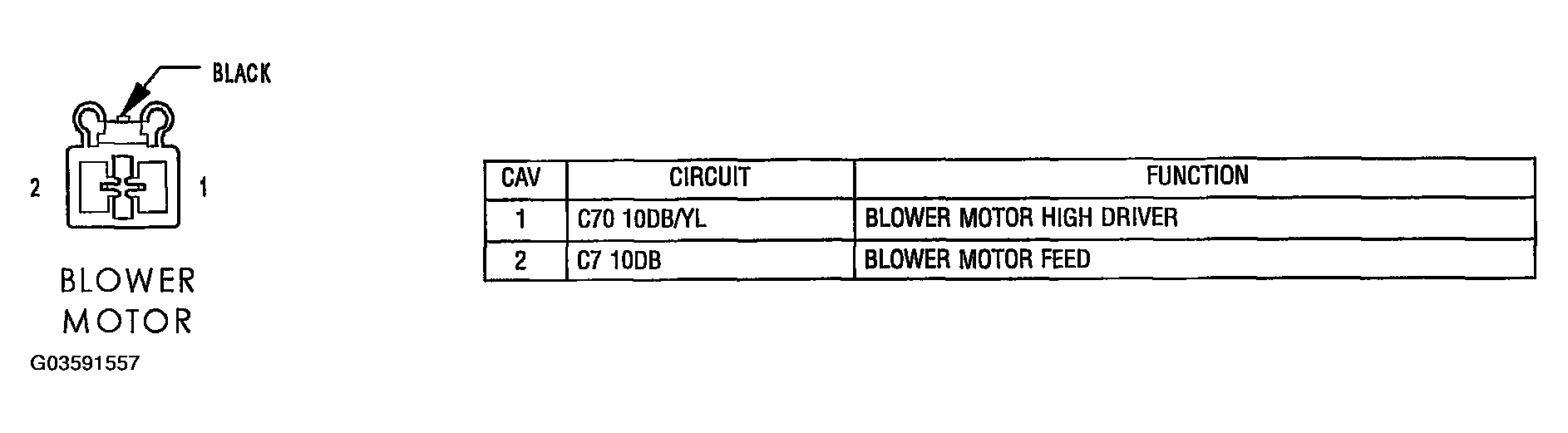

Fig 17: Identifying Blower Motor - Black 2 Way Connector Pin Outs
G03591557Courtesy of DAIMLERCHRYSLER CORP.

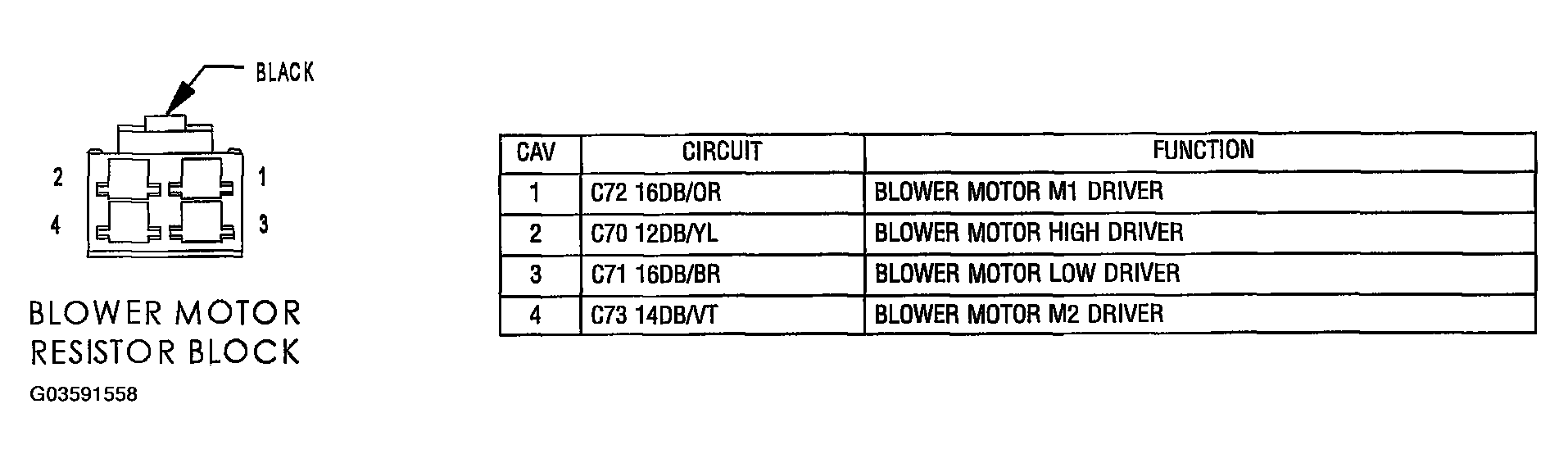

Fig 18: Identifying Blower Motor Resistor Block - Black 4 Way Connector Pin Outs
G03591558Courtesy of DAIMLERCHRYSLER CORP.

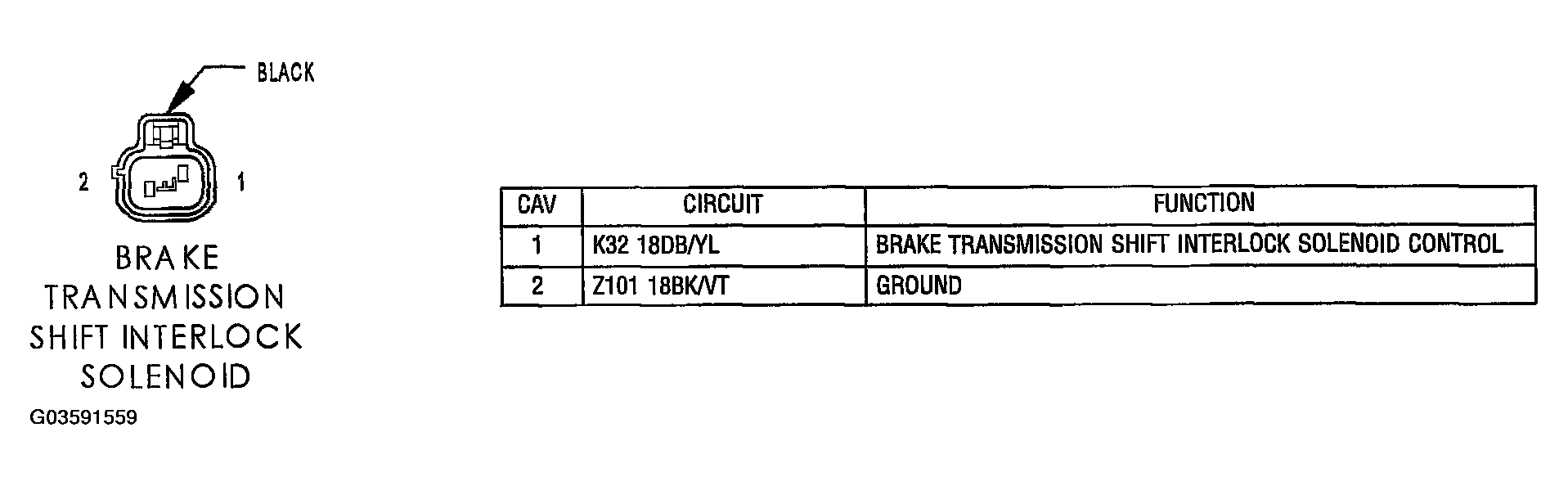

Fig 19: Identifying Brake Transmission Shift Interlock Solenoid - Black 2 Way Connector Pin Outs
G03591559Courtesy of DAIMLERCHRYSLER CORP.

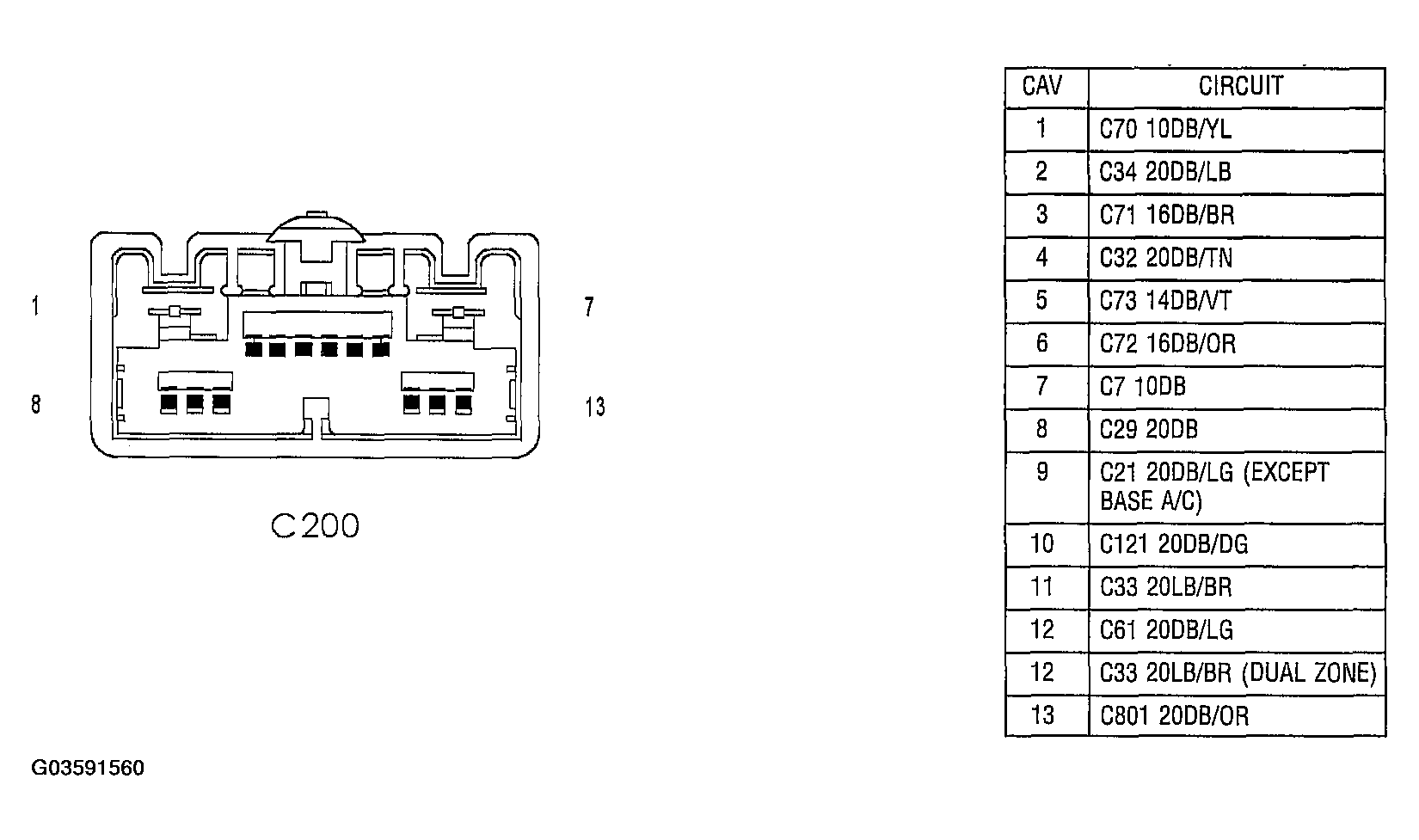

Fig 20: Identifying C200 - (HVAC Side) Connector Pin Outs
G03591560Courtesy of DAIMLERCHRYSLER CORP.

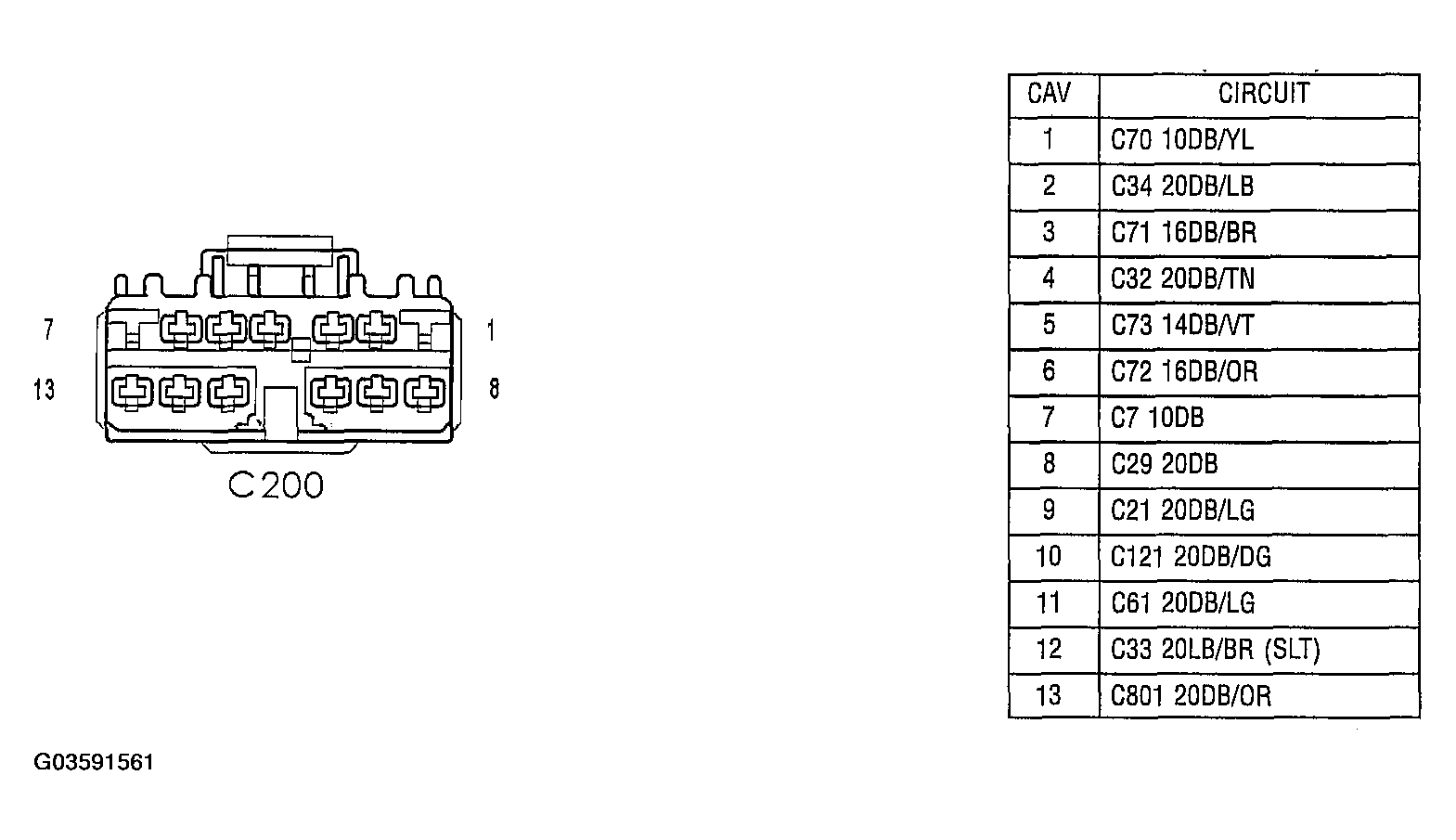

Fig 21: Identifying C200 - (I/P Side) Connector Pin Outs
G03591561Courtesy of DAIMLERCHRYSLER CORP.

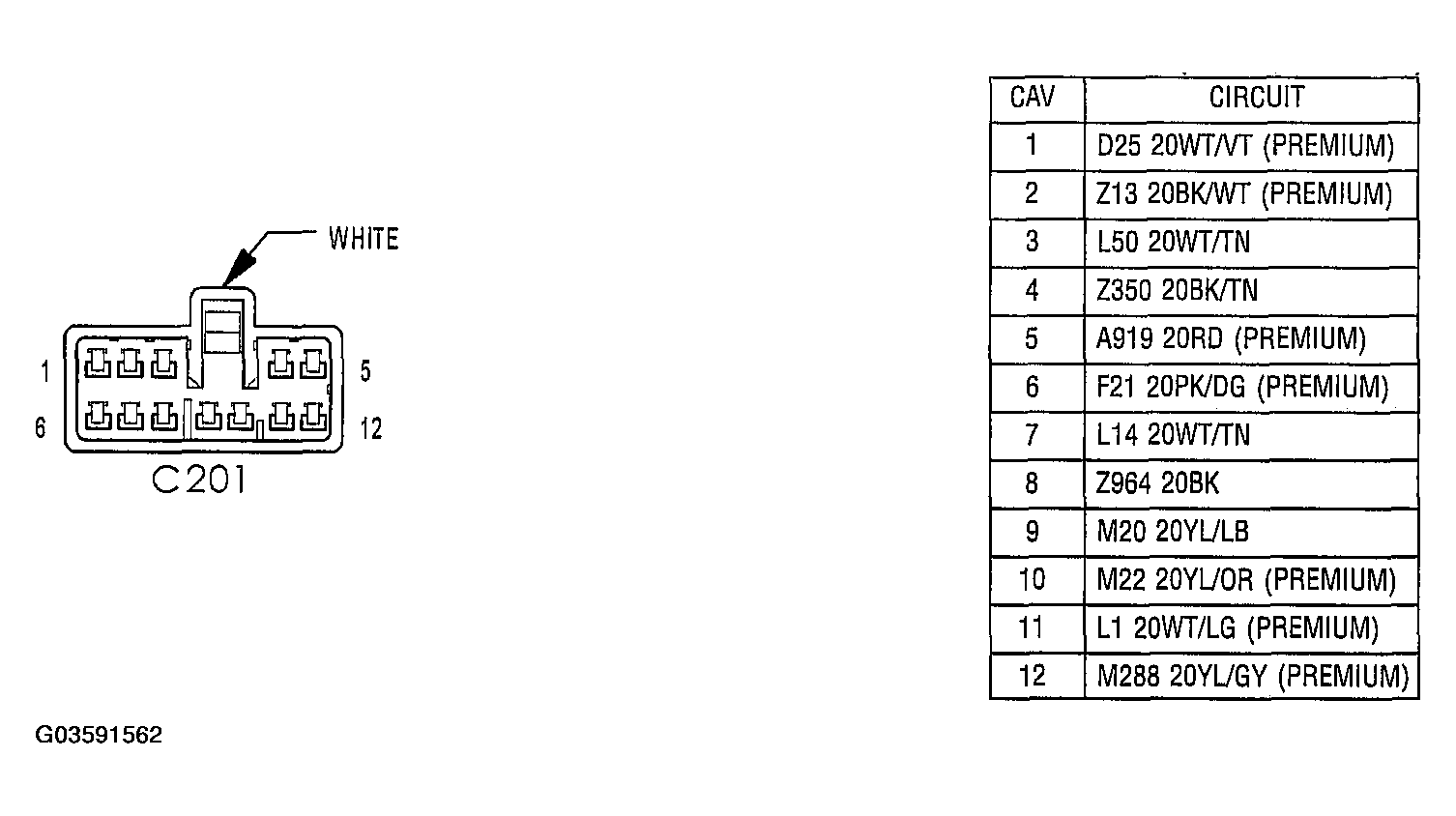

Fig 22: Identifying C201 - White (Headliner Side) Connector Pin Outs
G03591562Courtesy of DAIMLERCHRYSLER CORP.

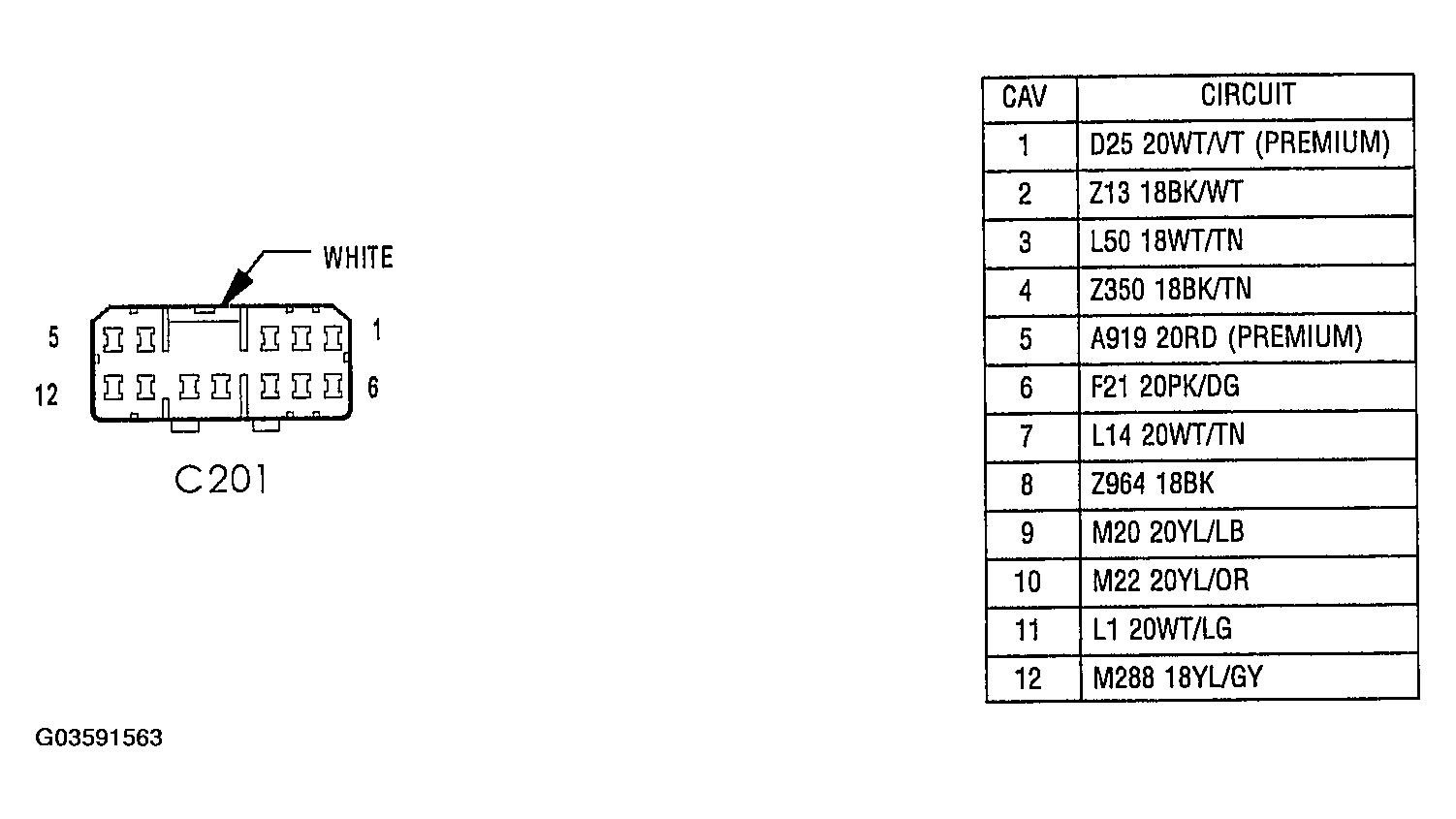

Fig 23: Identifying C201 - White (I/P Side) Connector Pin Outs
G03591563Courtesy of DAIMLERCHRYSLER CORP.

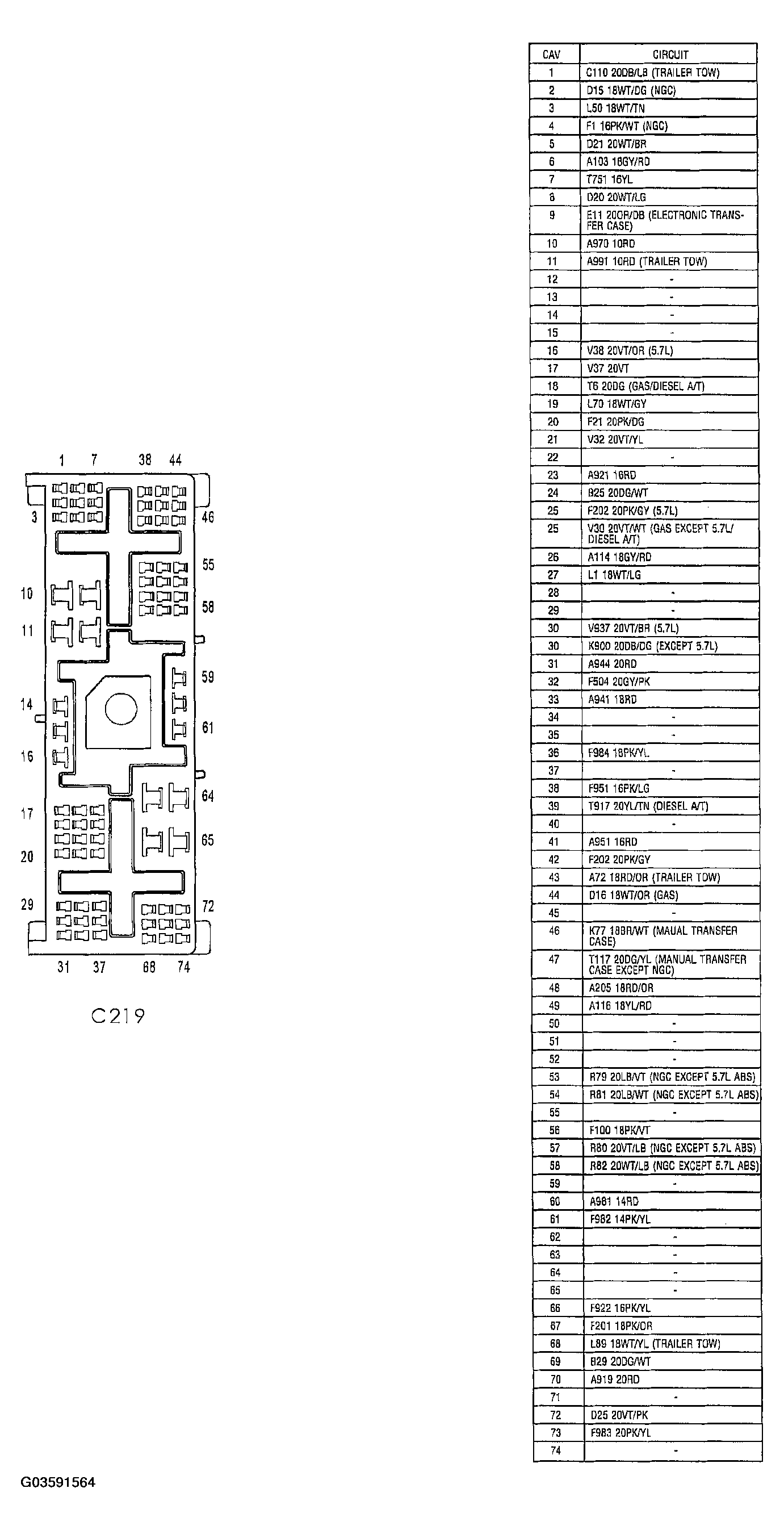

Fig 24: Identifying C219 - (Headlamp And Dash Side) Connector Pin Outs
G03591564Courtesy of DAIMLERCHRYSLER CORP.

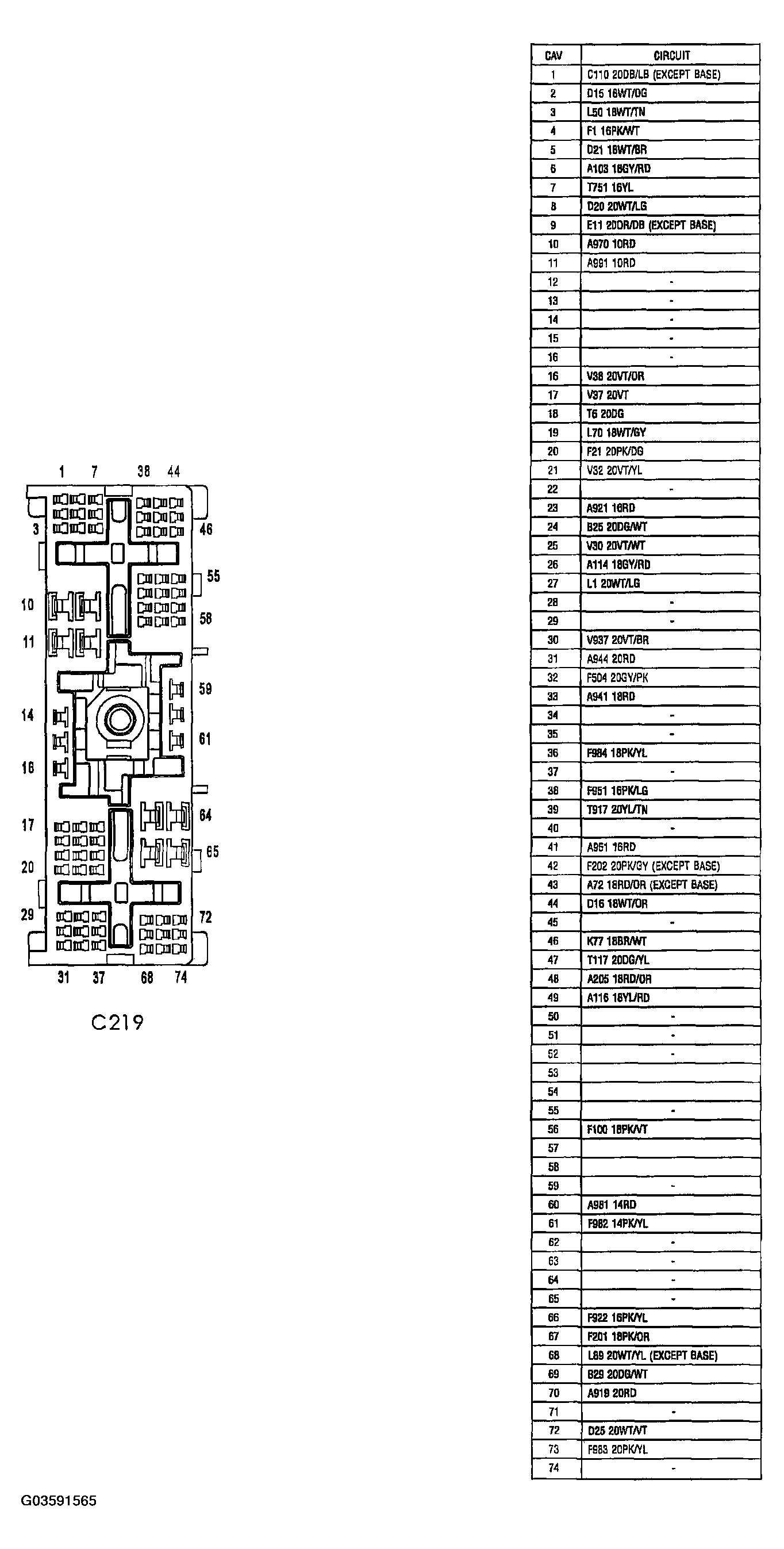

Fig 25: Identifying C219 - (I/P Side) Connector Pin Outs
G03591565Courtesy of DAIMLERCHRYSLER CORP.

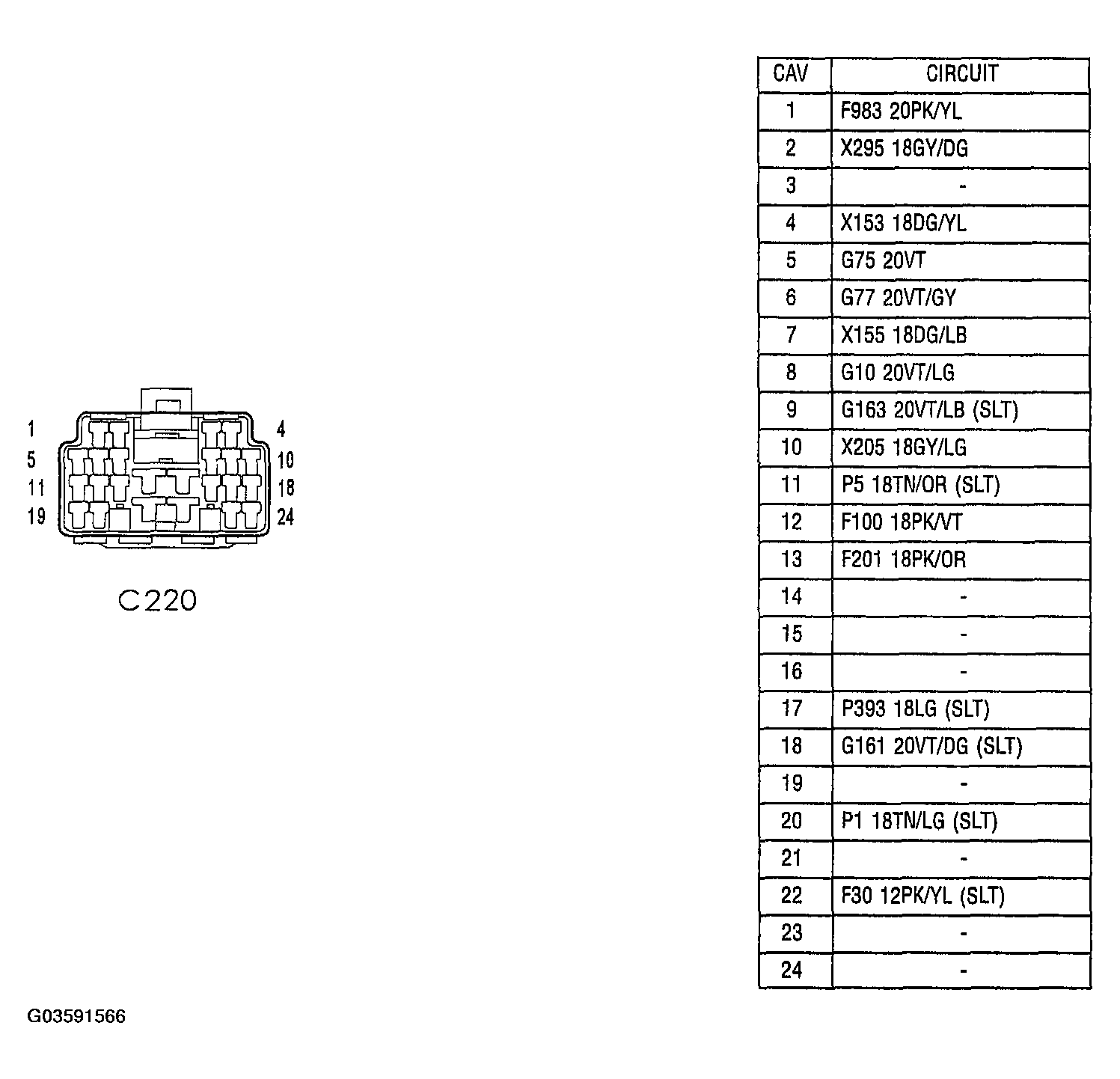

Fig 26: Identifying C220 - (I/P Side) Connector Pin Outs
G03591566Courtesy of DAIMLERCHRYSLER CORP.

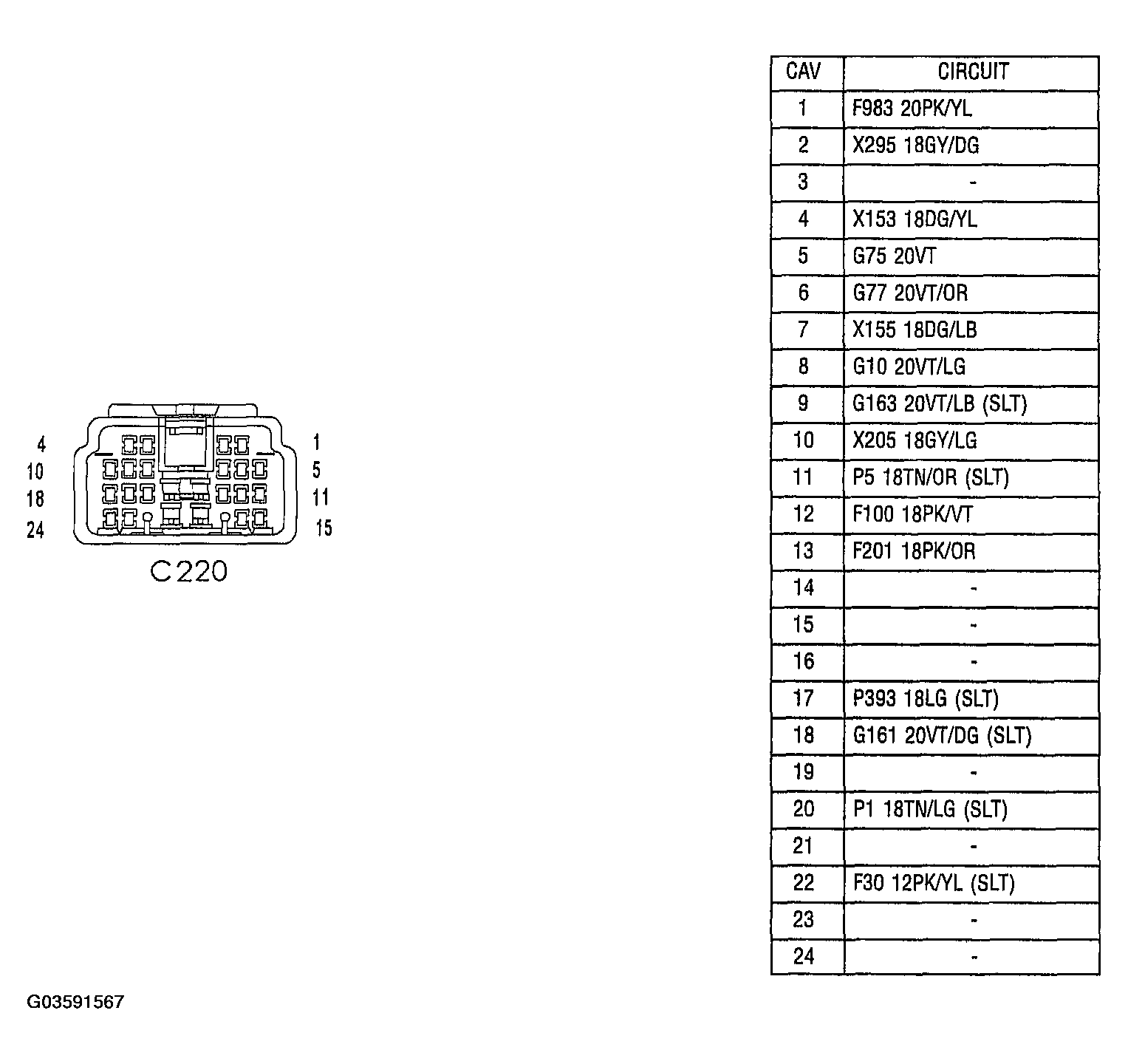

Fig 27: Identifying C220 - Natural (Body Side) Connector Pin Outs
G03591567Courtesy of DAIMLERCHRYSLER CORP.

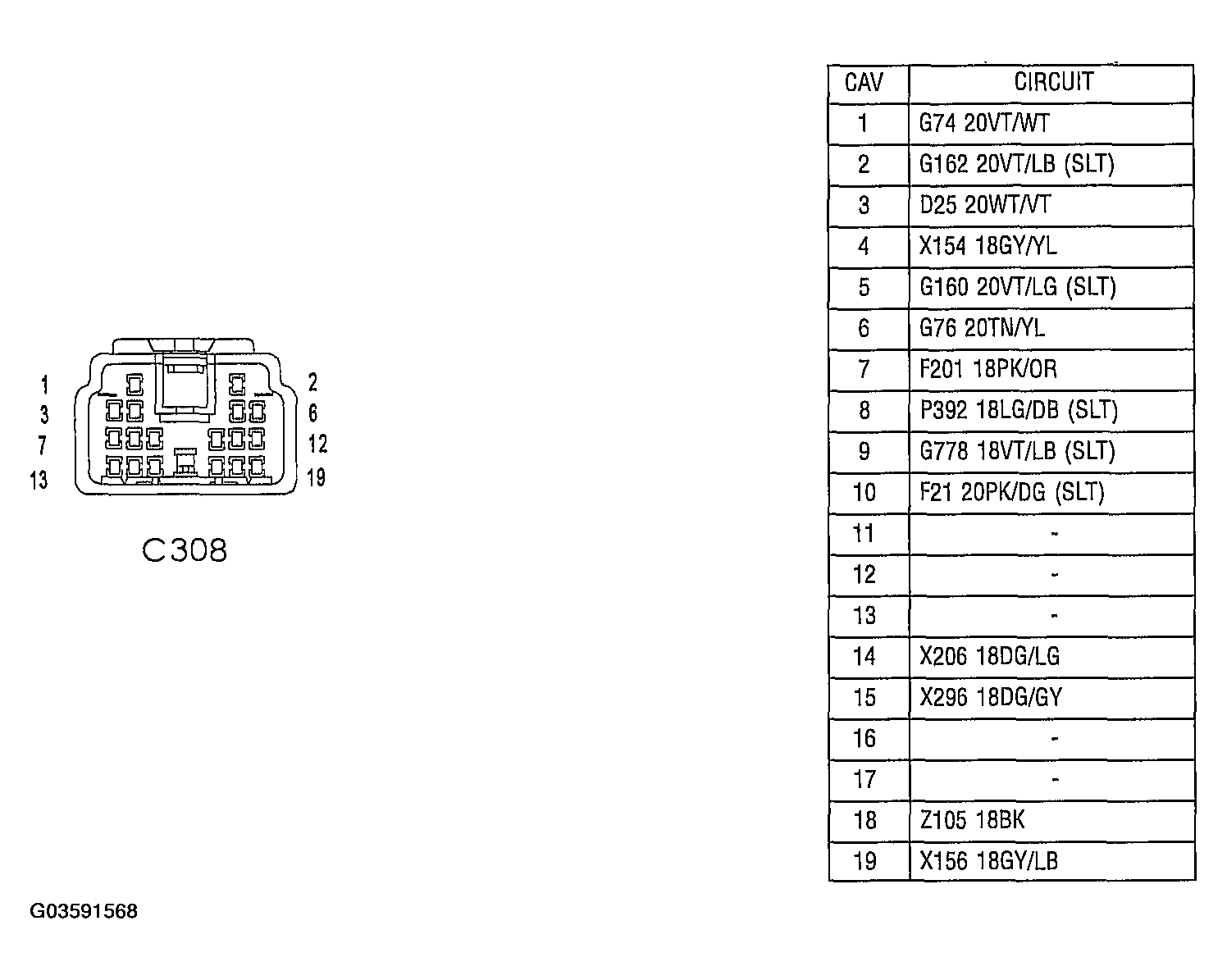

Fig 28: Identifying C308 - (Body Side) Connector Pin Outs
G03591568Courtesy of DAIMLERCHRYSLER CORP.

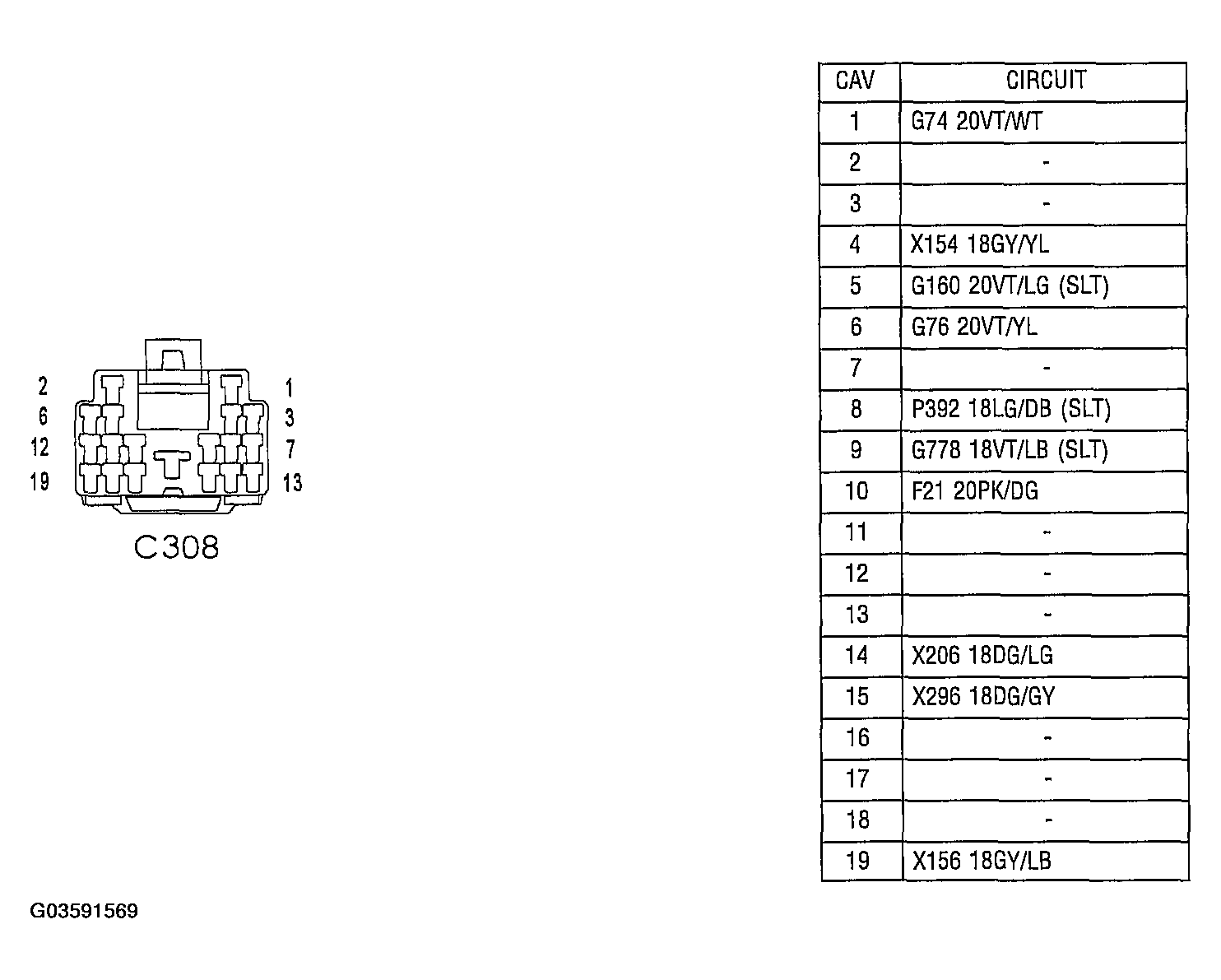

Fig 29: Identifying C308 - (I/P Side) Connector Pin Outs
G03591569Courtesy of DAIMLERCHRYSLER CORP.

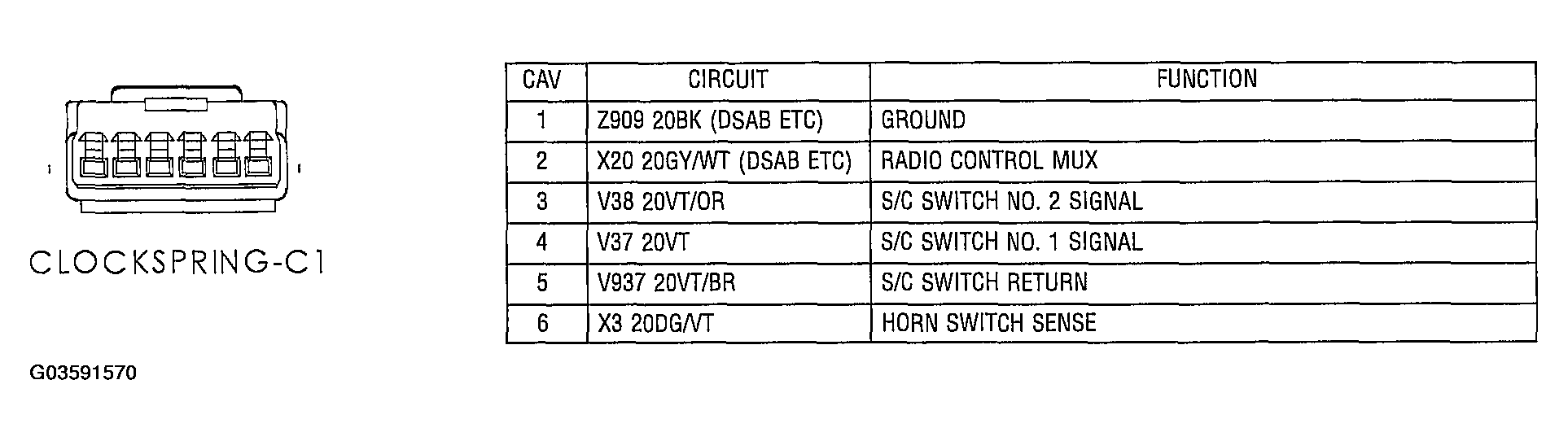

Fig 30: Identifying Clockspring C1 - 6 Way Connector Pin Outs
G03591570Courtesy of DAIMLERCHRYSLER CORP.

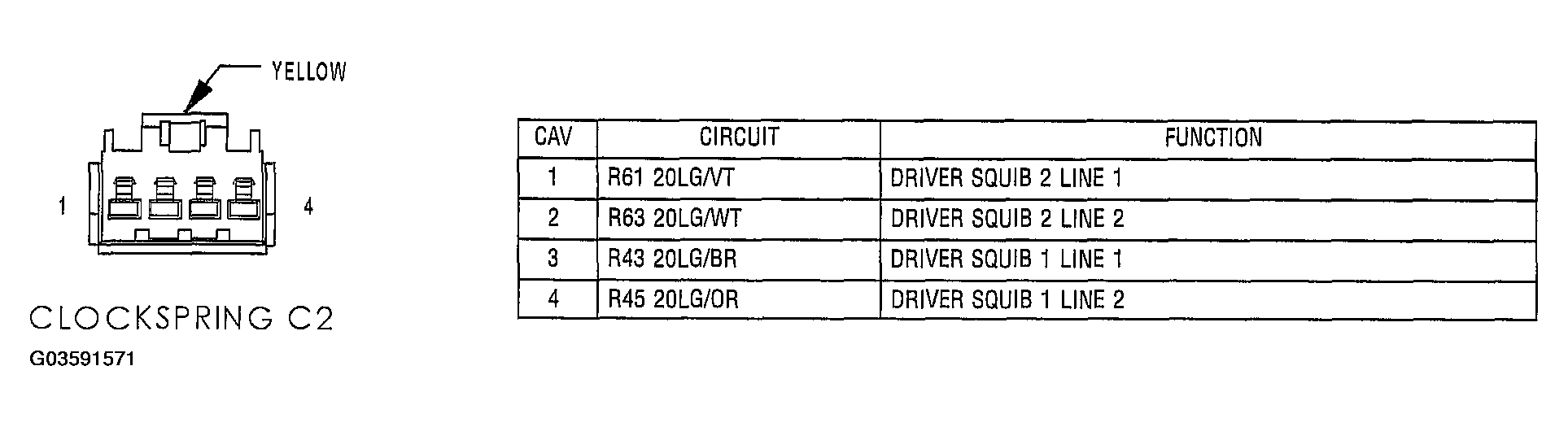

Fig 31: Identifying Clockspring C2 - Yellow 4 Way Connector Pin Outs
G03591571Courtesy of DAIMLERCHRYSLER CORP.

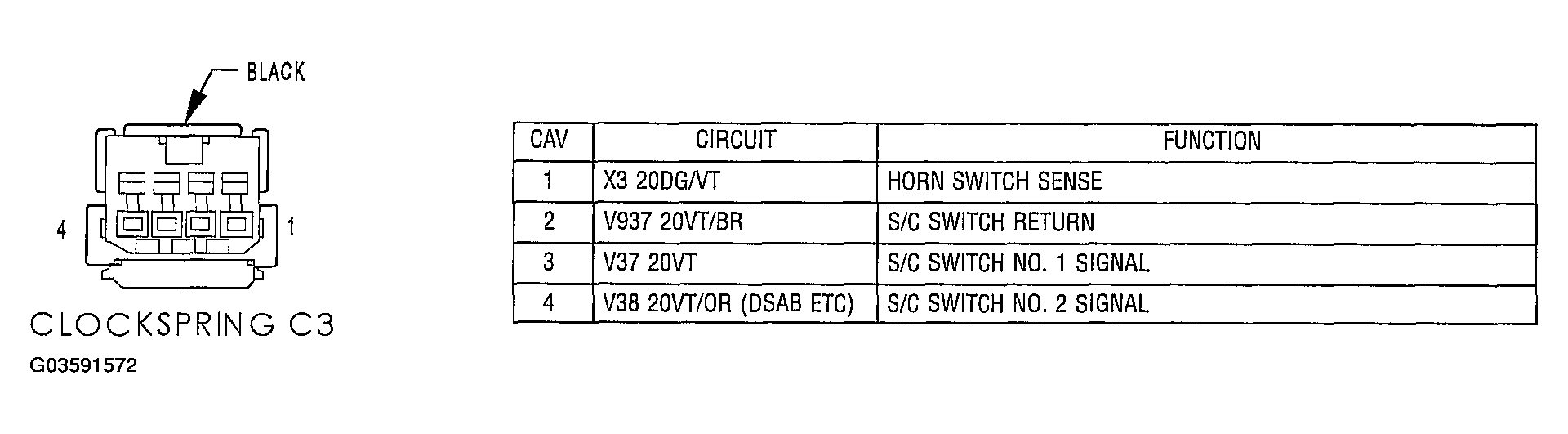

Fig 32: Identifying Clockspring C3 - Black 4 Way Connector Pin Outs
G03591572Courtesy of DAIMLERCHRYSLER CORP.

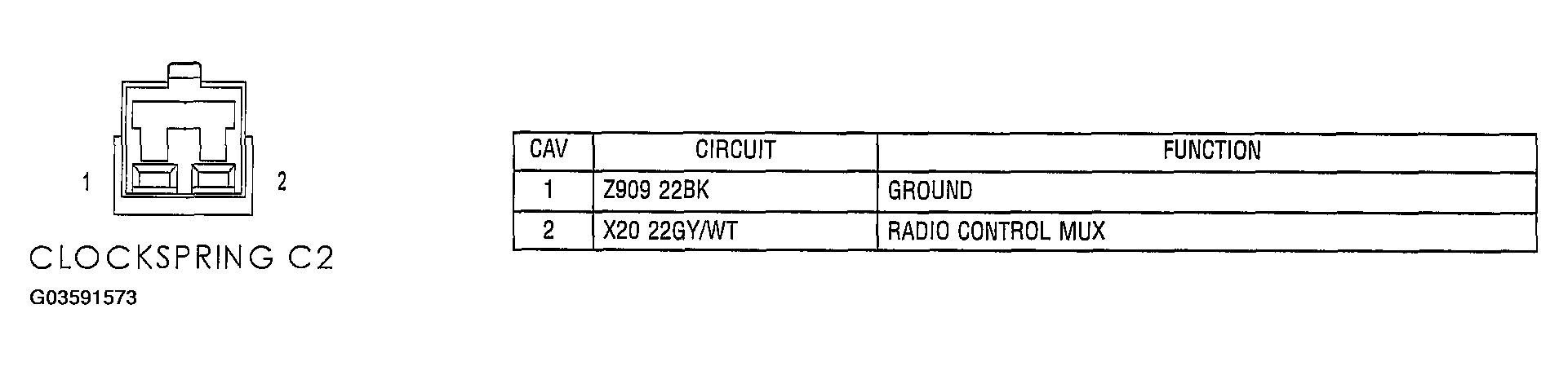

Fig 33: Identifying Clockspring C4 - 2 Way Connector Pin Outs
G03591573Courtesy of DAIMLERCHRYSLER CORP.

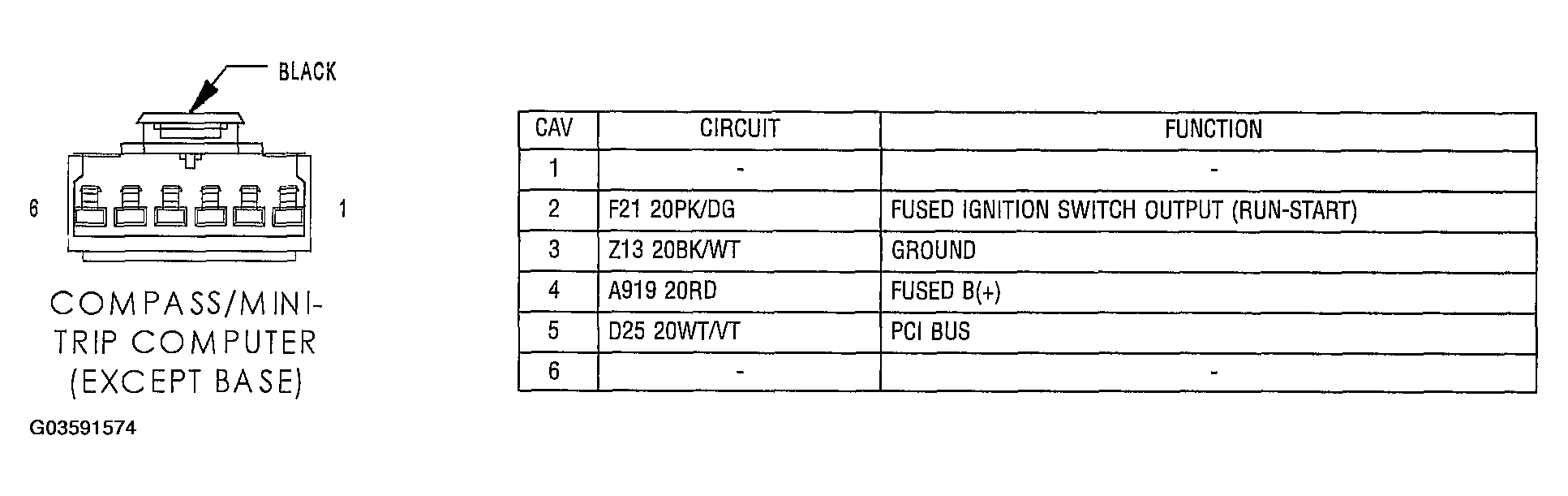

Fig 34: Identifying Compass/Mini-Trip Computer (Except Base) - Black 6 Way Connector Pin Outs
G03591574Courtesy of DAIMLERCHRYSLER CORP.

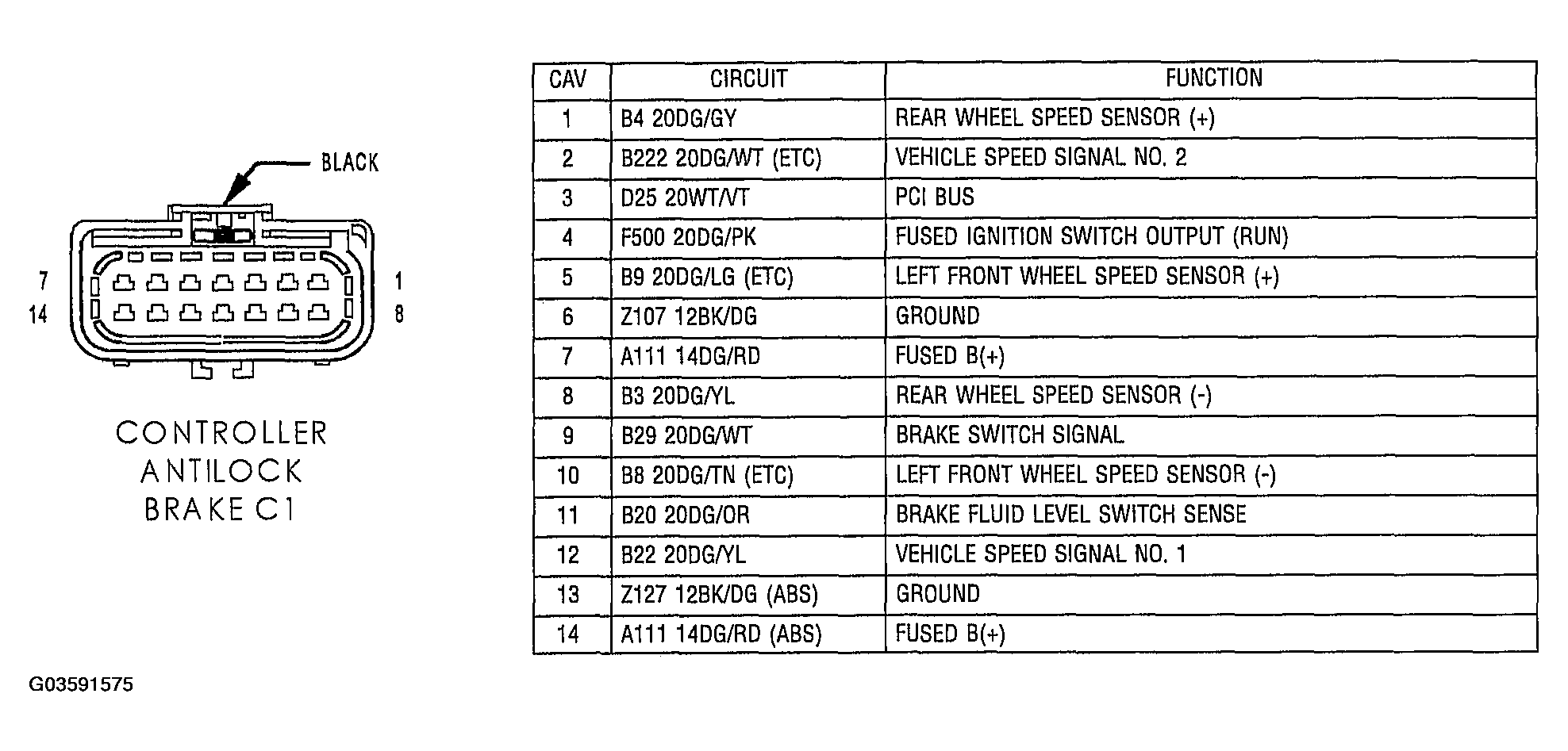

Fig 35: Identifying Controller Anitlock Brake C1 - Black 14 Way Connector Pin Outs
G03591575Courtesy of DAIMLERCHRYSLER CORP.

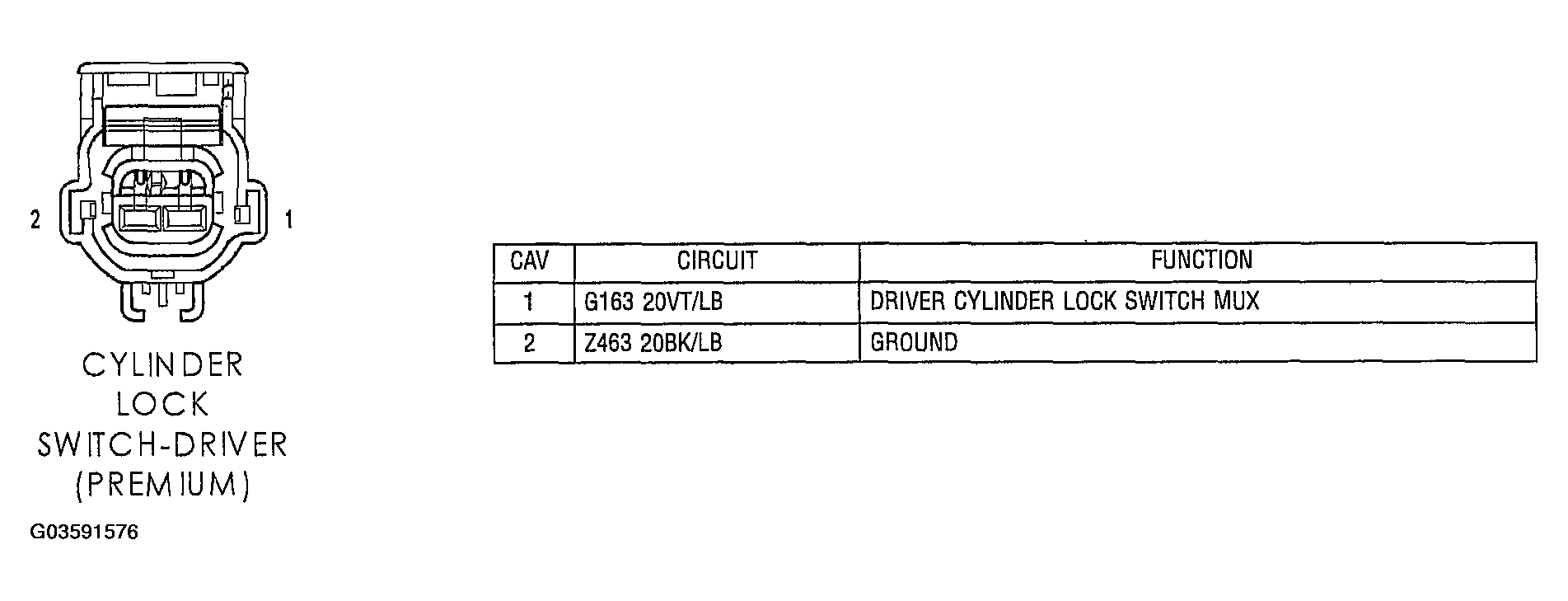

Fig 36: Identifying Cylinder Lock Switch-Driver (Premium) - 2 Way Connector Pin Outs
G03591576Courtesy of DAIMLERCHRYSLER CORP.

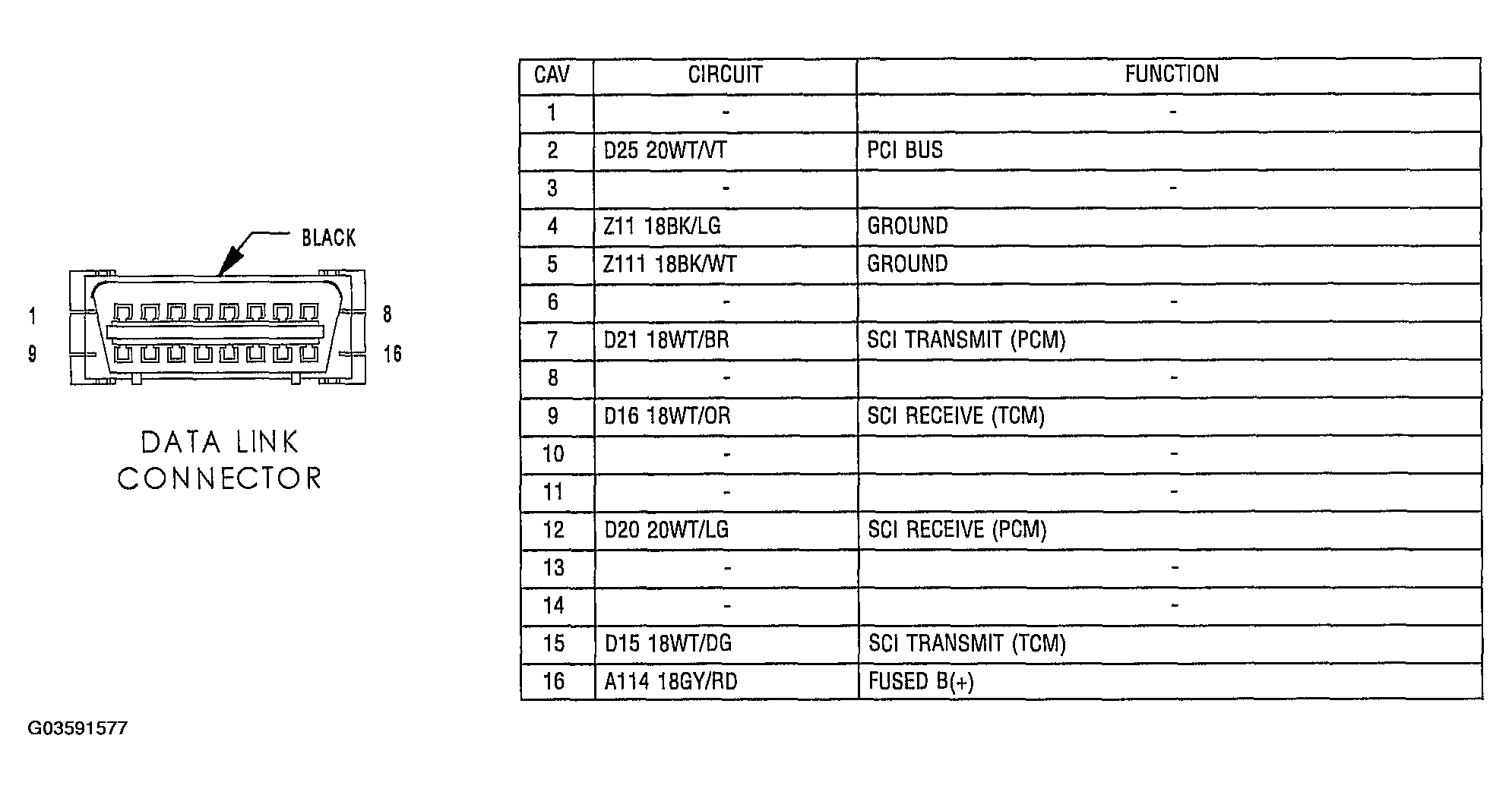

Fig 37: Identifying Data Link Connector - Black 16 Way Connector Pin Outs
G03591577Courtesy of DAIMLERCHRYSLER CORP.

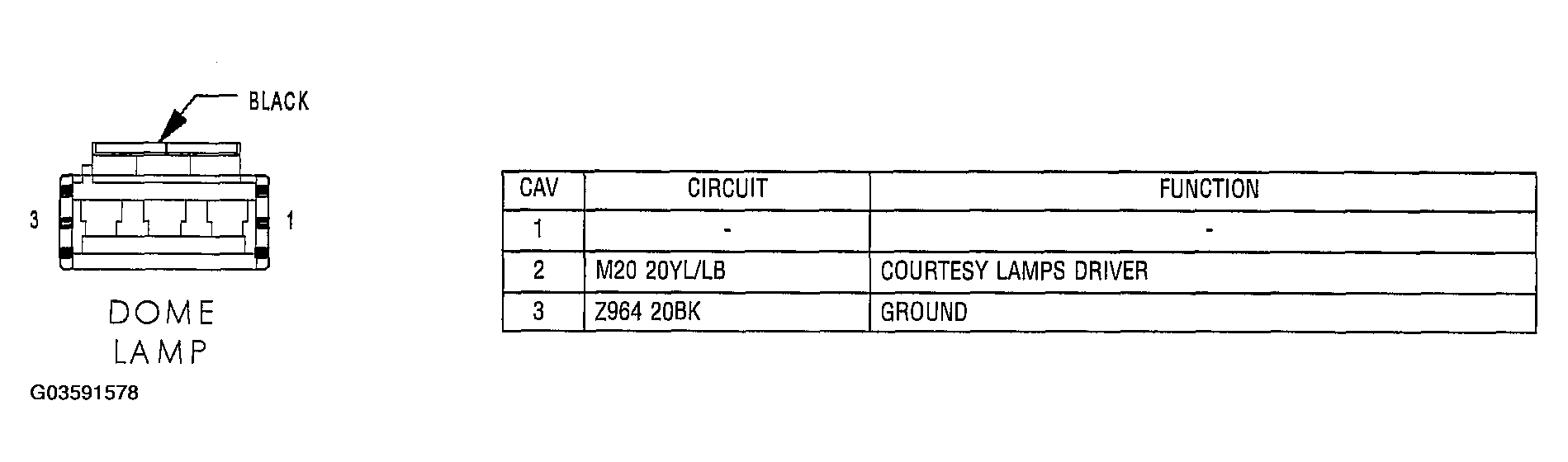

Fig 38: Identifying Dome Lamp - Black 3 Way Connector Pin Outs
G03591578Courtesy of DAIMLERCHRYSLER CORP.

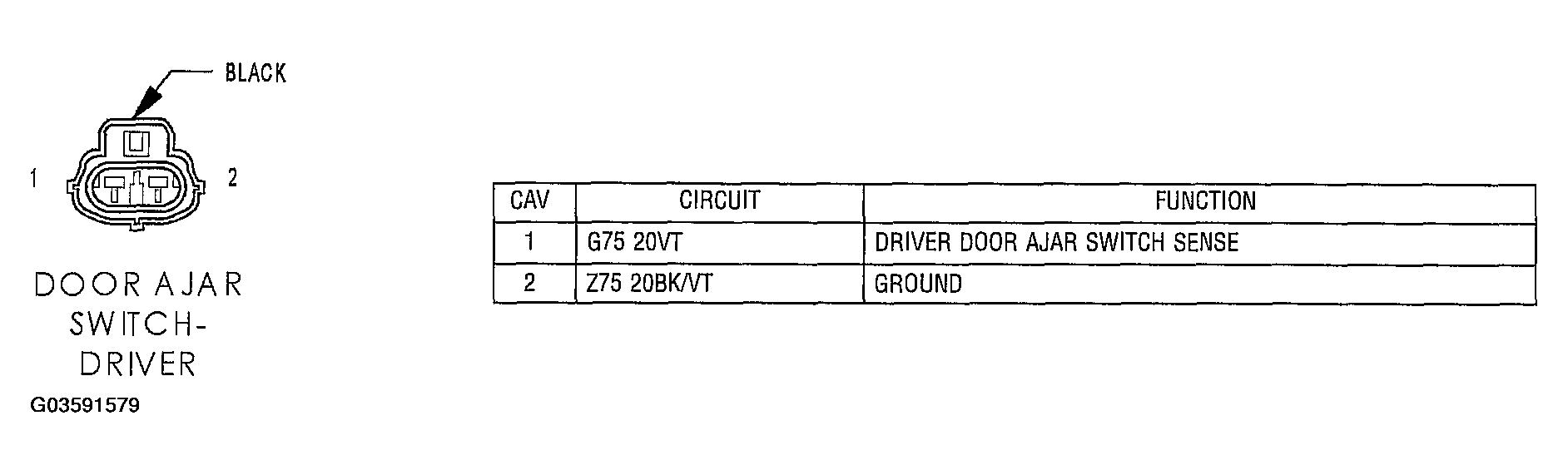

Fig 39: Identifying Door Ajar Switch-Driver - Black 2 Way Connector Pin Outs
G03591579Courtesy of DAIMLERCHRYSLER CORP.

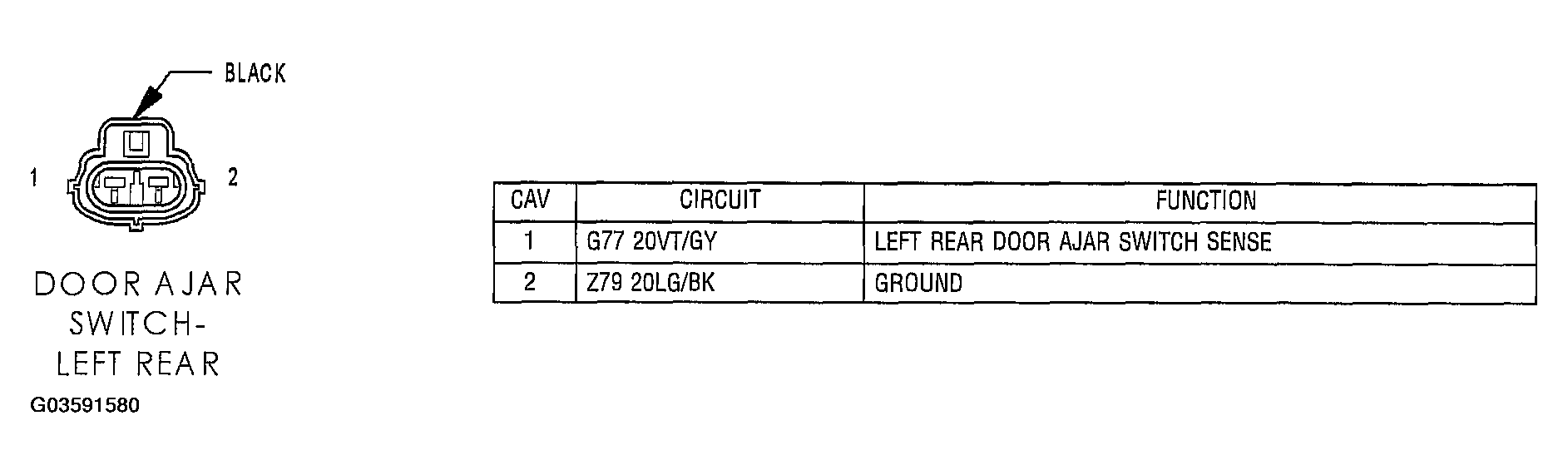

Fig 40: Identifying Door Ajar Switch-Left Rear - Black 2 Way Connector Pin Outs
G03591580Courtesy of DAIMLERCHRYSLER CORP.

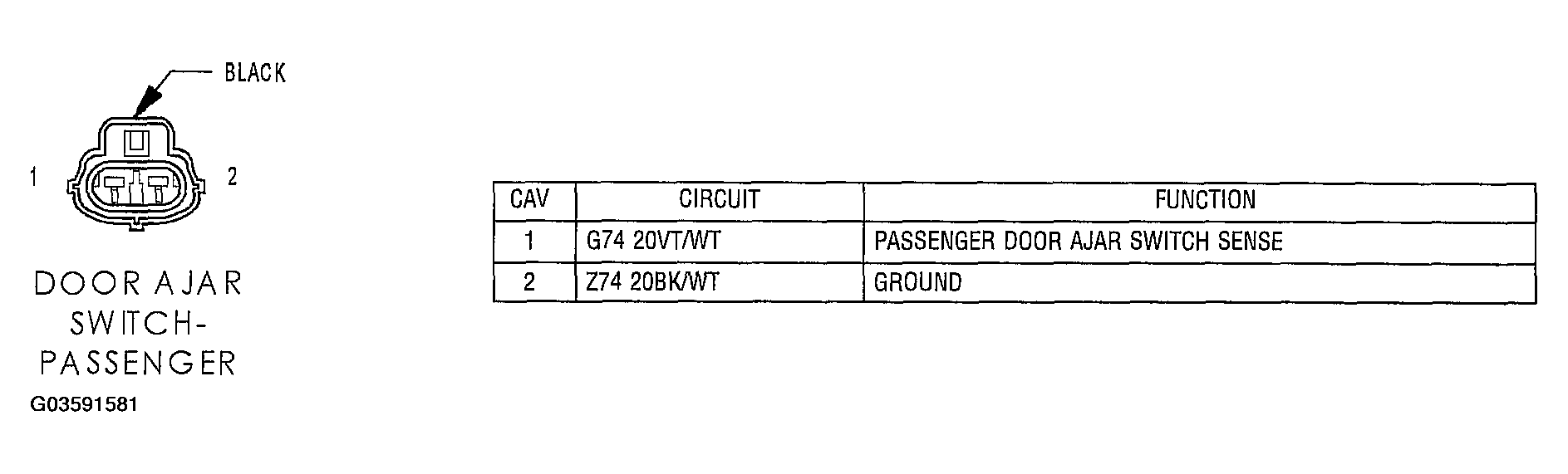

Fig 41: Identifying Door Ajar Switch-Passenger - Black 2 Way Connector Pin Outs
G03591581Courtesy of DAIMLERCHRYSLER CORP.

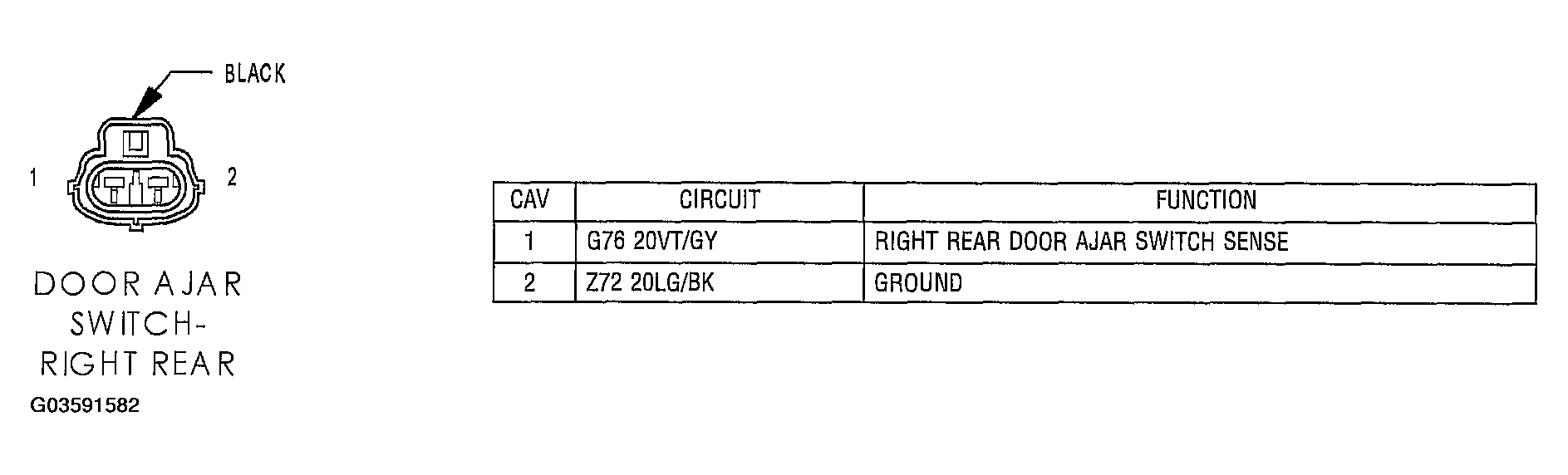

Fig 42: Identifying Door Ajar Switch-Right Rear - Black 2 Way Connector Pin Outs
G03591582Courtesy of DAIMLERCHRYSLER CORP.

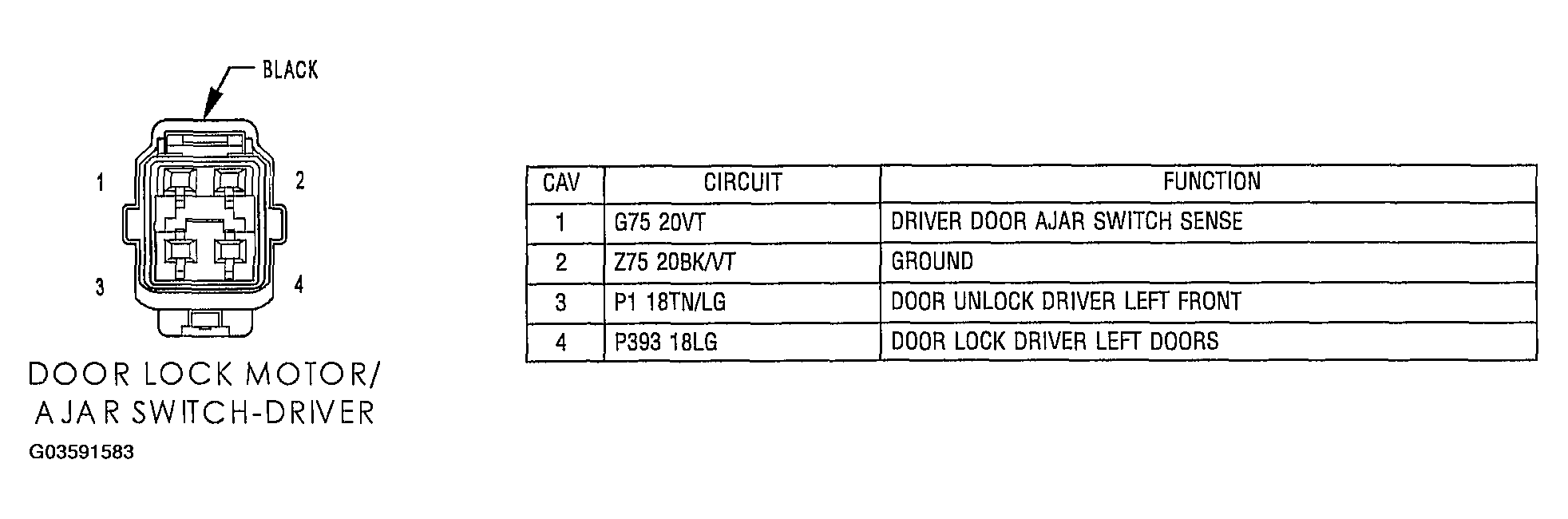

Fig 43: Identifying Door Lock Motor/Ajar Switch-Driver - Black 4 Way Connector Pin Outs
G03591583Courtesy of DAIMLERCHRYSLER CORP.

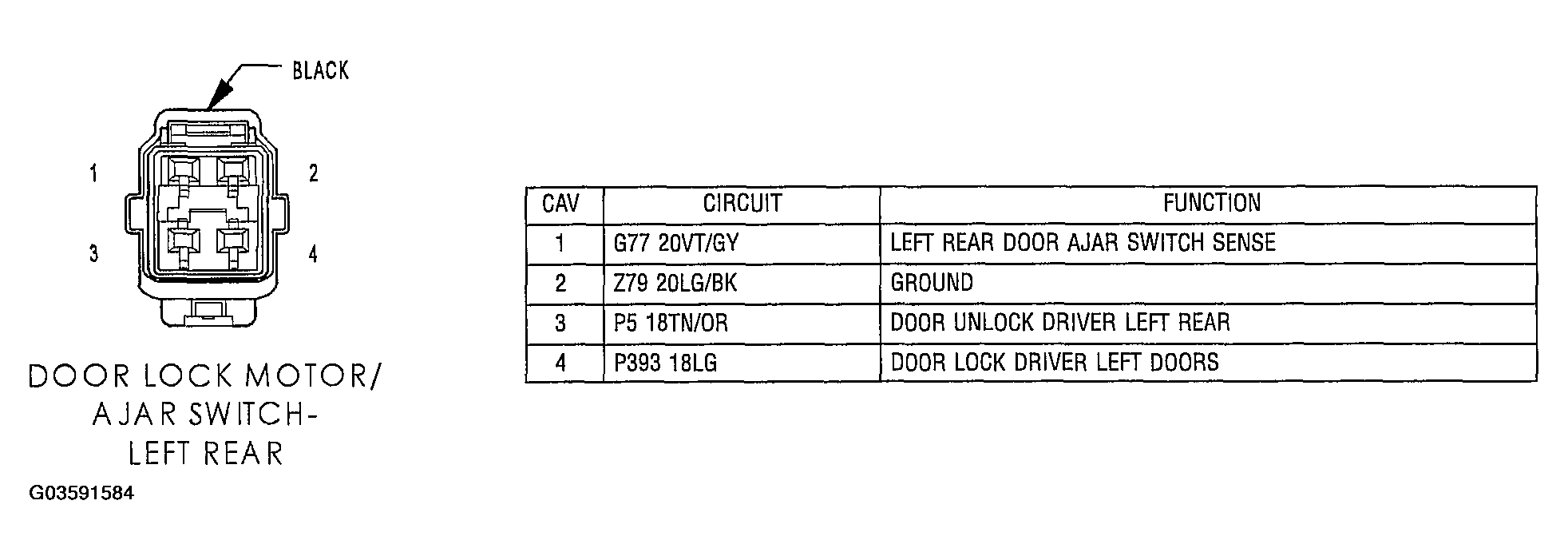

Fig 44: Identifying Door Lock Motor/Ajar Switch-Left Rear - Black 4 Way Connector Pin Outs
G03591584Courtesy of DAIMLERCHRYSLER CORP.

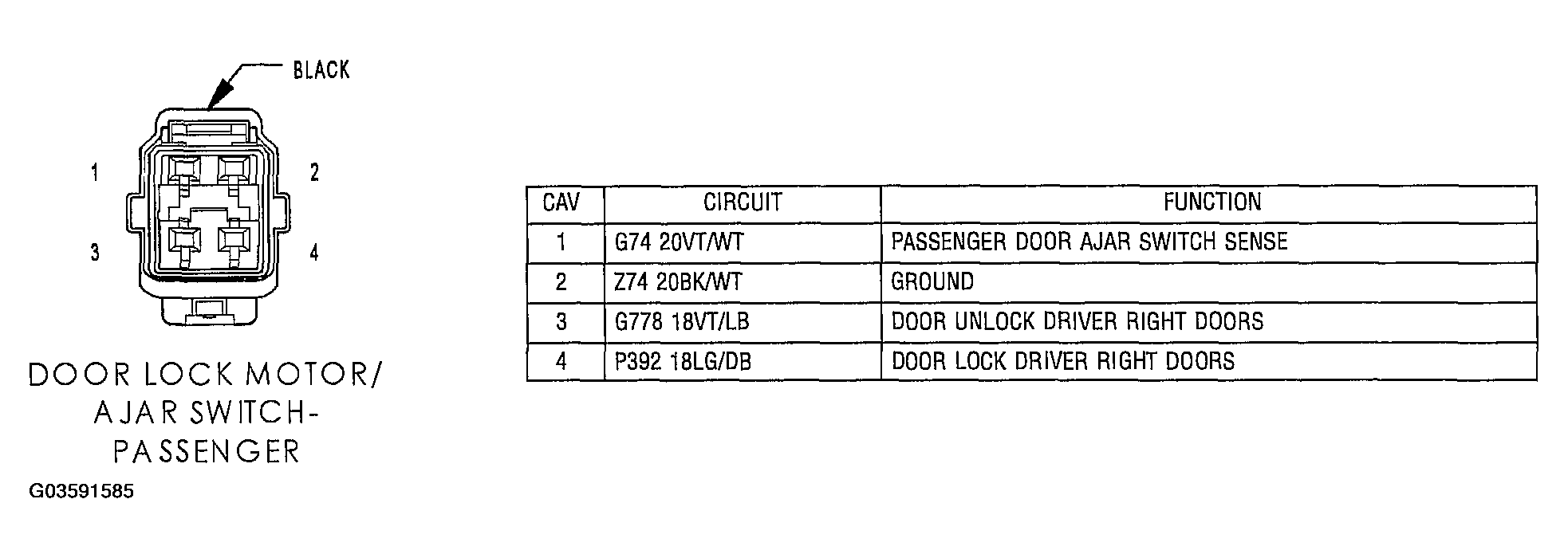

Fig 45: Identifying Door Lock Motor/Ajar Switch-Passenger - Black 4 Way Connector Pin Outs
G03591585Courtesy of DAIMLERCHRYSLER CORP.

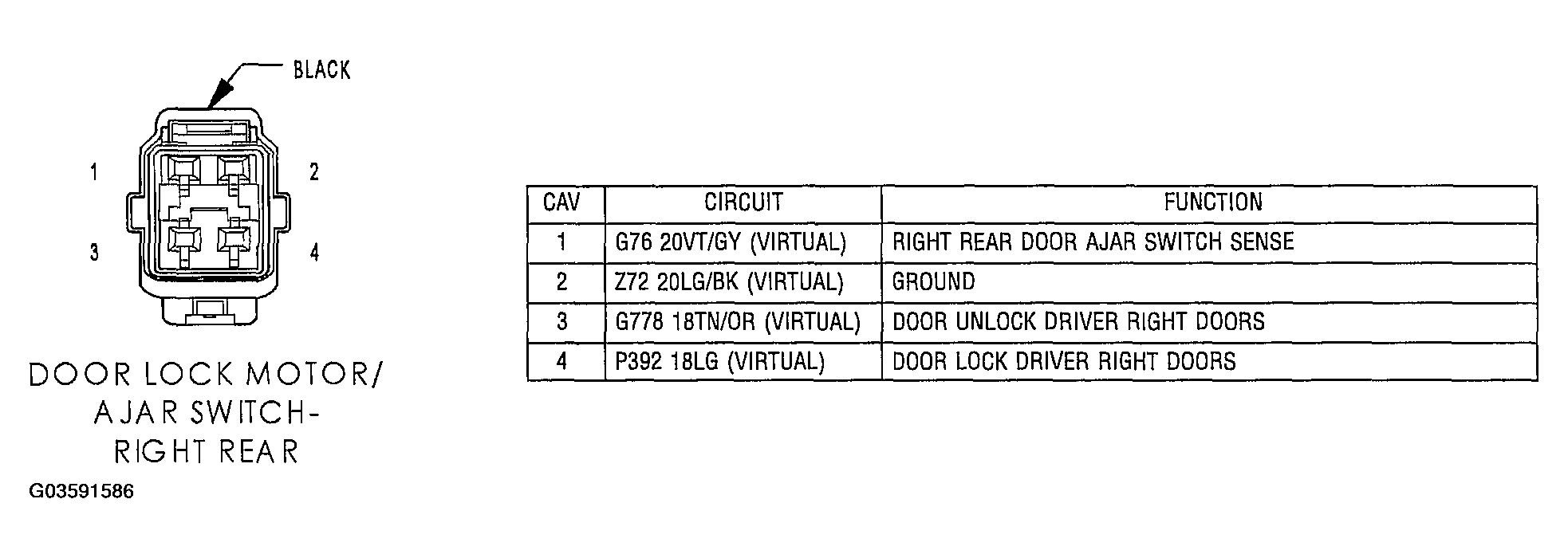

Fig 46: Identifying Door Lock Motor/Ajar Switch-Right Rear - Black 4 Way Connector Pin Outs
G03591586Courtesy of DAIMLERCHRYSLER CORP.

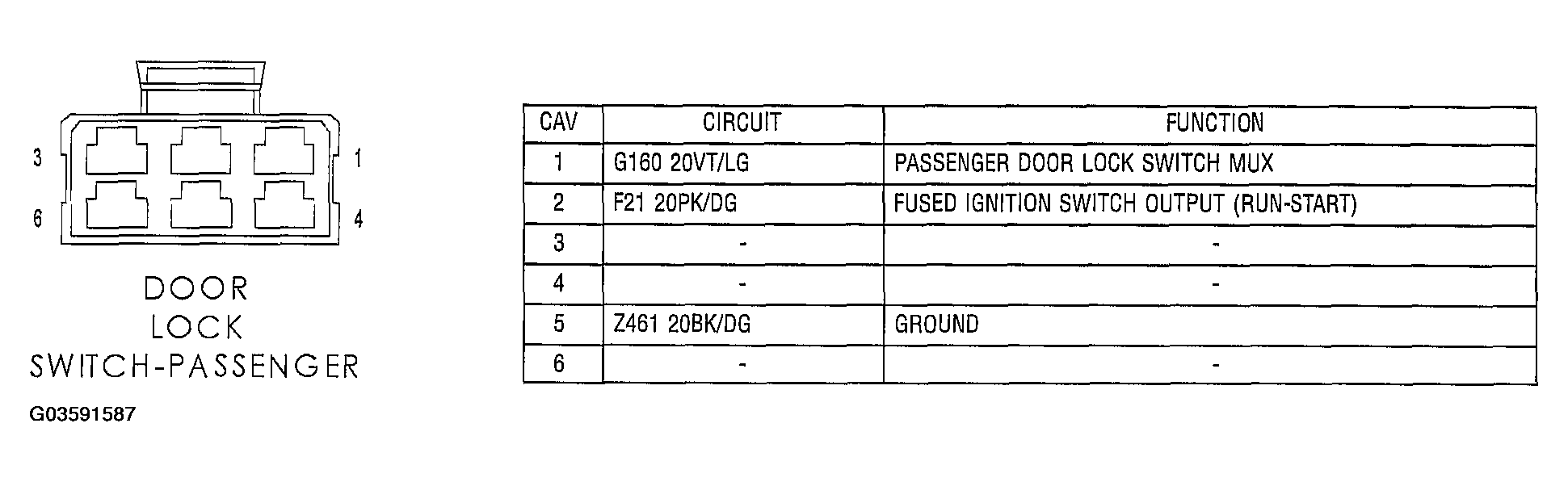

Fig 47: Identifying Door Lock Switch-Passenger - 6 Way Connector Pin Outs
G03591587Courtesy of DAIMLERCHRYSLER CORP.

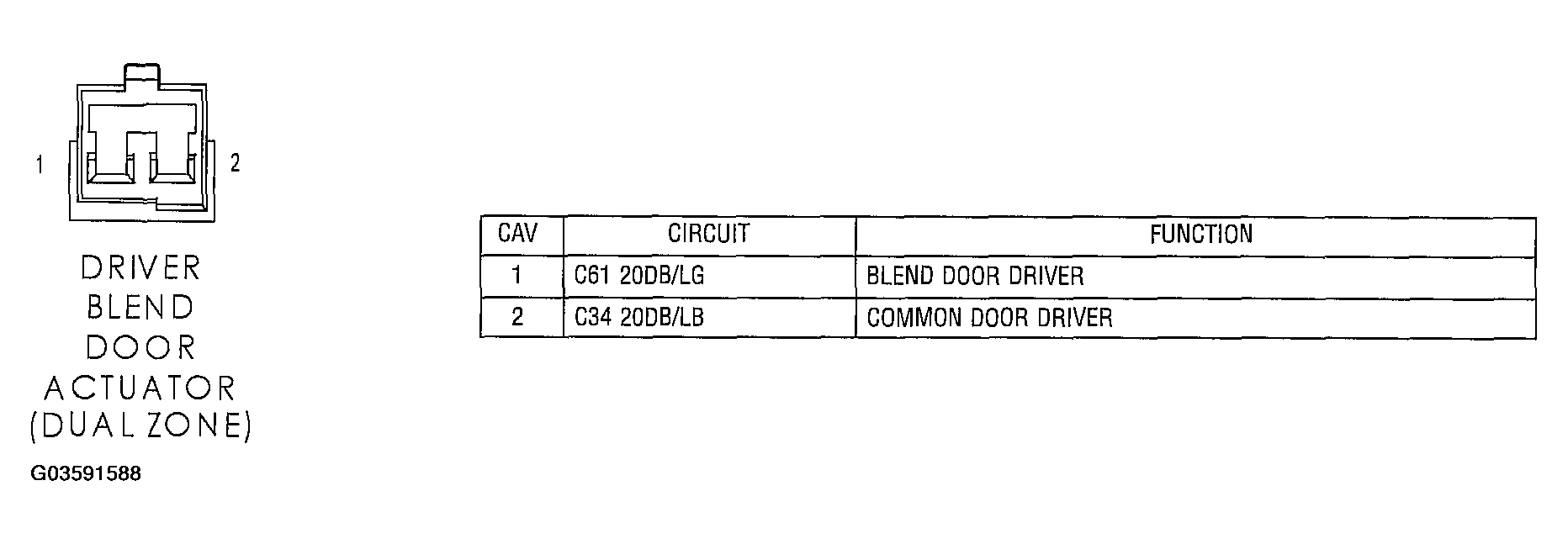

Fig 48: Identifying Driver Blend Door Actuator (Dual Zone) Connector Pin Outs
G03591588Courtesy of DAIMLERCHRYSLER CORP.

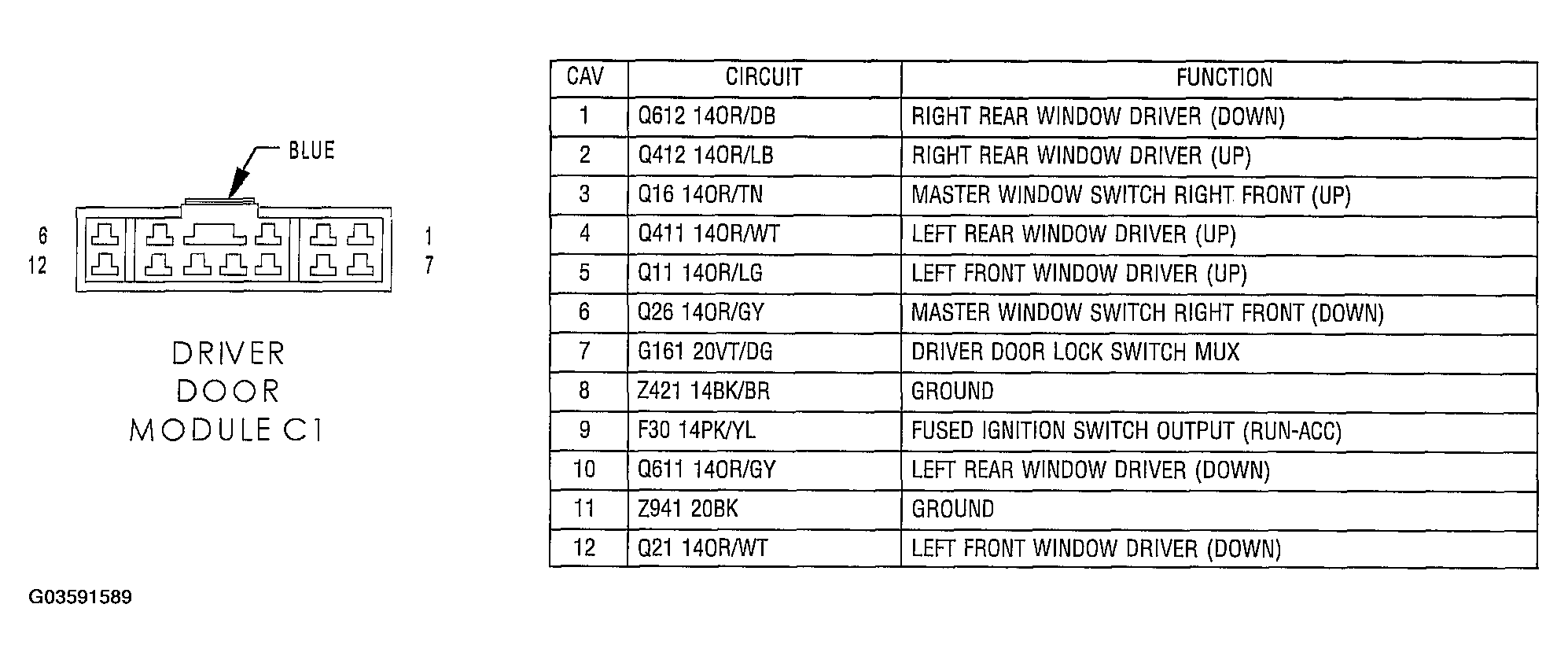

Fig 49: Identifying Driver Door Module C1 - Blue 12 Way Connector Pin Outs
G03591589Courtesy of DAIMLERCHRYSLER CORP.

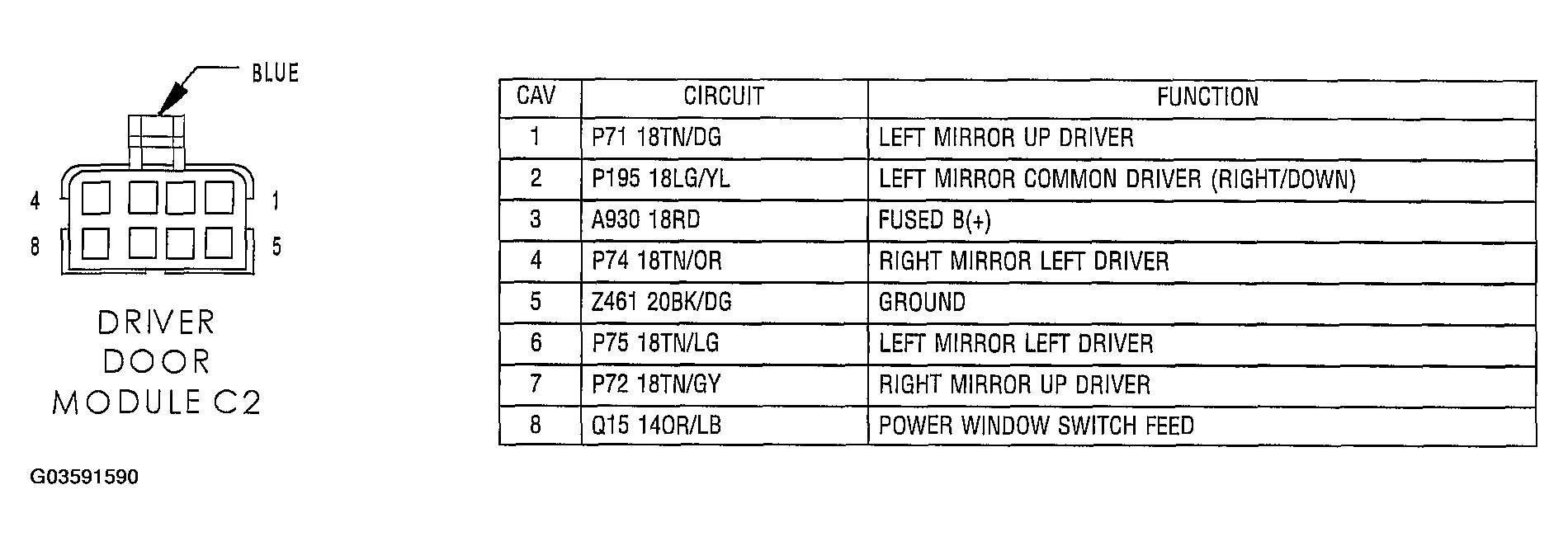

Fig 50: Identifying Driver Door Module C2 - Blue 8 Way Connector Pin Outs
G03591590Courtesy of DAIMLERCHRYSLER CORP.

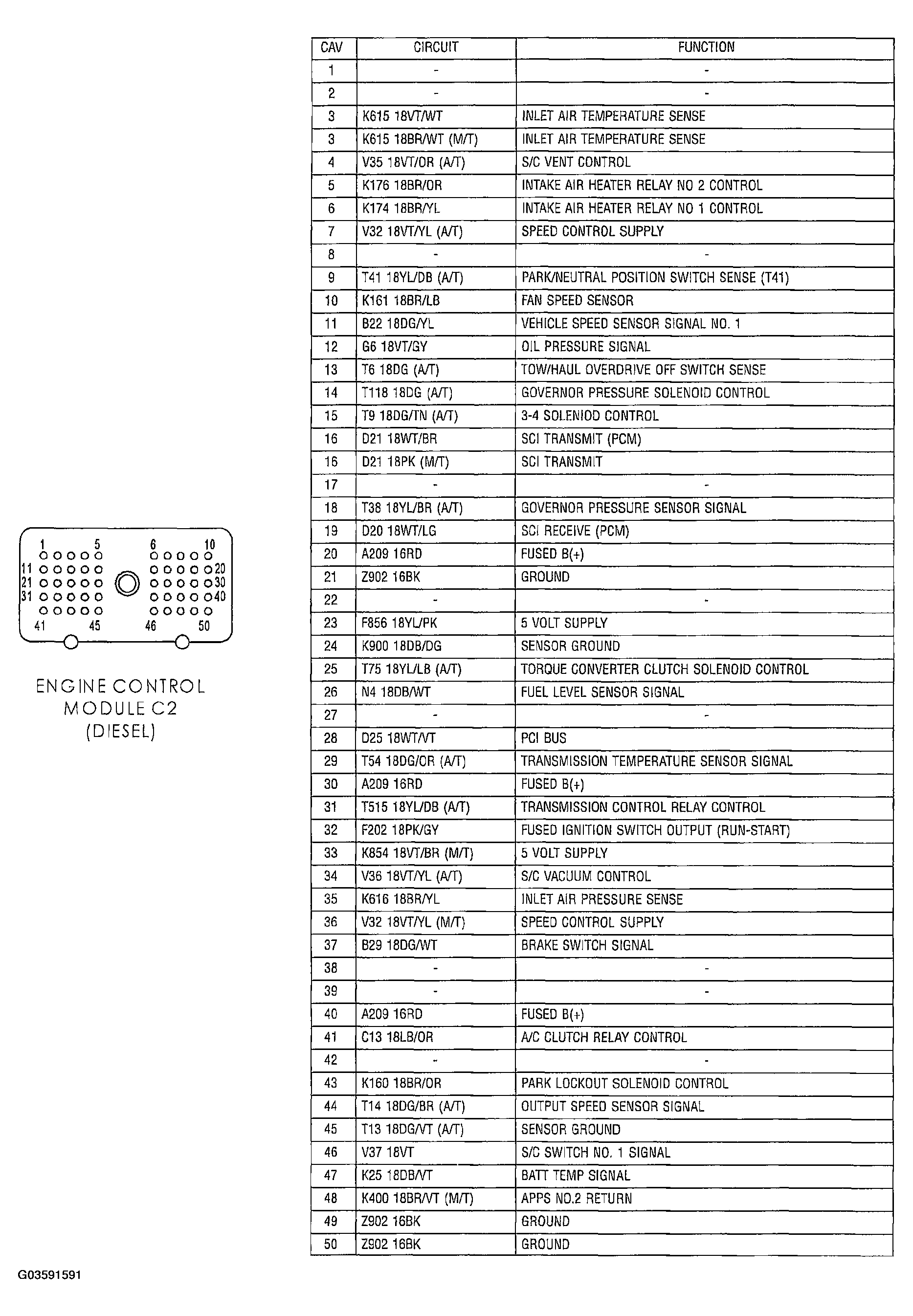

Fig 51: Identifying Engine Control Module C2 (Diesel) - 50 Way Connector Pin Outs
G03591591Courtesy of DAIMLERCHRYSLER CORP.

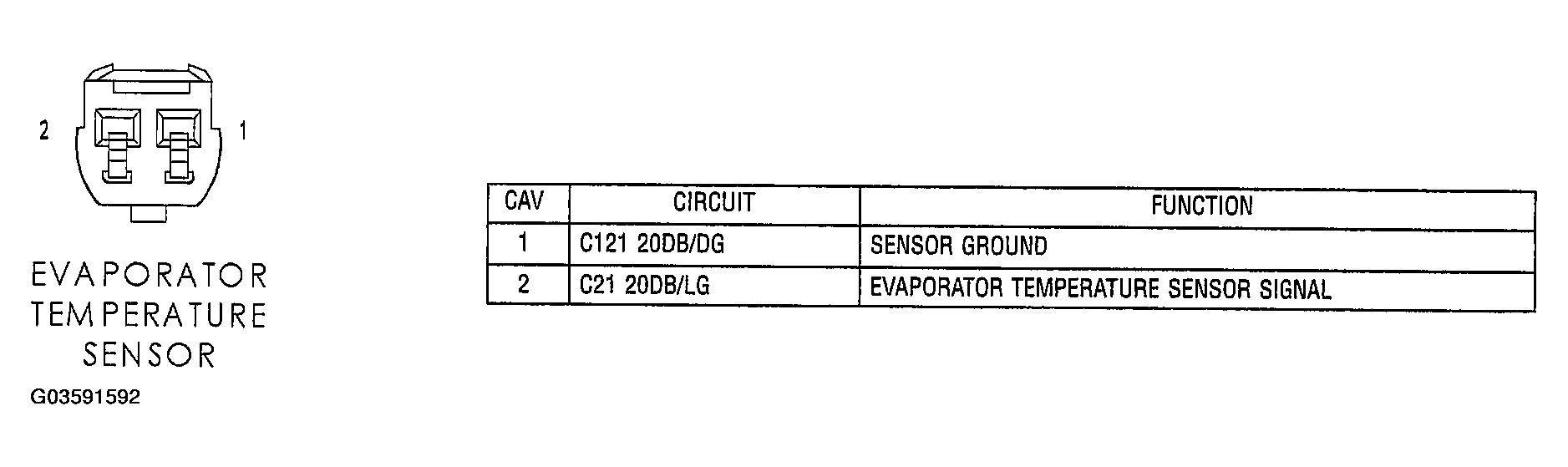

Fig 52: Identifying Evaporator Temperature Sensor - 2 Way Connector Pin Outs
G03591592Courtesy of DAIMLERCHRYSLER CORP.

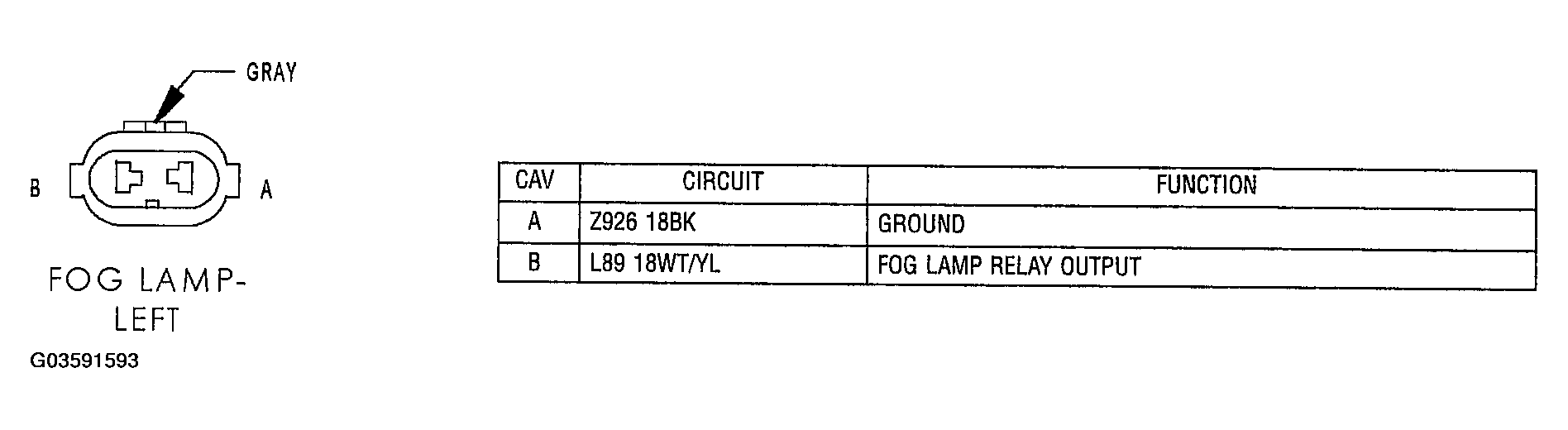

Fig 53: Identifying Fog Lamp-Left - Gray 2 Way Connector Pin Outs
G03591593Courtesy of DAIMLERCHRYSLER CORP.

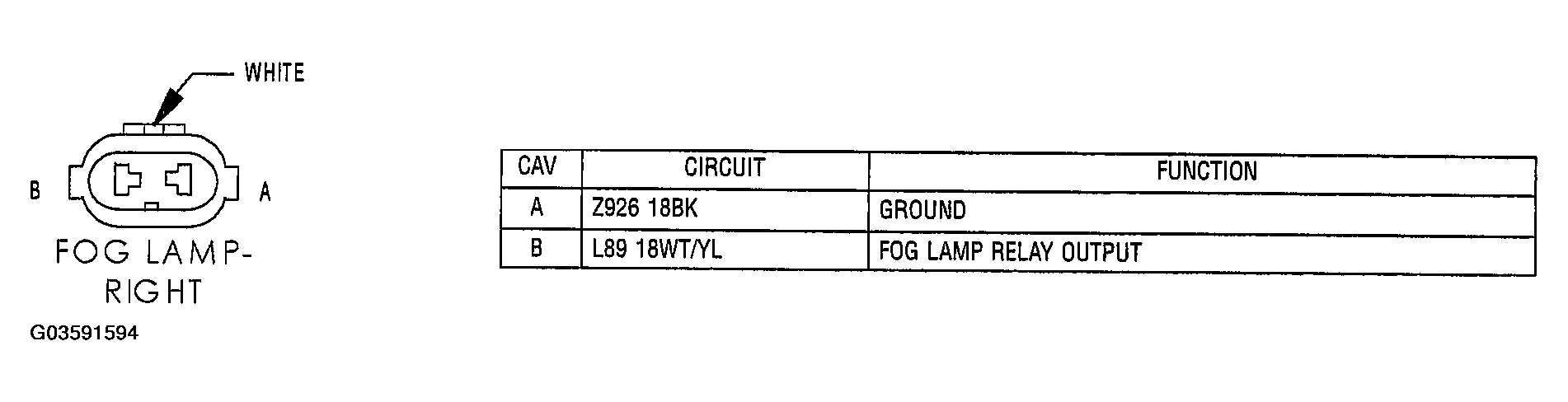

Fig 54: Identifying Fog Lamp-Right - White 2 Way Connector Pin Outs
G03591594Courtesy of DAIMLERCHRYSLER CORP.

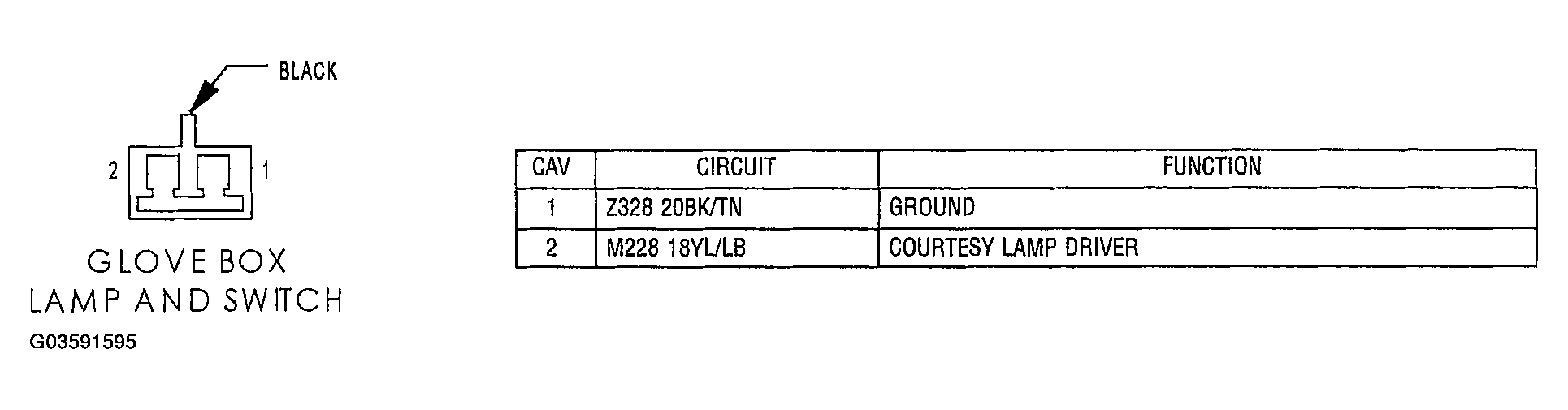

Fig 55: Identifying Glove Box Lamp And Switch - Black 2 Way Connector Pin Outs
G03591595Courtesy of DAIMLERCHRYSLER CORP.

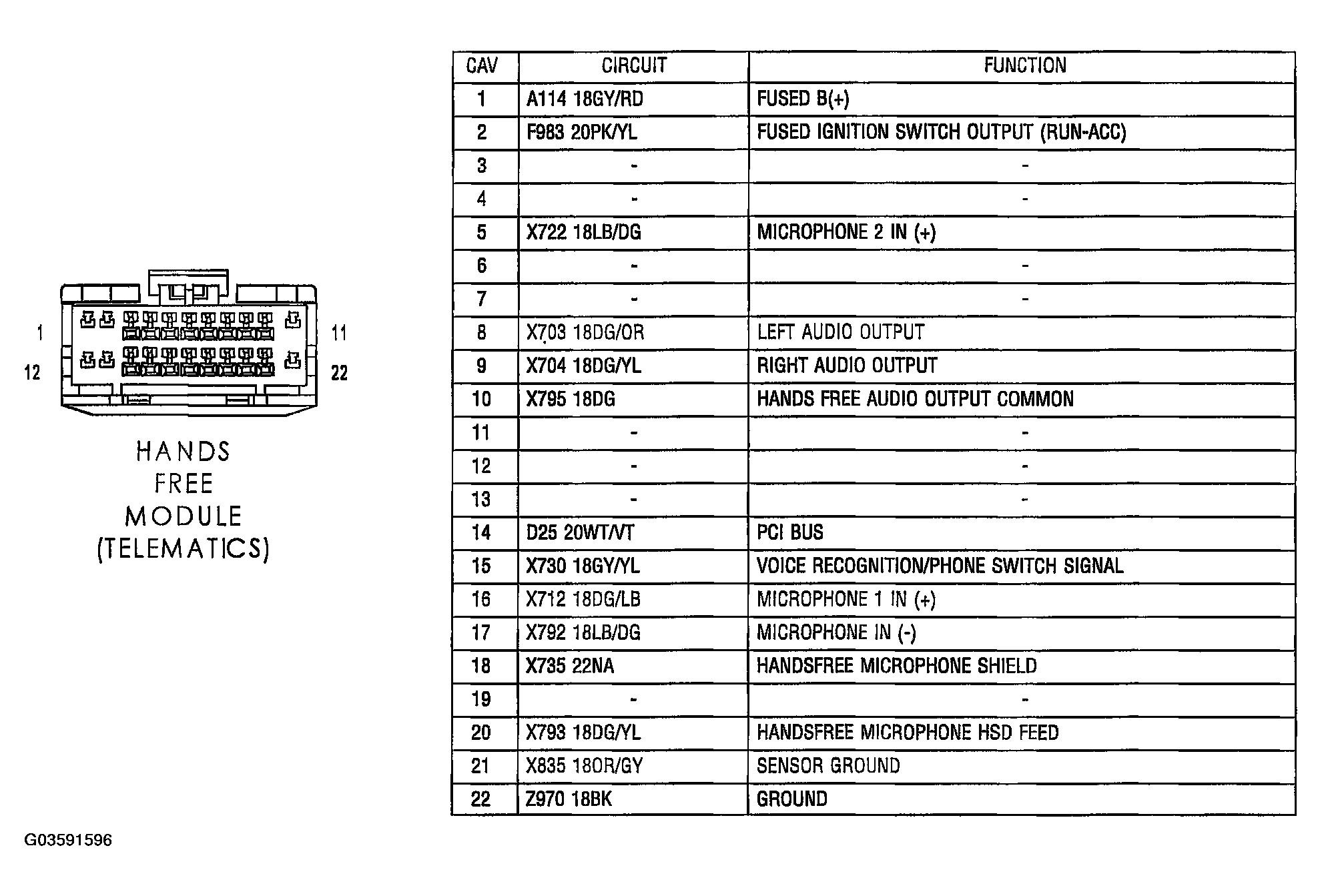

Fig 56: Identifying Hands Free Module (Telematics) - 22 Way Connector Pin Outs
G03591596Courtesy of DAIMLERCHRYSLER CORP.

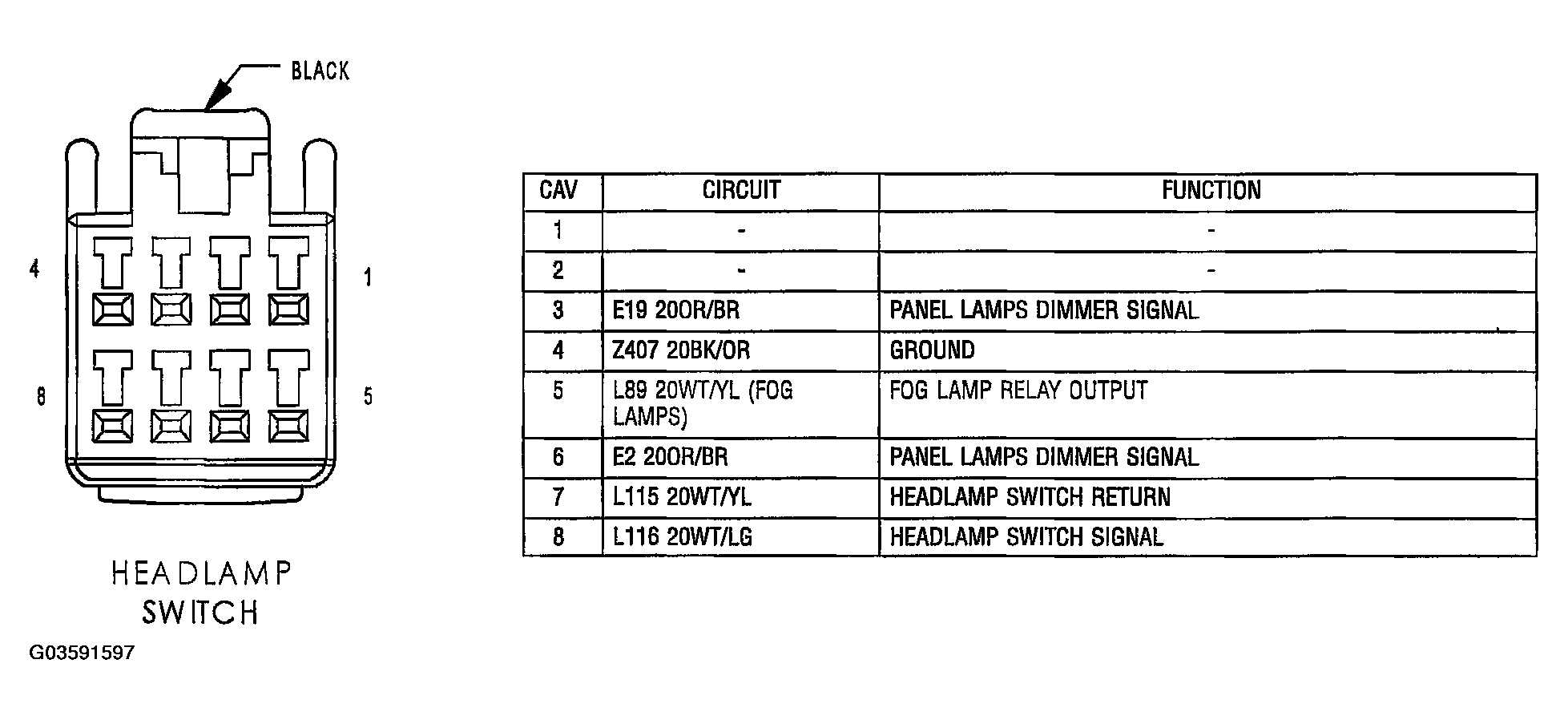

Fig 57: Identifying Headlamp Switch - Black 8 Way Connector Pin Outs
G03591597Courtesy of DAIMLERCHRYSLER CORP.

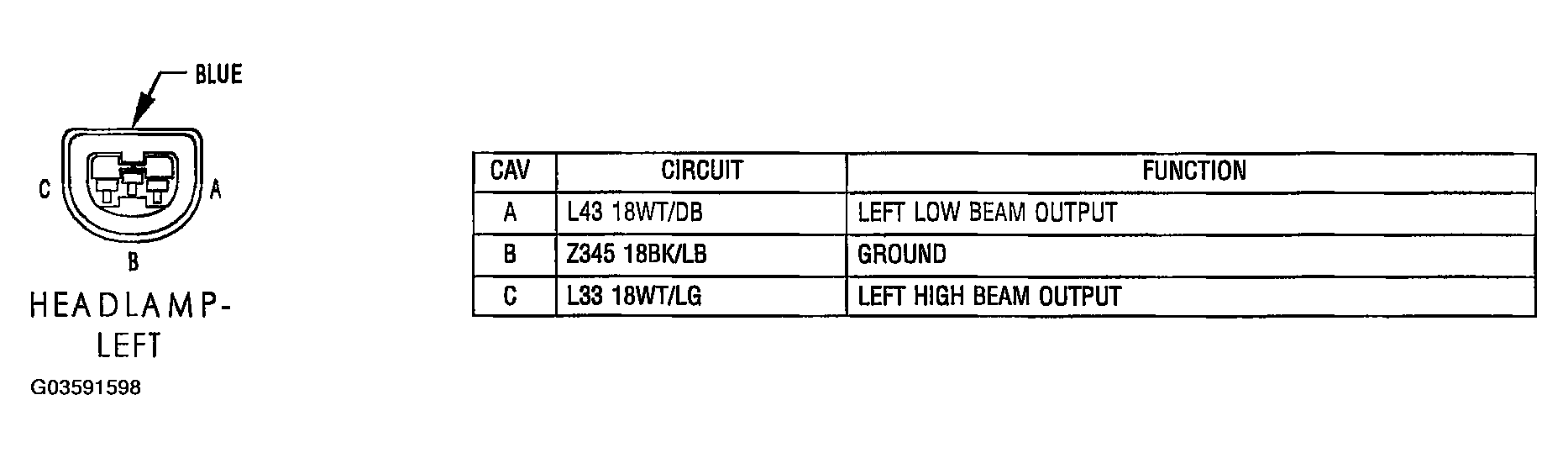

Fig 58: Identifying Headlamp-Left - Blue 3 Way Connector Pin Outs
G03591598Courtesy of DAIMLERCHRYSLER CORP.
Fig 59: Identifying Heated Mirror Relay - 5 Way Connector Pin Outs
G03591599Courtesy of DAIMLERCHRYSLER CORP.

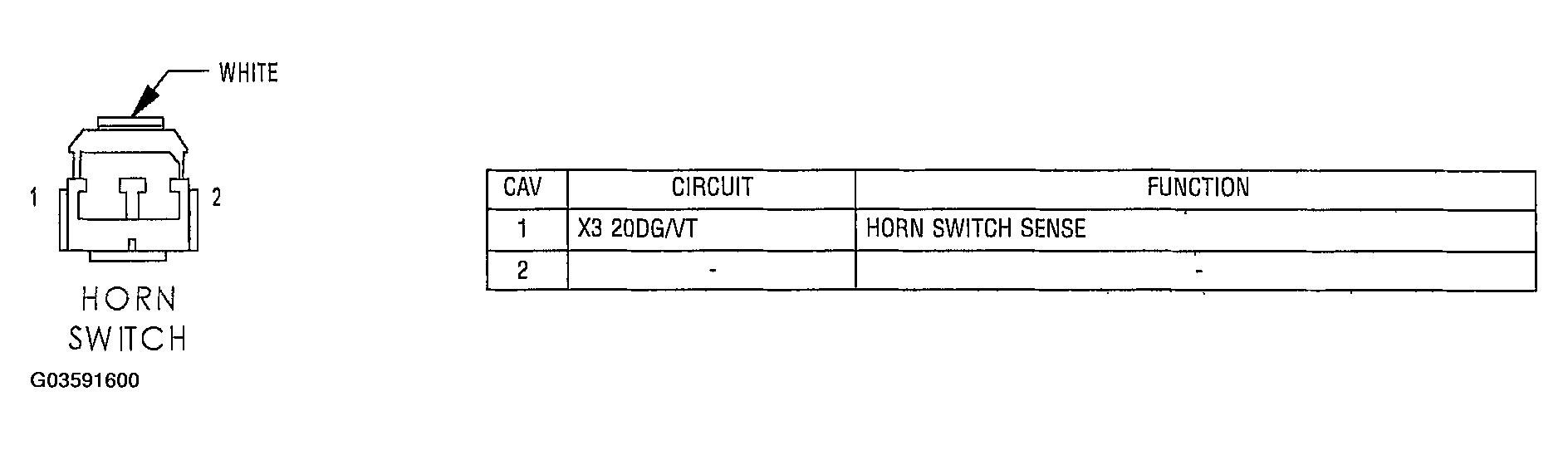

Fig 60: Identifying Horn Switch - White 2 Way Connector Pin Outs
G03591600Courtesy of DAIMLERCHRYSLER CORP.

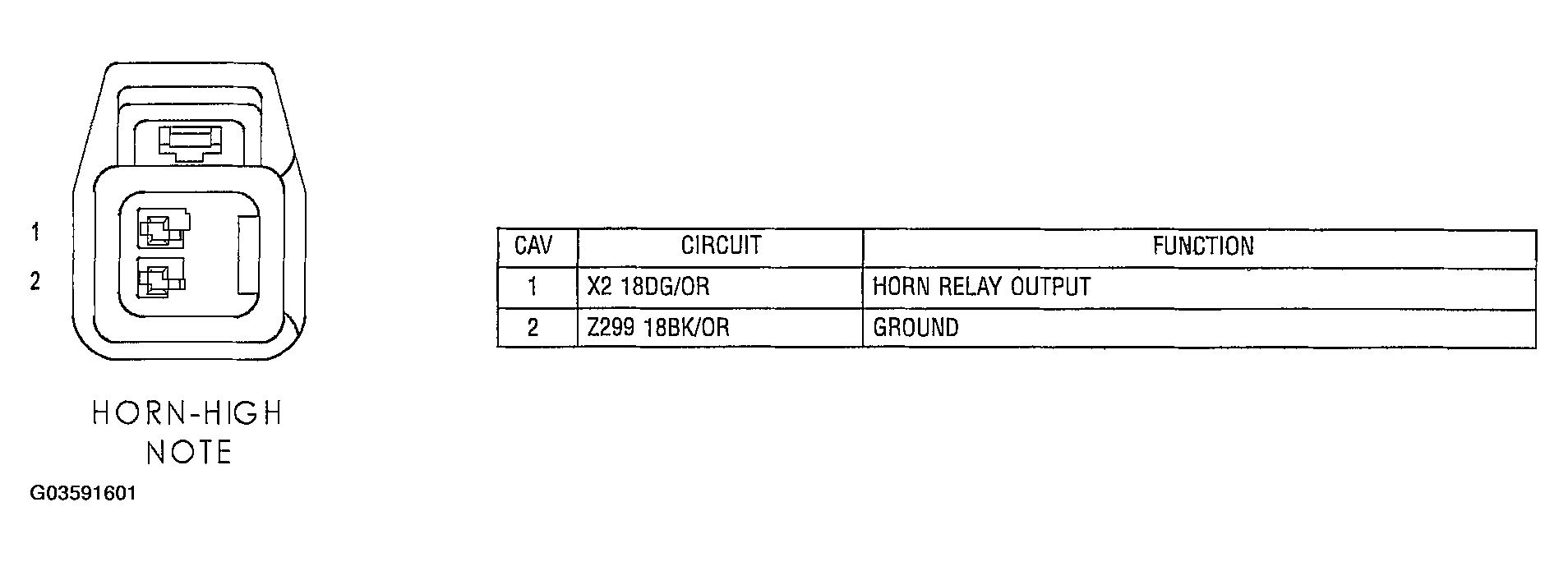

Fig 61: Identifying Horn-High Note - 2 Way Connector Pin Outs
G03591601Courtesy of DAIMLERCHRYSLER CORP.

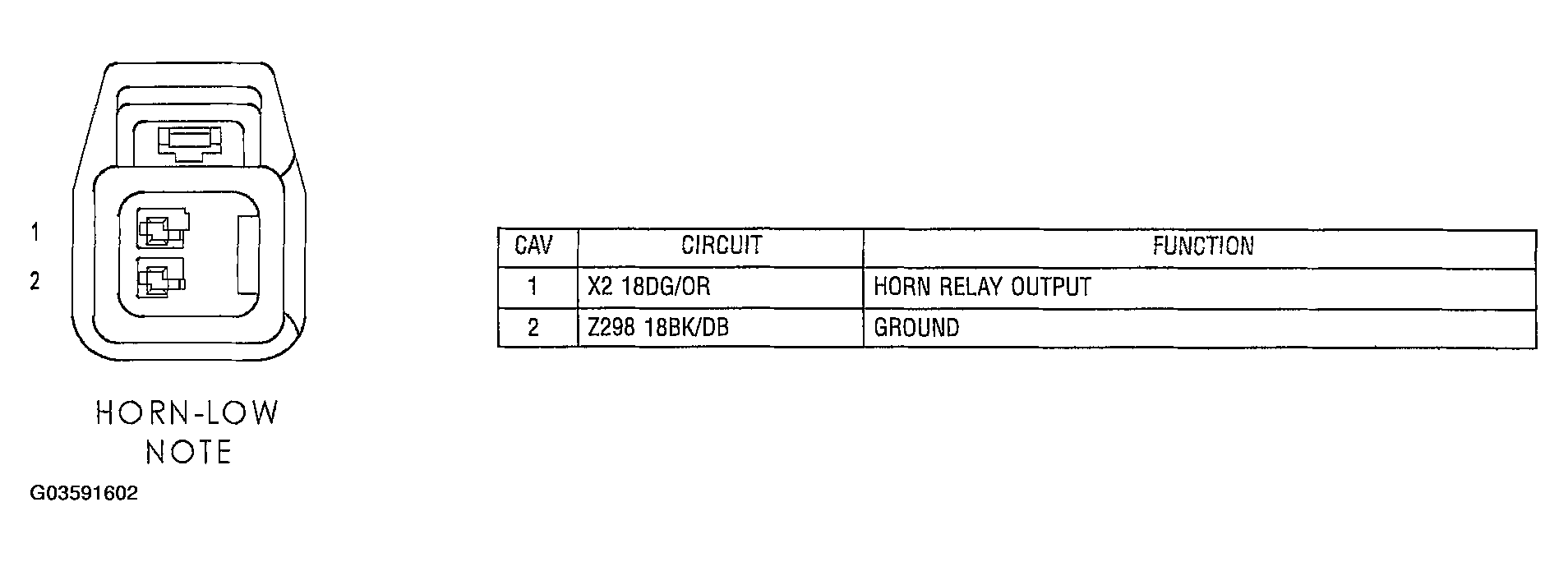

Fig 62: Identifying Horn-Low Note - 2 Way Connector Pin Outs
G03591602Courtesy of DAIMLERCHRYSLER CORP.

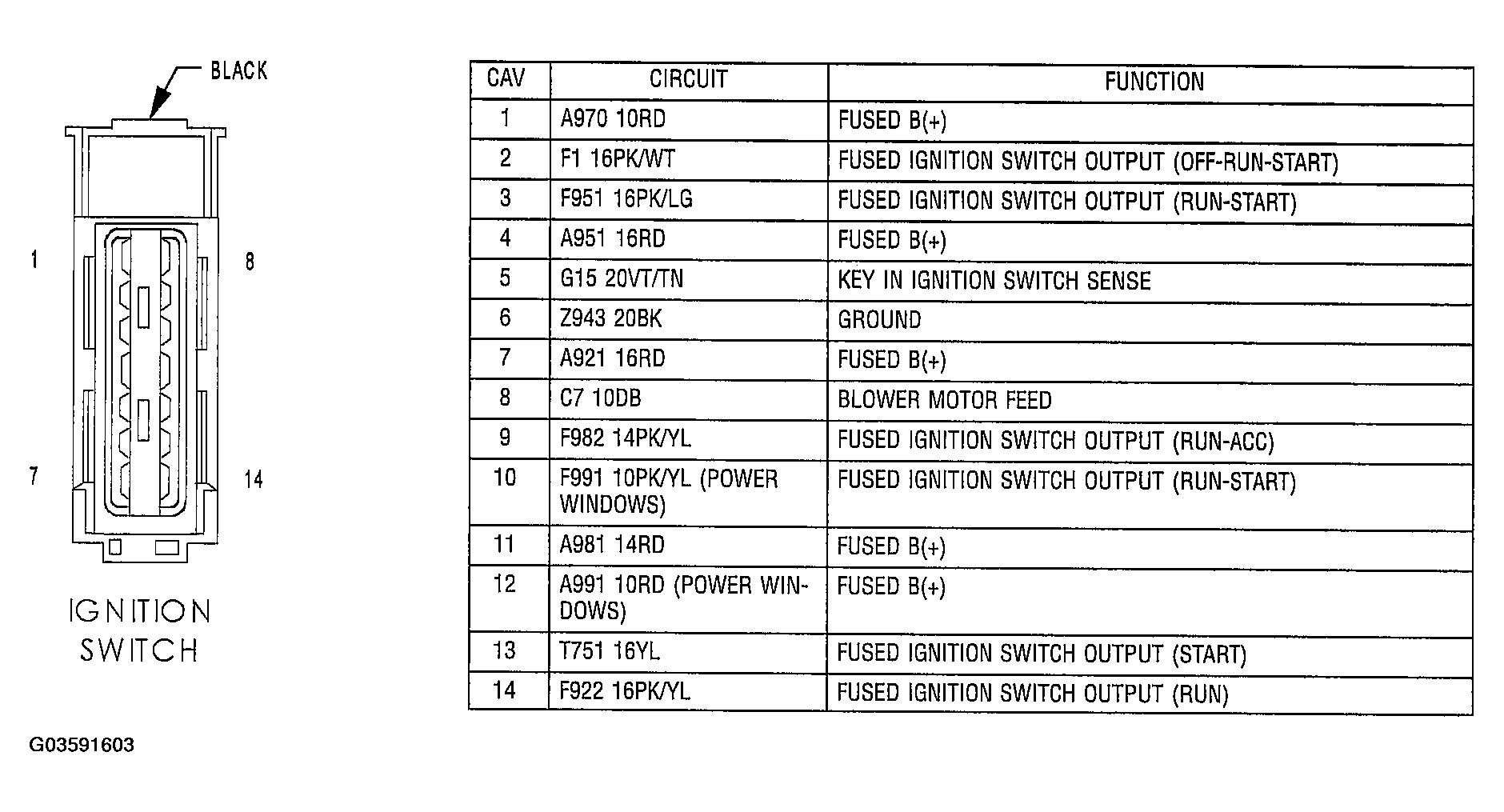

Fig 63: Identifying Ignition Switch - Black 14 Way Connector Pin Outs
G03591603Courtesy of DAIMLERCHRYSLER CORP.

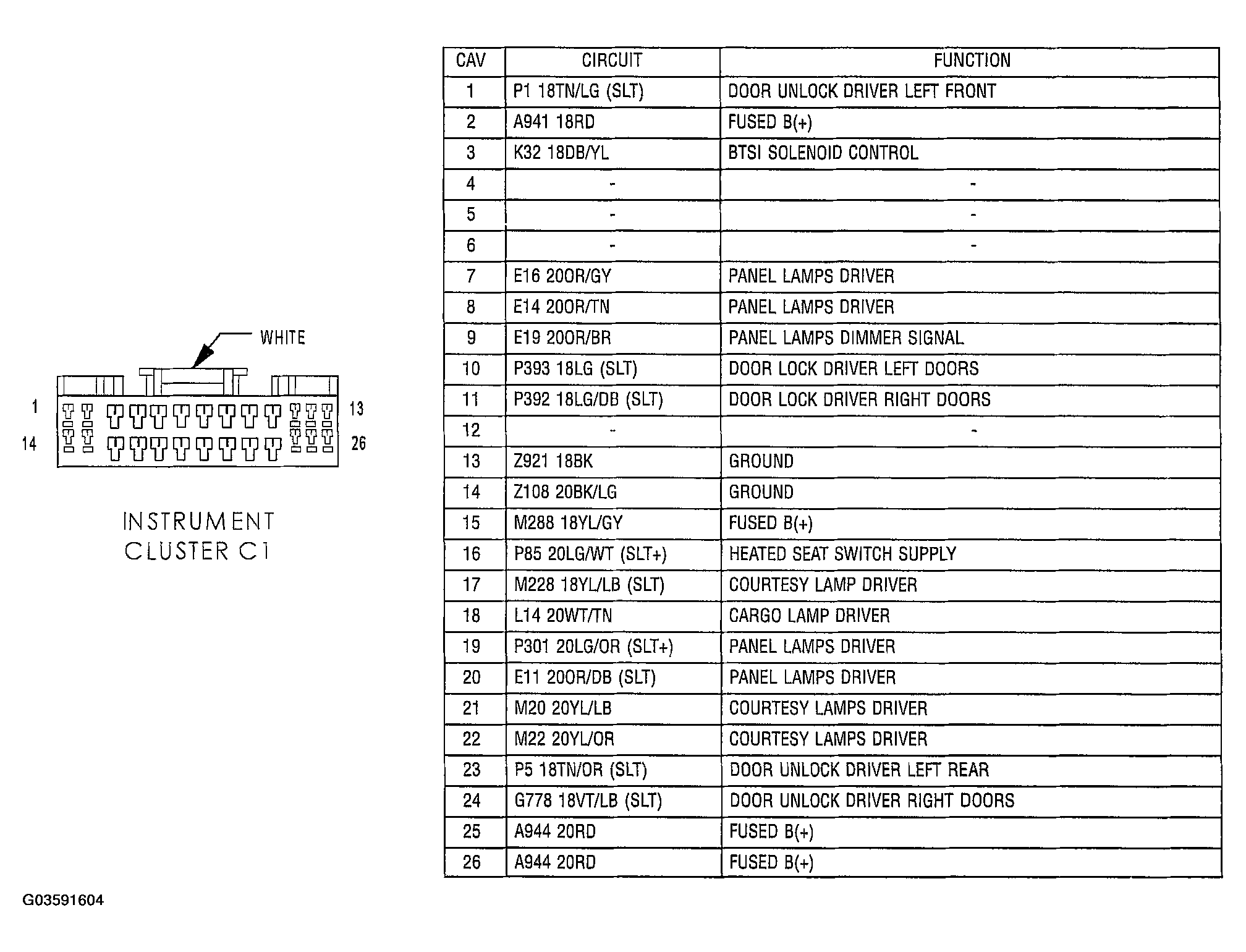

Fig 64: Identifying Instrument Cluster C1 - White 26 Way Connector Pin Outs
G03591604Courtesy of DAIMLERCHRYSLER CORP.

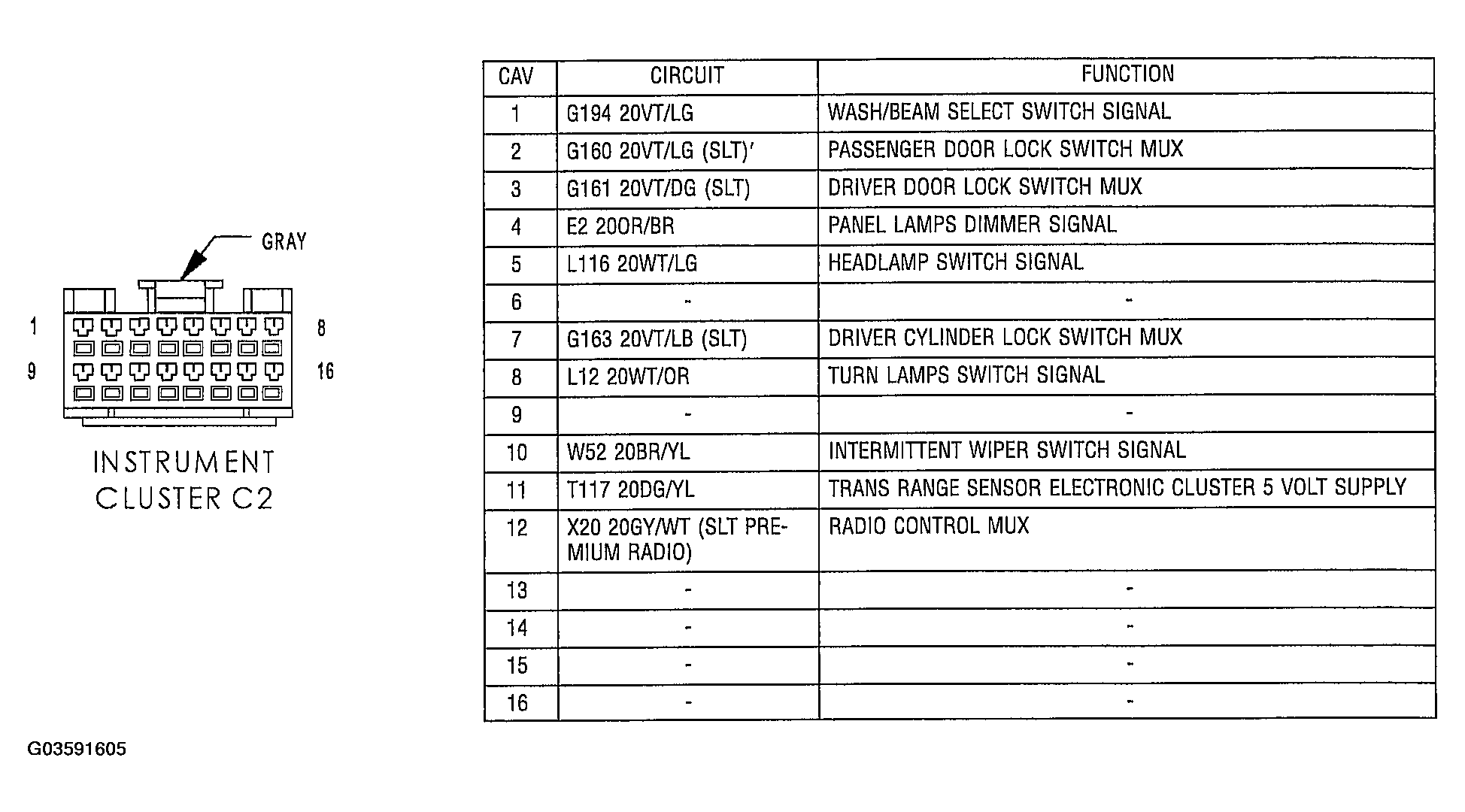

Fig 65: Identifying Instrument Cluster C2 - Gray 16 Way Connector Pin Outs
G03591605Courtesy of DAIMLERCHRYSLER CORP.

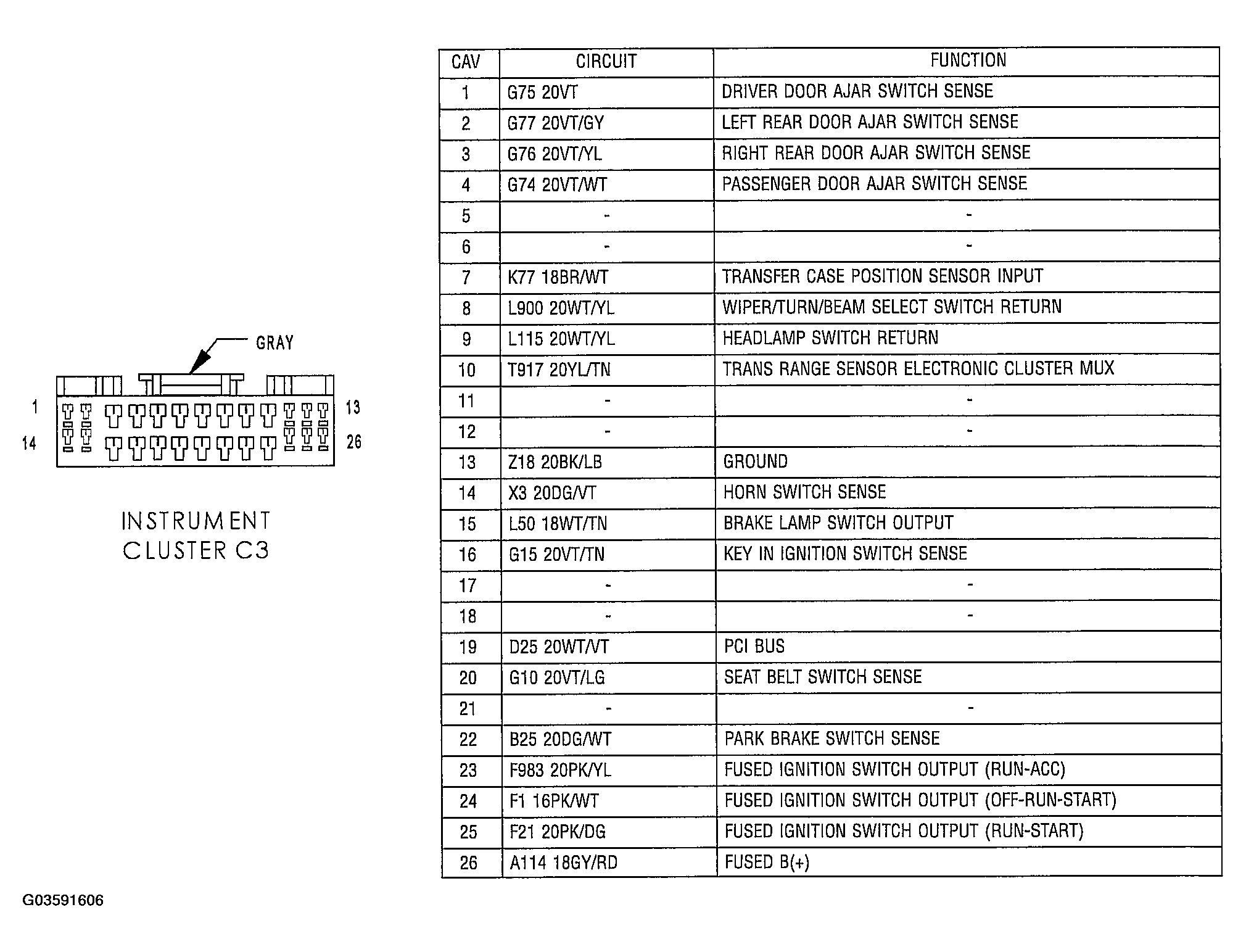

Fig 66: Identifying Instrument Cluster C3 - Gray 26 Way Connector Pin Outs
G03591606Courtesy of DAIMLERCHRYSLER CORP.

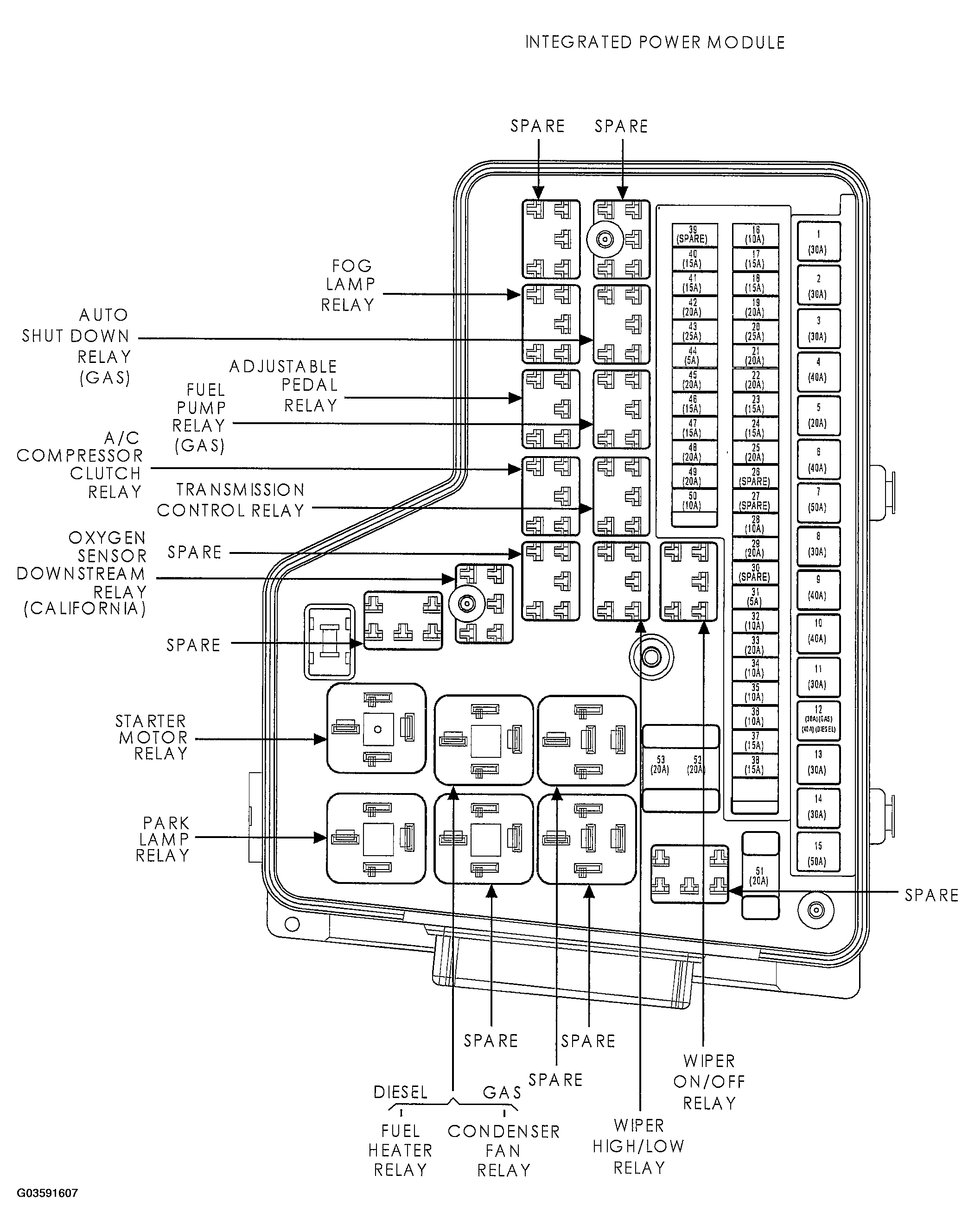

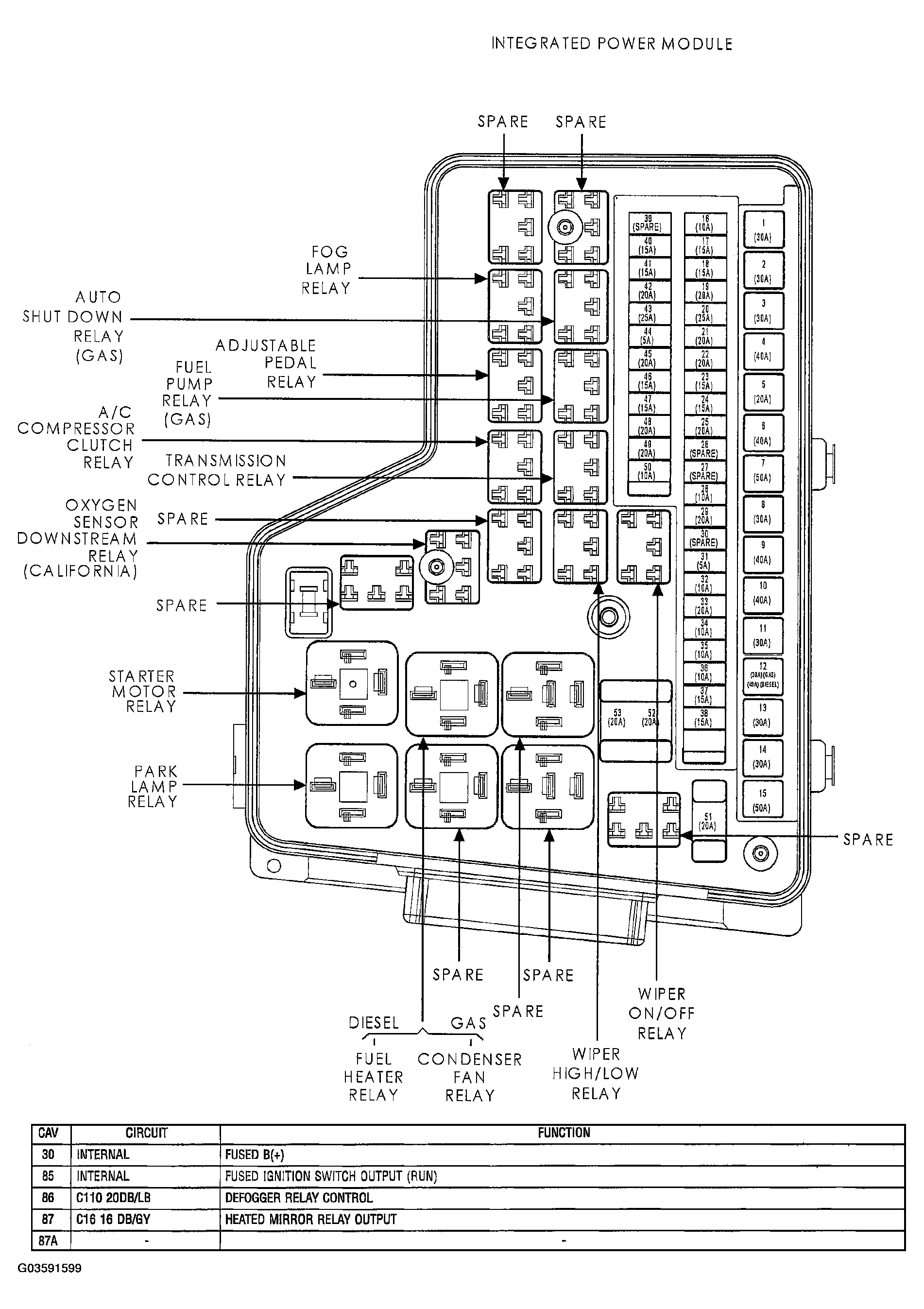

Fig 67: Identifying Integrated Power Module
G03591607Courtesy of DAIMLERCHRYSLER CORP.

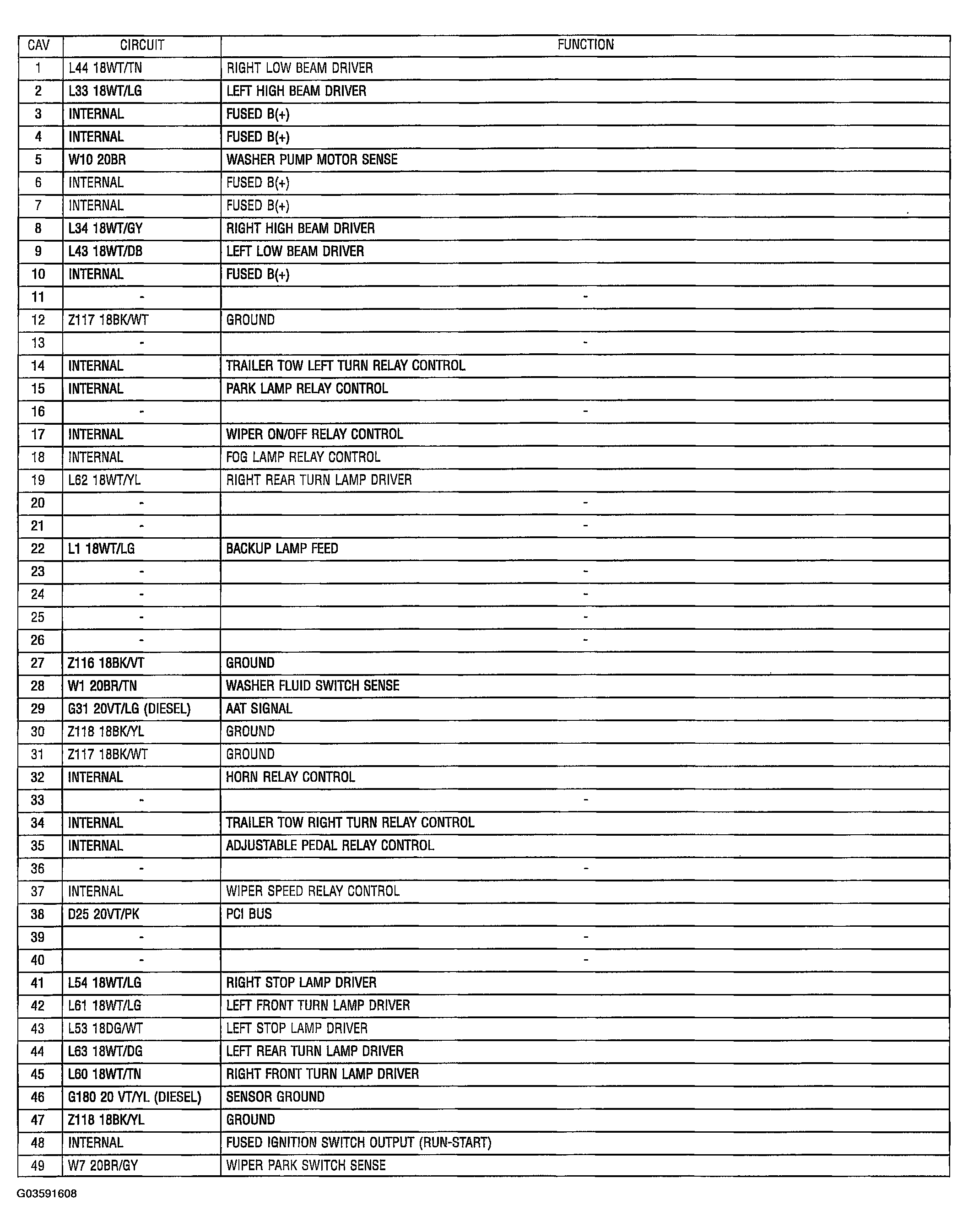

Fig 68: Connector Pin Outs Description Table
G03591608Courtesy of DAIMLERCHRYSLER CORP.

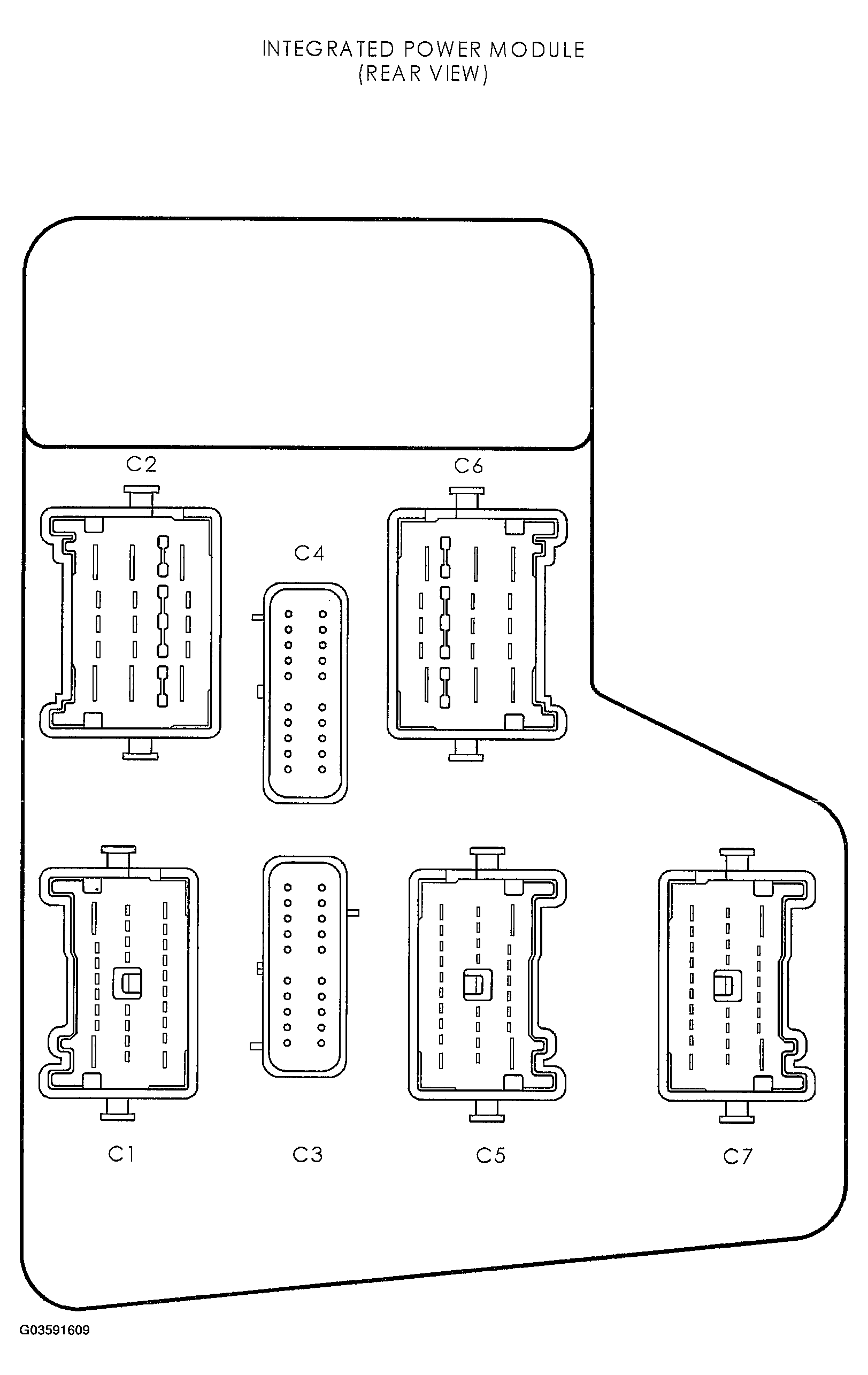

Fig 69: Identifying Integrated Power Module (Rear View)
G03591609Courtesy of DAIMLERCHRYSLER CORP.

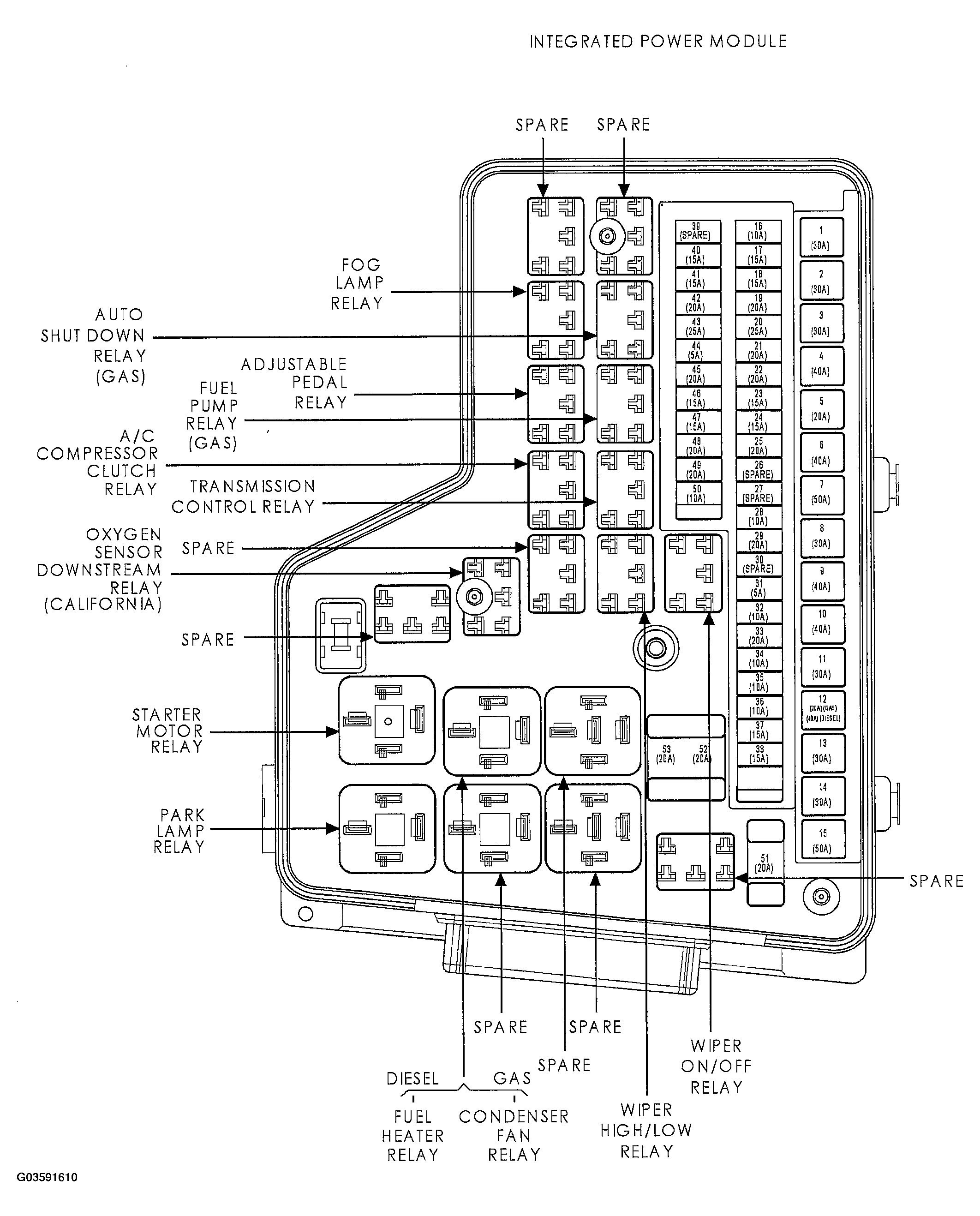

Fig 70: Identifying Integrated Power Module
G03591610Courtesy of DAIMLERCHRYSLER CORP.

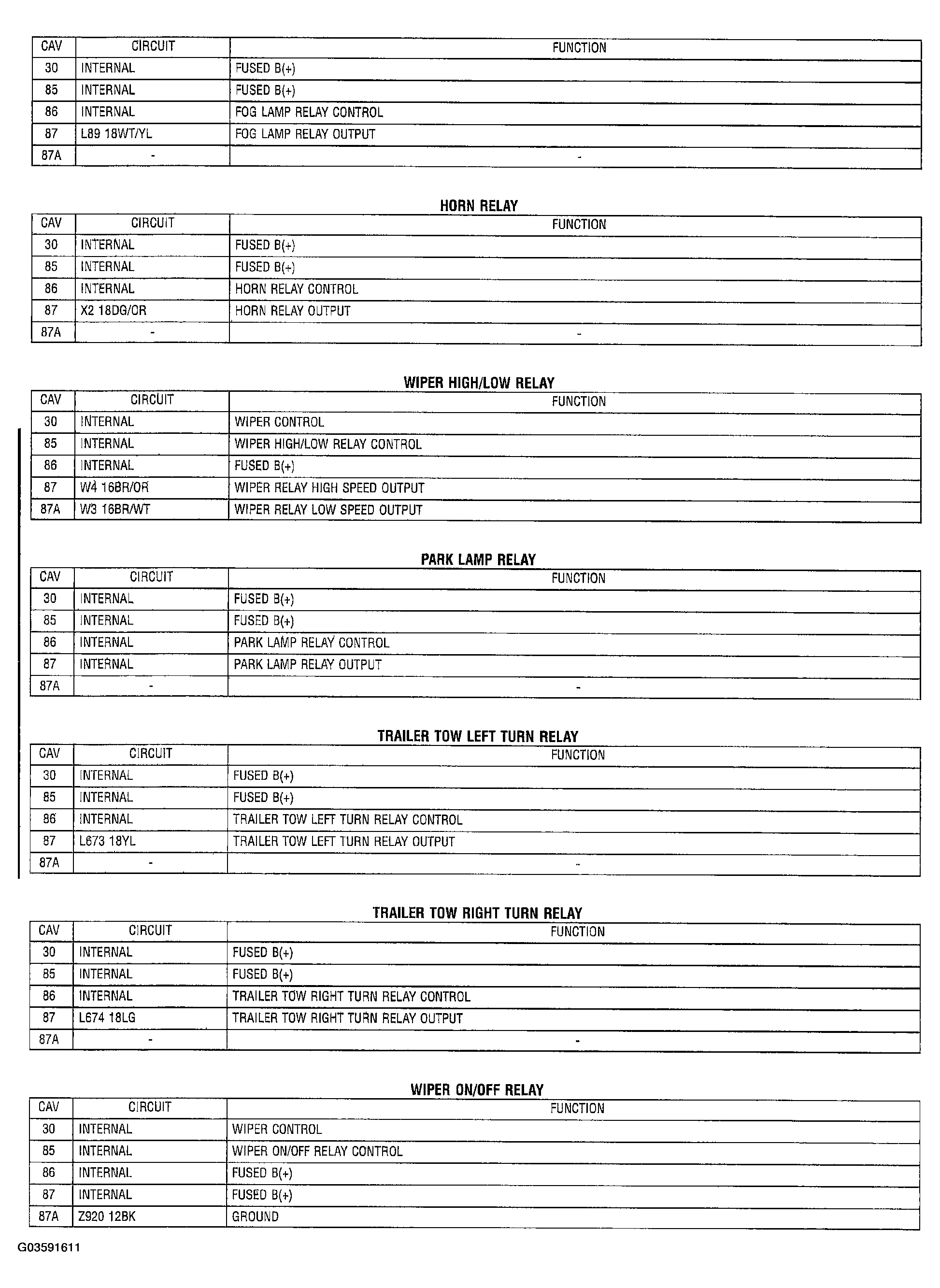

Fig 71: Identifying Fog Lamp Relay Connector Pin Outs
G03591611Courtesy of DAIMLERCHRYSLER CORP.

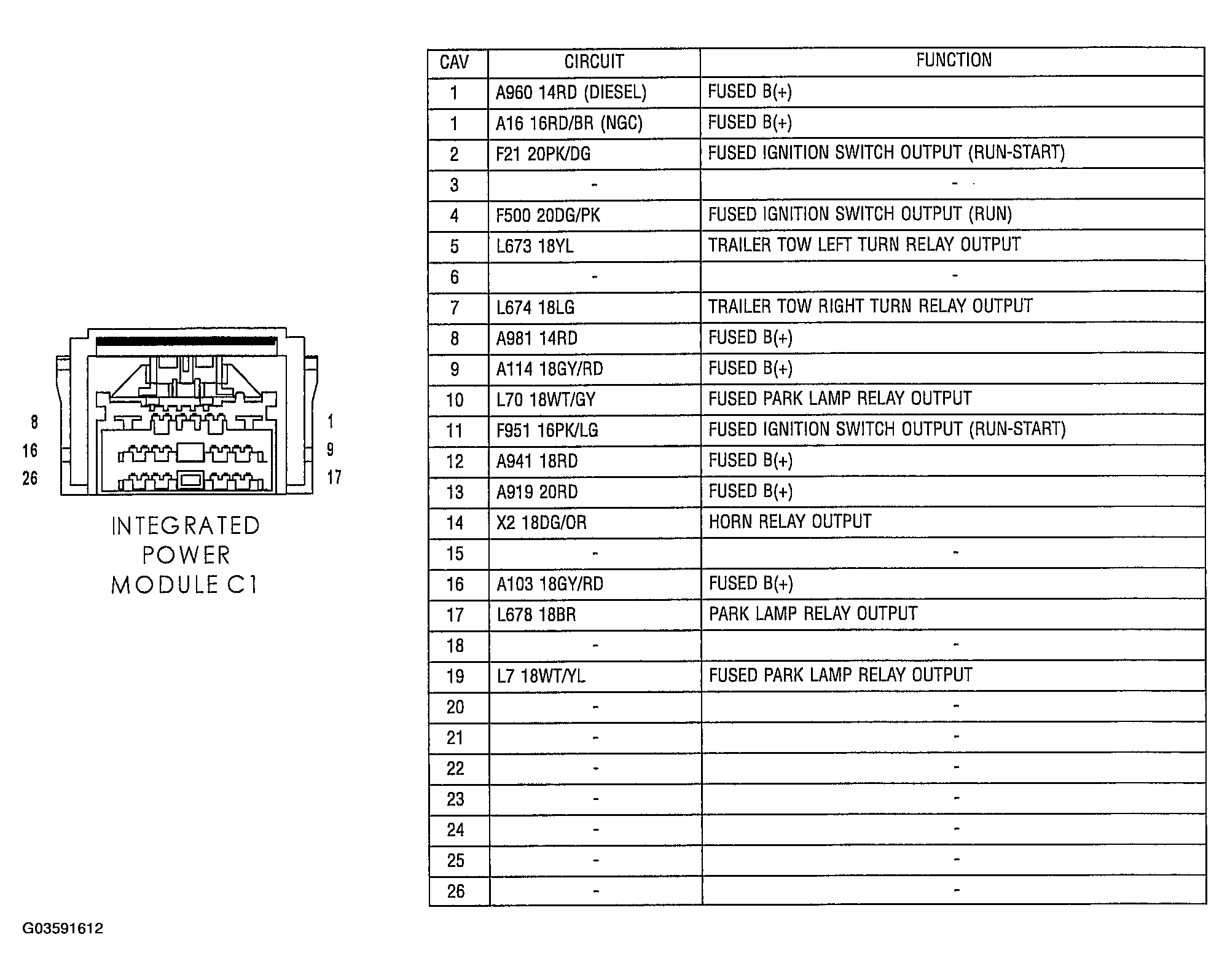

Fig 72: Identifying Integrated Power Module C1 - 26 Way Connector Pin Outs
G03591612Courtesy of DAIMLERCHRYSLER CORP.

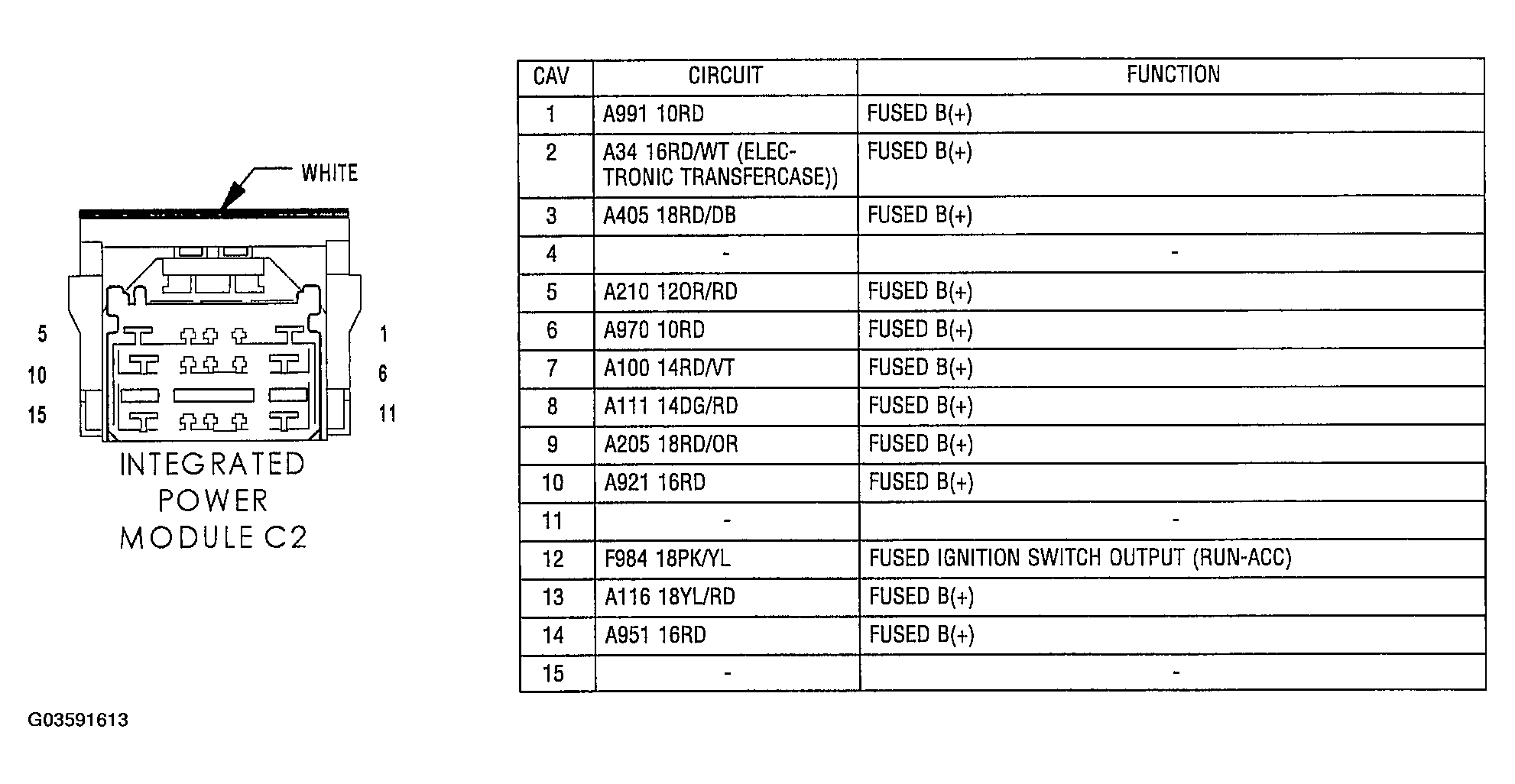

Fig 73: Identifying Integrated Power Module C2 - White 15 Way Connector Pin Outs
G03591613Courtesy of DAIMLERCHRYSLER CORP.

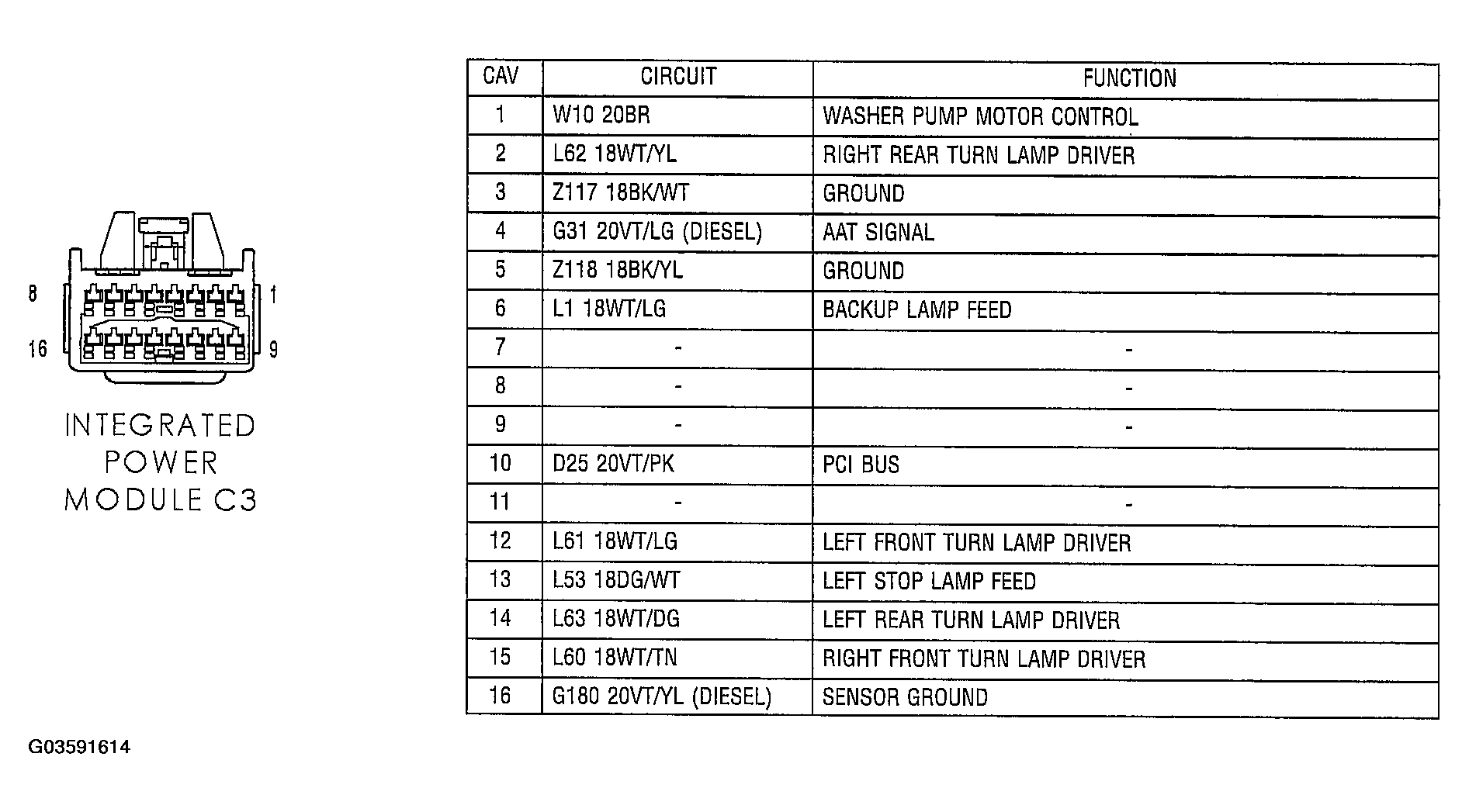

Fig 74: Identifying Integrated Power Module C3 - 16 Way Connector Pin Outs
G03591614Courtesy of DAIMLERCHRYSLER CORP.

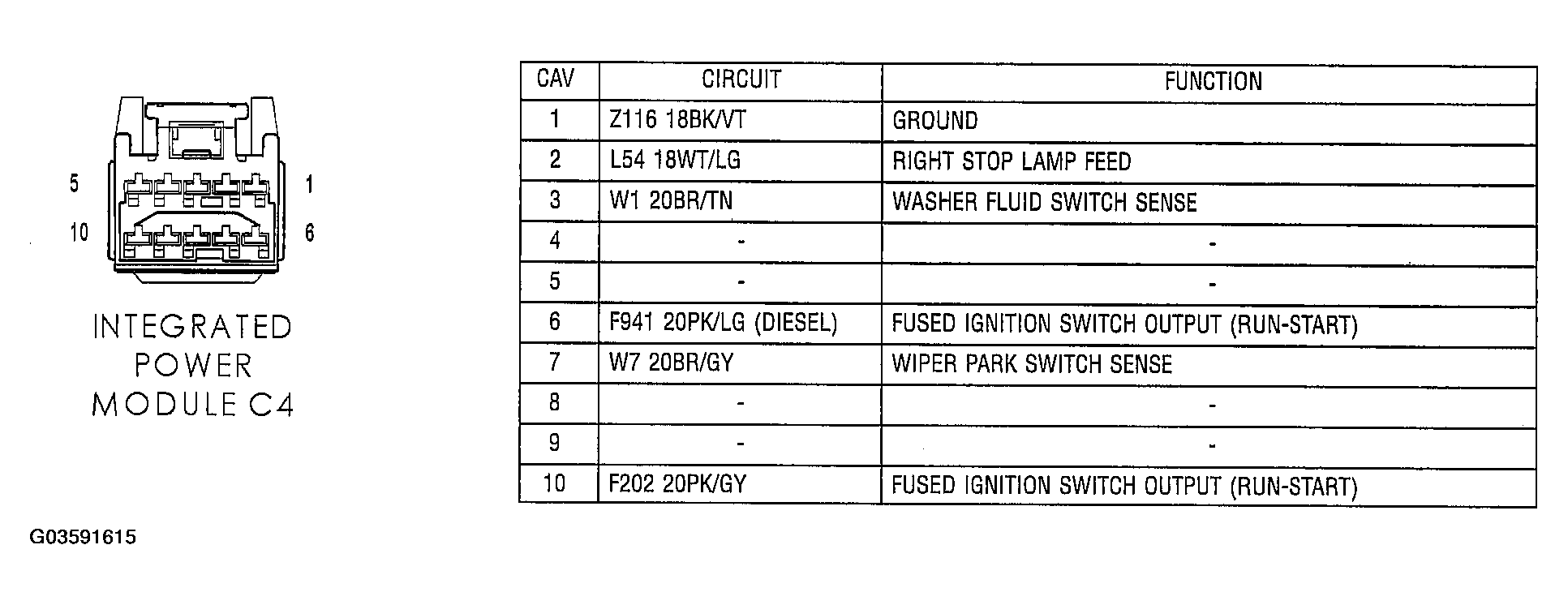

Fig 75: Identifying Integrated Power Module C4 - 10 Way Connector Pin Outs
G03591615Courtesy of DAIMLERCHRYSLER CORP.

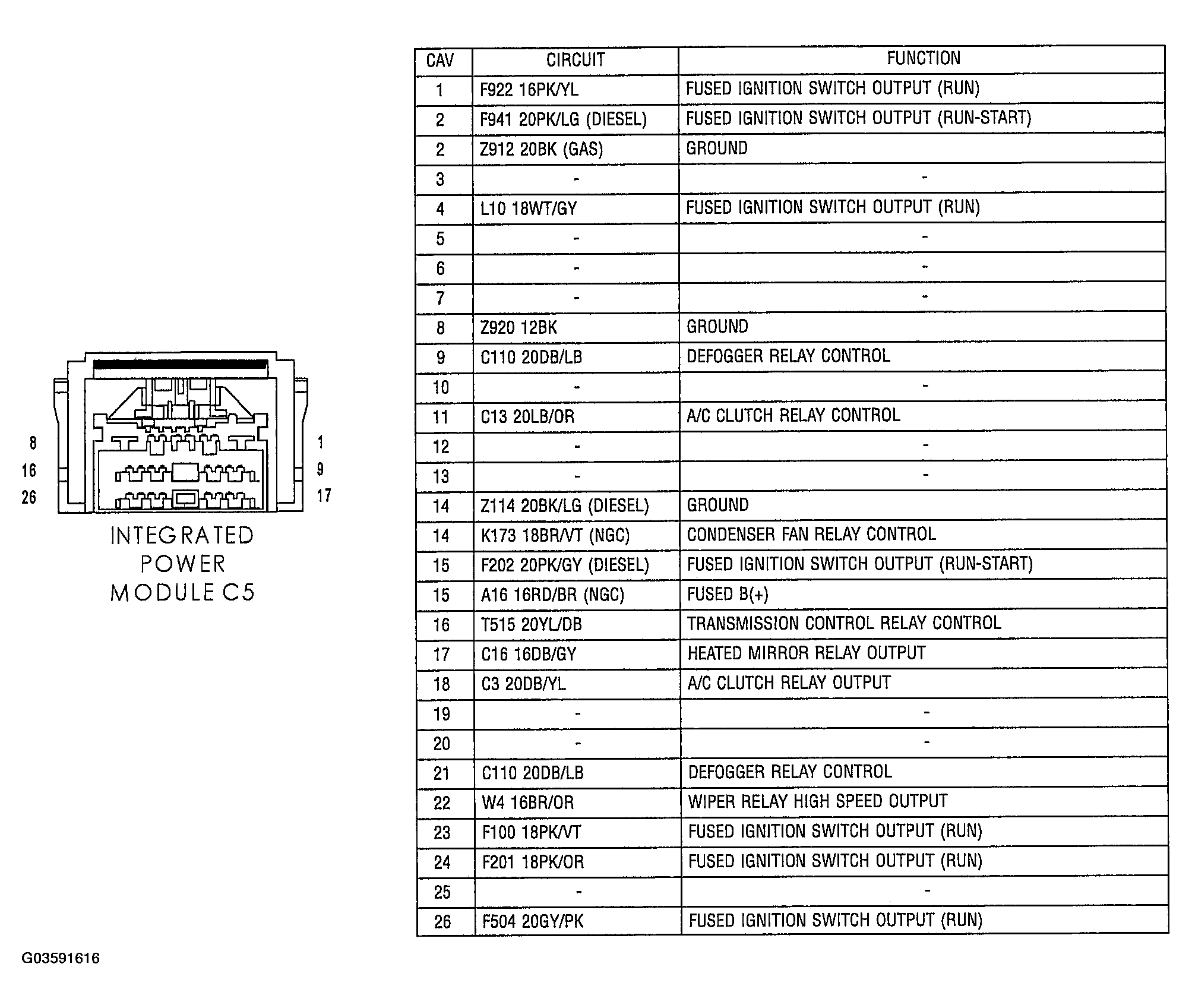

Fig 76: Identifying Integrated Power Module C5 - 26 Way Connector Pin Outs
G03591616Courtesy of DAIMLERCHRYSLER CORP.

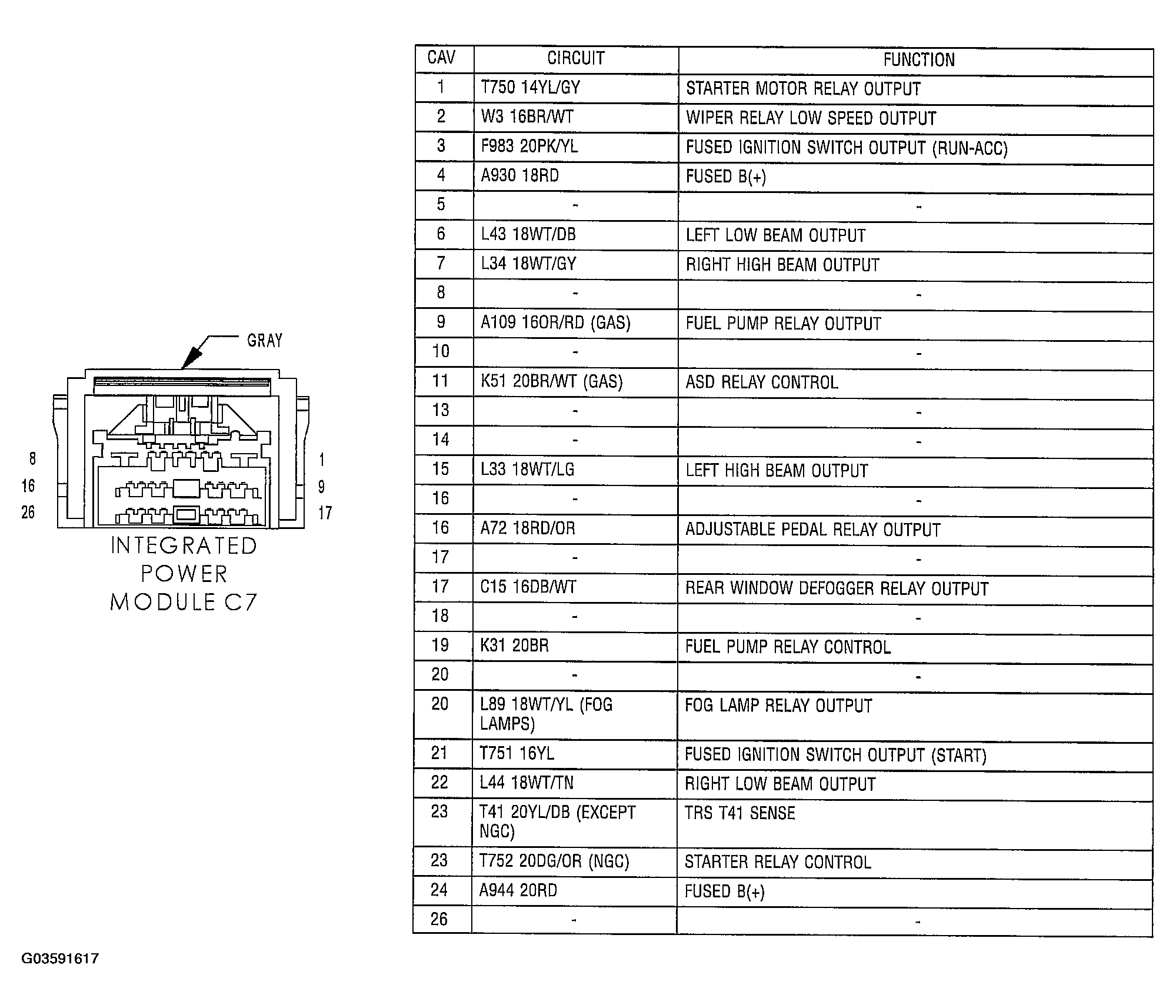

Fig 77: Identifying Integrated Power Module C7 - Gray 26 Way Connector Pin Outs
G03591617Courtesy of DAIMLERCHRYSLER CORP.

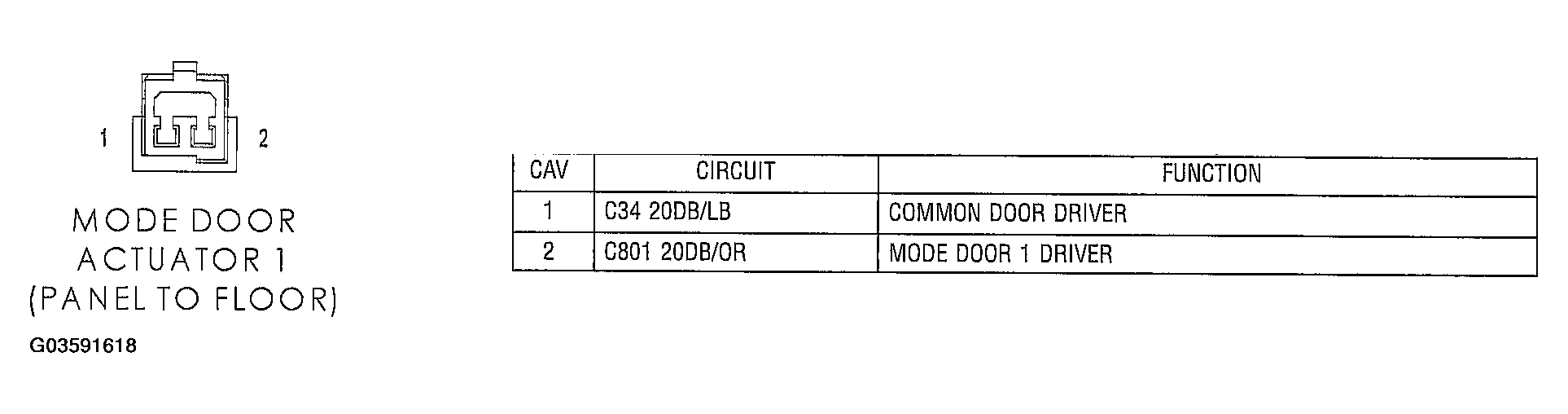

Fig 78: Identifying Mode Door Actuator 1 (Panel To Floor) - 2 Way Connector Pin Outs
G03591618Courtesy of DAIMLERCHRYSLER CORP.

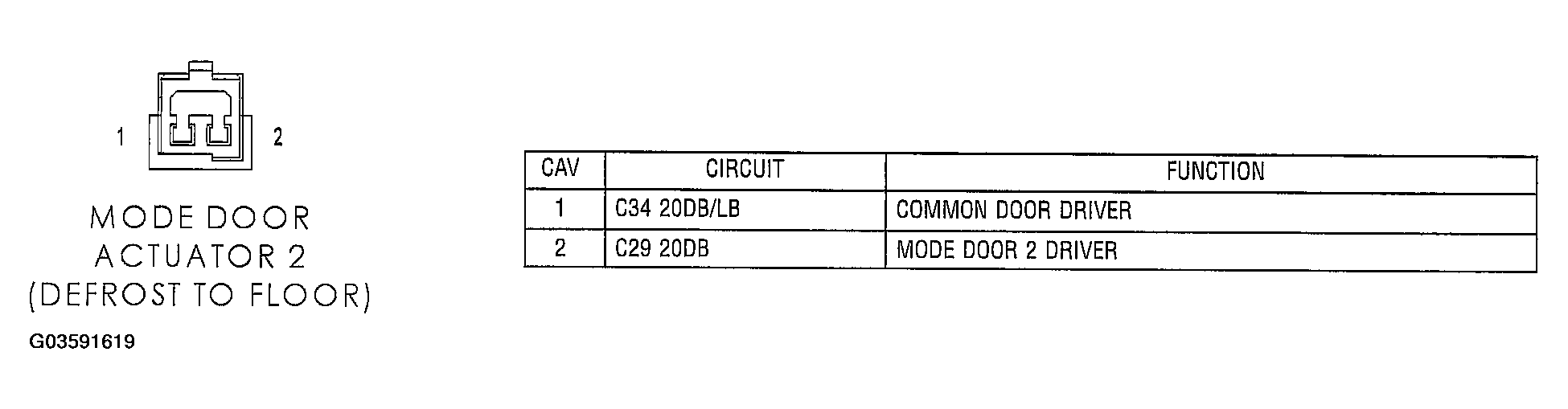

Fig 79: Identifying Mode Door Actuator 2 (Defrost To Floor) - 2 Way Connector Pin Outs
G03591619Courtesy of DAIMLERCHRYSLER CORP.

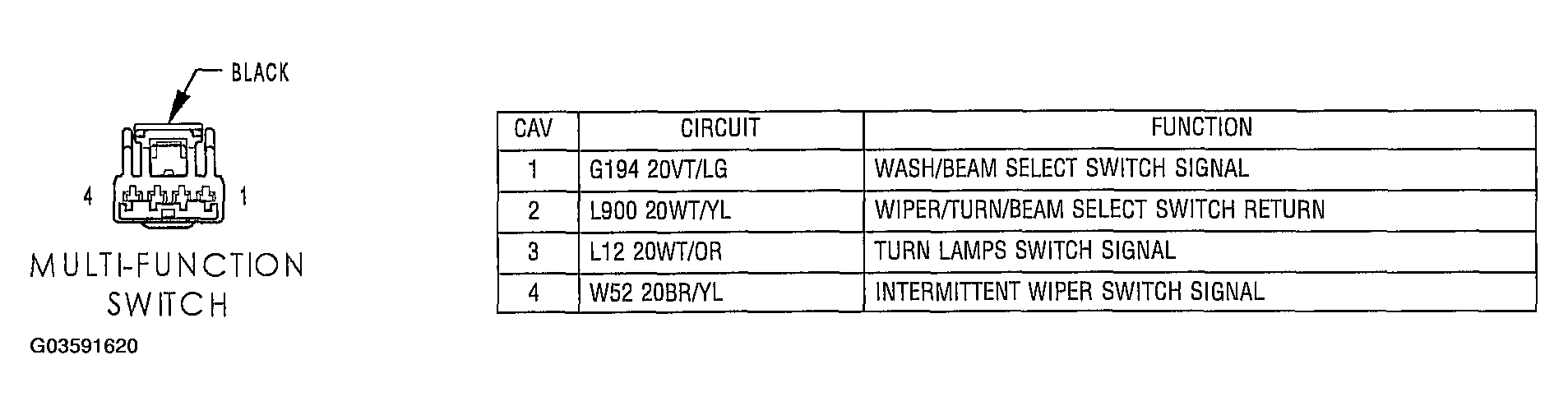

Fig 80: Identifying Multi-Function Switch - Black 4 Way Connector Pin Outs
G03591620Courtesy of DAIMLERCHRYSLER CORP.

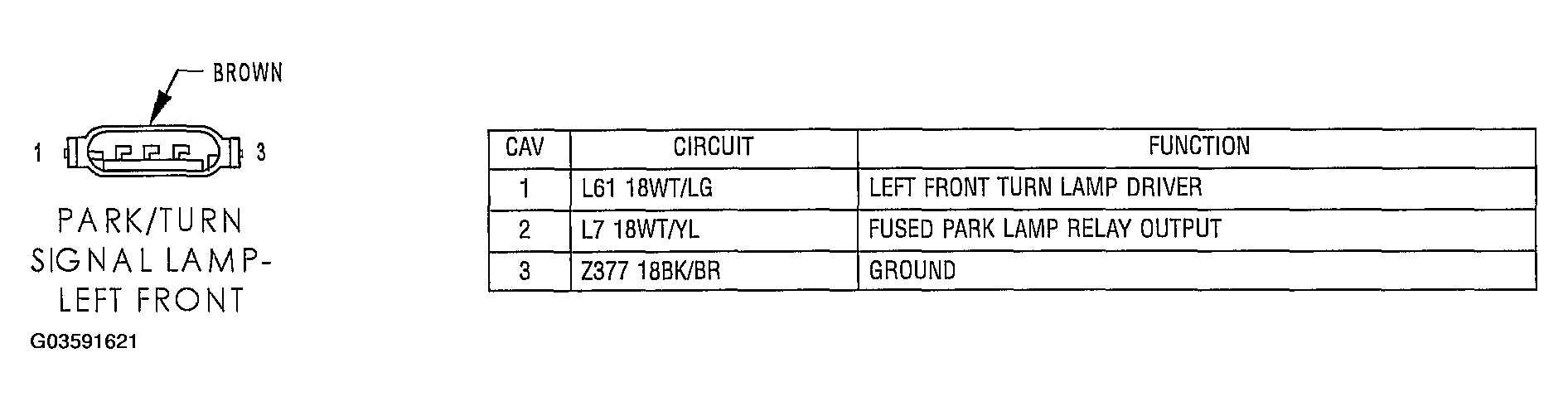

Fig 81: Identifying Park/Turn Signal Lamp-Left Front - Brown 3 Way Connector Pin Outs
G03591621Courtesy of DAIMLERCHRYSLER CORP.

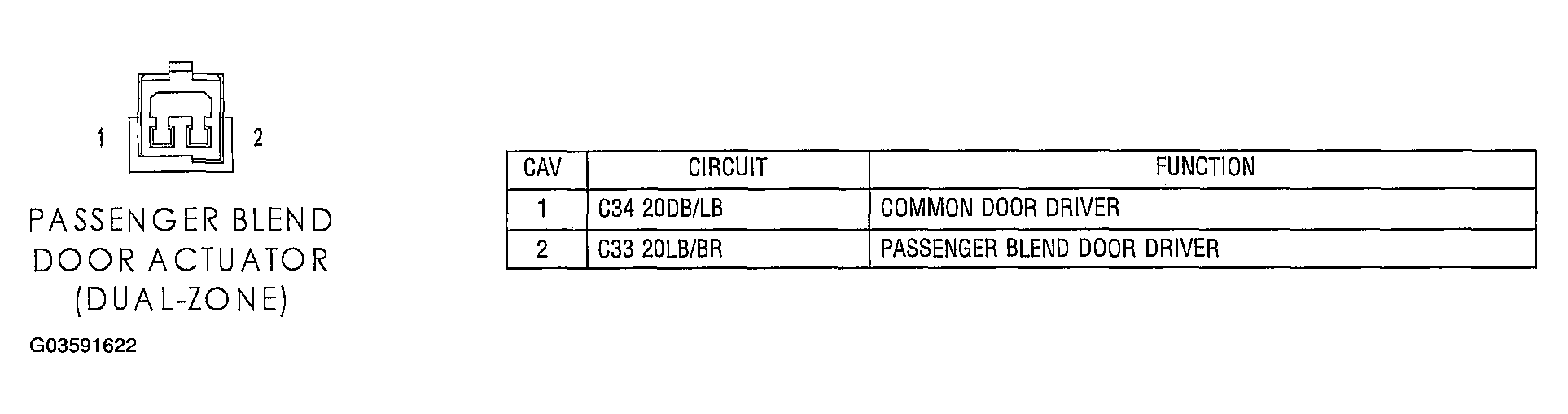

Fig 82: Identifying Passenger Blend Door Actuator (Dual-Zone) - 2 Way Connector Pin Outs
G03591622Courtesy of DAIMLERCHRYSLER CORP.

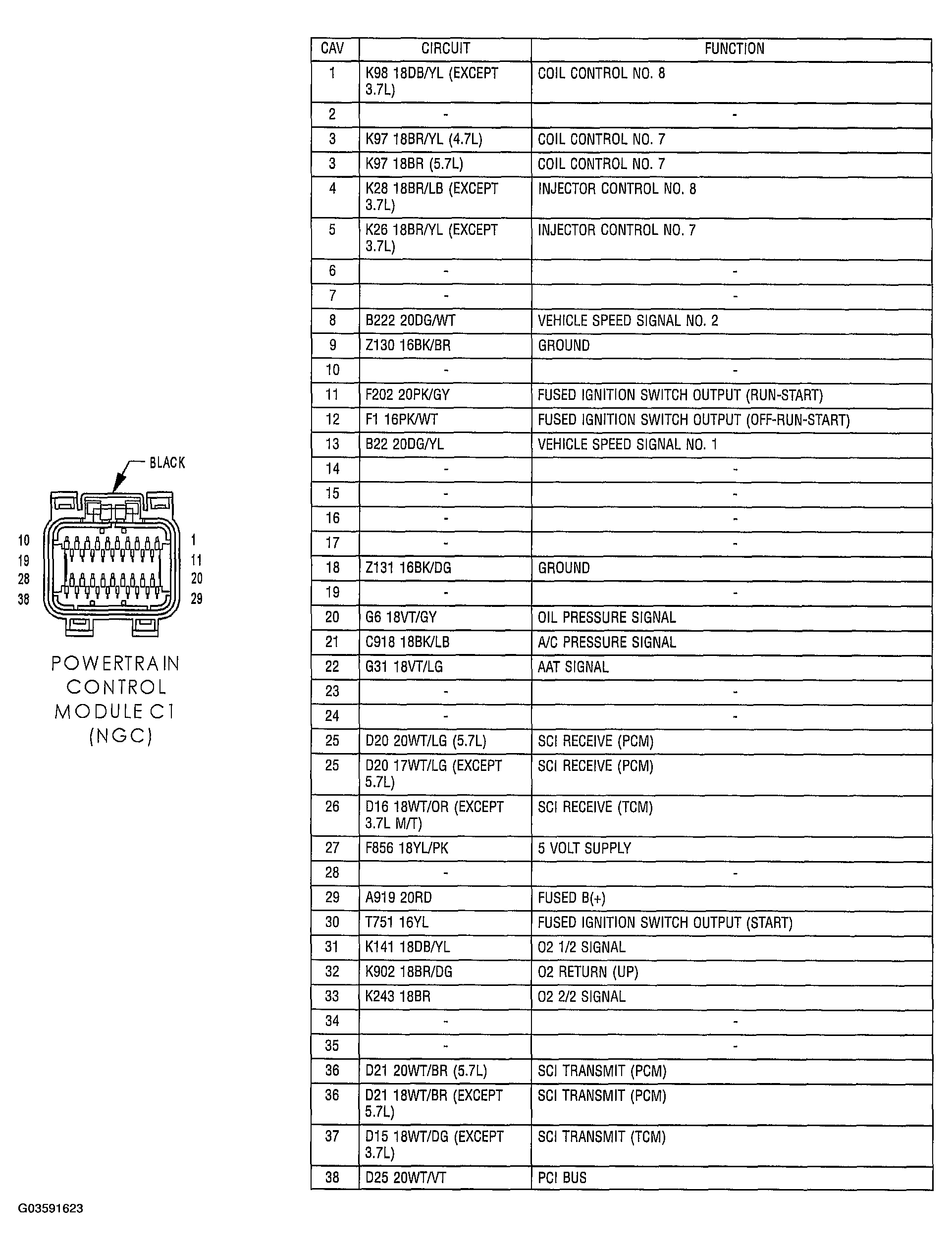

Fig 83: Identifying Powertrain Control Module C1 (NGC) - Black 38 Way Connector Pin Outs
G03591623Courtesy of DAIMLERCHRYSLER CORP.

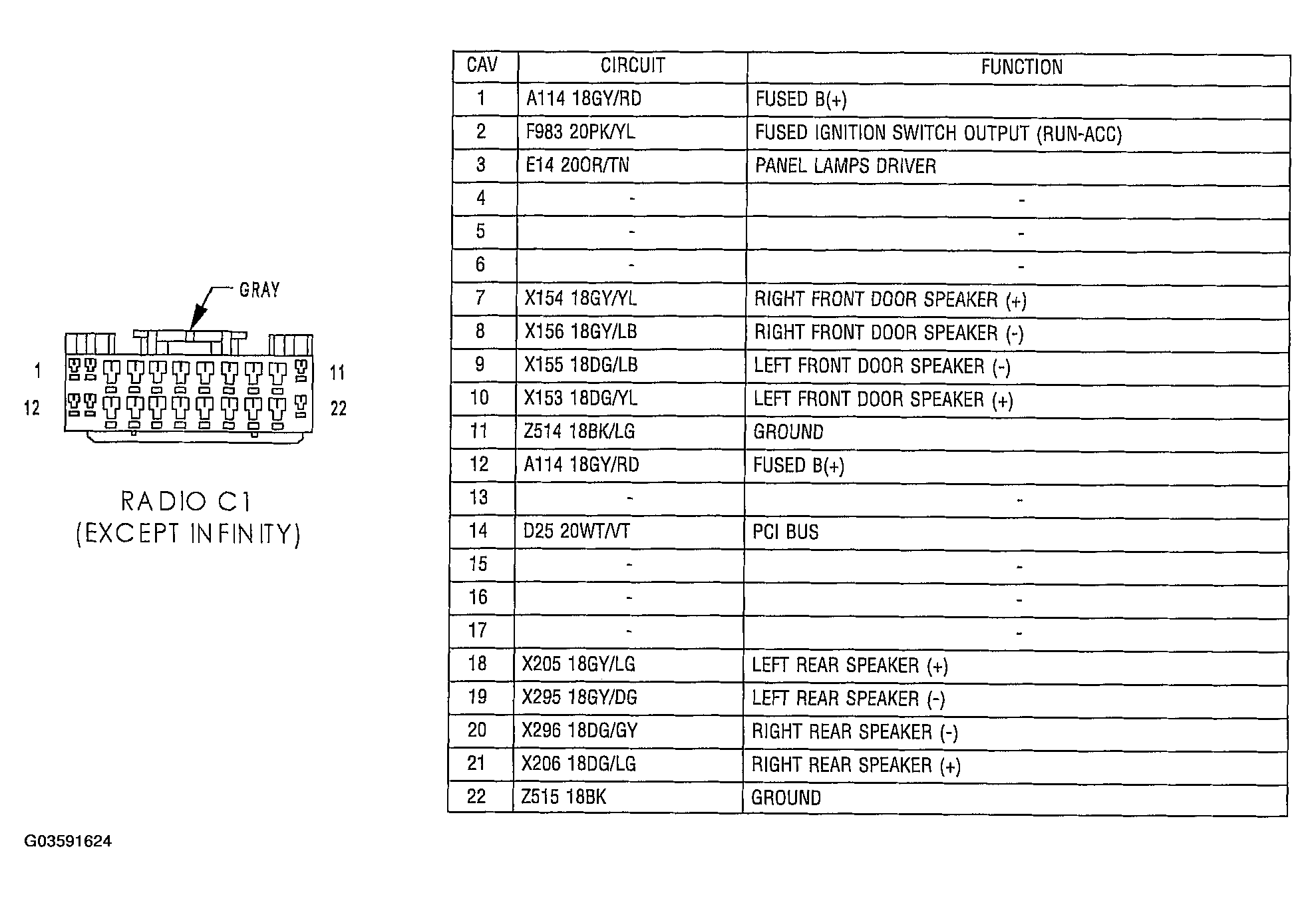

Fig 84: Identifying Radio C1 (Except Infinity) - Gray 22 Way Connector Pin Outs
G03591624Courtesy of DAIMLERCHRYSLER CORP.

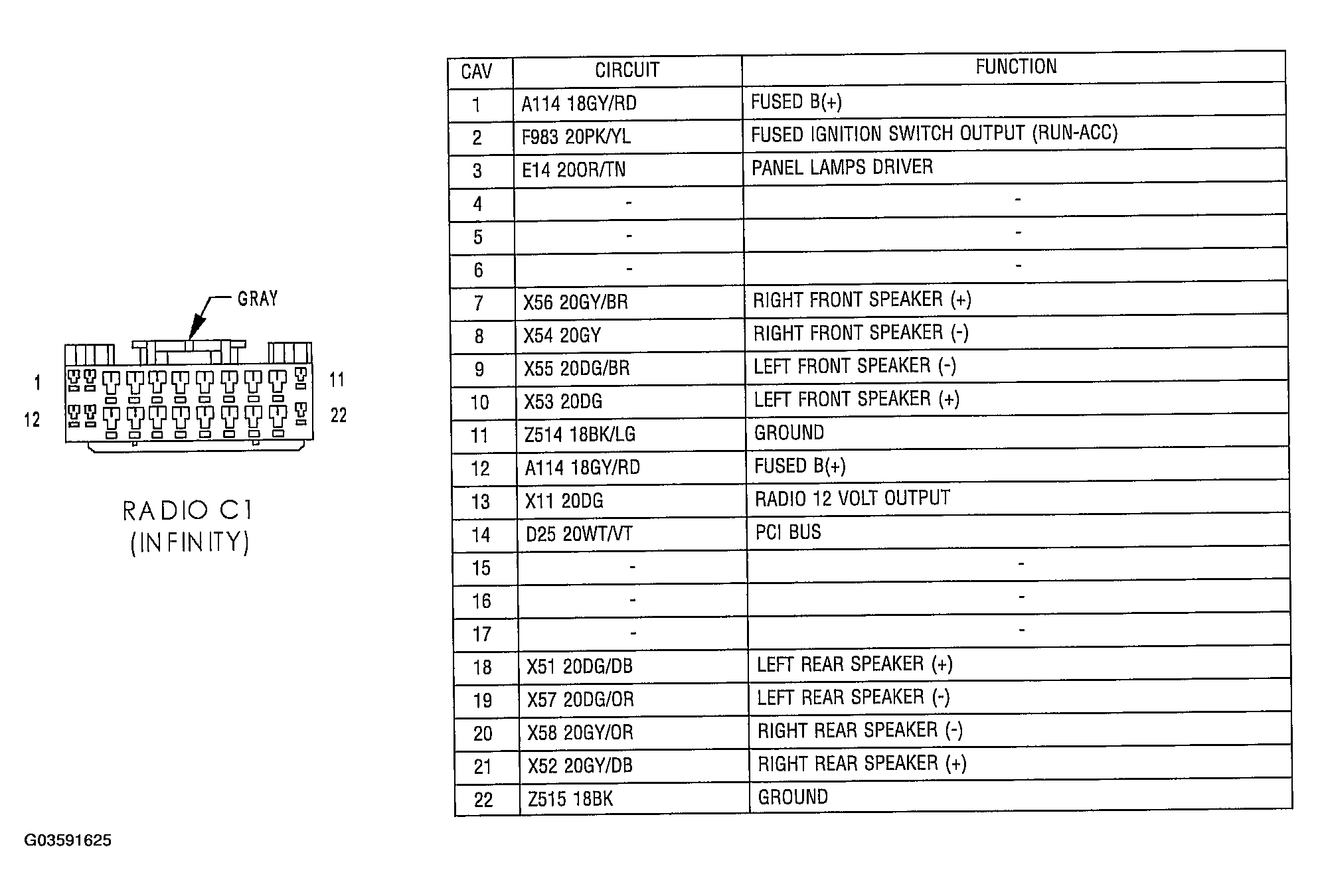

Fig 85: Identifying Radio C1 (Infinity) - Gray 22 Way Connector Pin Outs
G03591625Courtesy of DAIMLERCHRYSLER CORP.

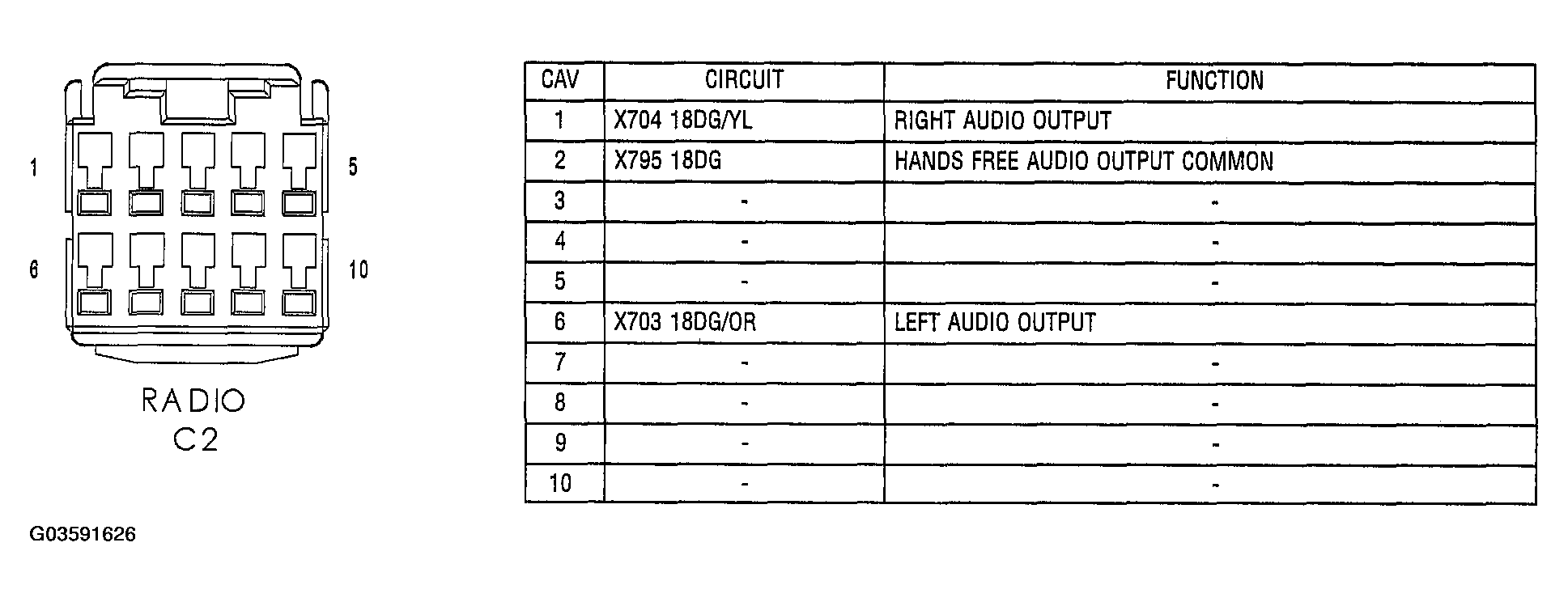

Fig 86: Identifying Radio C2 - 10 Way Connector Pin Outs
G03591626Courtesy of DAIMLERCHRYSLER CORP.

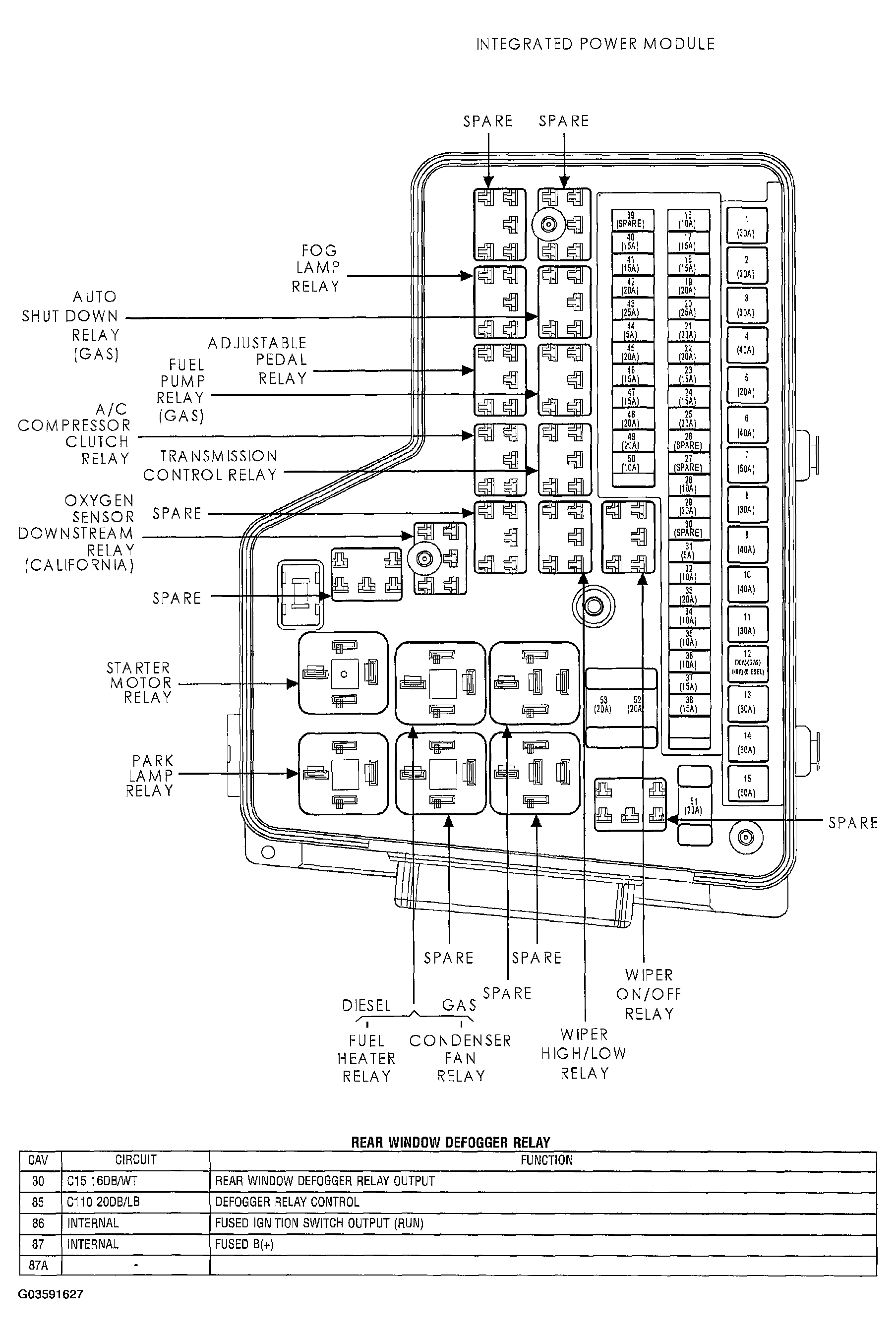

Fig 87: Identifying Rear Window Defogger Relay Connector Pin Outs
G03591627Courtesy of DAIMLERCHRYSLER CORP.

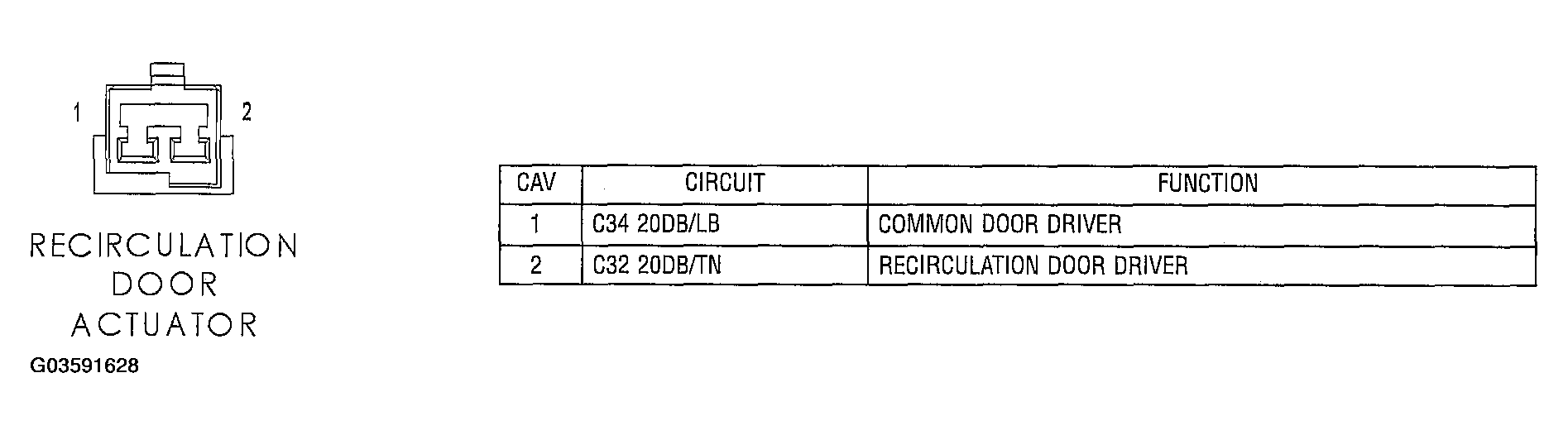

Fig 88: Identifying Recirculation Door Actuator - 2 Way Connector Pin Outs
G03591628Courtesy of DAIMLERCHRYSLER CORP.
Fig 89: Identifying Remote Radio Switch-Left - Black 2 Way Connector Pin Outs
G03591629Courtesy of DAIMLERCHRYSLER CORP.

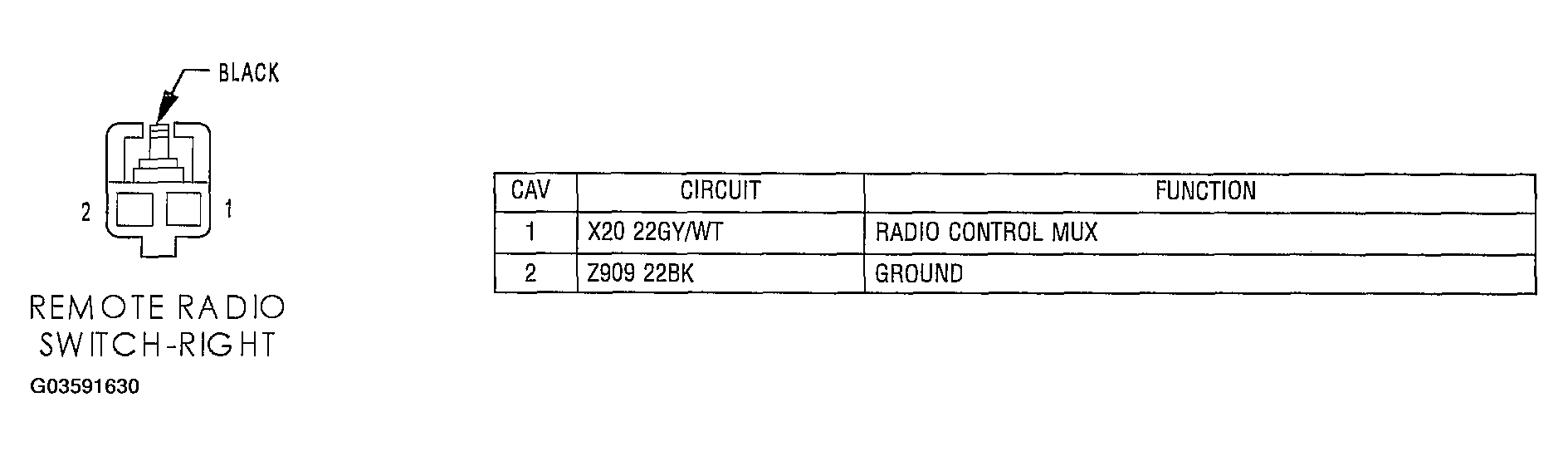

Fig 90: Identifying Remote Radio Switch-Right - Black 2 Way Connector Pin Outs
G03591630Courtesy of DAIMLERCHRYSLER CORP.

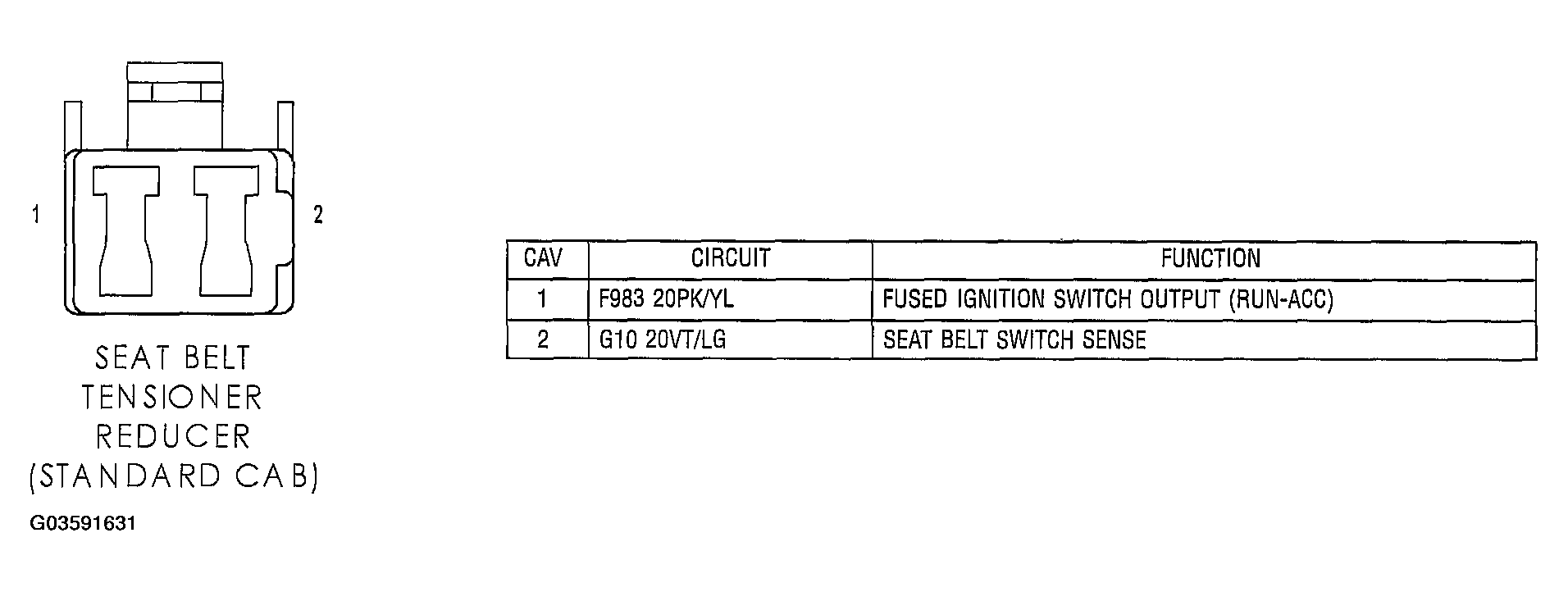

Fig 91: Identifying Seat Belt Tensioner Reducer (Standard Cab) - 2 Way Connector Pin Outs
G03591631Courtesy of DAIMLERCHRYSLER CORP.

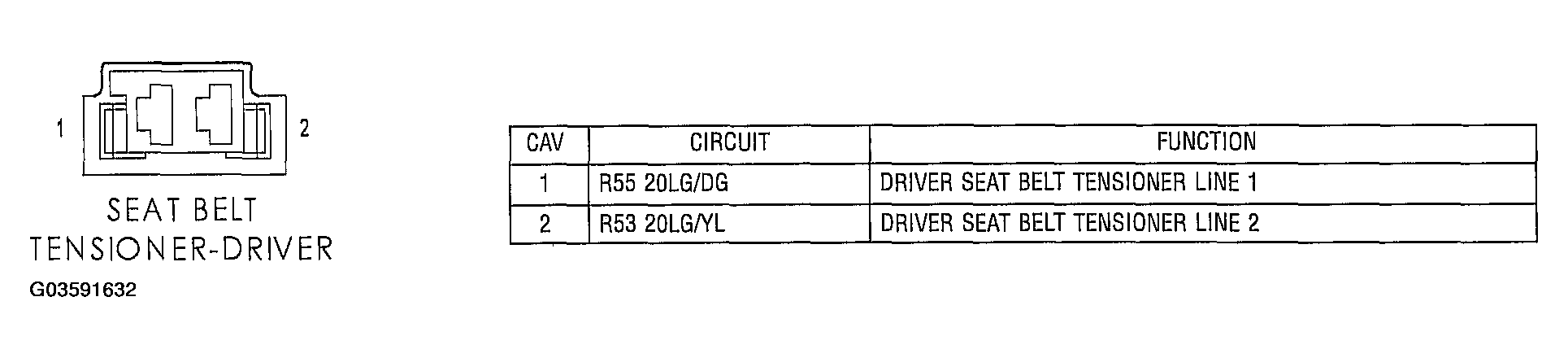

Fig 92: Identifying Seat Belt Tensioner-Driver - 2 Way Connector Pin Outs
G03591632Courtesy of DAIMLERCHRYSLER CORP.

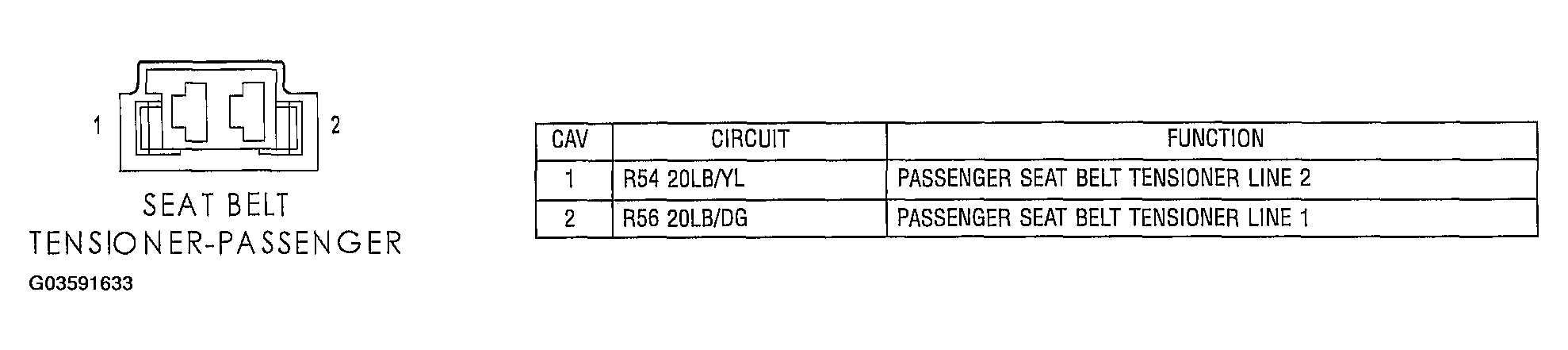

Fig 93: Identifying Seat Belt Tensioner-Passenger - 2 Way Connector Pin Outs
G03591633Courtesy of DAIMLERCHRYSLER CORP.

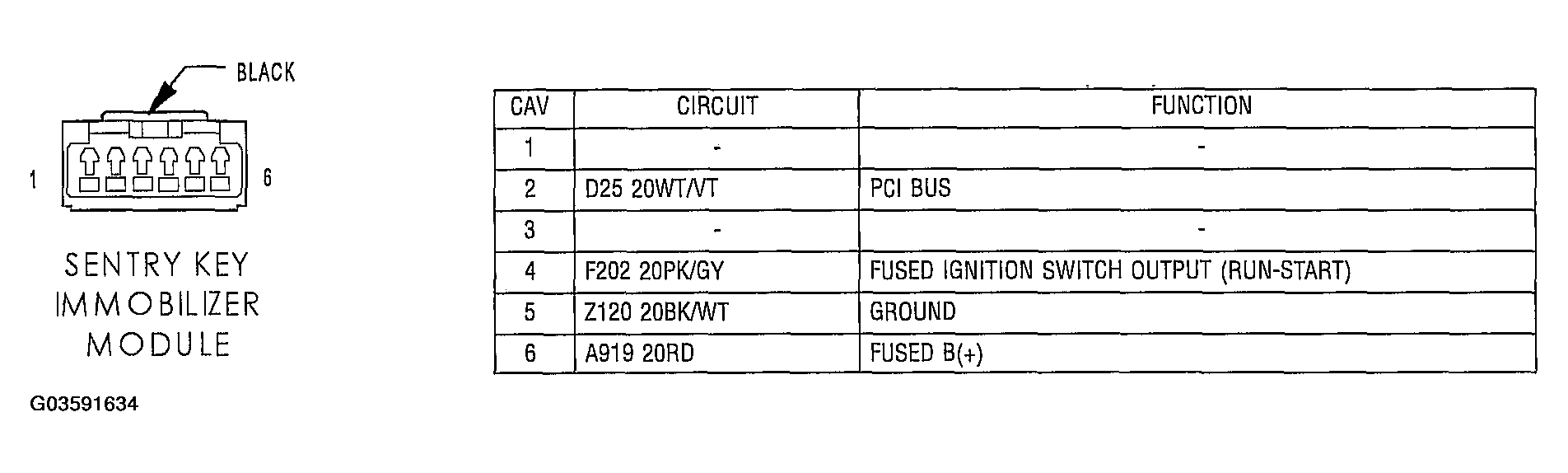

Fig 94: Identifying Sentry Key Immobilizer Module (Skim) - Black 6 Way Connector Pin Outs
G03591634Courtesy of DAIMLERCHRYSLER CORP.
Fig 95: Identifying Side Impact Sensor-Left - 4 Way Connector Pin Outs
G03591635Courtesy of DAIMLERCHRYSLER CORP.

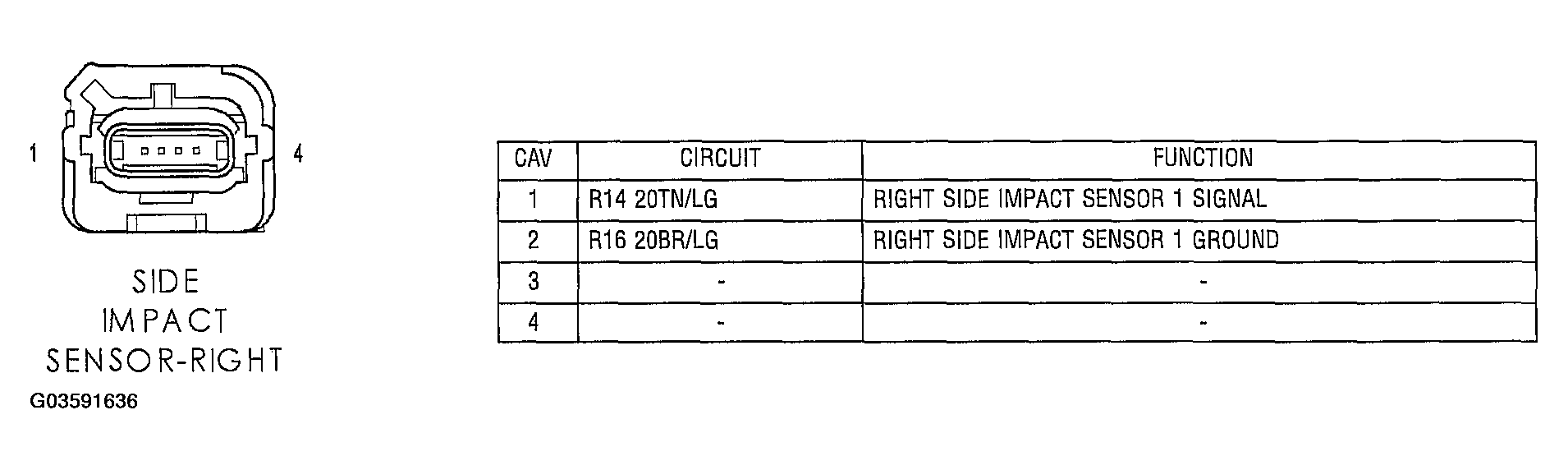

Fig 96: Identifying Side Impact Sensor-Right - 4 Way Connector Pin Outs
G03591636Courtesy of DAIMLERCHRYSLER CORP.

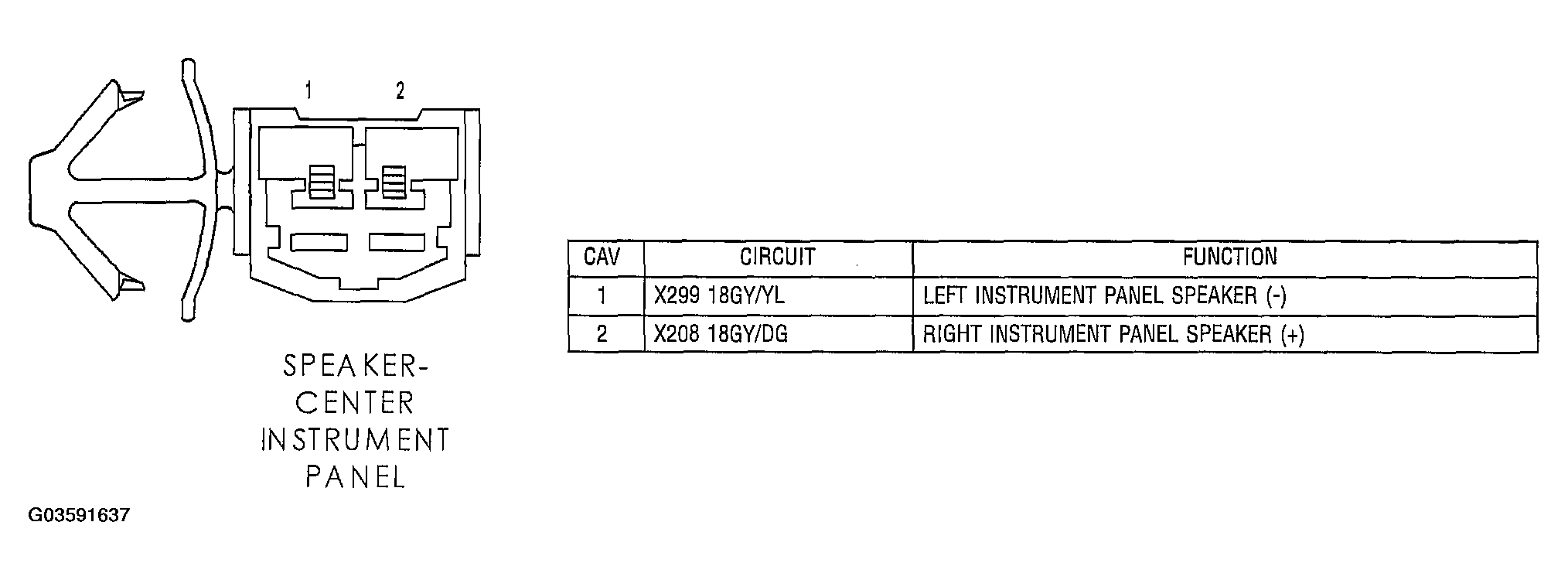

Fig 97: Identifying Speaker-Center Instrument Panel - 2 Way Connector Pin Outs
G03591637Courtesy of DAIMLERCHRYSLER CORP.

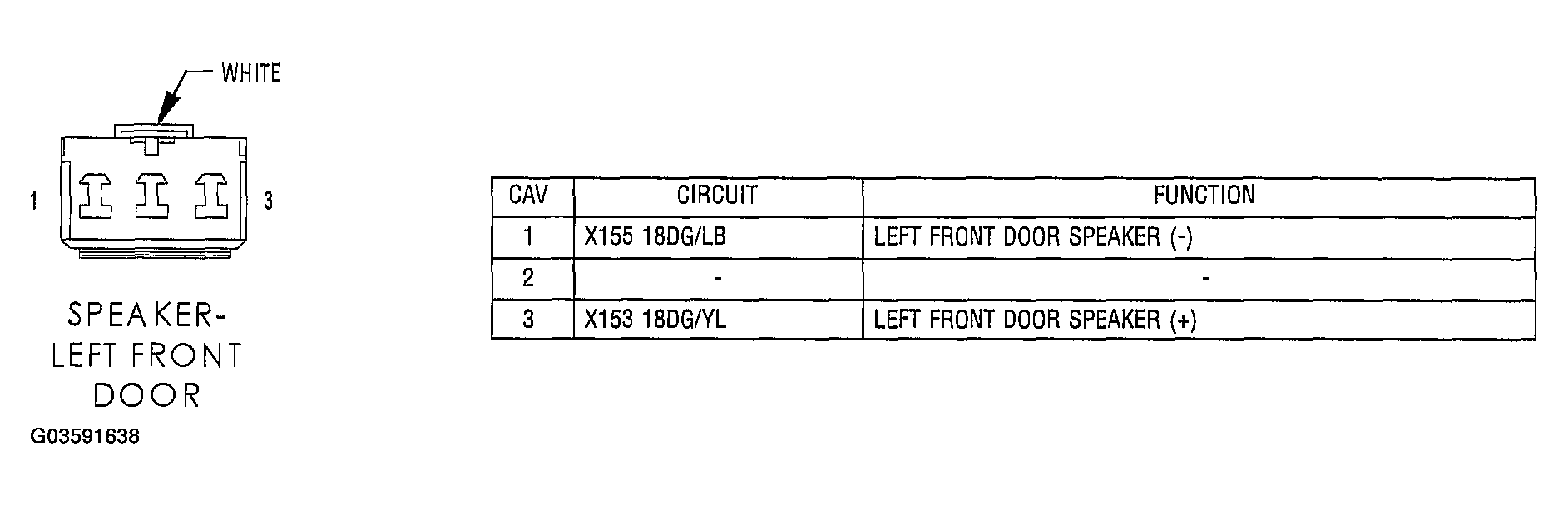

Fig 98: Identifying Speaker-Left Front Door - White 3 Way Connector Pin Outs
G03591638Courtesy of DAIMLERCHRYSLER CORP.

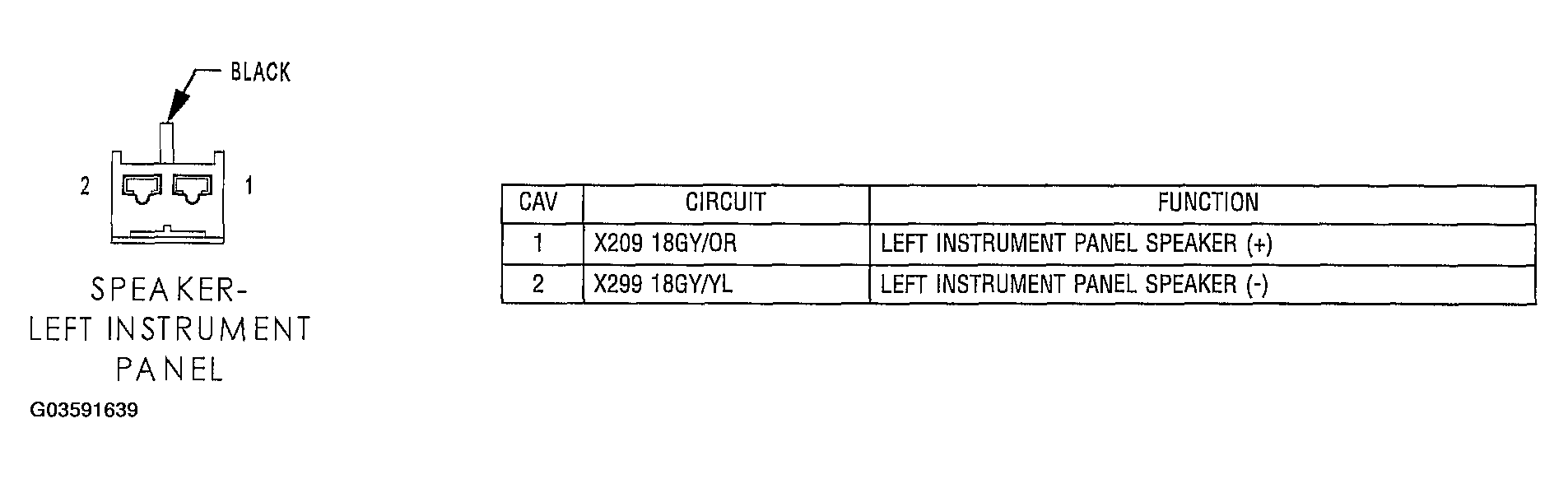

Fig 99: Identifying Speaker-Left Instrument Panel - Black 2 Way Connector Pin Outs
G03591639Courtesy of DAIMLERCHRYSLER CORP.

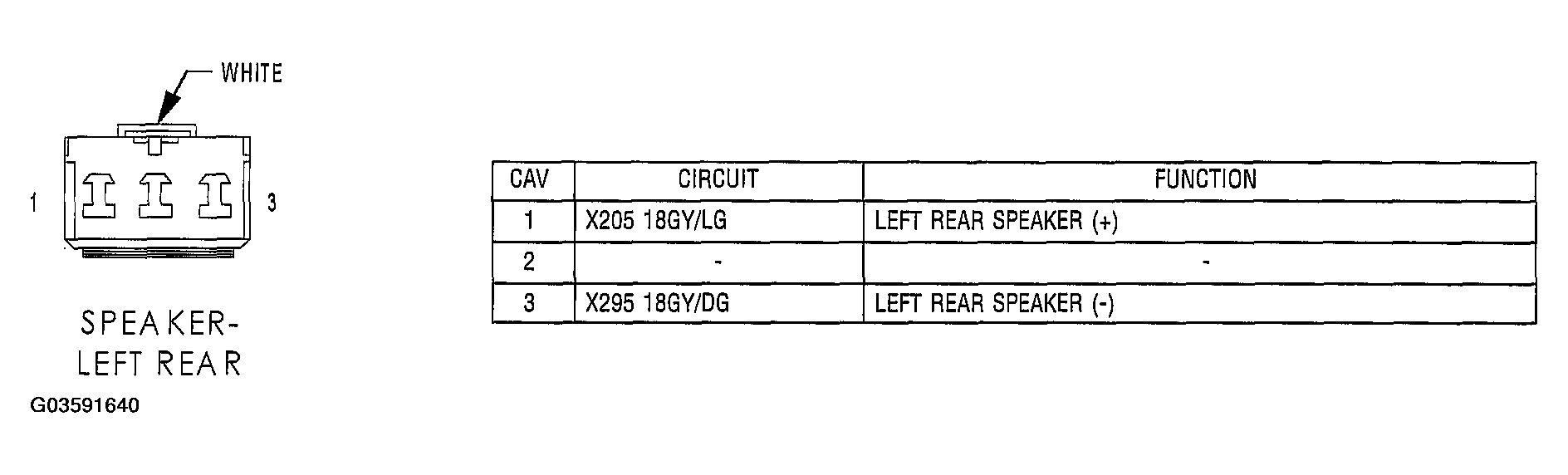

Fig 100: Identifying Speaker-Left Rear - White 3 Way Connector Pin Outs
G03591640Courtesy of DAIMLERCHRYSLER CORP.

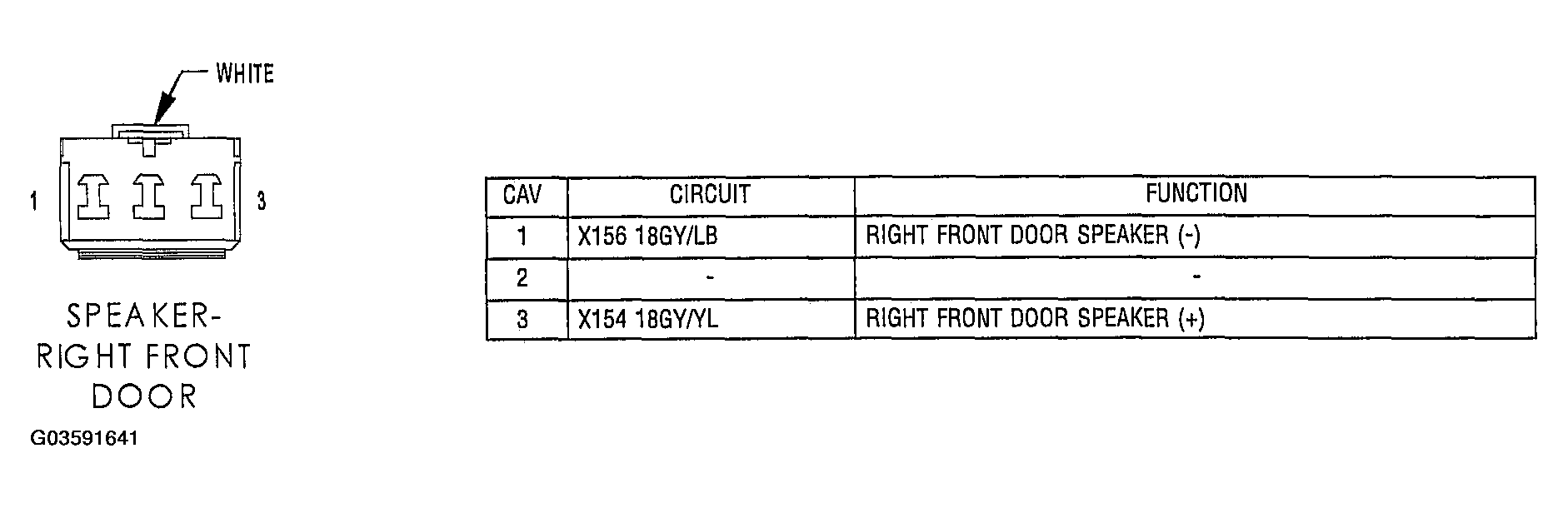

Fig 101: Identifying Speaker-Right Front Door - White 3 Way Connector Pin Outs
G03591641Courtesy of DAIMLERCHRYSLER CORP.

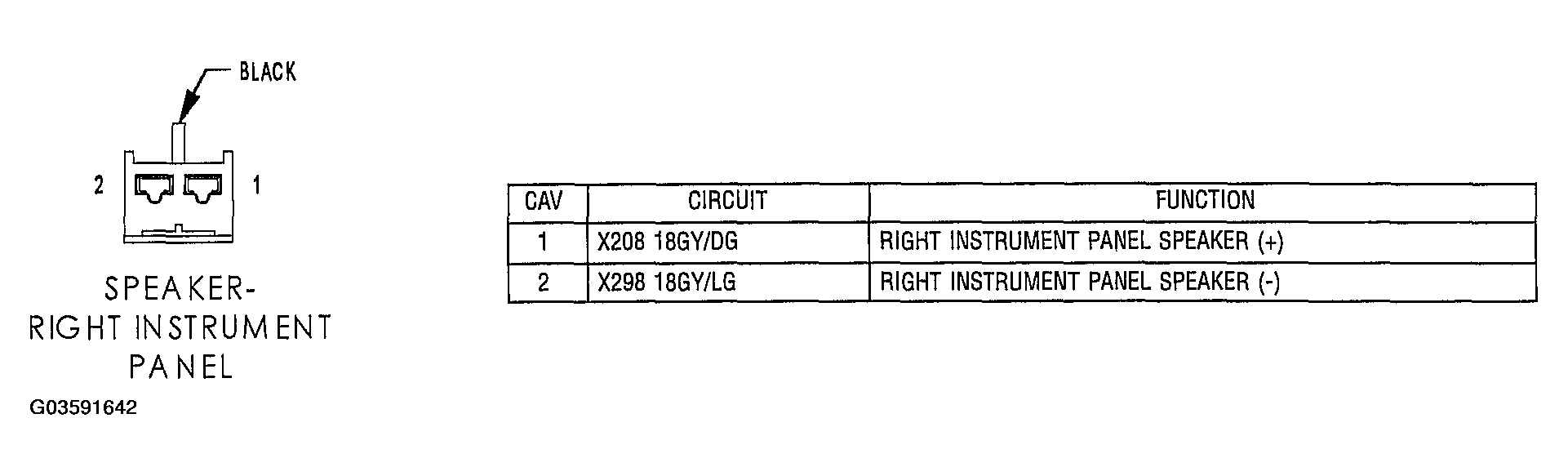

Fig 102: Identifying Speaker-Right Instrument Panel - Black 2 Way Connector Pin Outs
G03591642Courtesy of DAIMLERCHRYSLER CORP.

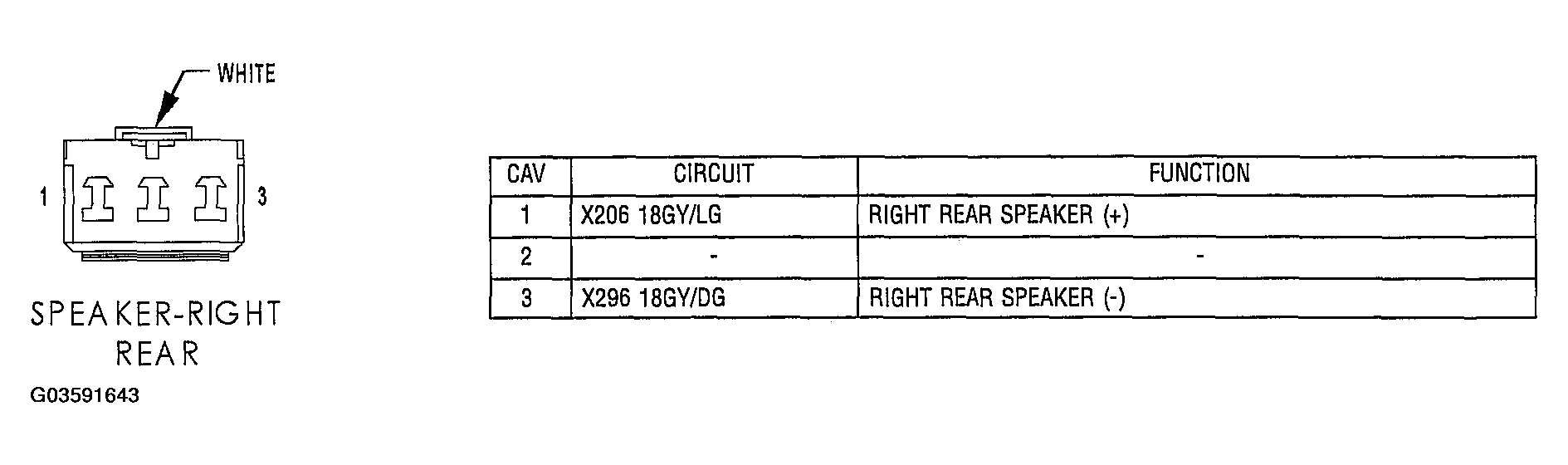

Fig 103: Identifying Speaker-Right Rear - White 3 Way Connector Pin Outs
G03591643Courtesy of DAIMLERCHRYSLER CORP.

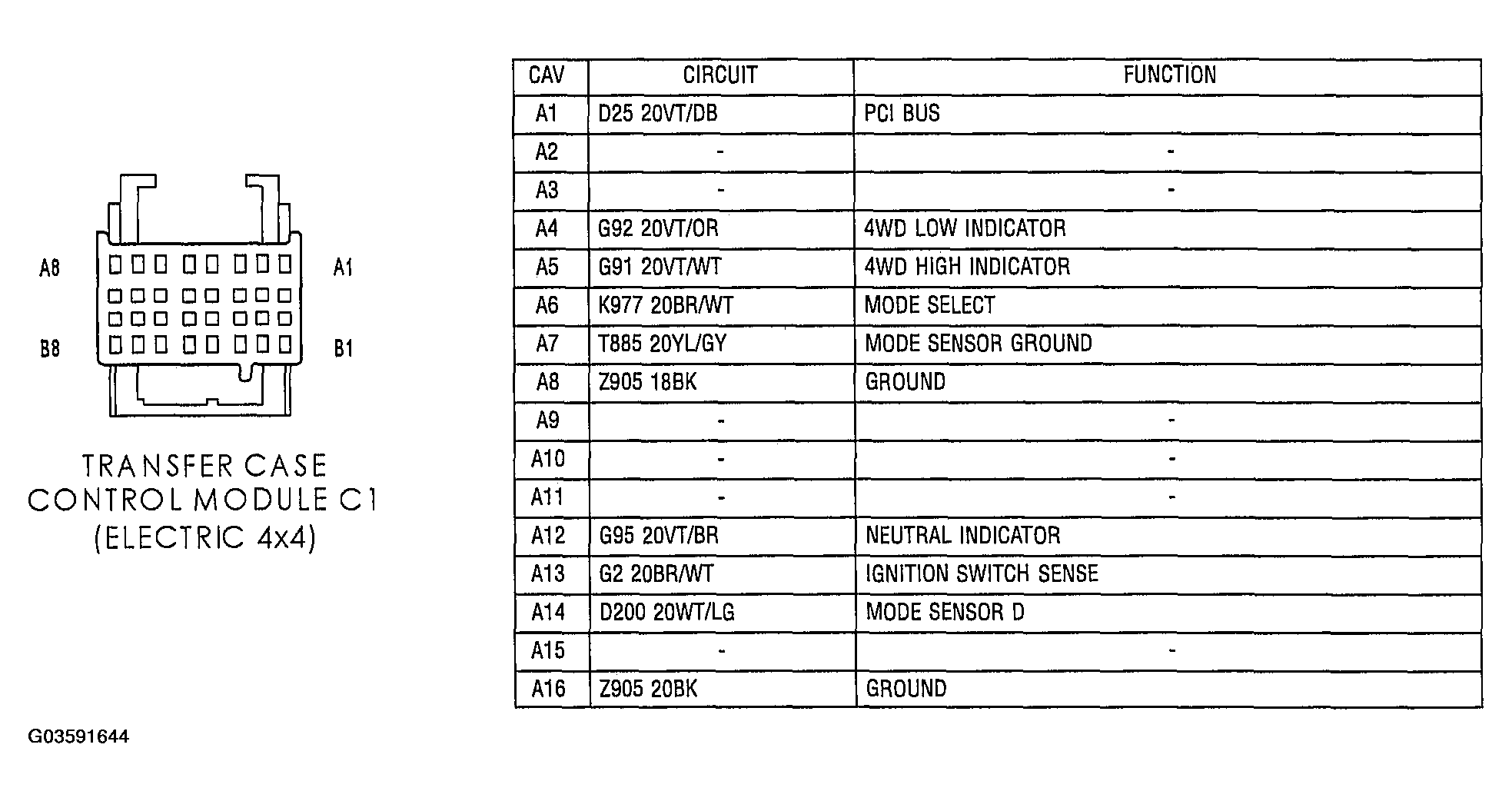

Fig 104: Identifying Transfer Case Control Module C1 (Electric 4X4) - 16 Way Connector Pin Outs
G03591644Courtesy of DAIMLERCHRYSLER CORP.

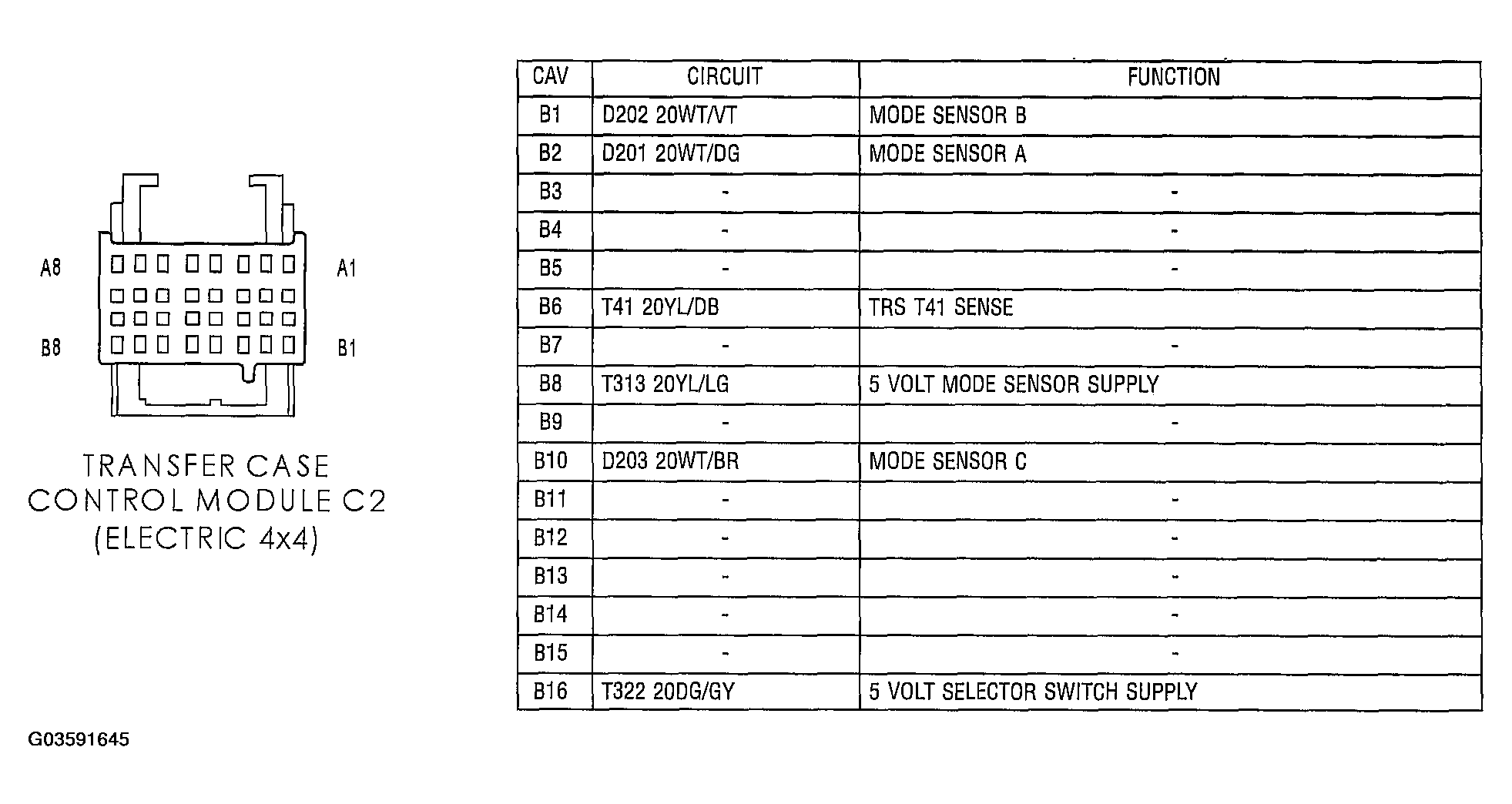

Fig 105: Identifying Transfer Case Control Module C2 (Electric 4X4) - 16 Way Connector Pin Outs
G03591645Courtesy of DAIMLERCHRYSLER CORP.

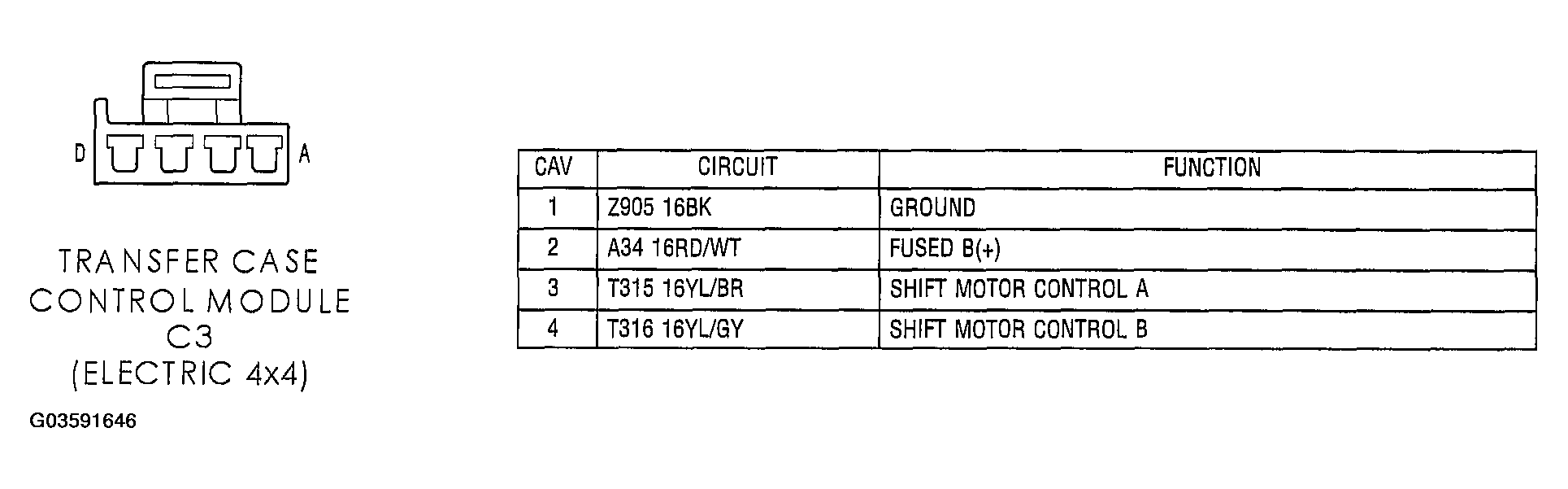

Fig 106: Identifying Transfer Case Control Module C3 (Electric 4X4) - 4 Way Connector Pin Outs
G03591646Courtesy of DAIMLERCHRYSLER CORP.

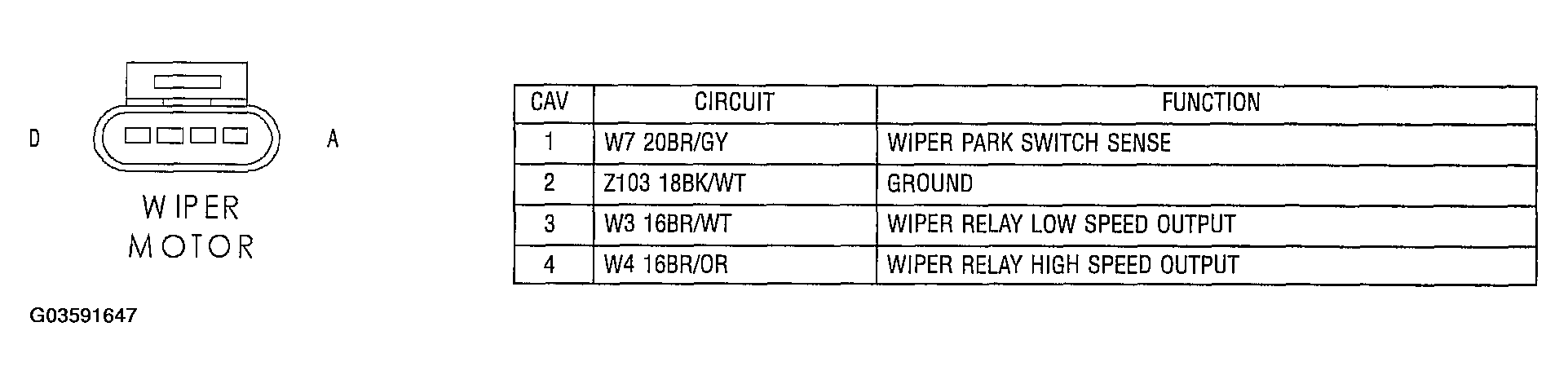

Fig 107: Identifying Wiper Motor - 4 Way Connector Pin Outs
G03591647Courtesy of DAIMLERCHRYSLER CORP.
scientia non olet · About LEMON Manuals
