WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

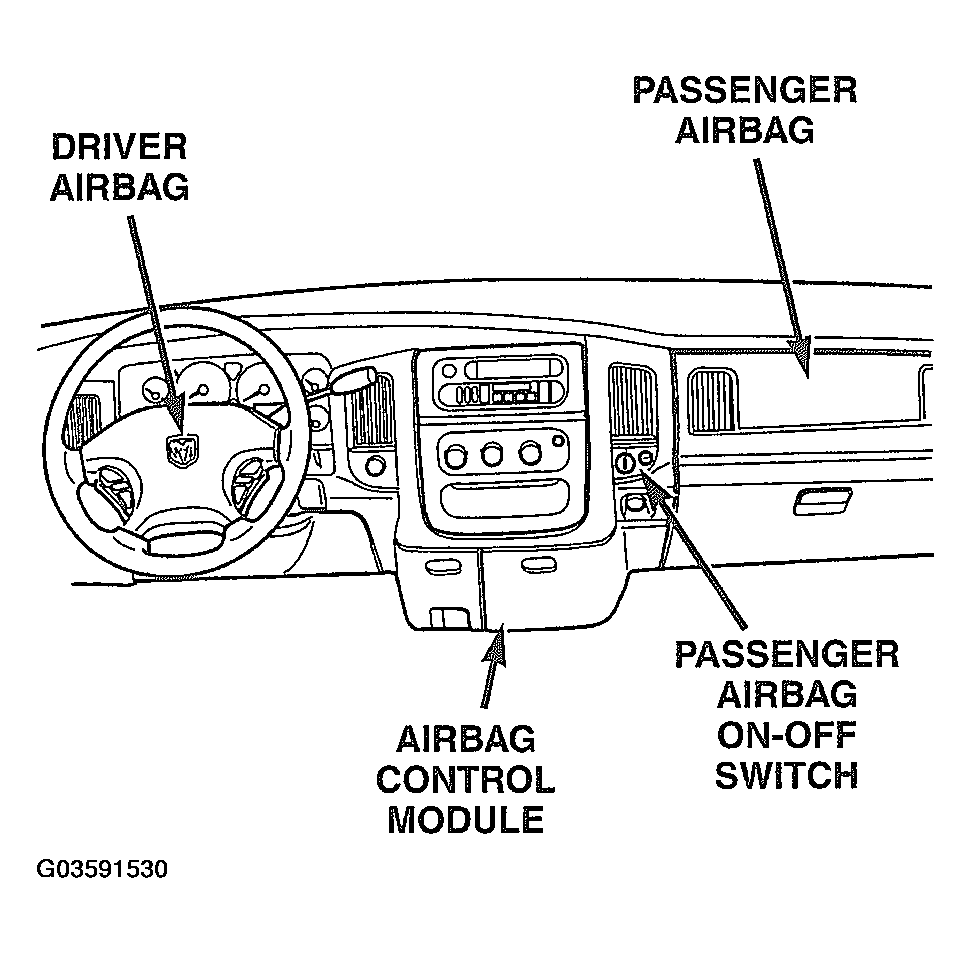

Fig 1: Identifying Airbag System Components Location (1 Of 6)
Courtesy of DAIMLERCHRYSLER CORP.

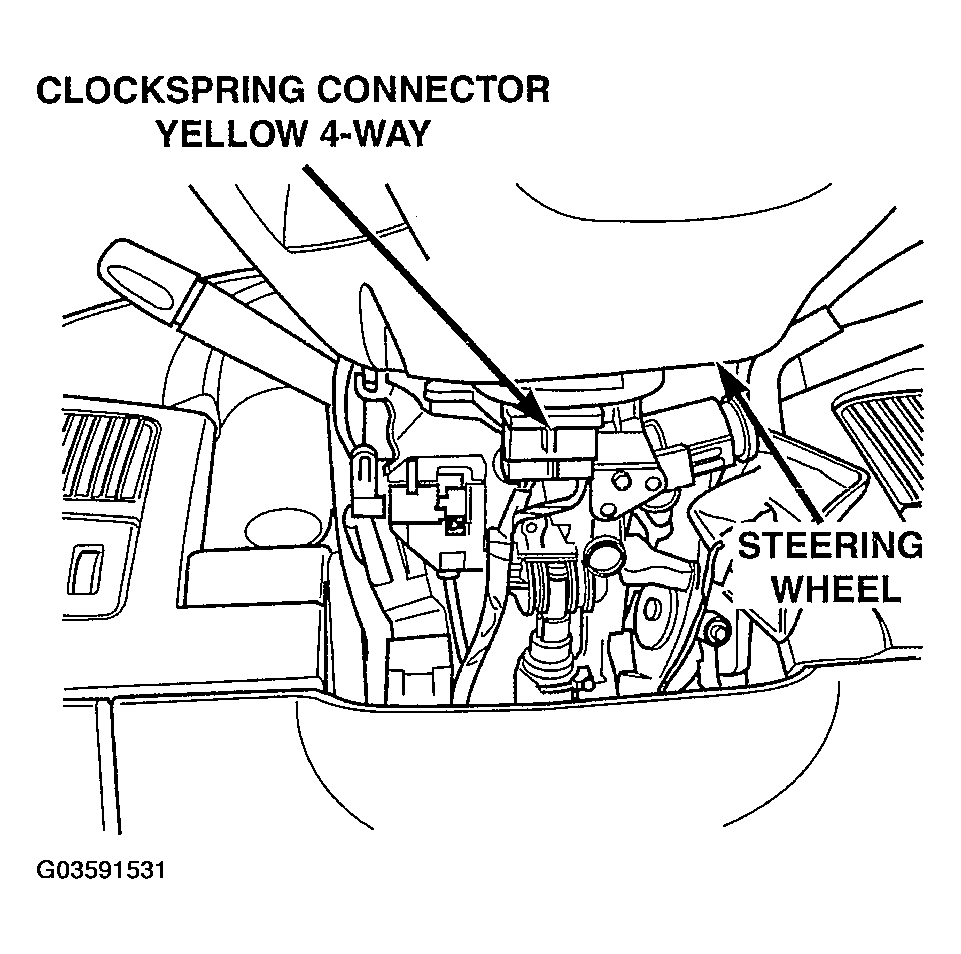

Fig 2: Identifying Airbag System Components Location (2 Of 6)
Courtesy of DAIMLERCHRYSLER CORP.

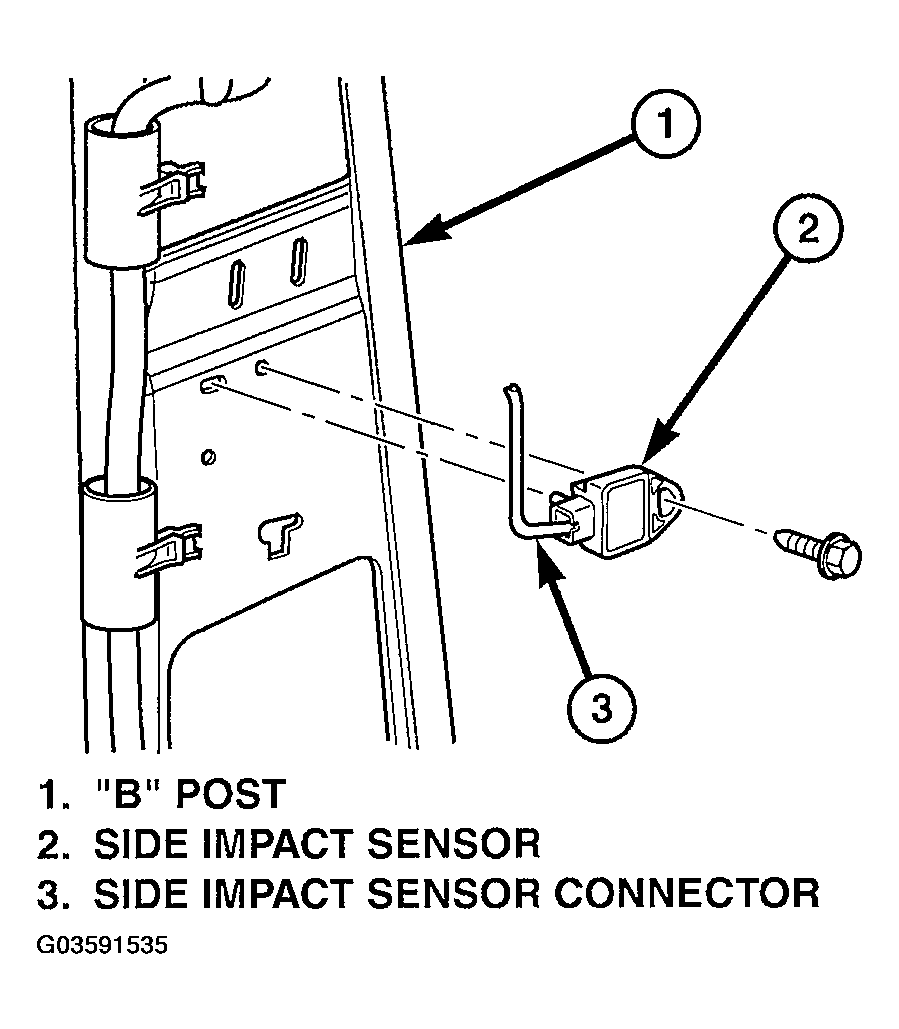

Fig 3: Identifying Airbag System Components Location (3 Of 6)
Courtesy of DAIMLERCHRYSLER CORP.

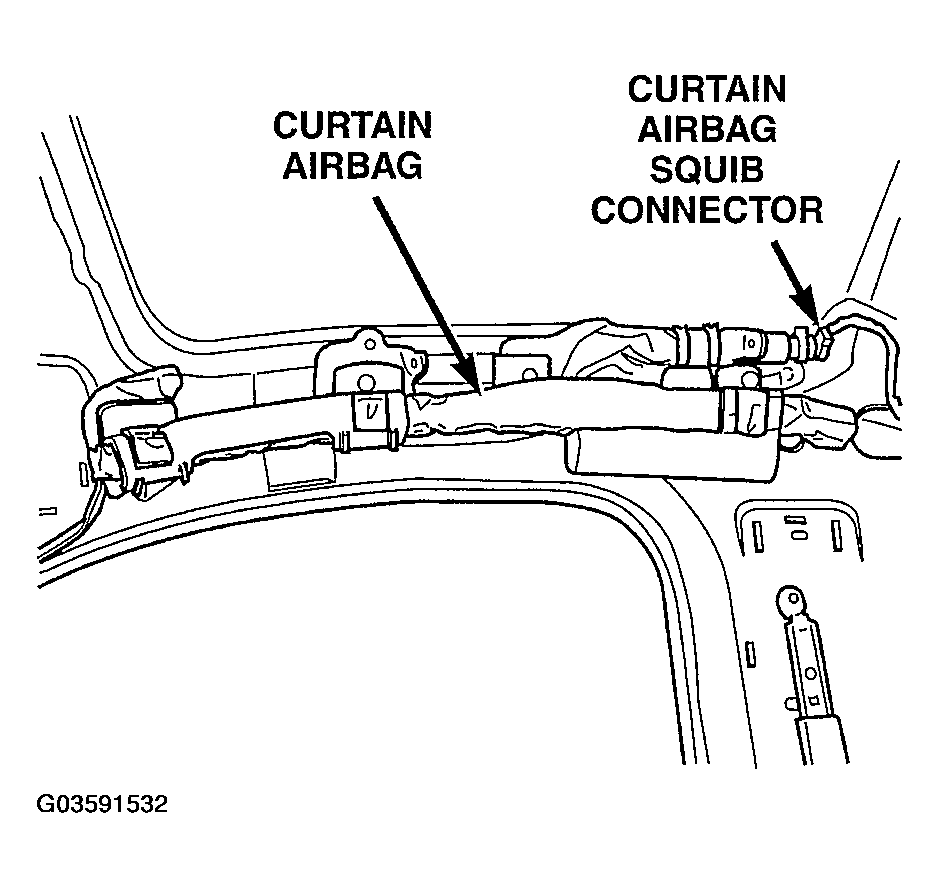

Fig 4: Identifying Airbag System Components Location (4 Of 6)
Courtesy of DAIMLERCHRYSLER CORP.

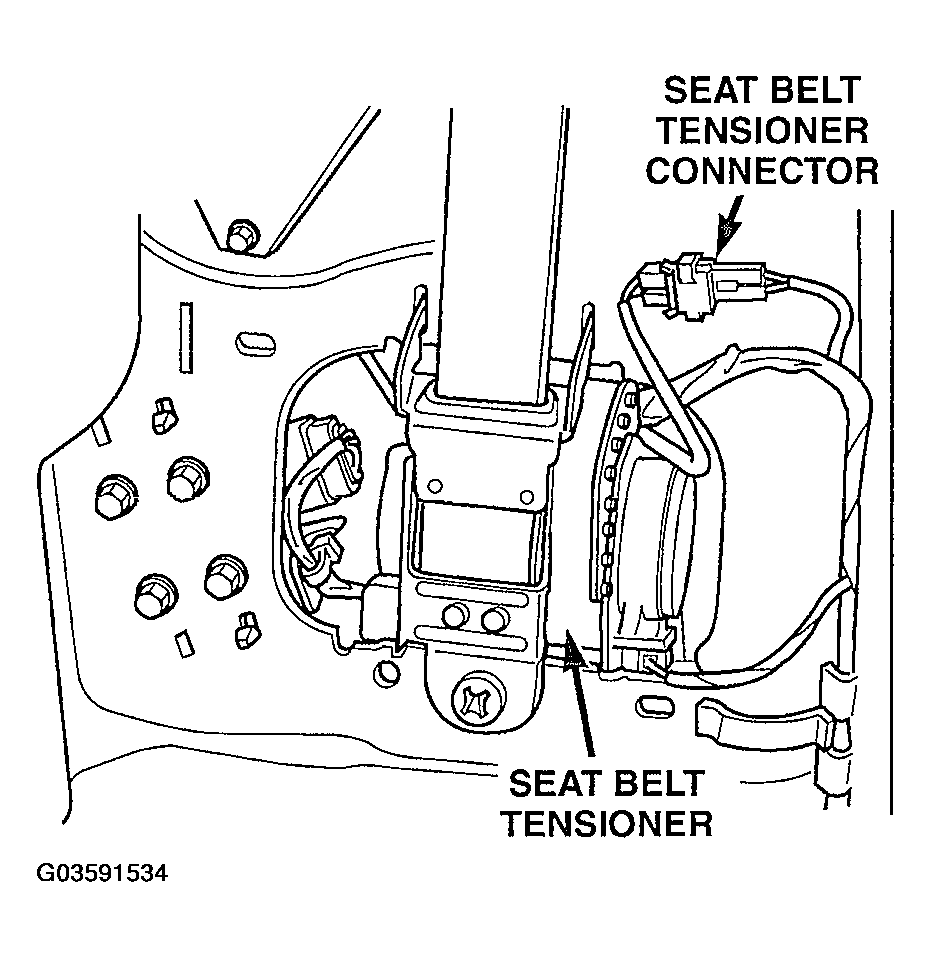

Fig 5: Identifying Airbag System Components Location (5 Of 6)
Courtesy of DAIMLERCHRYSLER CORP.

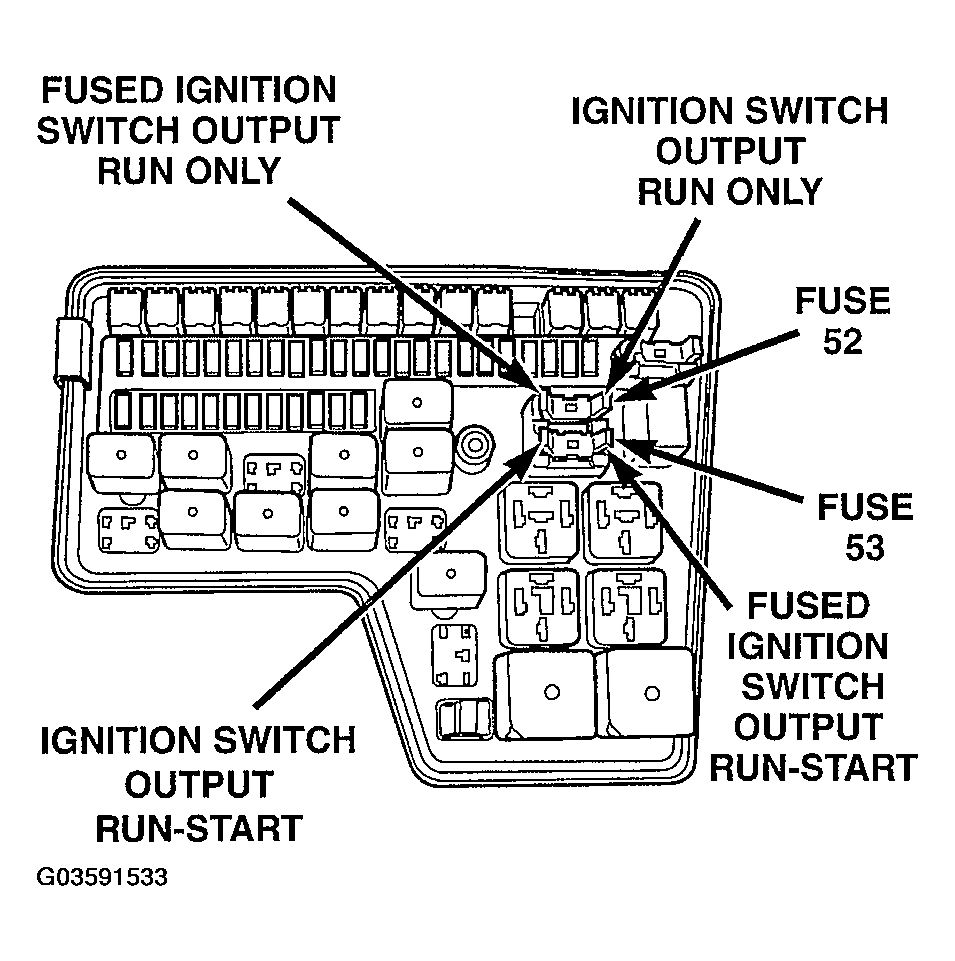

Fig 6: Identifying Airbag System Components Location (6 Of 6)
