Section 249 (Automatic Transmission Diagnostic Procedures)
>>
Connector PINOUTS
Connector PINOUTS
WARNING:
This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

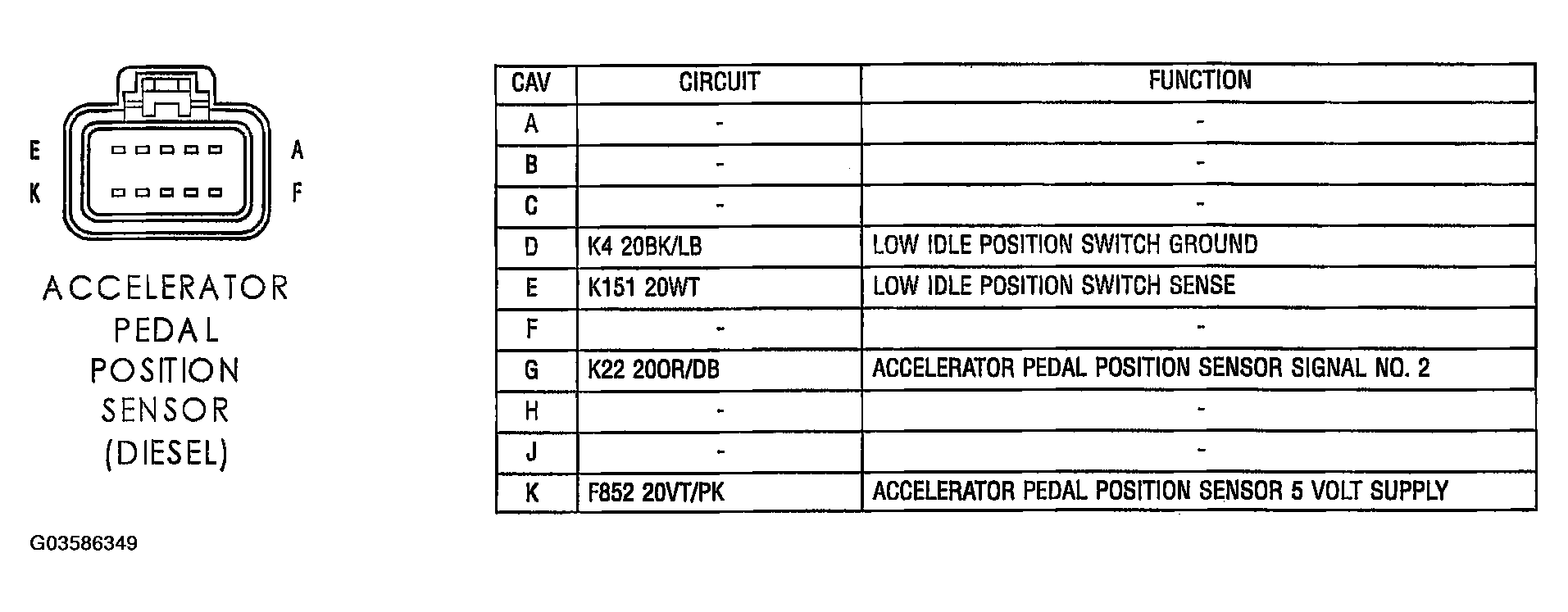

Fig 1: Identifying Accelerator Pedal Position Sensor (Diesel) Connector Pinouts - 10-Way
Courtesy of DAIMLERCHRYSLER CORP.

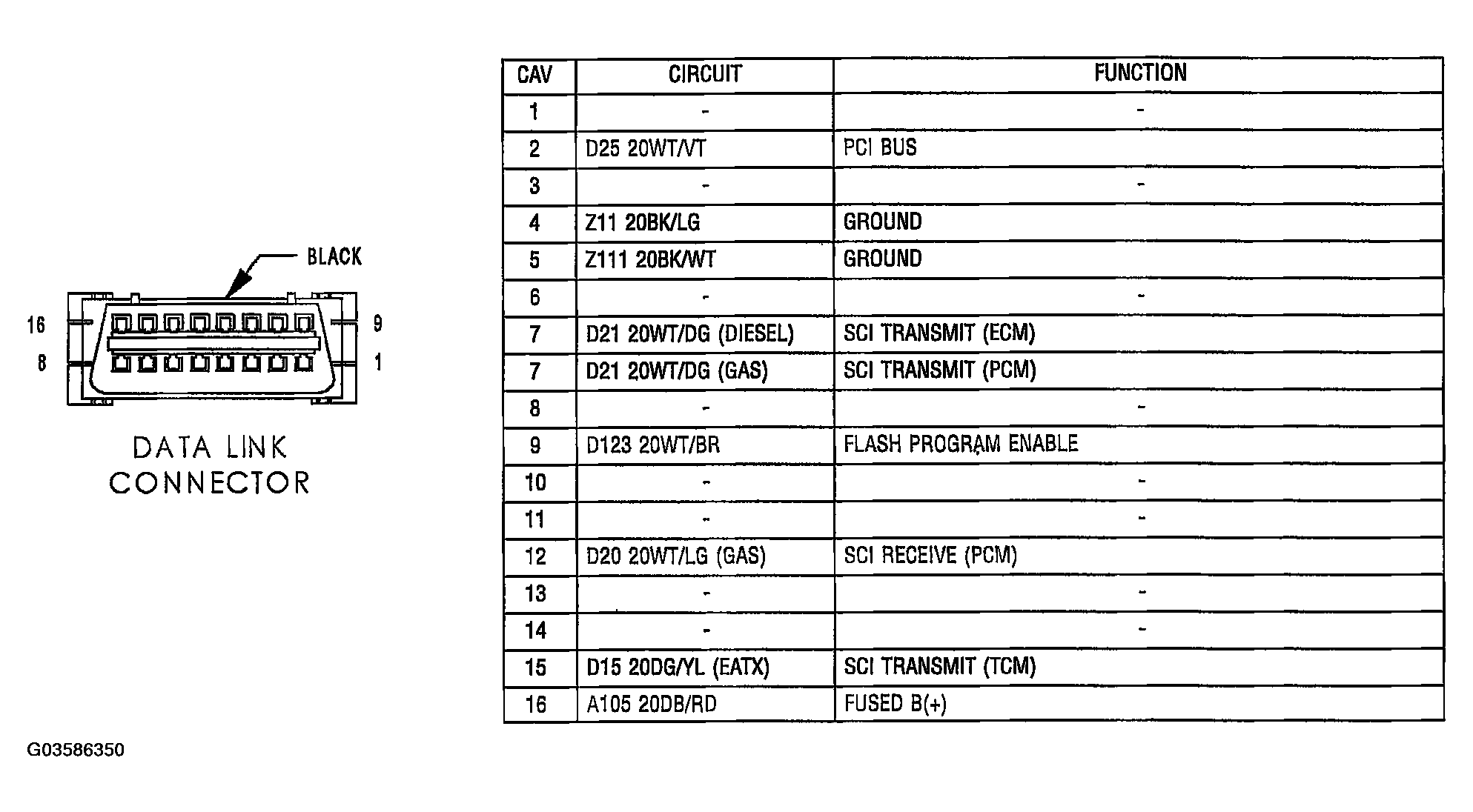

Fig 2: Identifying Data Link Connector Pinouts - Black 16-Way
Courtesy of DAIMLERCHRYSLER CORP.

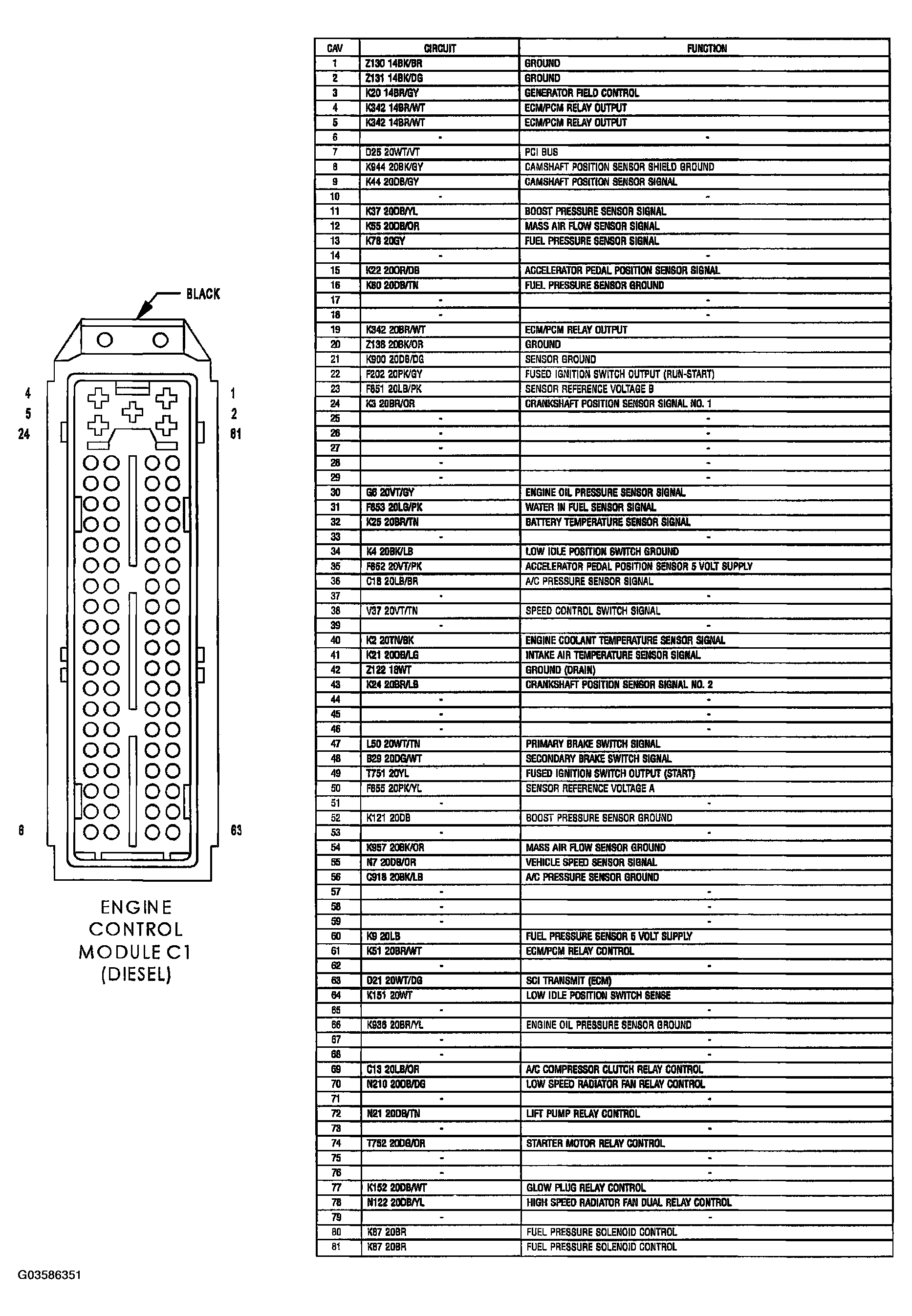

Fig 3: Identifying Engine Control Module C1 (Diesel) Connector Pinouts - Black 81-Way
Courtesy of DAIMLERCHRYSLER CORP.

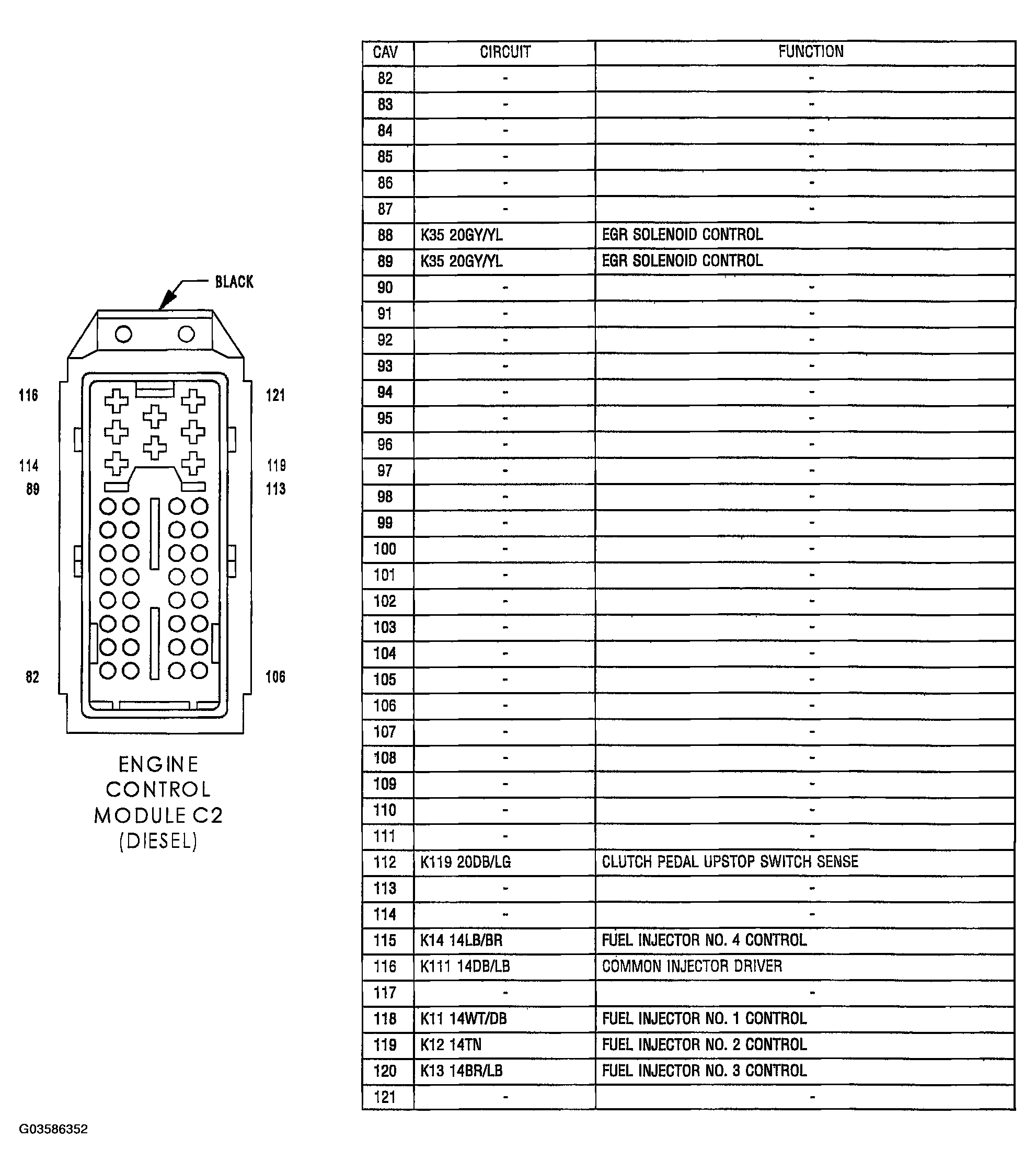

Fig 4: Identifying Engine Control Module C2 (Diesel) Connector Pinouts - Black 40-Way
Courtesy of DAIMLERCHRYSLER CORP.
Fig 5: Identifying Input Speed Sensor Connector Pinouts - Gray 2-Way
Courtesy of DAIMLERCHRYSLER CORP.

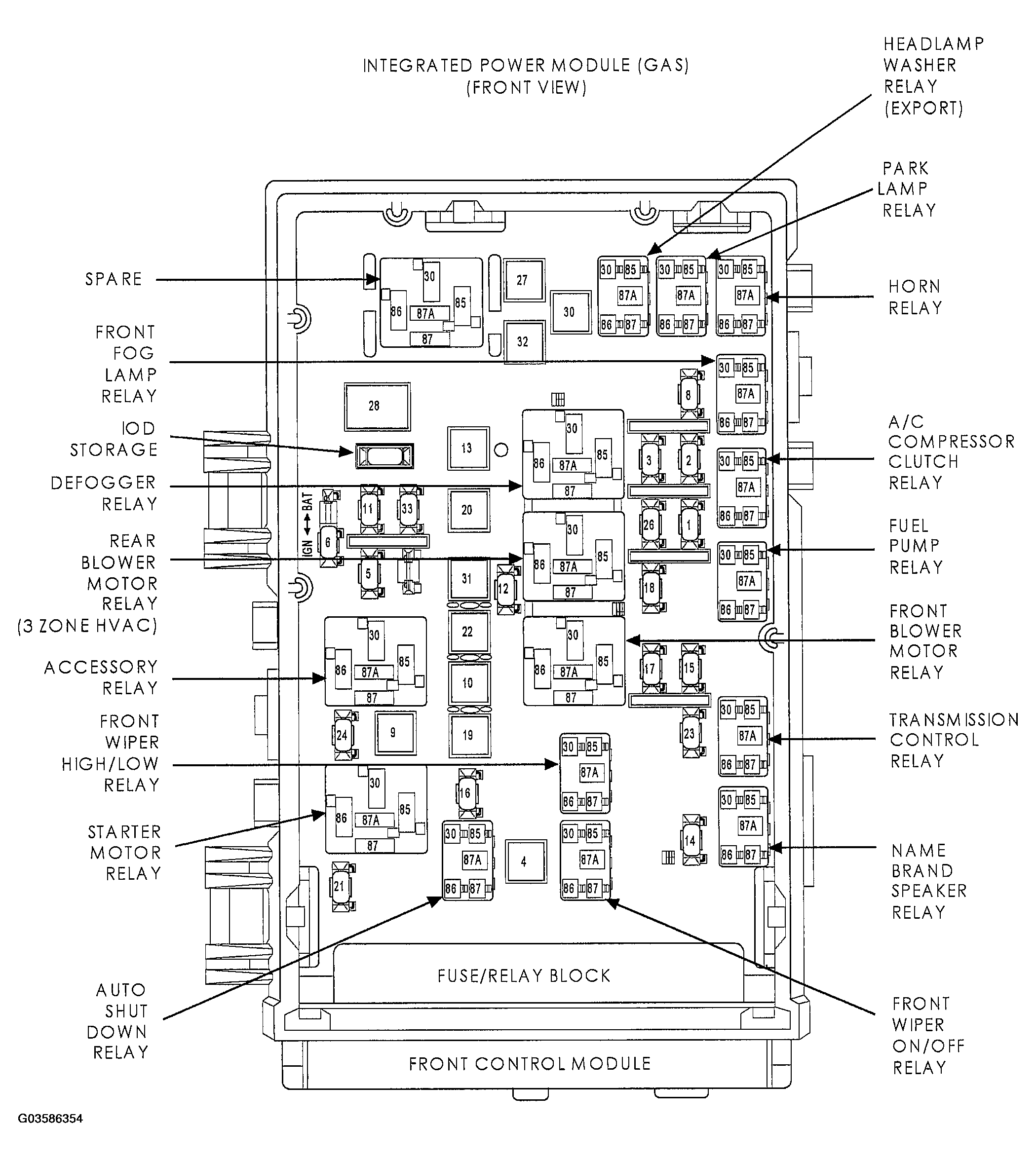

Fig 6: Identifying Integrated Power Module Connector Pinouts (GAS) (Front View)
Courtesy of DAIMLERCHRYSLER CORP.

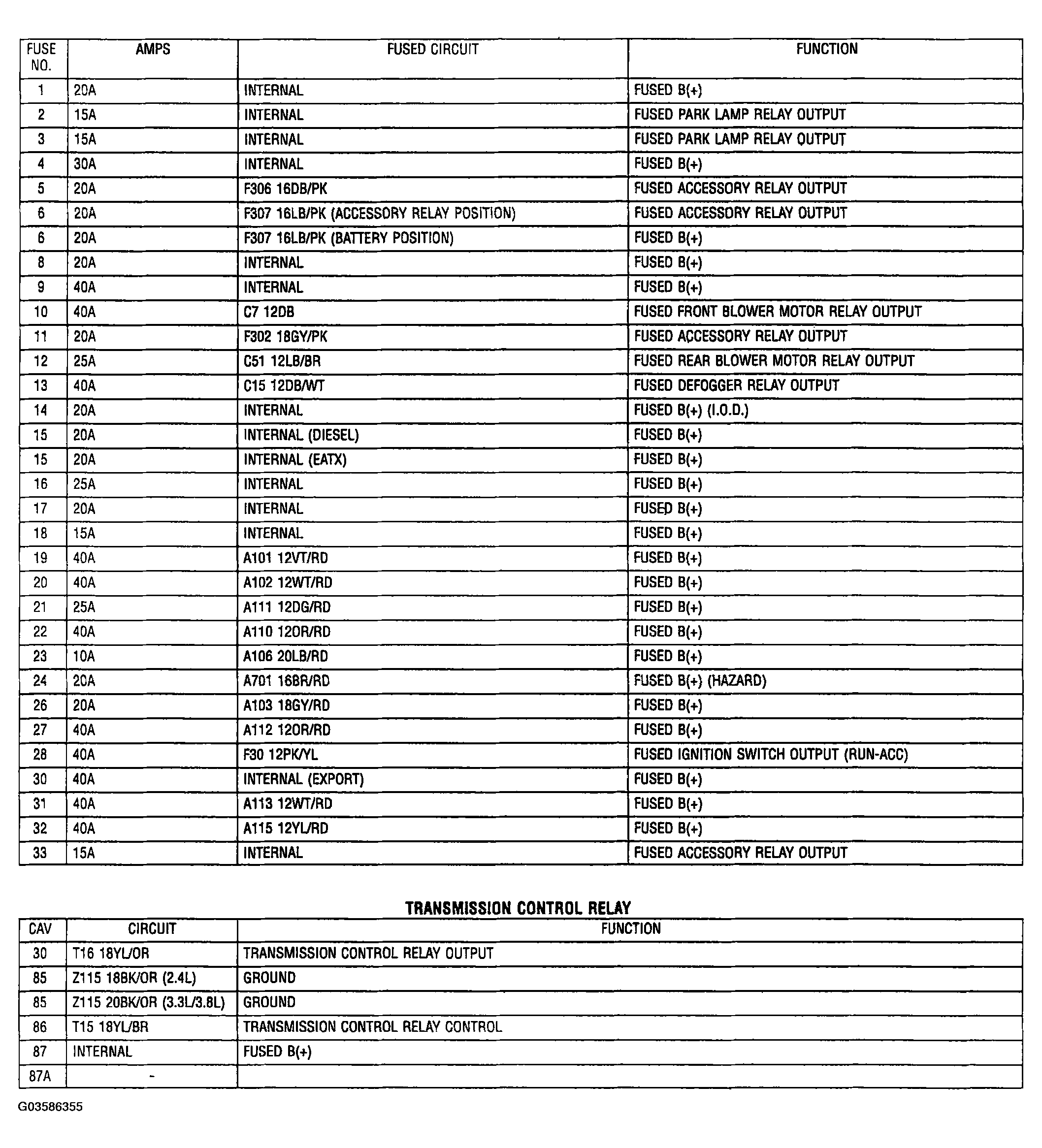

Fig 7: Identifying Fuses Connector Pinouts (IPM)
Courtesy of DAIMLERCHRYSLER CORP.

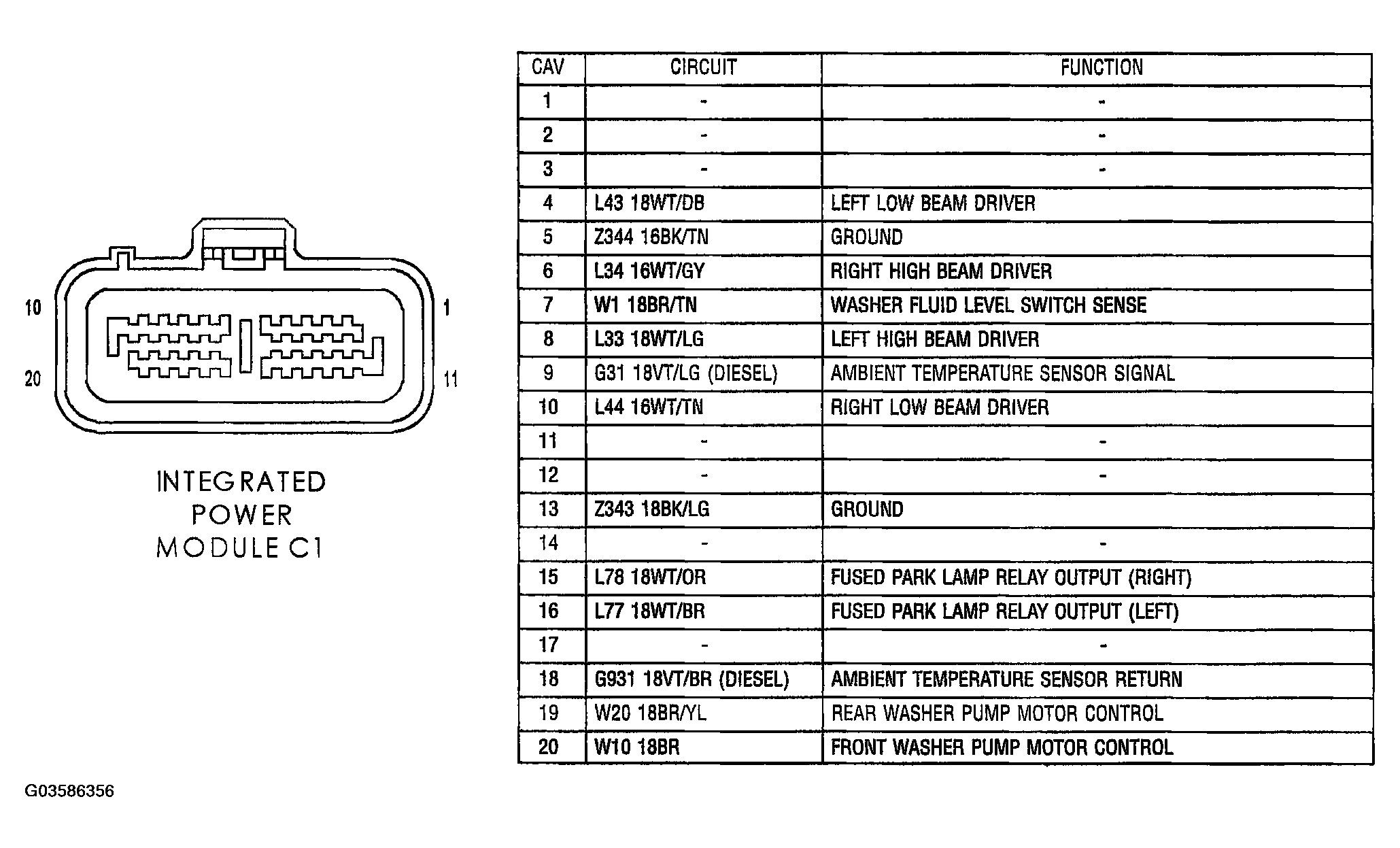

Fig 8: Identifying Integrated Power Module C1 Connector Pinouts - 20-Way
Courtesy of DAIMLERCHRYSLER CORP.

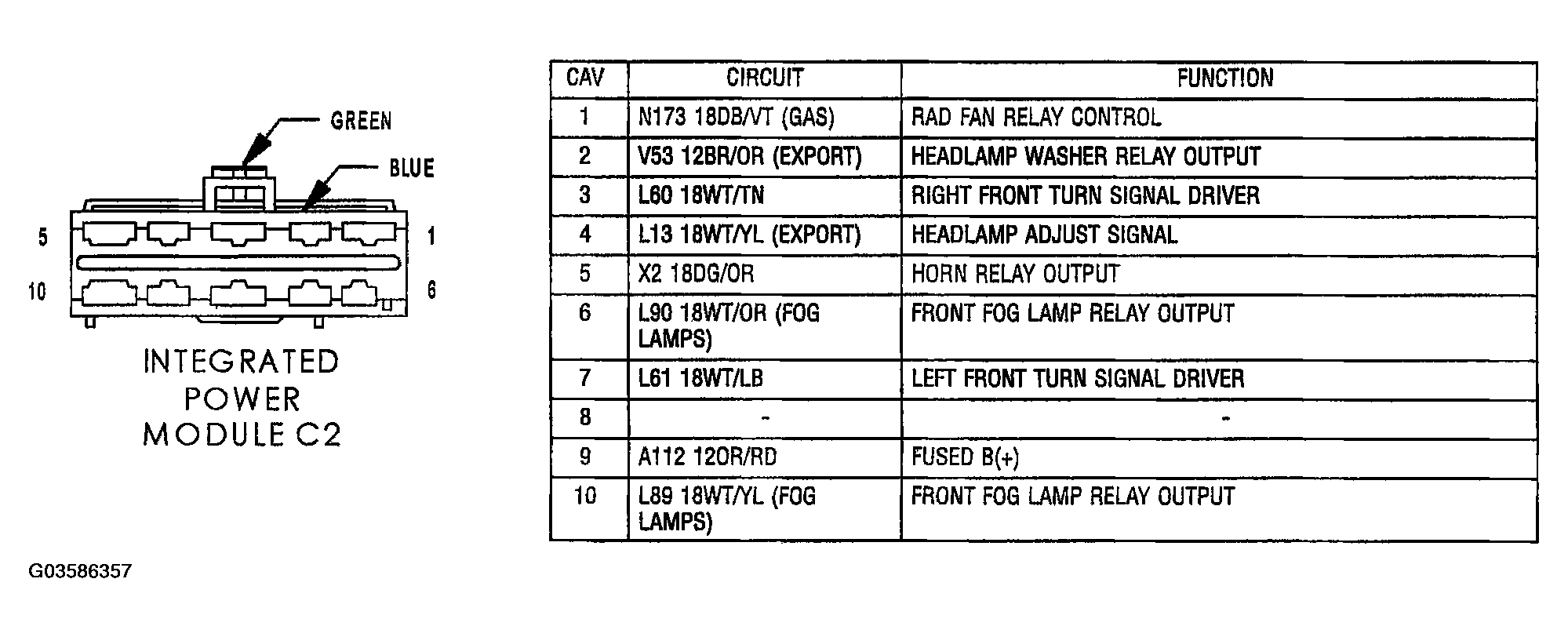

Fig 9: Identifying Integrated Power Module C2 Connector Pinouts - Green/Blue 10-Way
Courtesy of DAIMLERCHRYSLER CORP.

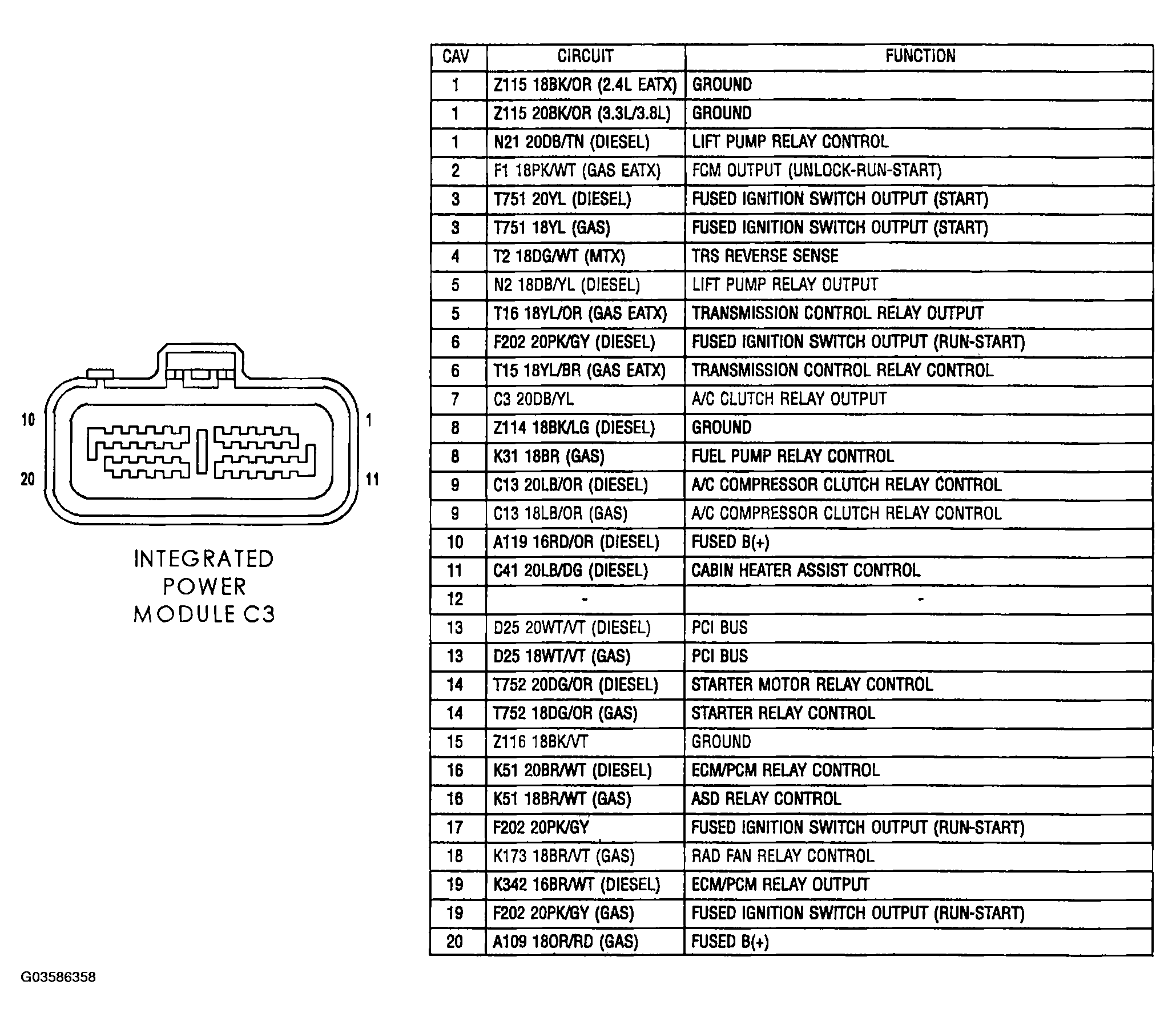

Fig 10: Identifying Integrated Power Module C3 Connector Pinouts - 20-Way
Courtesy of DAIMLERCHRYSLER CORP.

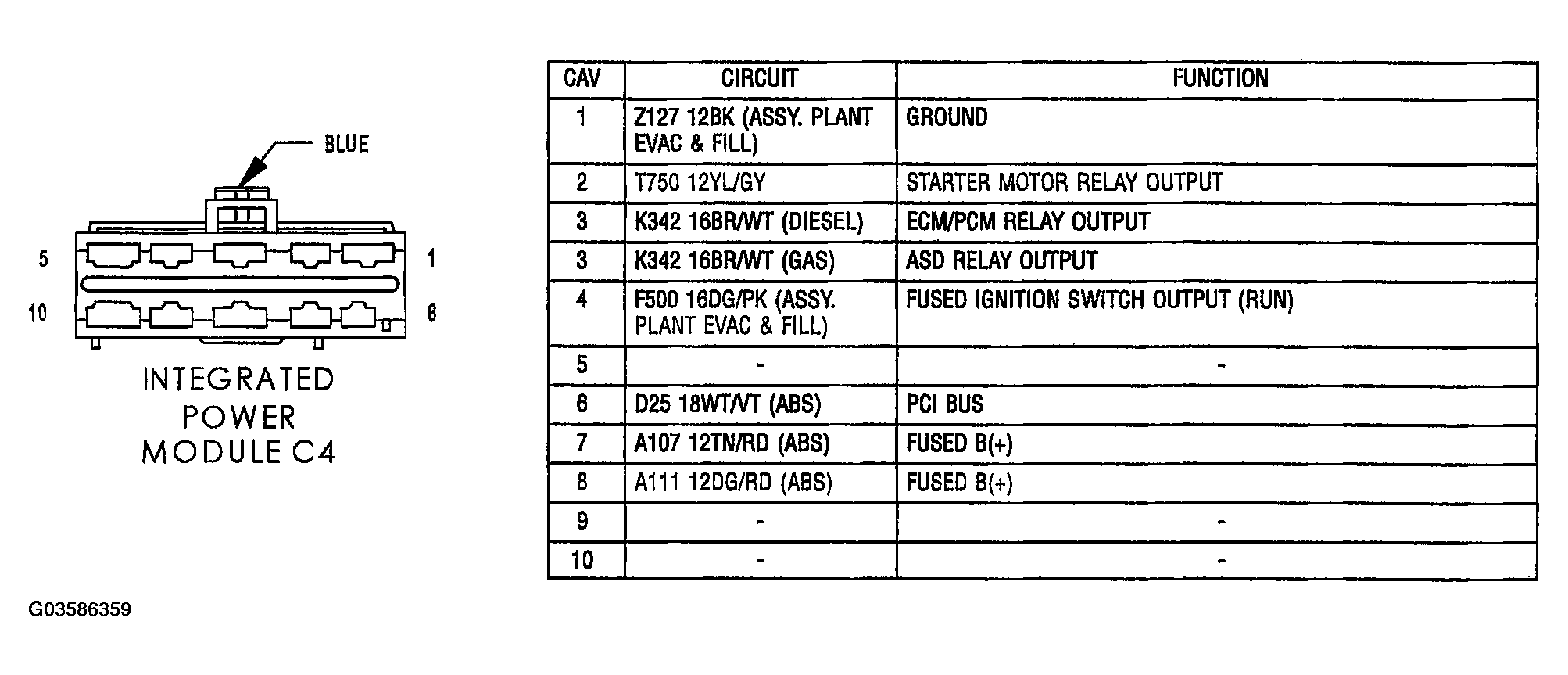

Fig 11: Identifying Integrated Power Module C4 Connector Pinouts - Blue 10-Way
Courtesy of DAIMLERCHRYSLER CORP.

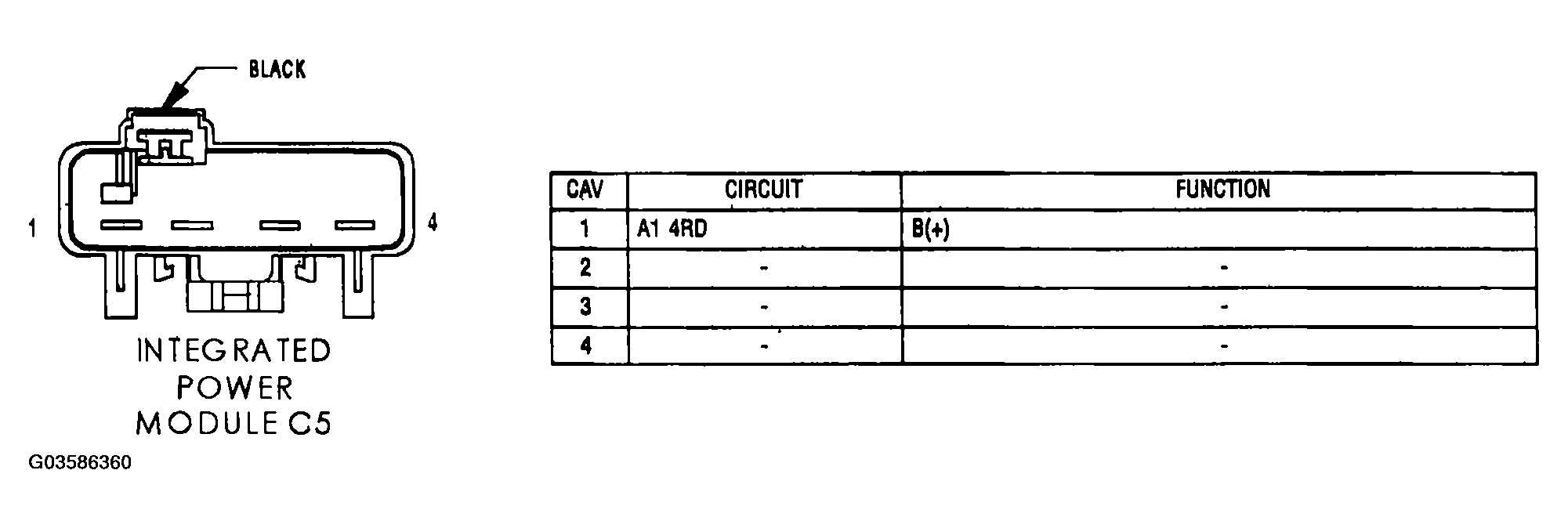

Fig 12: Identifying Integrated Power Module C5 Connector Pinouts - Black 4-Way
Courtesy of DAIMLERCHRYSLER CORP.

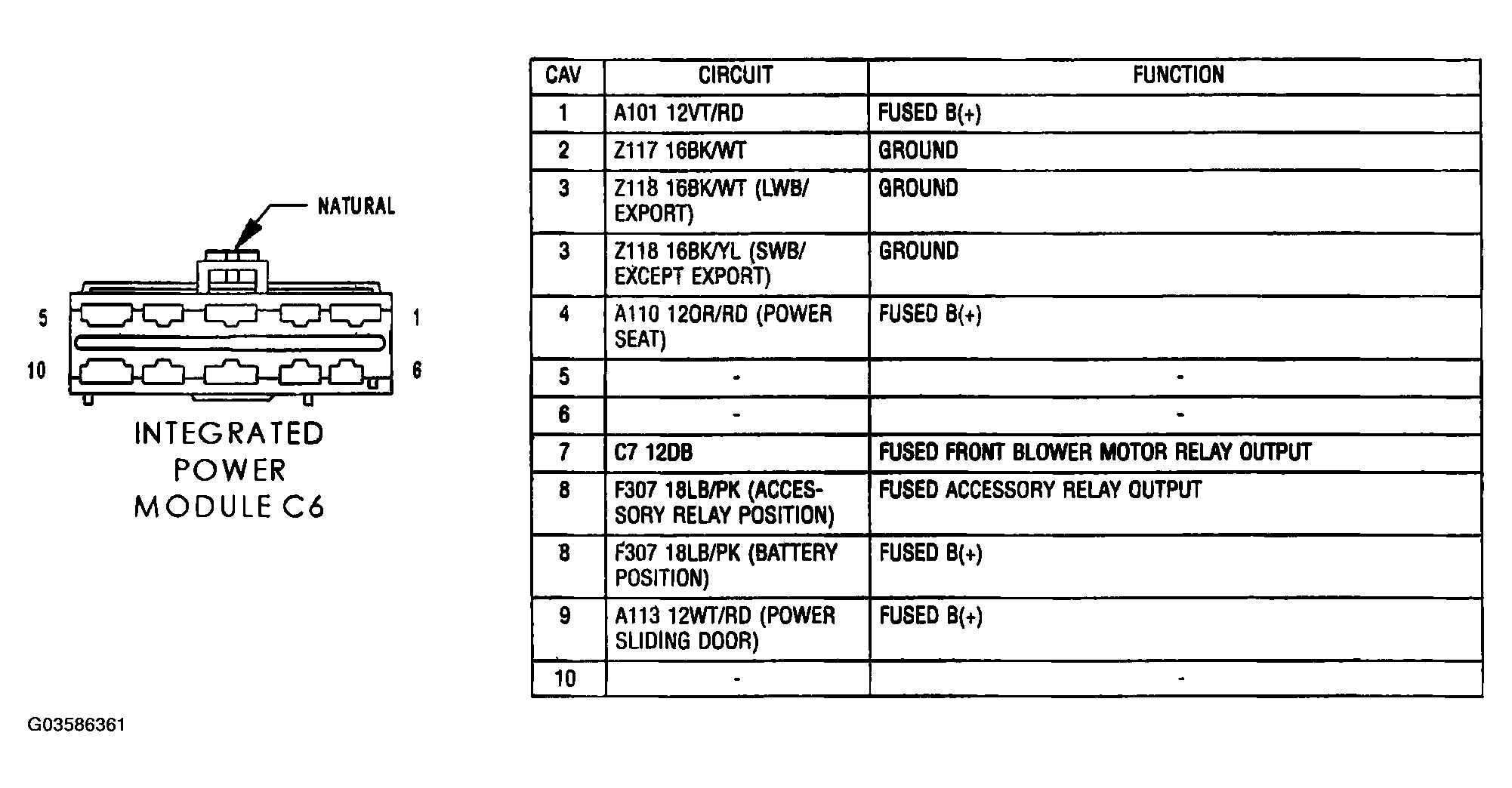

Fig 13: Identifying Integrated Power Module C6 Connector Pinouts - Natural 10-Way
Courtesy of DAIMLERCHRYSLER CORP.

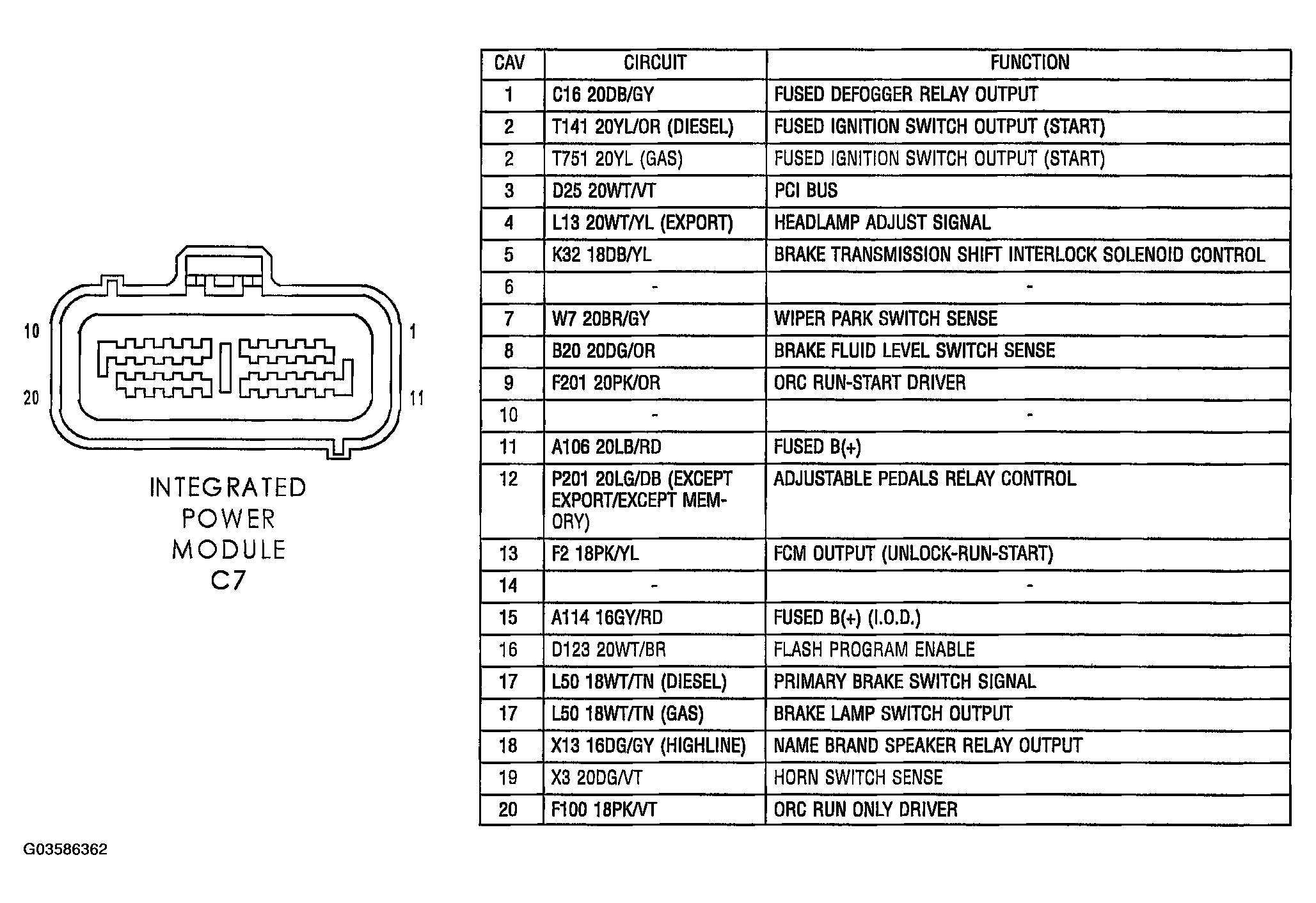

Fig 14: Identifying Integrated Power Module C7 Connector Pinouts - 20-Way
Courtesy of DAIMLERCHRYSLER CORP.

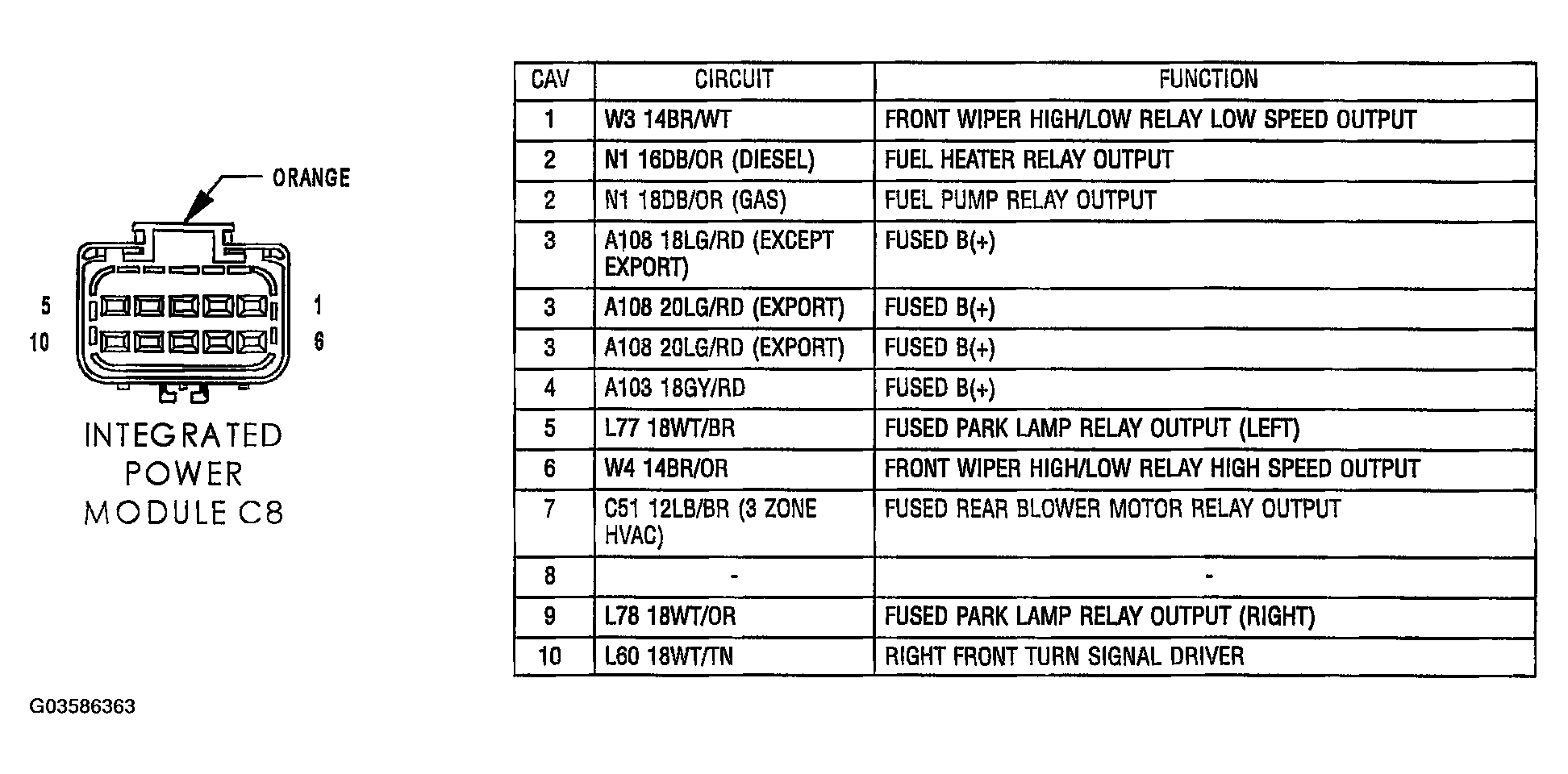

Fig 15: Identifying Integrated Power Module C8 Connector Pinouts - Orange 10-Way
Courtesy of DAIMLERCHRYSLER CORP.

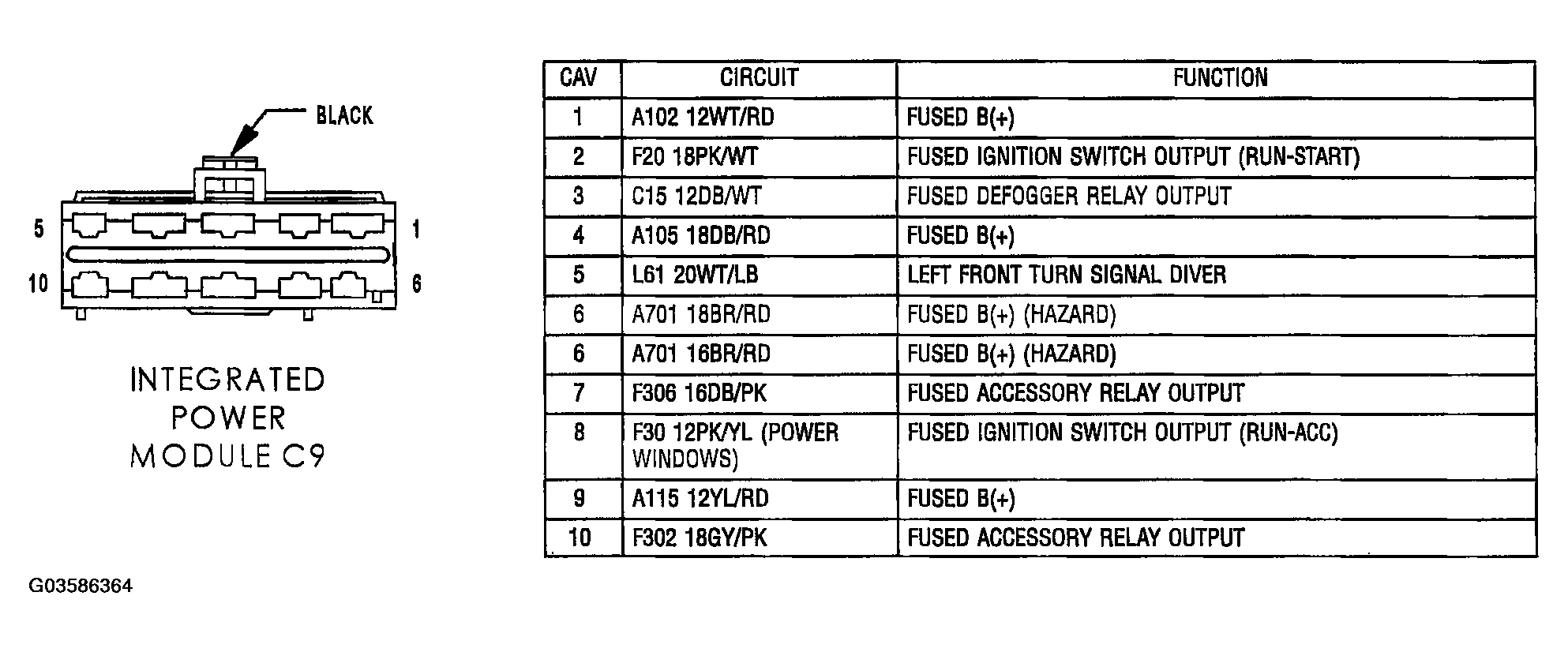

Fig 16: Identifying Integrated Power Module C9 Connector Pinouts - Black 10-Way
Courtesy of DAIMLERCHRYSLER CORP.
Fig 17: Identifying Output Speed Sensor Connector Pinouts - Gray 2-Way
Courtesy of DAIMLERCHRYSLER CORP.

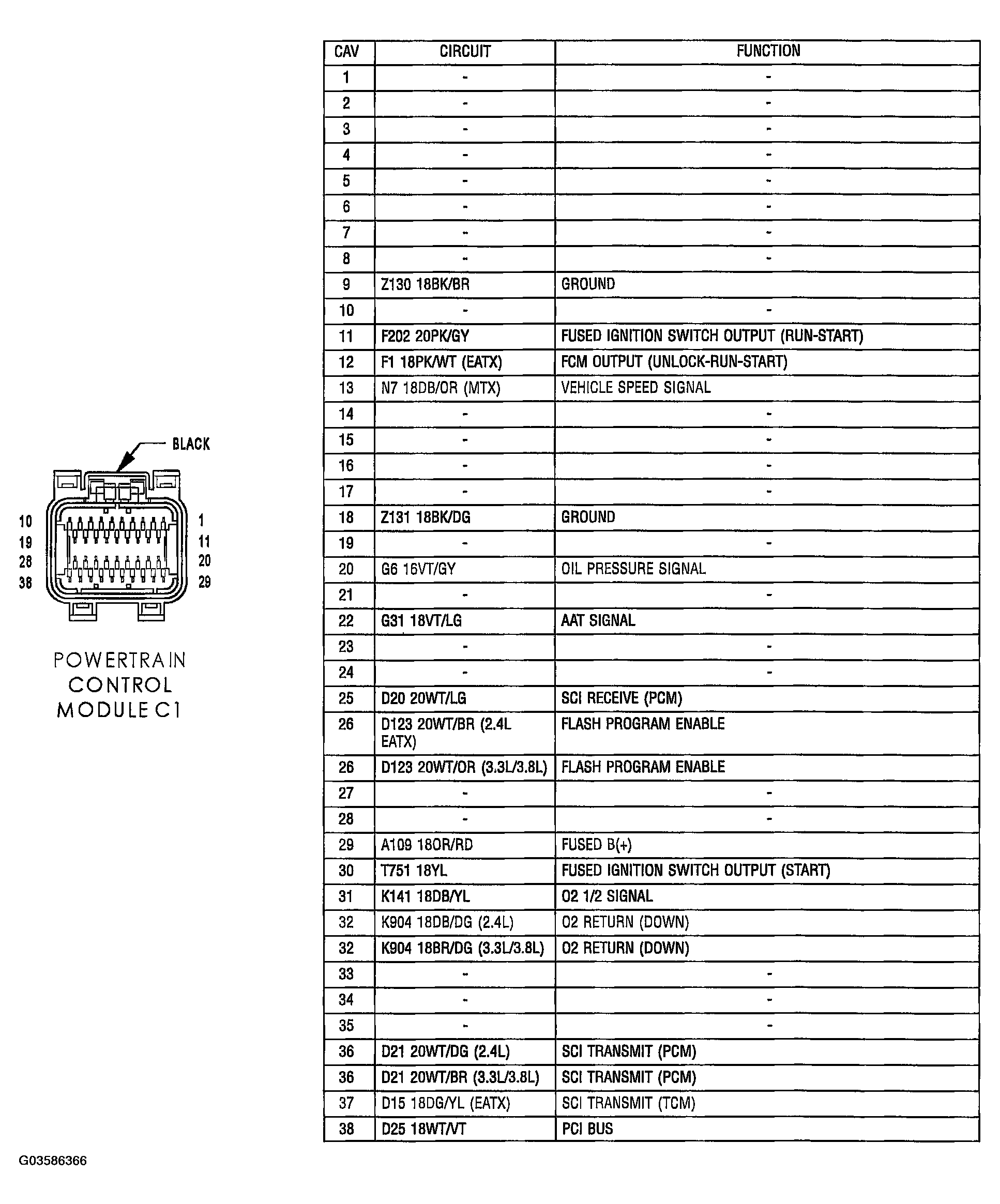

Fig 18: Identifying Powertrain Control Module C1 Connector Pinouts - Black 38-Way
Courtesy of DAIMLERCHRYSLER CORP.

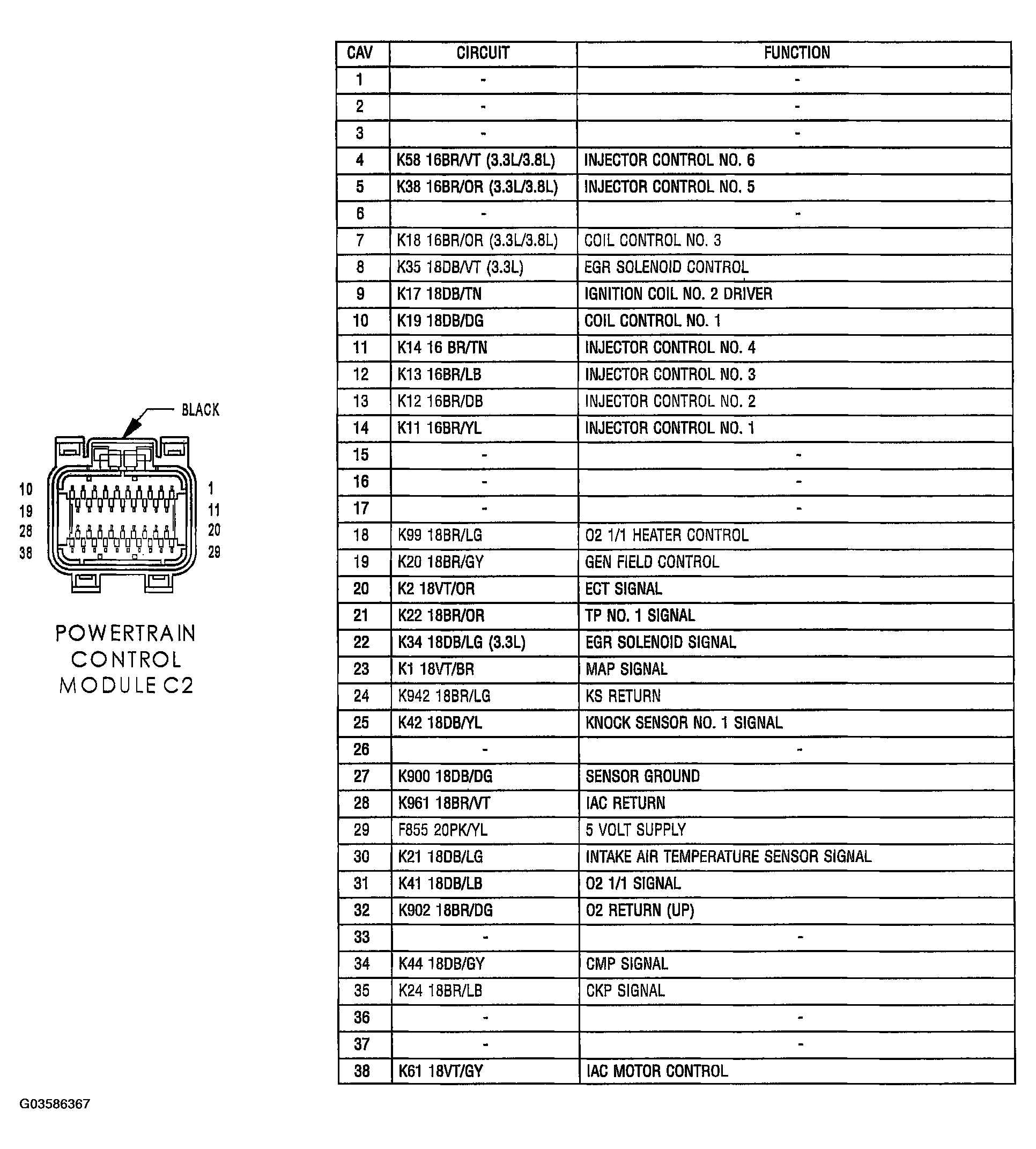

Fig 19: Identifying Powertrain Control Module C2 Connector Pinouts - Black 38-Way
Courtesy of DAIMLERCHRYSLER CORP.

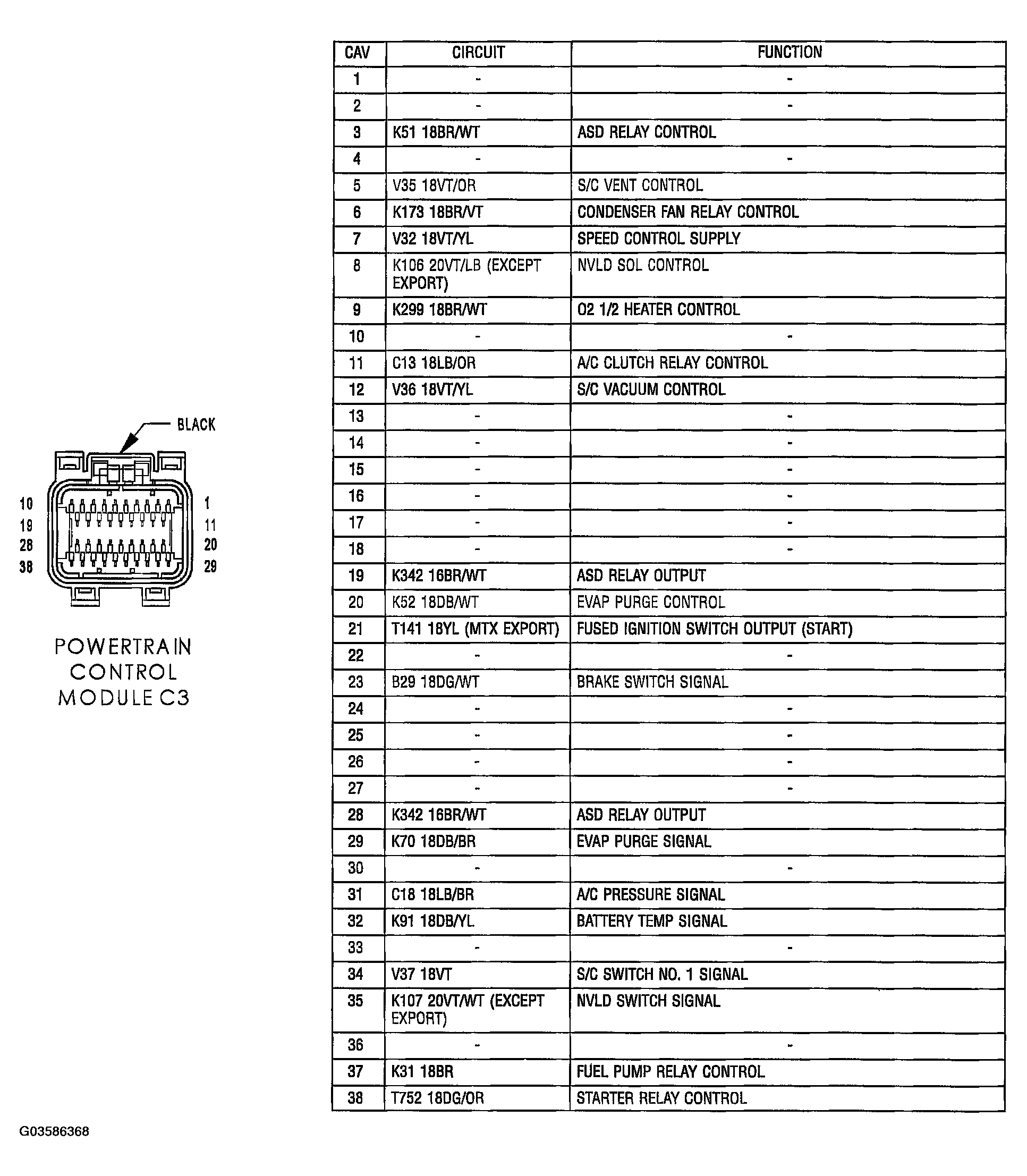

Fig 20: Identifying Powertrain Control Module C3 Connector Pinouts - Black 38-Way
Courtesy of DAIMLERCHRYSLER CORP.

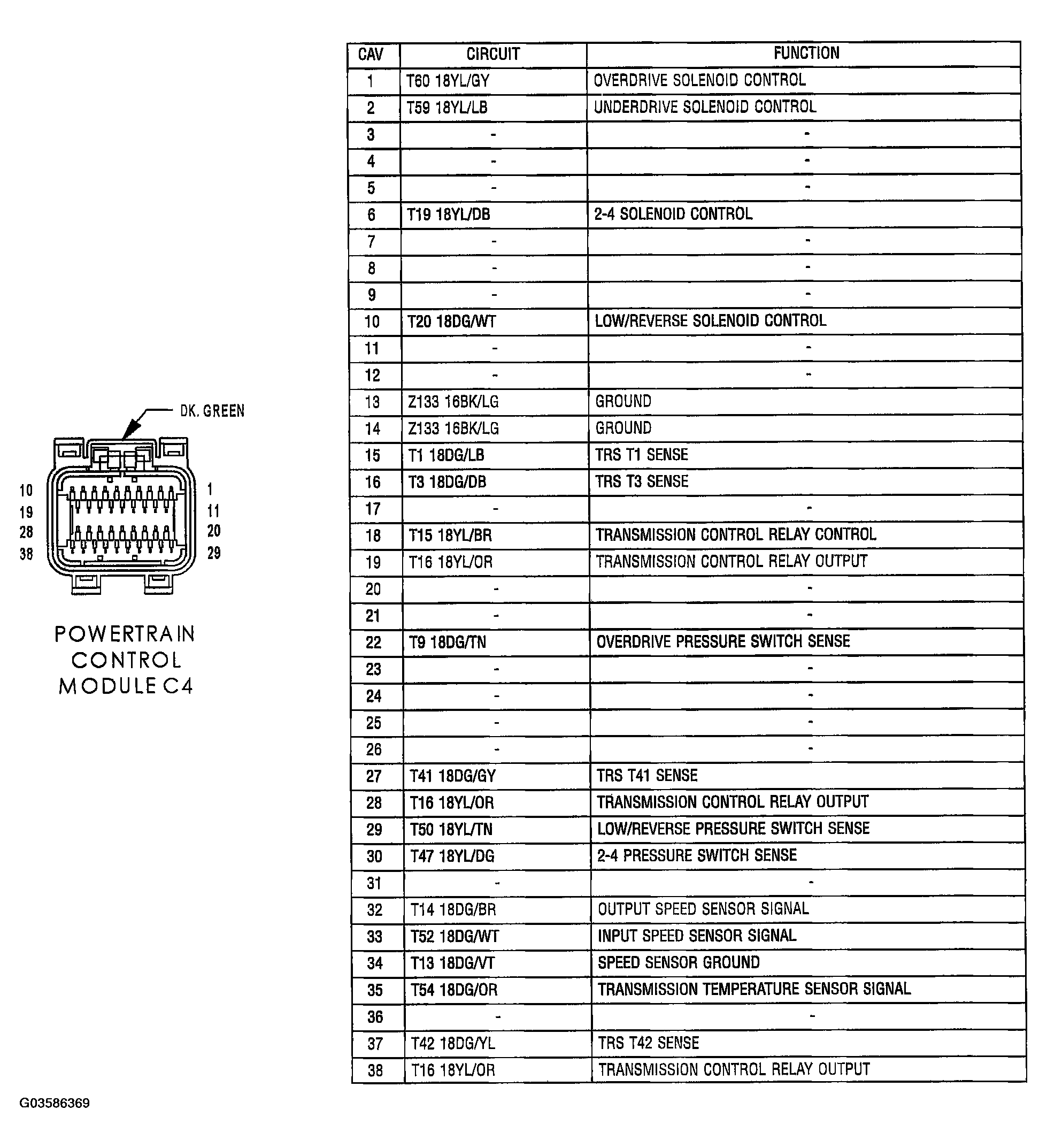

Fig 21: Identifying Powertrain Control Module C4 Connector Pinouts - Dk. Green 38-Way
Courtesy of DAIMLERCHRYSLER CORP.

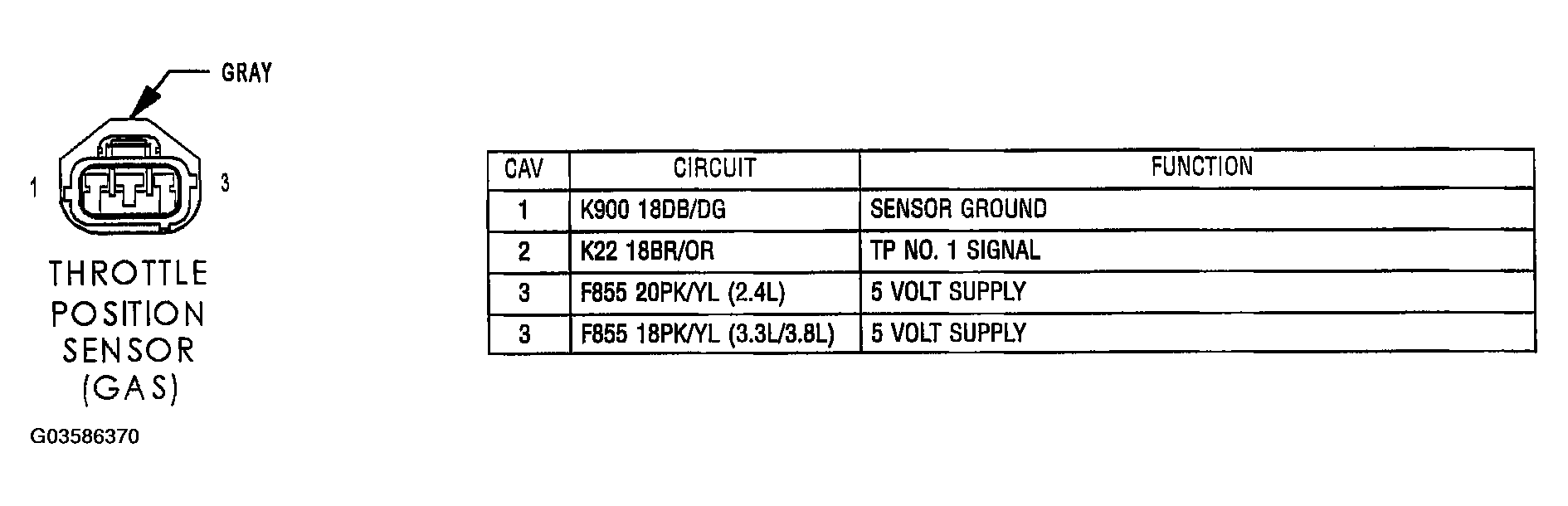

Fig 22: Identifying Throttle Position Sensor (GAS) Connector Pinouts - Gray 3-Way
Courtesy of DAIMLERCHRYSLER CORP.

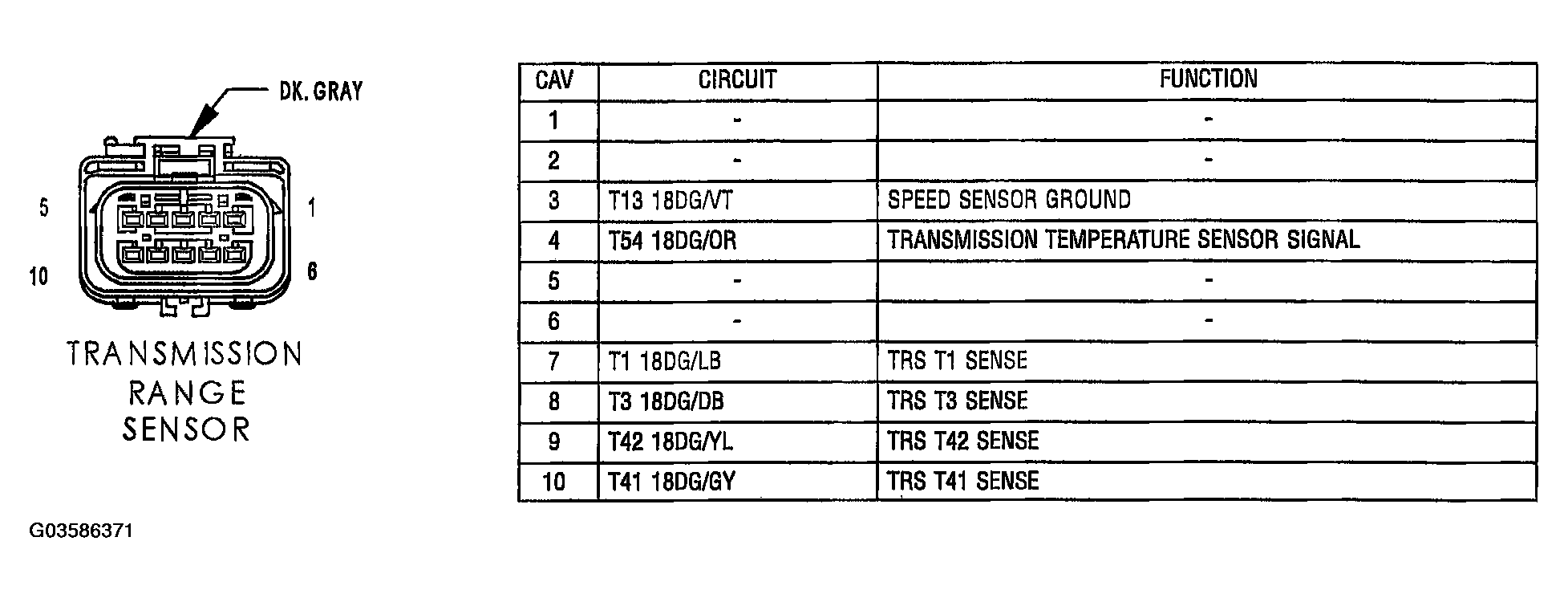

Fig 23: Identifying Transmission Range Sensor Connector Pinouts - Dk. Gray 10-Way
Courtesy of DAIMLERCHRYSLER CORP.

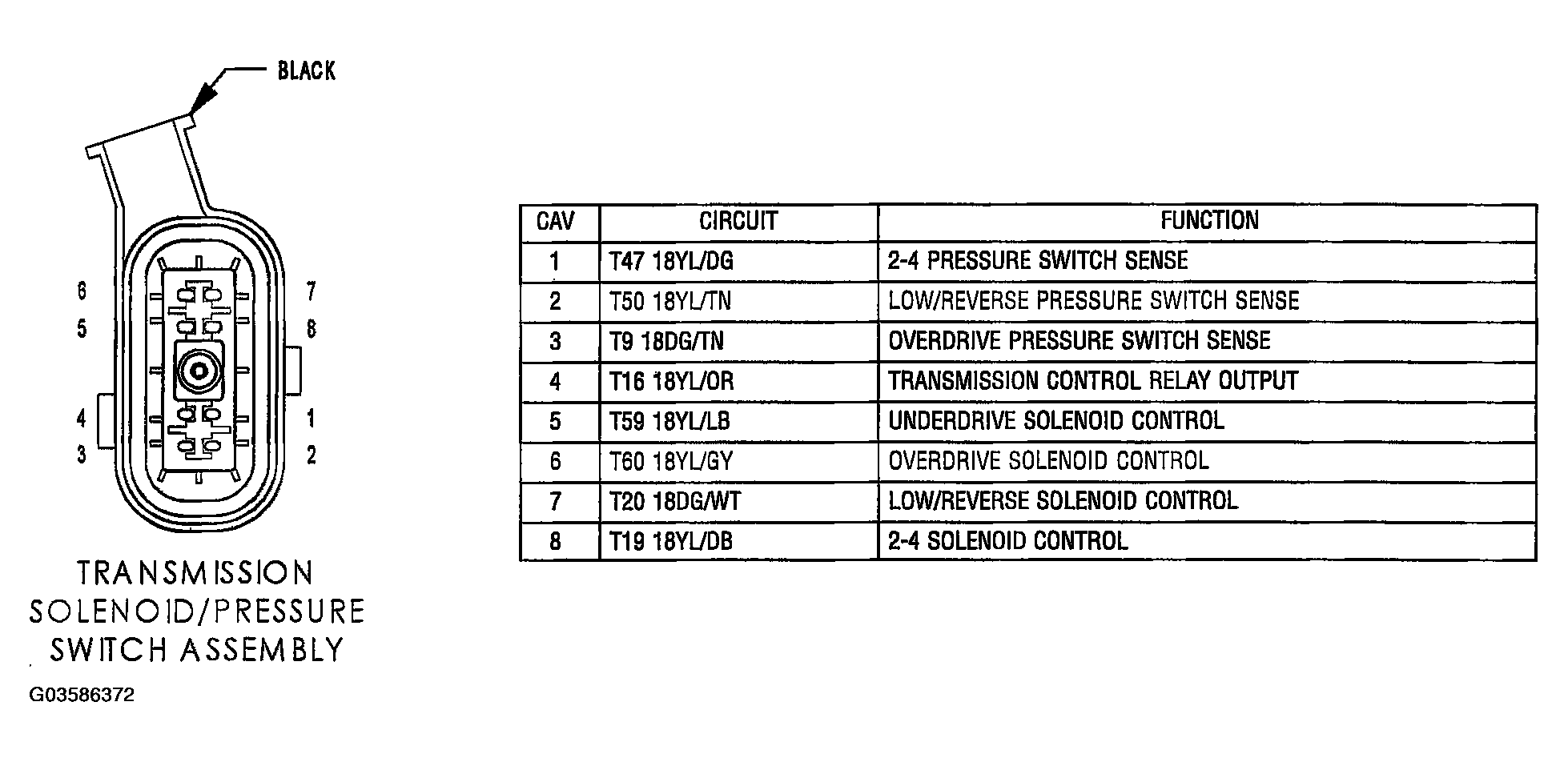

Fig 24: Identifying Transmission Solenoid/Pressure Switch Assembly Connector Pinouts - Black 8-Way
Courtesy of DAIMLERCHRYSLER CORP.
