Lumbar Support: Removal

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove screw attaching lumbar handle to seat back (Fig 1 ).

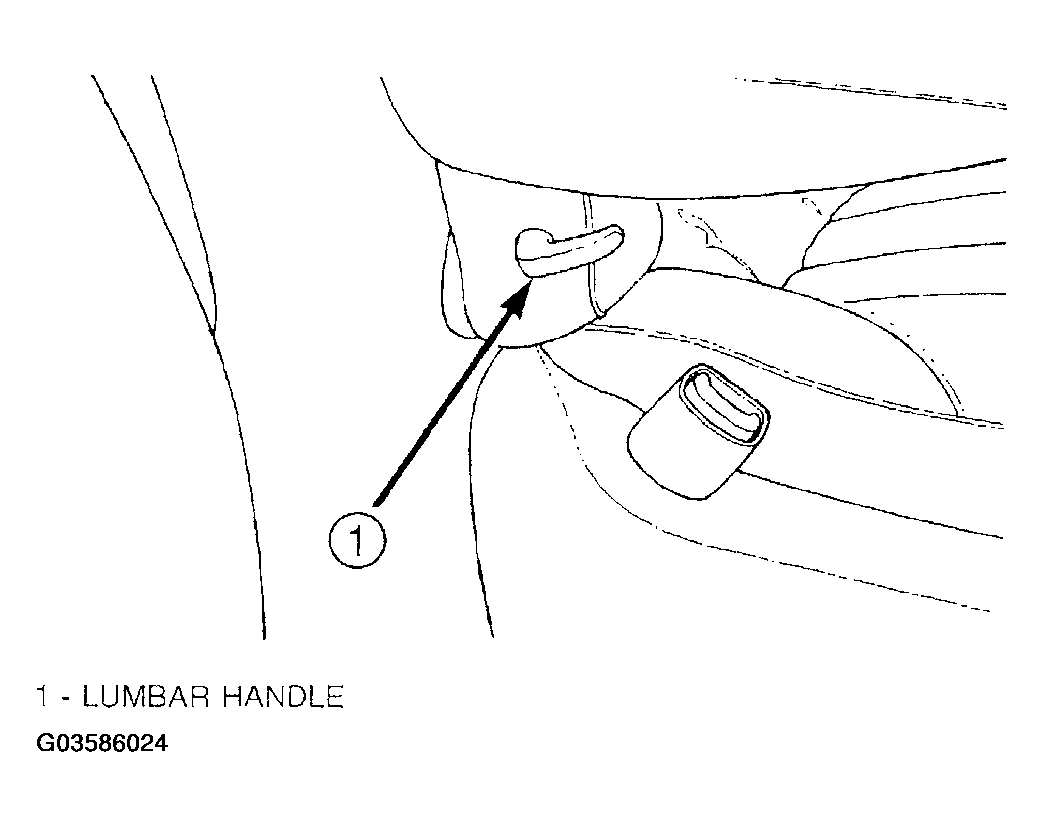

    Fig 1: Identifying Lumbar Handle
    G03586024Courtesy of DAIMLERCHRYSLER CORP.
  2. Remove seat back assembly from cushion.
  3. Detrim the seat back assembly.
  4. Remove frame and replace.
