Section 242 (Seat System): Headrest: Removal

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lift head restraint to top of travel.
  2. Depress lock button on side of sleeve at top of seat back (Fig 1 ).

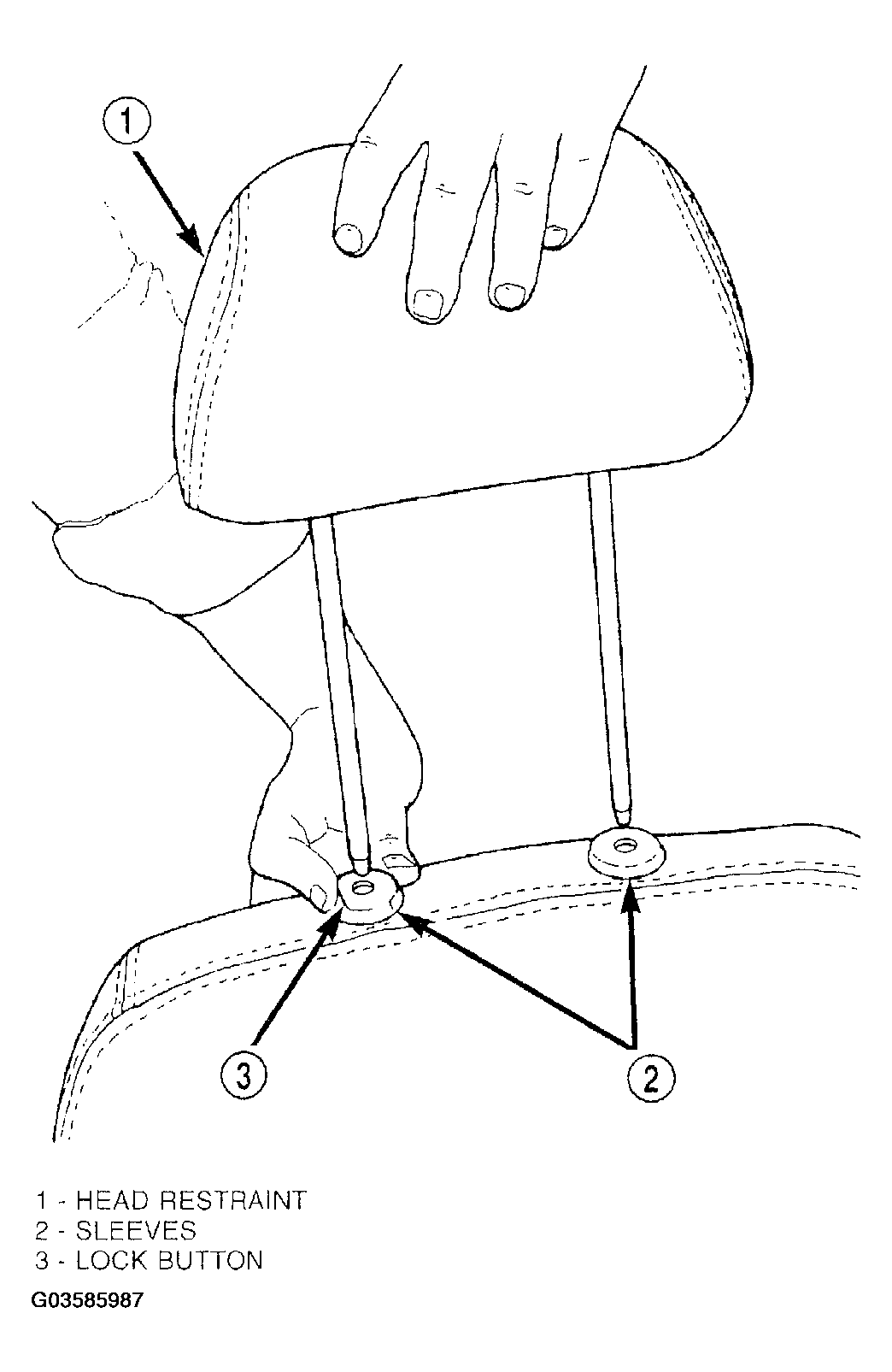

    Fig 1: Identifying Head Restraint
    G03585987Courtesy of DAIMLERCHRYSLER CORP.
  3. Pull head restraint from top of seat back.
