Front Seatback Panel: Removal

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws (Fig 1 ).

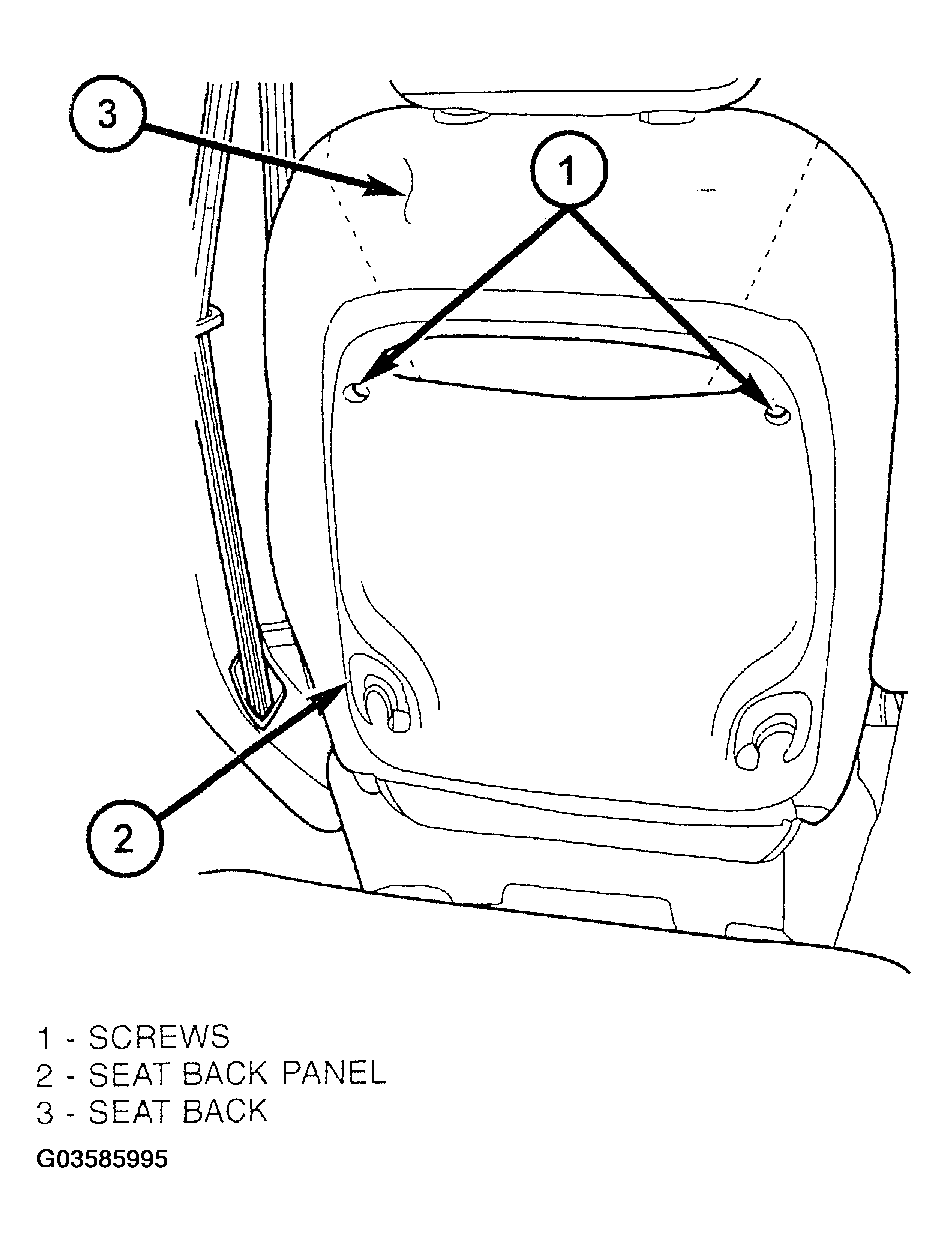

    Fig 1: Identifying Front Seatback Panel - Typical
    G03585995Courtesy of DAIMLERCHRYSLER CORP.
  2. Tip the top of the panel away from the seat back and lift off the hooks at the bottom to remove.
