Front Seatback Assist Strap: Installation

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place assist strap in position on vehicle.
  2. Install screws attaching assist strap to seat back. Tighten screws to 2.5 N.m (22 in. lbs.).

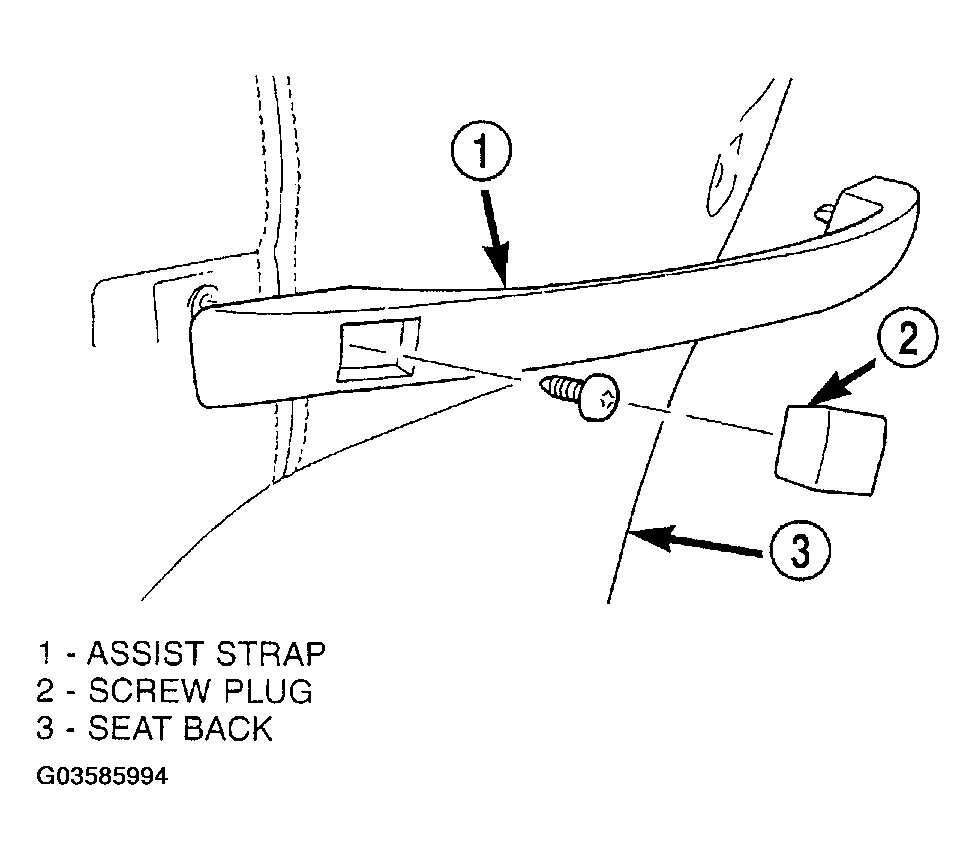

  3. Insert screw plugs into ends of assist strap (Figure ).
