Bench Seat Back: Removal

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Bench seats equipped with child restraint seats have an interlock feature that will not allow the seat back to fold forward with the child seat open.
  1. Remove the headrests. (Refer to HEADREST  )
  2. Remove the armrests, if equipped. (Refer to ARMREST  )
  3. Remove the upper hinge cover. (Refer to SEAT BACK HINGE COVERS - QUAD BUCKET, 50/50 SPLIT, BENCH  )
  4. Disengage synchronizing cable housing from seat back hinge, if equipped.
  5. Disengage synchronizing cable end from (clip on left side) hinge latch release arm, if equipped.
  6. Remove shoulder bolts attaching seat back hinge to seat back frame (Fig 1 ).

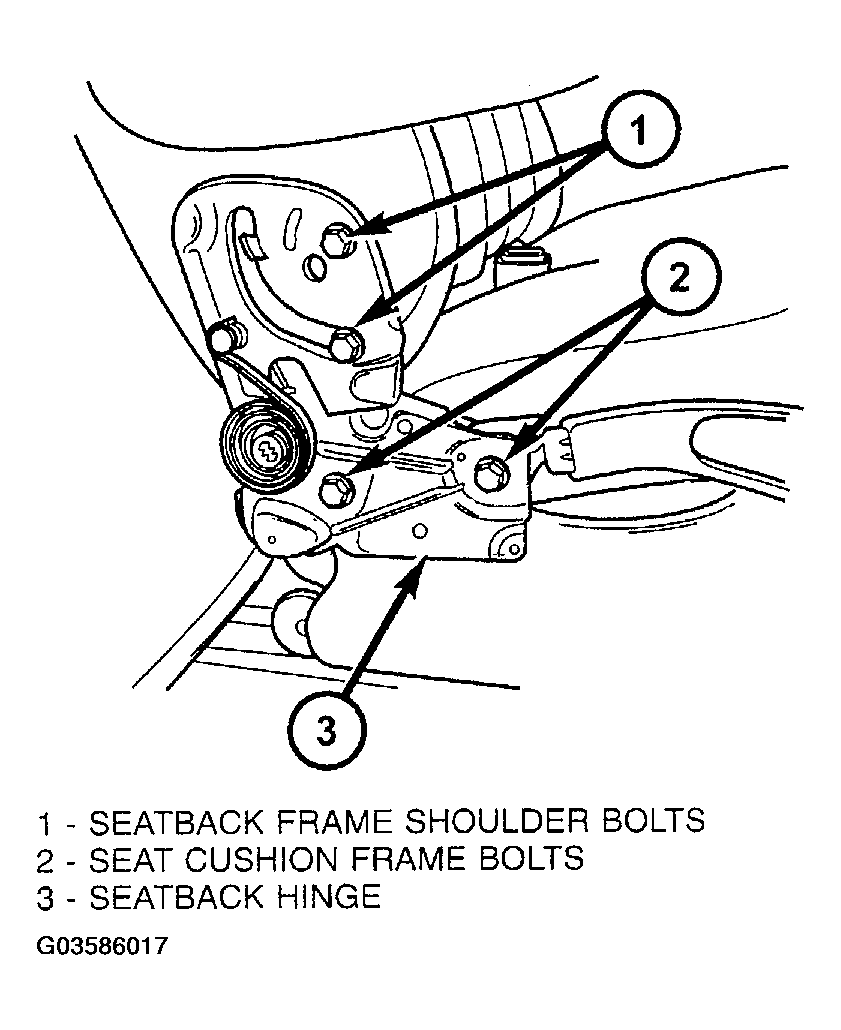

    Fig 1: Identifying Seat Back Hinge - Typical
    G03586017Courtesy of DAIMLERCHRYSLER CORP.
  7. Remove the seat back.
