Steering Column Cover Backing Plate: Installation

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

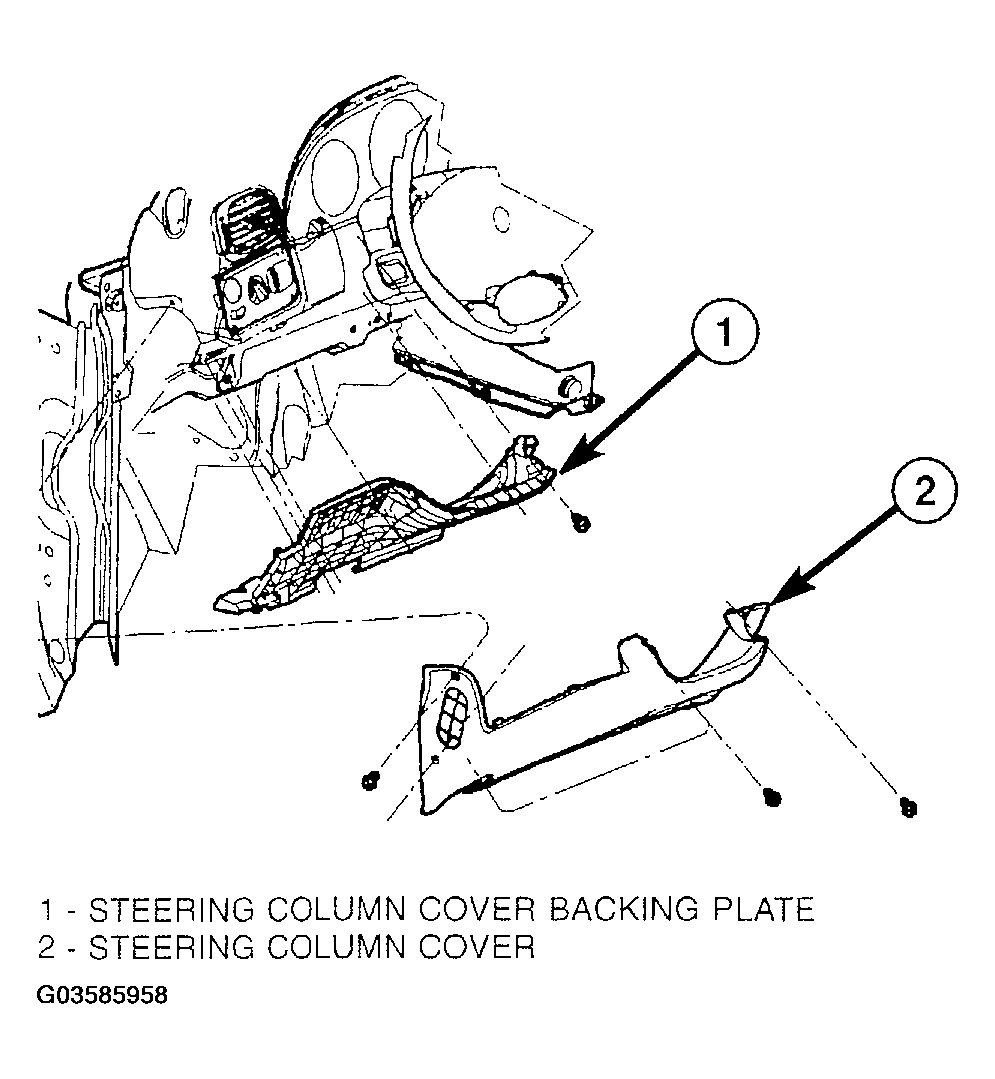

  1. Install the steering column cover backing plate into vehicle (Figure ).
  2. Clip the Data Link Connector (DLC) to the steering column cover backing plate
  3. Install the screws attaching steering column cover backing plate to instrument panel.
  4. Connect the park brake release handle link to the park release handle.
  5. Install the lower steering column cover (Refer to LOWER STEERING COLUMN COVER  ).
