Lower Instrument Panel: Installation

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

When servicing the lower instrument panel, refer to INSTRUMENT PANEL ASSEMBLY  , and then the appropriate removal procedure.

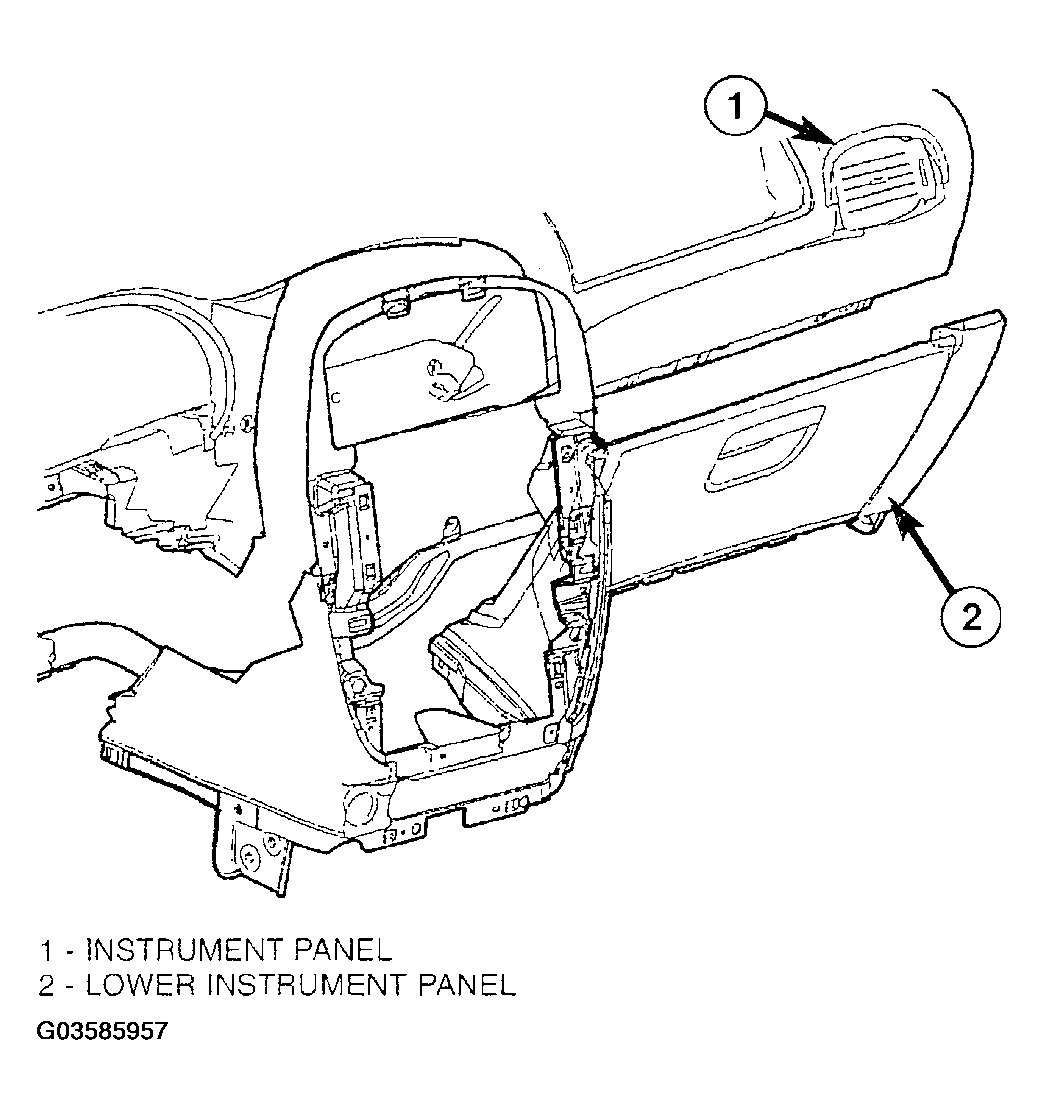

  1. Install the lower instrument panel into the vehicle (Figure ).
  2. Install the eighteen screws holding the lower instrument panel to the reinforcement frame.
  3. Install the glove box lamp.
  4. Install the glove box latch striker.
  5. Install the glove box.
  6. Install the cup holder and track.
  7. Install the lower console.
  8. Install the center bezel.
  9. Install the lower steering column cover.
  10. Install the right end cover.
