Lower Console: Installation

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the auxiliary power outlet wire connector (if equipped).

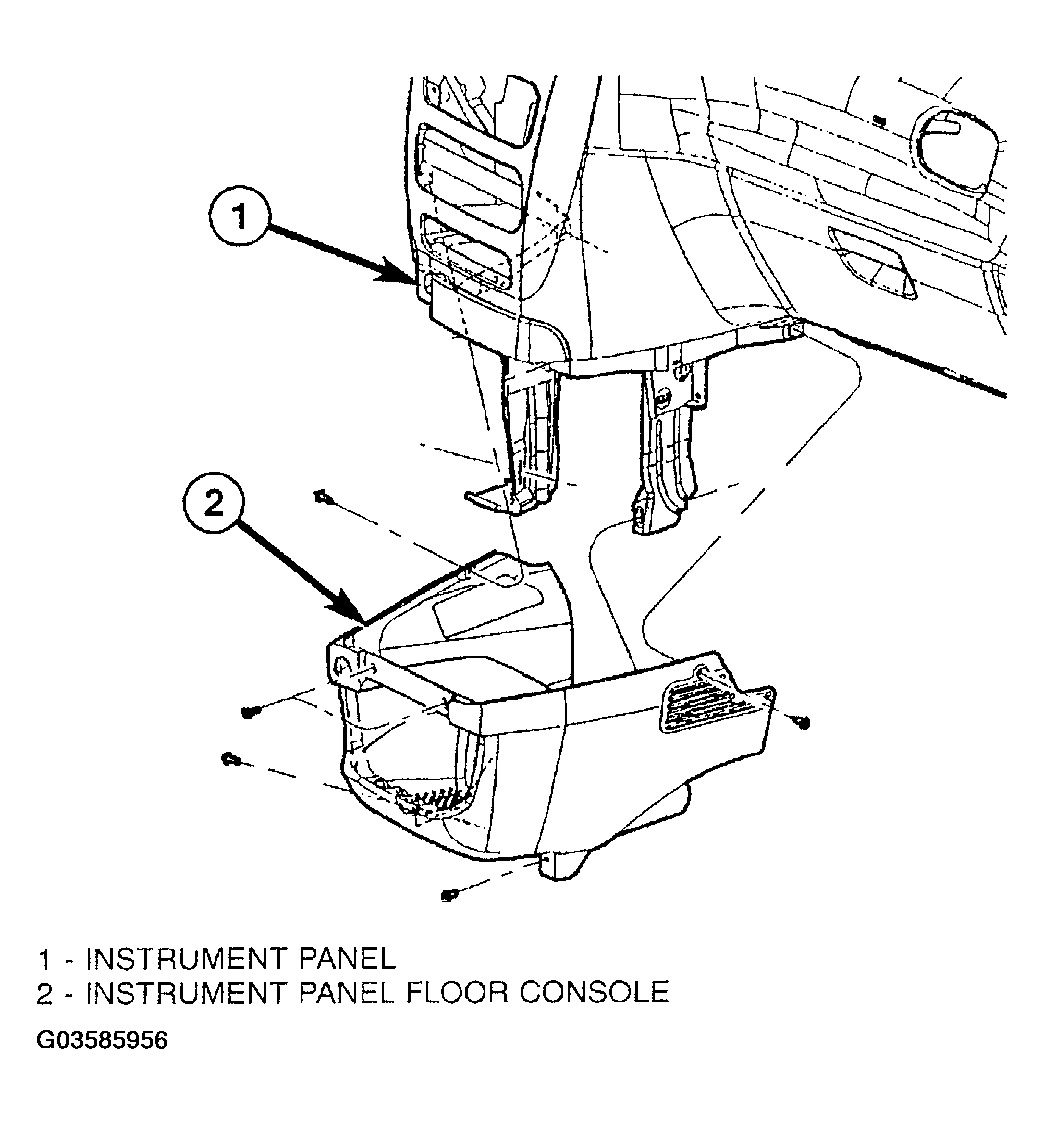

  2. Install the lower console into the vehicle (Figure ).
  3. Slide console forward around instrument panel supports.
  4. Install the screws attaching lower console to floor bracket and instrument panel.
