Cluster Bezel: Installation

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

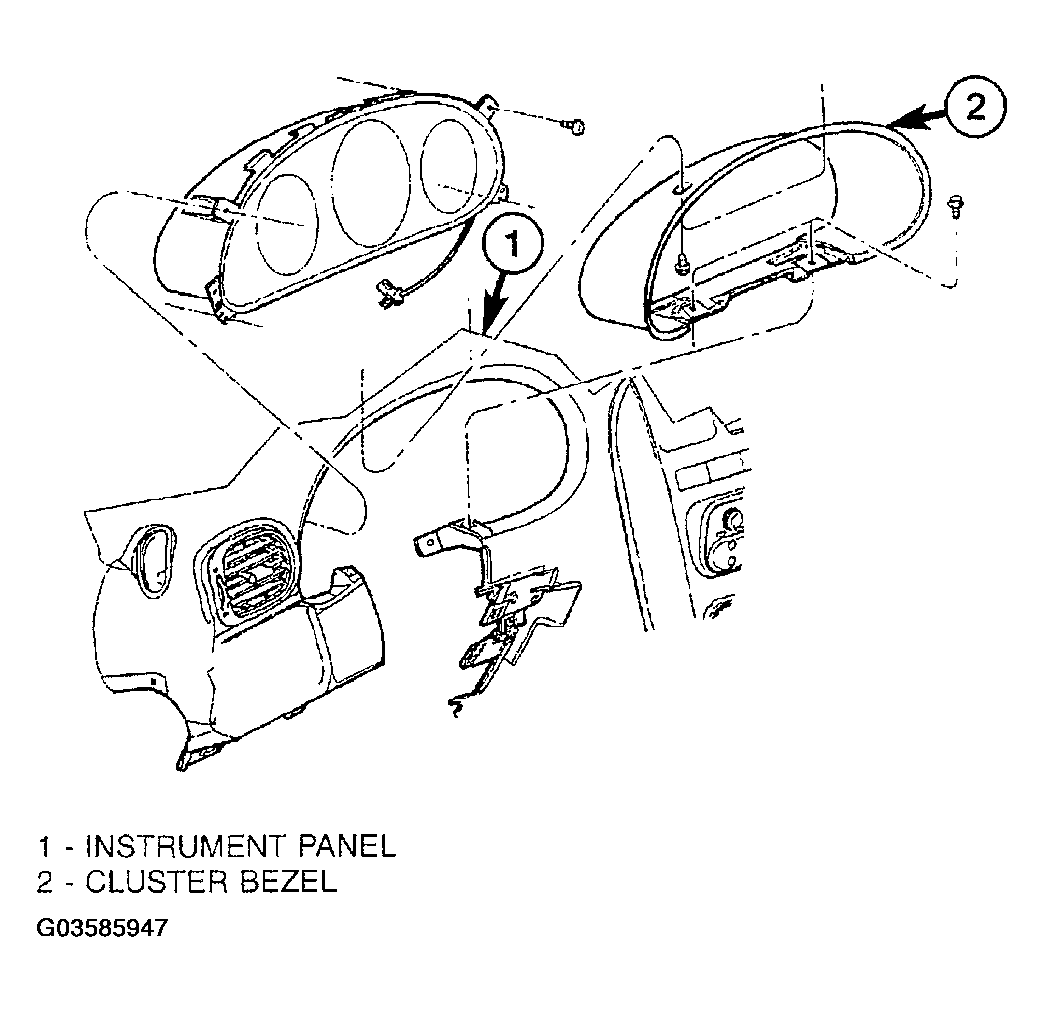

  1. Maneuver cluster bezel over steering column and into position (Figure ).
  2. Install the four bezel attaching screws.
  3. Install the Over Steering Column Bezel by positioning it over the retaining slots and firmly snapping it into place.
  4. Connect the battery negative cable.
