Trim Panel: Removal

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolt attaching the lift motor link, if equipped (Fig 1 ).

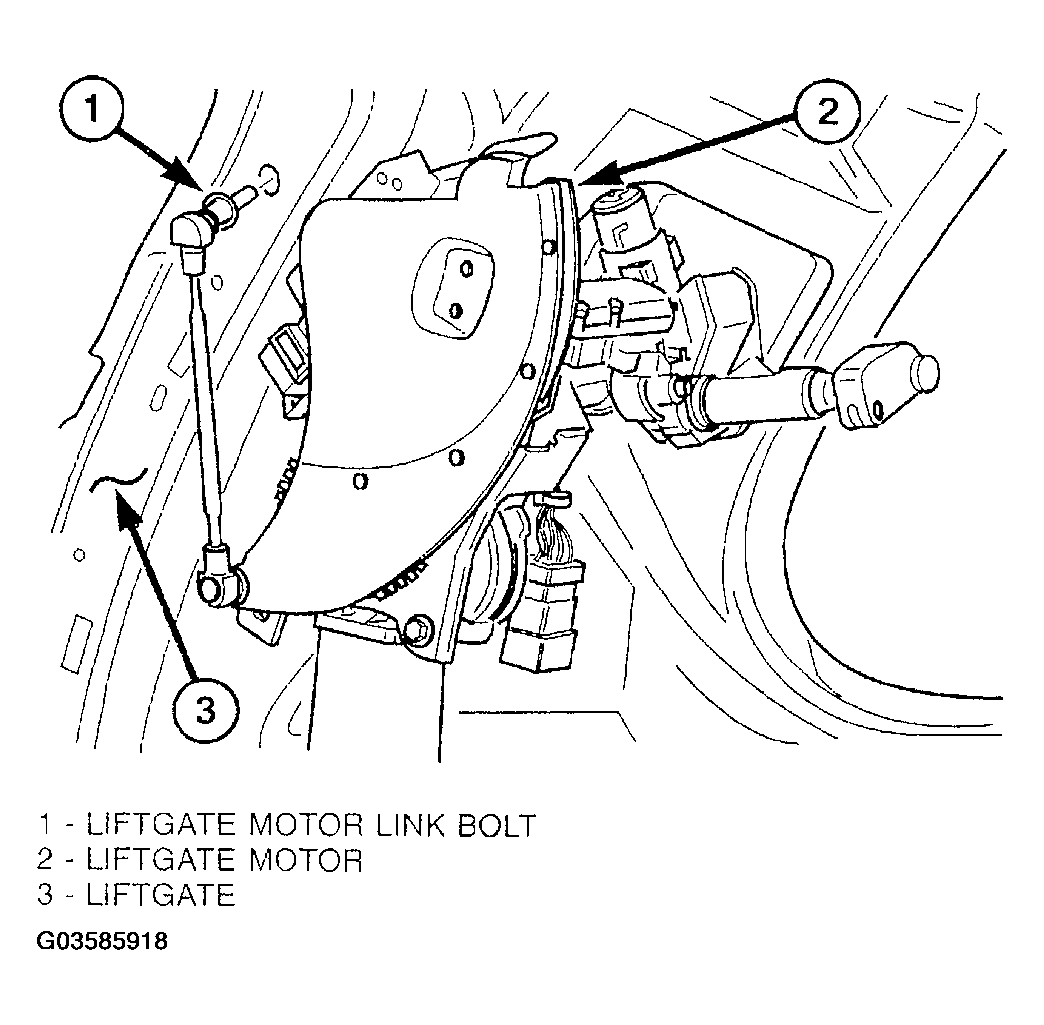

    Fig 1: Identifying Liftgate Motor
    G03585918Courtesy of DAIMLERCHRYSLER CORP.
  2. Remove liftgate upper frame molding (Fig 2 ).

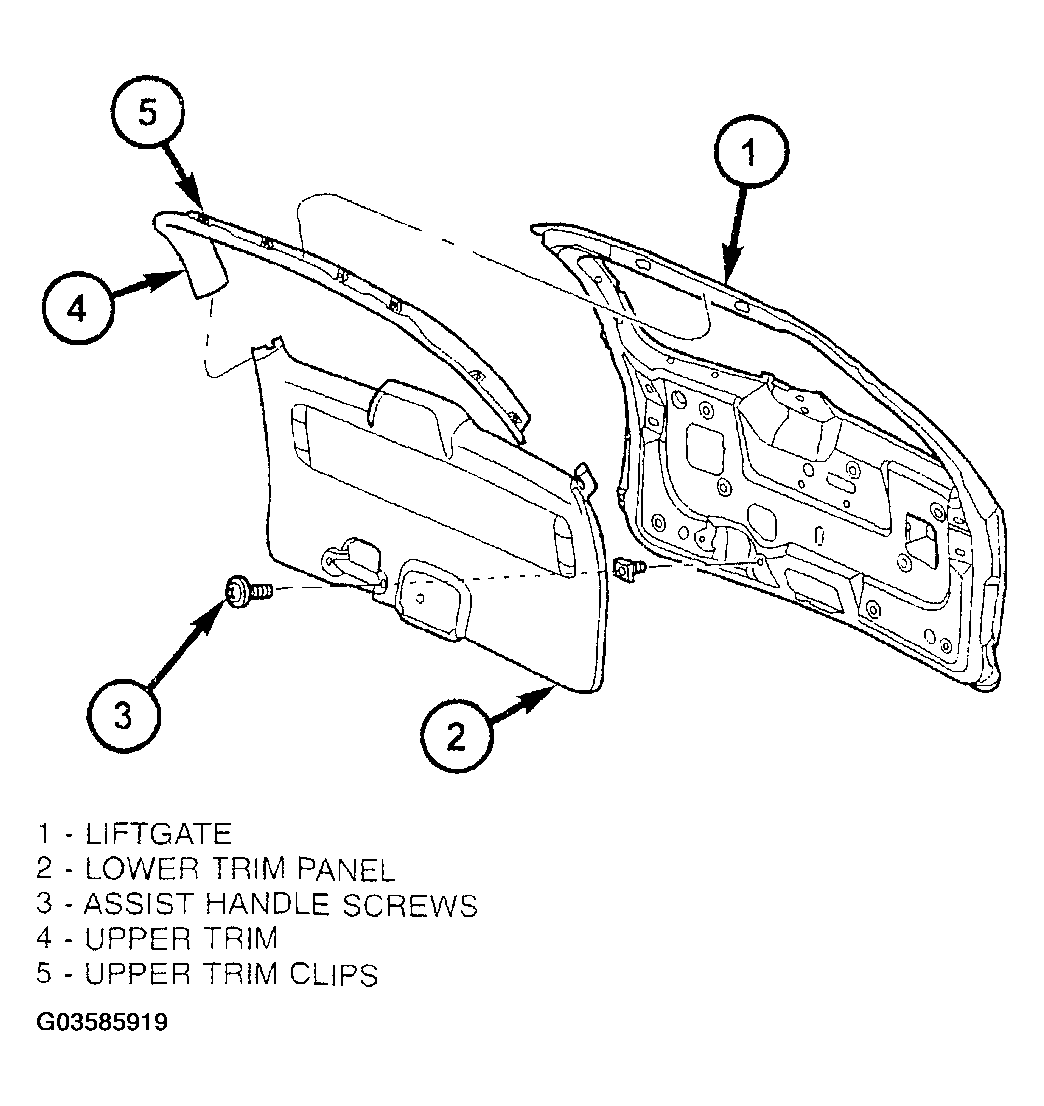

    Fig 2: Identifying Liftgate Trim
    G03585919Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove assist handle screws.
  4. Disengage hidden clips holding trim panel to liftgate from around perimeter or liftgate (Fig 2 ).
  5. Disconnect wire connector from lamps.
  6. Remove liftgate trim panel from vehicle.
