Support Cylinder: Removal

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release liftgate latch and open liftgate.
  2. Support liftgate on a suitable lifting device in the full open position.
  3. Pull liftgate opening weatherstrip from D-pillar flange next to prop assembly end pivot.
  4. Remove bolt attaching end pivot to D-pillar (Fig 1 ).

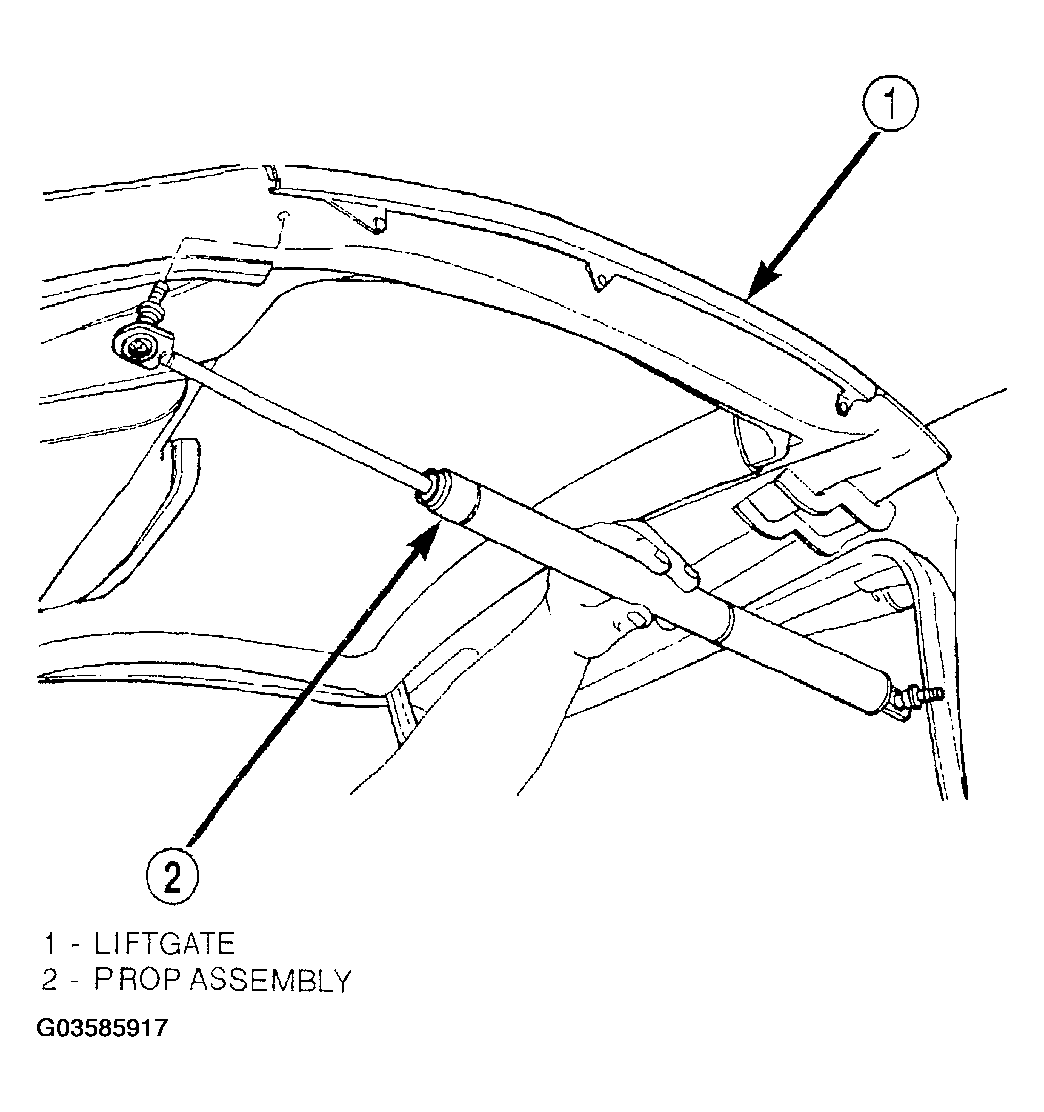

    Fig 1: Identifying Liftgate Prop Assembly
    G03585917Courtesy of DAIMLERCHRYSLER CORP.
  5. Remove bolt attaching prop assembly to liftgate.
  6. Remove prop assembly from vehicle.
